Toyota Avalon

1995-03 → 2000-02 · chassis MCX10 · catalogue 361110 · Japan

Discontinued model Data version 2000-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

9 part groups · 2 illustrations

Illustrations

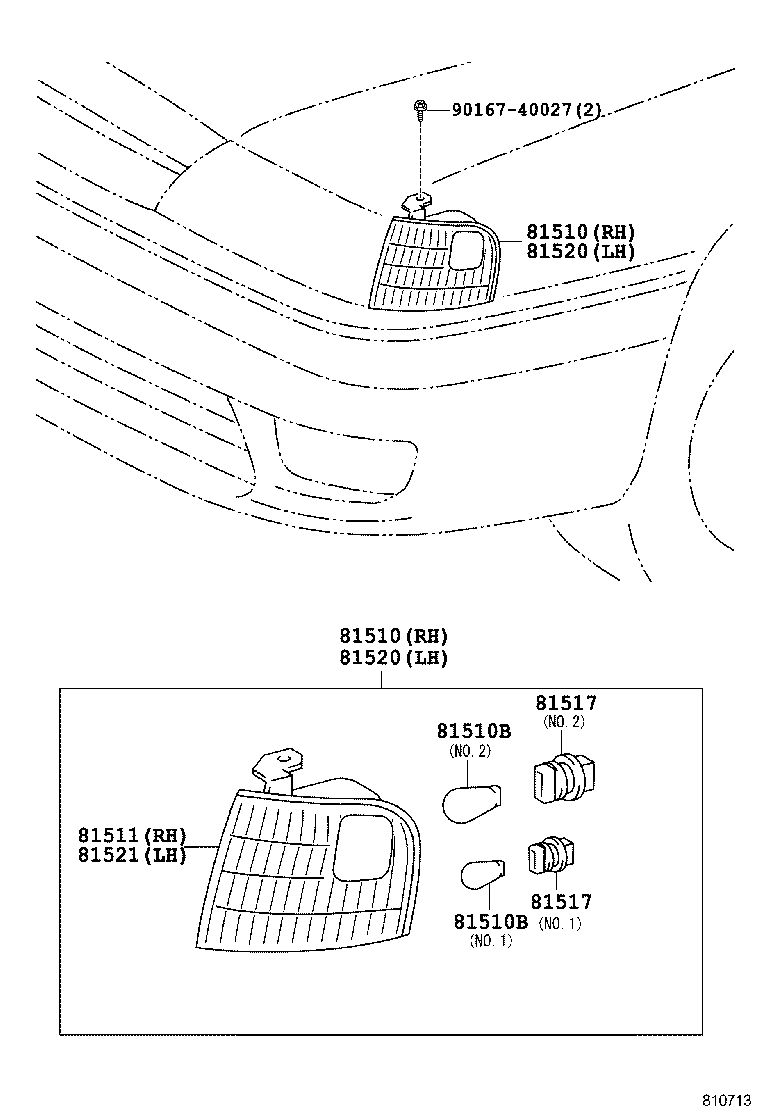

Figure 810837 810837 1995-03 → 1997-09 Figure 810713A 810713A 1997-09 → —

Part groups

PNCDescription
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81517 Socket, Front Turn Signal Lamp
81518 Shade, Front Turn Signal Lamp, RH
81520 Lamp Assy, Front Turn Signal, LH
81521 Lens, Front Turn Signal Lamp, LH
81528 Shade, Front Turn Signal Lamp, LH
81945A Socket, Bulb
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
