Toyota Avalon
1995-03 → 2000-02 · chassis MCX10 · catalogue 361110 · Japan
Discontinued model
Data version 2000-10

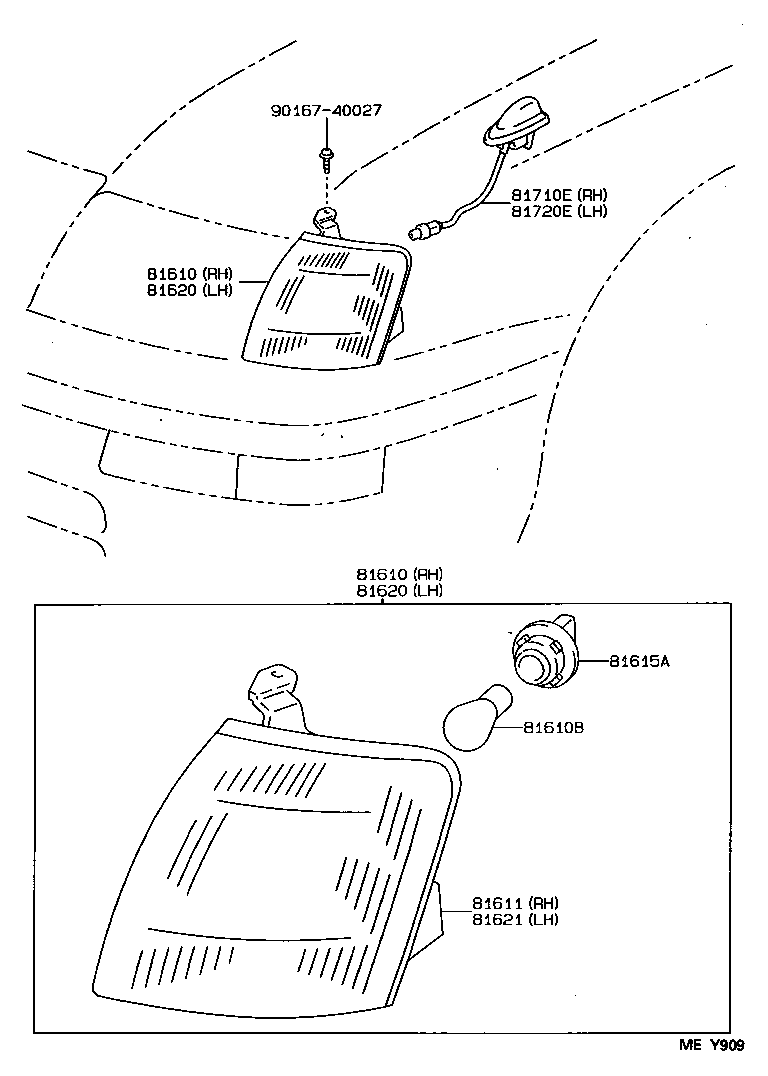

Front Clearance Lamp
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81610 | Lamp Assy, Parking & Clearance, RH |
| 81610B | Bulb(FOR PARKING & CLEARANCE LAMP) |
| 81611 | Lens, Parking & Clearance Lamp, RH |
| 81615A | Socket Plug, Clearance Lamp |
| 81620 | Lamp Assy, Parking & Clearance, LH |
| 81621 | Lens, Parking & Clearance Lamp, LH |
| 81710E | Marker Assy, Fender, RH |
| 81720E | Marker Assy, Fender, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
