Toyota Avalon
1995-03 → 2000-02 · chassis MCX10 · catalogue 361110 · Japan
Discontinued model
Data version 2000-10
Meter
29 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

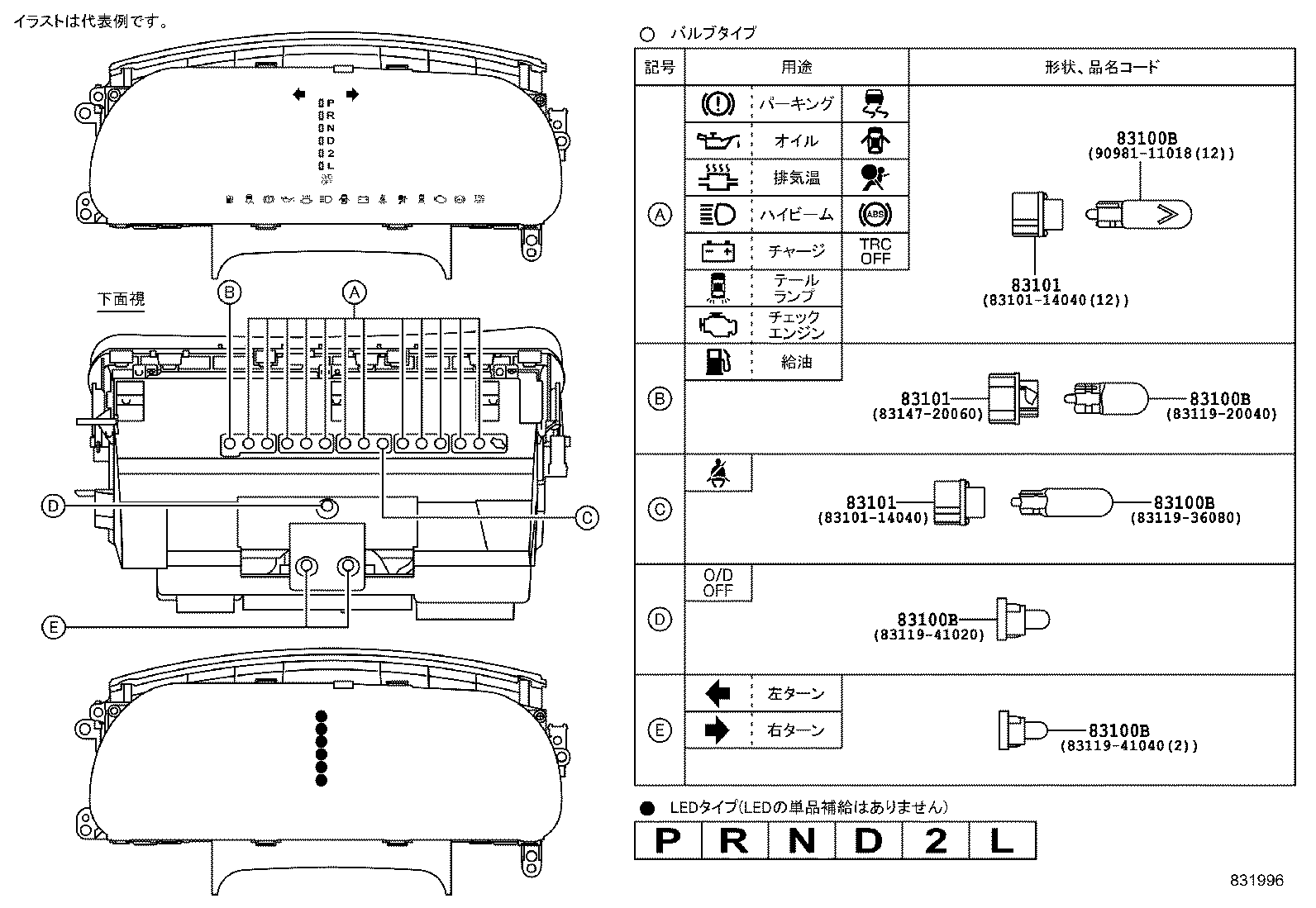

| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83129 | Wire, Meter |
| 83132 | Case, Combination Meter |
| 83132D | Case, Combination Meter, NO.2 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83134B | Cover, Combination Meter, NO.2 |
| 83134D | Cover, Combination Meter, NO.3 |
| 83134E | Cover, Combination Meter, NO.4 |
| 83134F | Circuit Cover, Combination Meter |
| 83136A | Cover, Combination Meter |
| 83138G | Glass, Combination Meter |
| 83138H | Glass, Combination Meter NO.2 |
| 83138J | Case, Combination Meter NO.2 |
| 83139 | Bracket, Combination Meter |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83148 | Inverter Ballast, Combination Meter |
| 83149C | Lamp Case, Combination Meter |
| 83181A | Sensor, Speedometer |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83247C | Plate, Mater Circuit, NO.3 |
| 83247E | Plate, Mater Circuit, NO.4 |
| 83910 | Clock Assy |
| 83970 | Buzzer Assy, Reverse Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
