Toyota Avalon

1995-03 → 2000-02 · chassis MCX10 · catalogue 361110 · Japan

Discontinued model Data version 2000-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

6 part groups · 2 illustrations

Illustrations

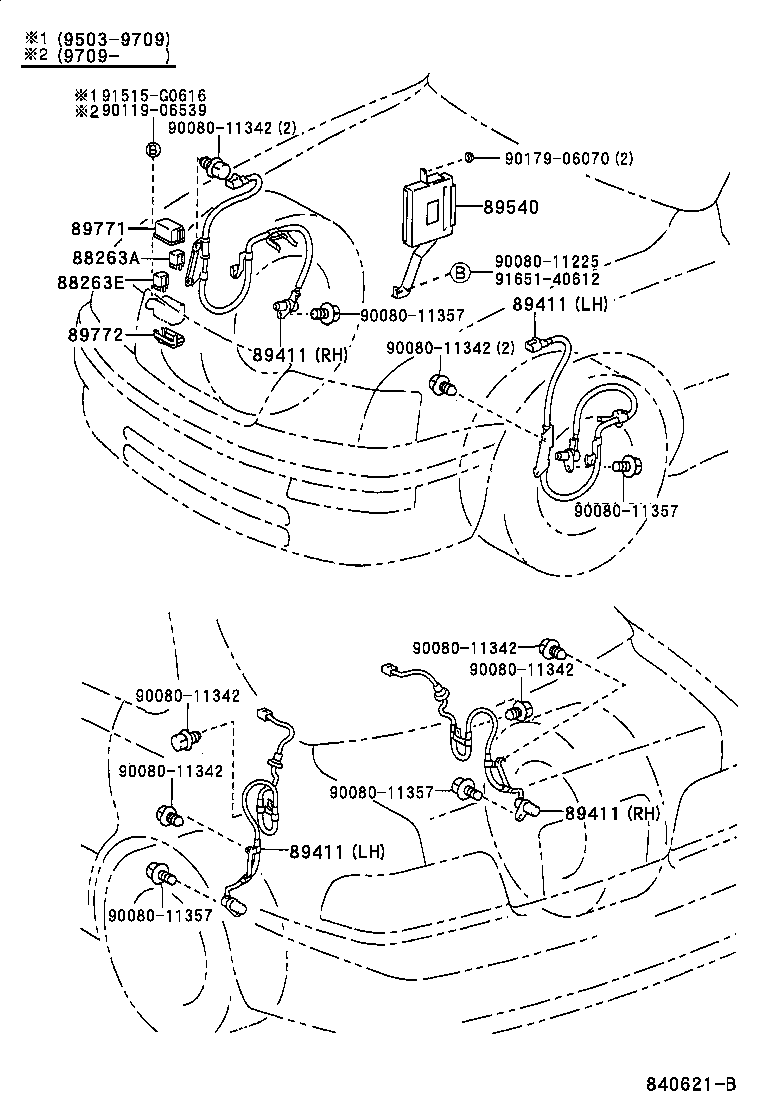

Figure 840659 840659 1995-03 → 1996-08 Figure 840621B 840621B 1996-08 → —

Part groups

PNCDescription
88263A Relay, Skid Control
88263E Relay, Skid Control NO.2
89411 Sensor, Speed
89540 Computer Assy, Skid Control
89771 Cover, Abs Relay Block, Upper
89772 Cover, Abs Relay Block, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
