Toyota Avalon

1995-03 → 2000-02 · chassis MCX10 · catalogue 361110 · Japan

Discontinued model Data version 2000-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

21 part groups · 2 illustrations

Illustrations

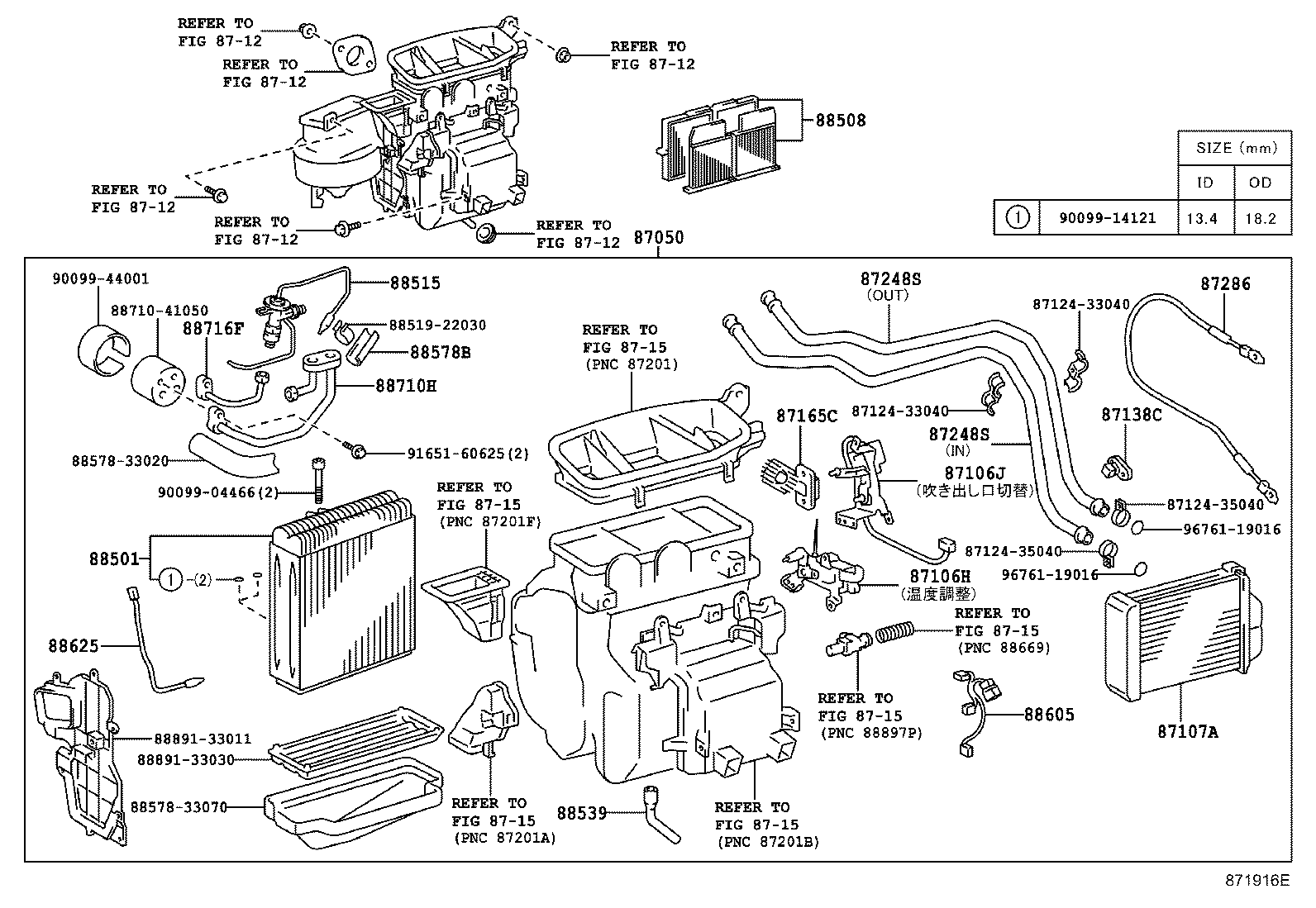

Figure 870906B 870906B 1995-03 → 1997-09 Figure 871916E 871916E 1997-09 → —

Part groups

PNCDescription
87050 Radiator Assy, Air Conditioner
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87107A Unit Sub-assy, Heater Radiator
87138C Resistor, Blower
87165C Control, Blower Motor
87248S Pipe, Front Heater Radiator Water
87286 Cable, Control
88501 Evaporator Sub-assy, Cooler, NO.1
88508 Filter Sub-assy, Clean Air
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88710H Tube & Accessory Assy, Air Conditioner
88716F Pipe, Cooler Refrigerant Liquid, F
88750B Transistor Assy, Blower Resistor
88790A Sensor, Thermo
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
