Toyota Pronard

2000-02 → 2003-01 · chassis MCX20 · catalogue 361120 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

27 part groups · 2 illustrations

Illustrations

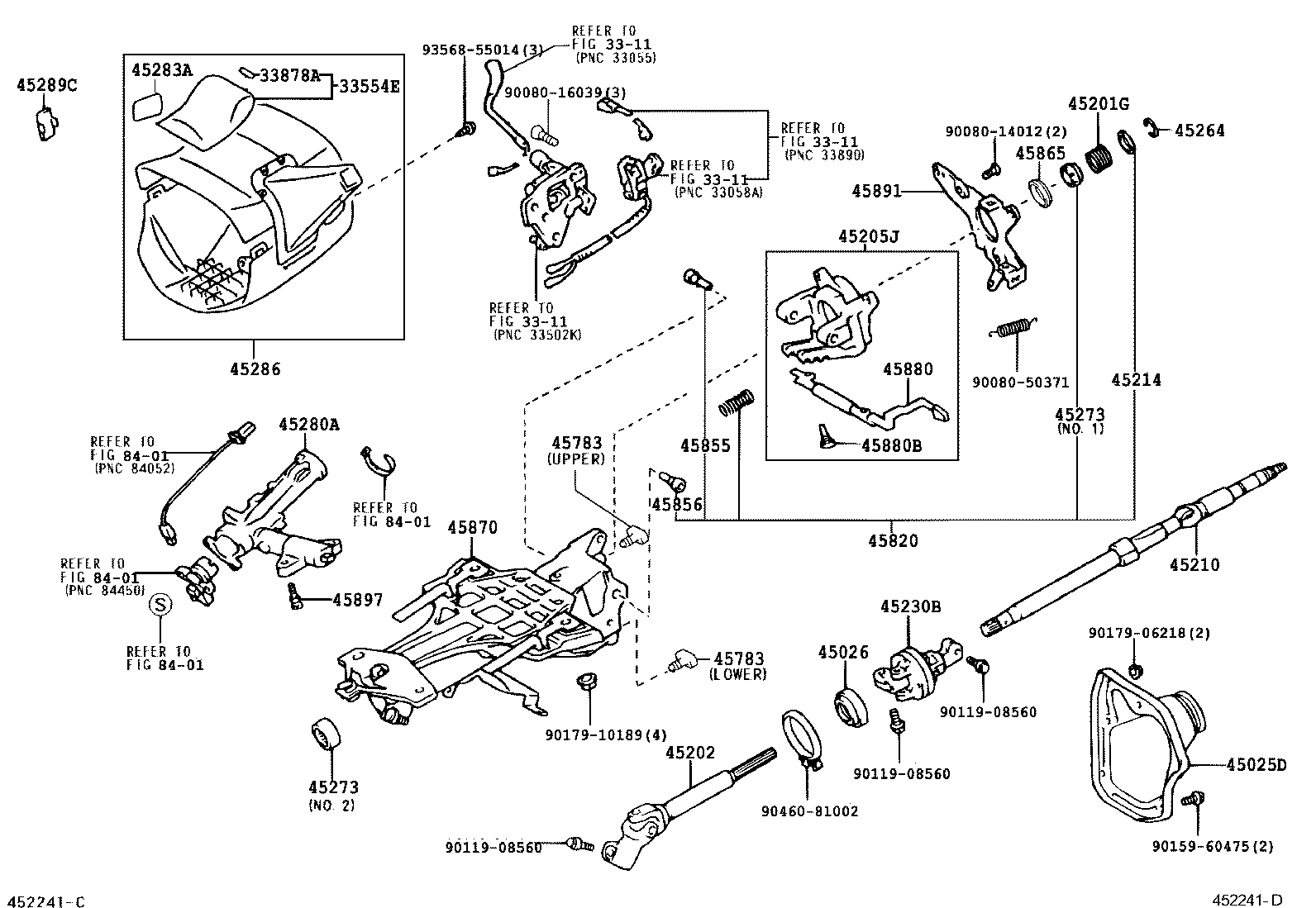

Figure 452194E 452194E 2000-02 → — Figure 452241D 452241D 2000-02 → —

Part groups

PNCDescription
33554E Cover, Shift Lock Release Button
33878A Label, Shift Lock Information, NO.2
45025D Cover Sub-assy, Steering Column Hole, NO.1
45026 Cover Sub-assy, Steering Column Hole, NO.2
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45202 Shaft Sub-assy, Steering Intermediate
45205J Tube Sub-assy, Steering Column, Upper
45210 Shaft Assy, Steering Main
45214 Retainer, Main Shaft Spring
45230B Joint Assy, Steering Shaft Universal
45264 Ring, Steering Column, NO.2
45273 Bush, Steering Main Shaft
45280A Bracket Assy, Steering Column, Upper
45283A Plate, Beam Change & Turn Signal Caution
45286 Cover, Steering Column
45286A Cover, Steering Column, NO.2
45289C Cover, Steering Column, Lwr NO.2
45783 Stopper, Tilt Steering, NO.1
45820 Spring Assy, Tilt Steering Support
45855 Bolt, Tilt Steering, NO.1
45856 Bolt, Tilt Steering, NO.2
45865 Collar, Steering Main Shaft
45870 Tube Assy, Steering Column
45880 Lever Assy, Steering Tilt
45880B Screw(FOR STEERING TILT LEVER)
45891 Bracket, Turn Signal
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
