Toyota Pronard

2000-02 → 2003-01 · chassis MCX20 · catalogue 361120 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

13 part groups · 2 illustrations

Illustrations

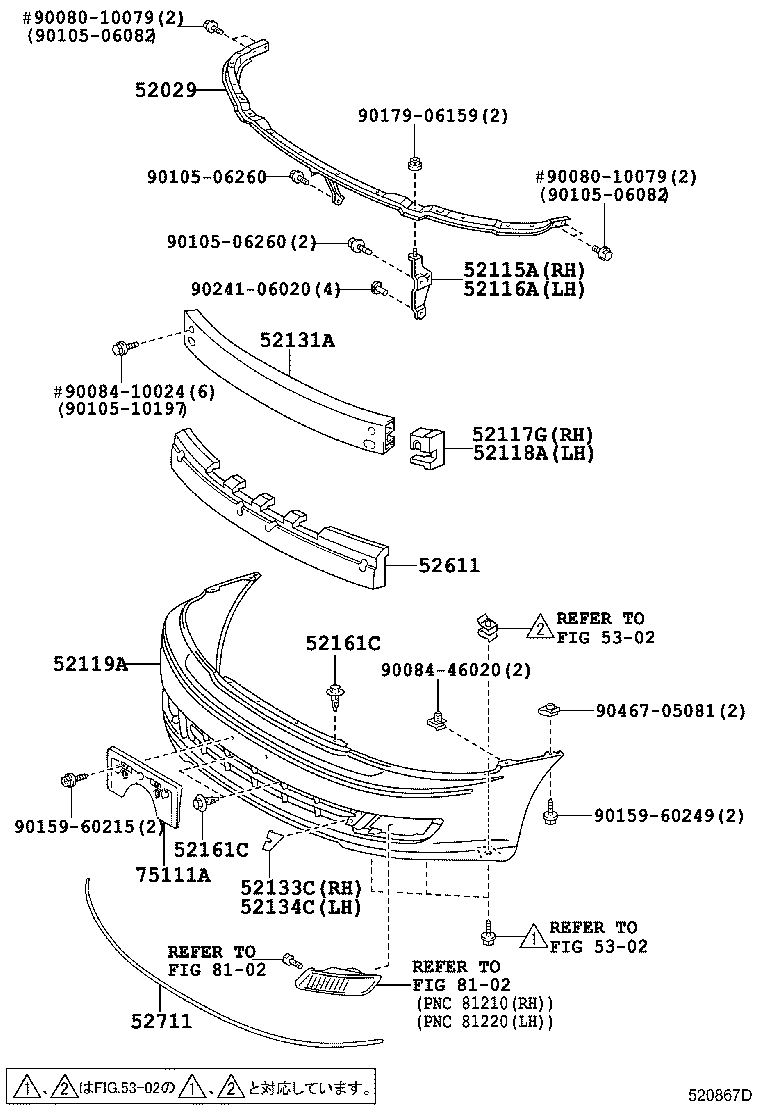

Figure 520604C 520604C 2000-02 → 2002-07 Figure 520867D 520867D 2002-07 → —

Part groups

PNCDescription
52029 Reinforcement Sub-assy, Front Bumper, Upper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52117G Insert, Front Bumper Extension, NO.2 RH
52118A Insert, Front Bumper Extension, NO.2 LH
52119A Cover, Front Bumper
52131A Reinforcement, Front Bumper
52133C Reinforcement, Front Bumper Bar, RH
52134C Reinforcement, Front Bumper Bar, LH
52161C Piece, Front Bumper
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
75111A Bracket, Front License Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
