Toyota Pronard
2000-02 → 2003-01 · chassis MCX20 · catalogue 361120 · Japan
Discontinued model
Data version 2004-01

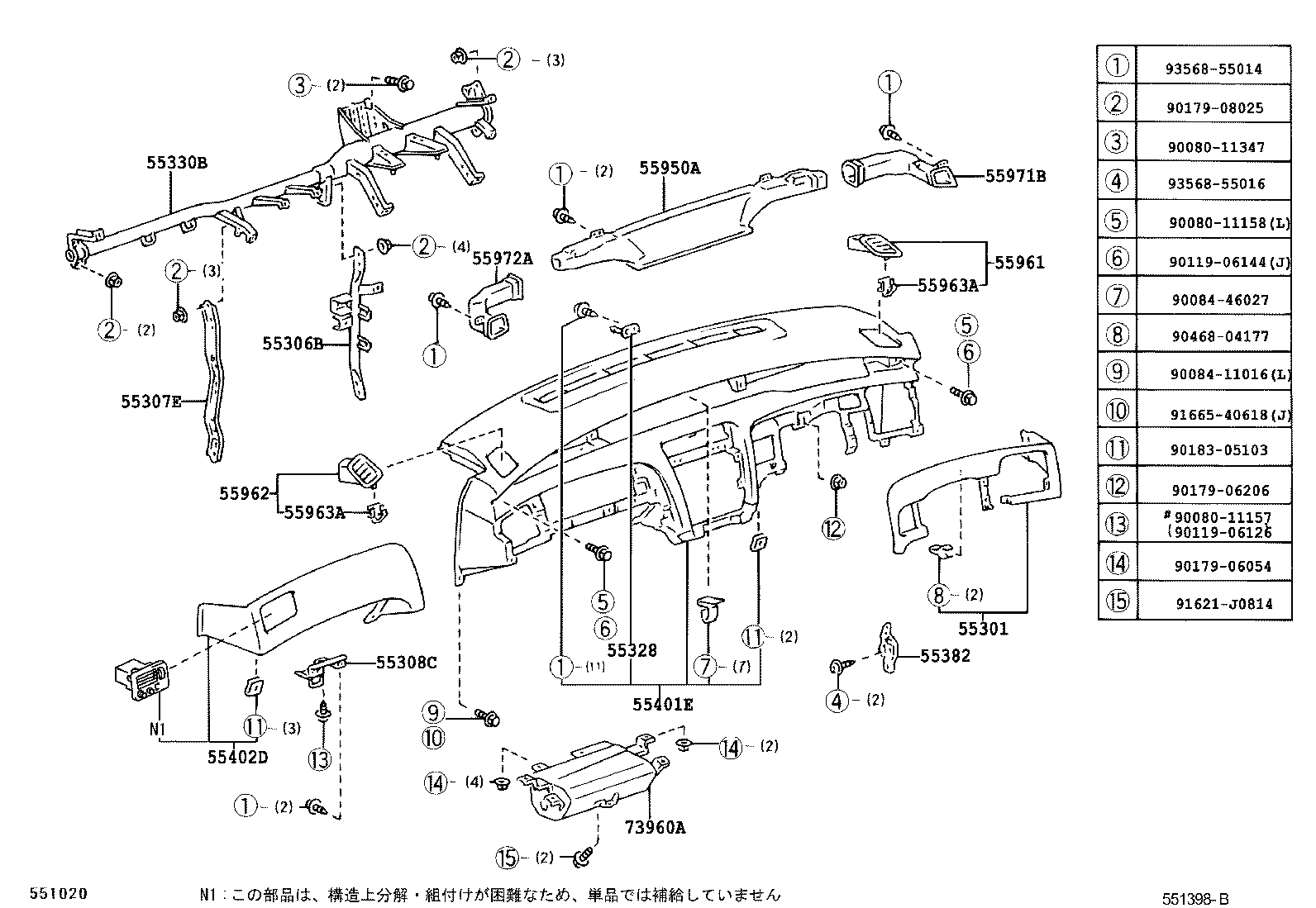

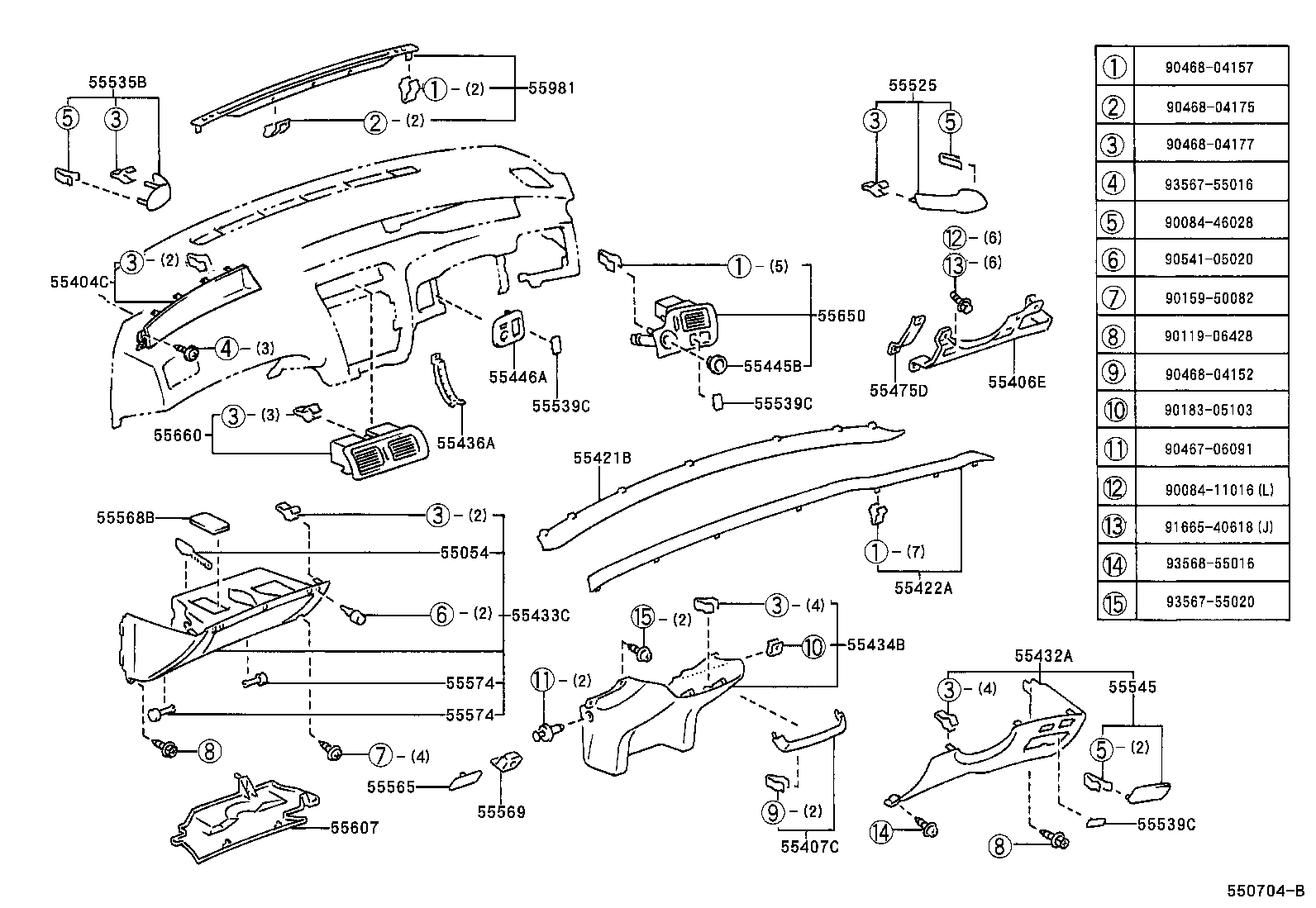

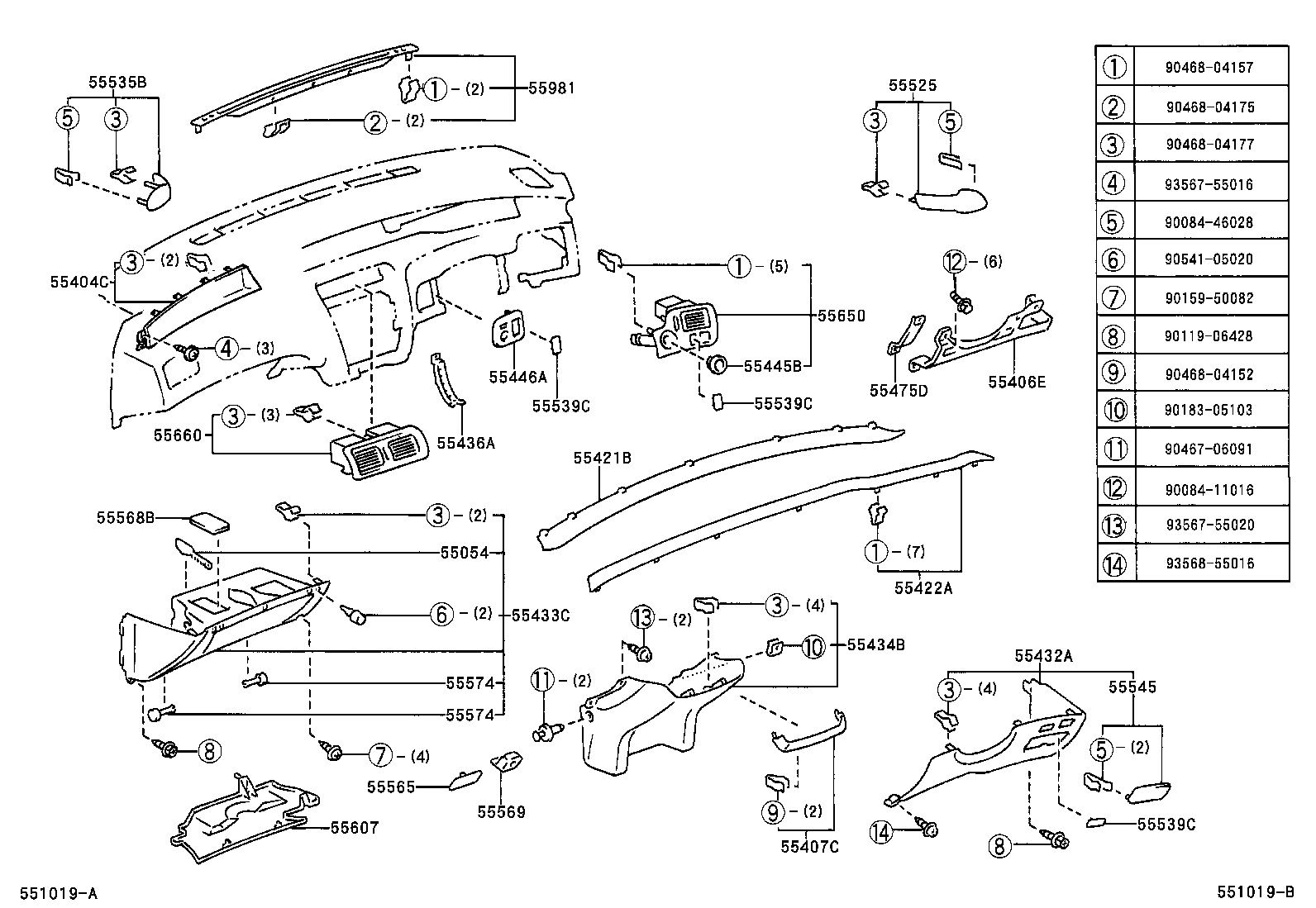

Instrument Panel & Glove Compartment
41 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55301 | Panel Sub-assy, Instrument |
| 55306B | Brace Sub-assy, Instrument Panel TO Cowl |
| 55307E | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55382 | Bracket, Finish Panel Mounting, NO.2 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55402D | Pad Sub-assy, Instrument Panel Safety, NO.1 |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55406E | Insert Sub-assy, Instrument Panel, Lower LH |
| 55407C | Cover Sub-assy, Instrument, Lower |
| 55421B | Panel, Instrument Cluster Finish, Upper |
| 55422A | Panel, Instrument Cluster Finish, Lower |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55433C | Panel, Instrument Panel Finish, Lower LH |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55436A | Panel, Instrument Panel Finish, End LH |
| 55445B | Plate, Instrument Panel Finish |
| 55446A | Base, Switch Hole, NO.1 |
| 55475D | Retainer, Instrument Panel Finish Panel, NO.6 |
| 55525 | Cover, Speaker Hole, NO.1 |
| 55535B | Cover, Speaker Hole, NO.2 |
| 55539C | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55565 | Handle, Glove Compartment Door Lock |
| 55568B | Plate, Glove Compartment Door Finish |
| 55569 | Cover, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55950A | Nozzle Assy, Defroster |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55963A | Retainer, Side Defroster |
| 55971B | Duct, Side Defroster Nozzle, NO.1 |
| 55972A | Duct, Side Defroster Nozzle, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
