Toyota Pronard
2000-02 → 2003-01 · chassis MCX20 · catalogue 361120 · Japan
Discontinued model
Data version 2004-01

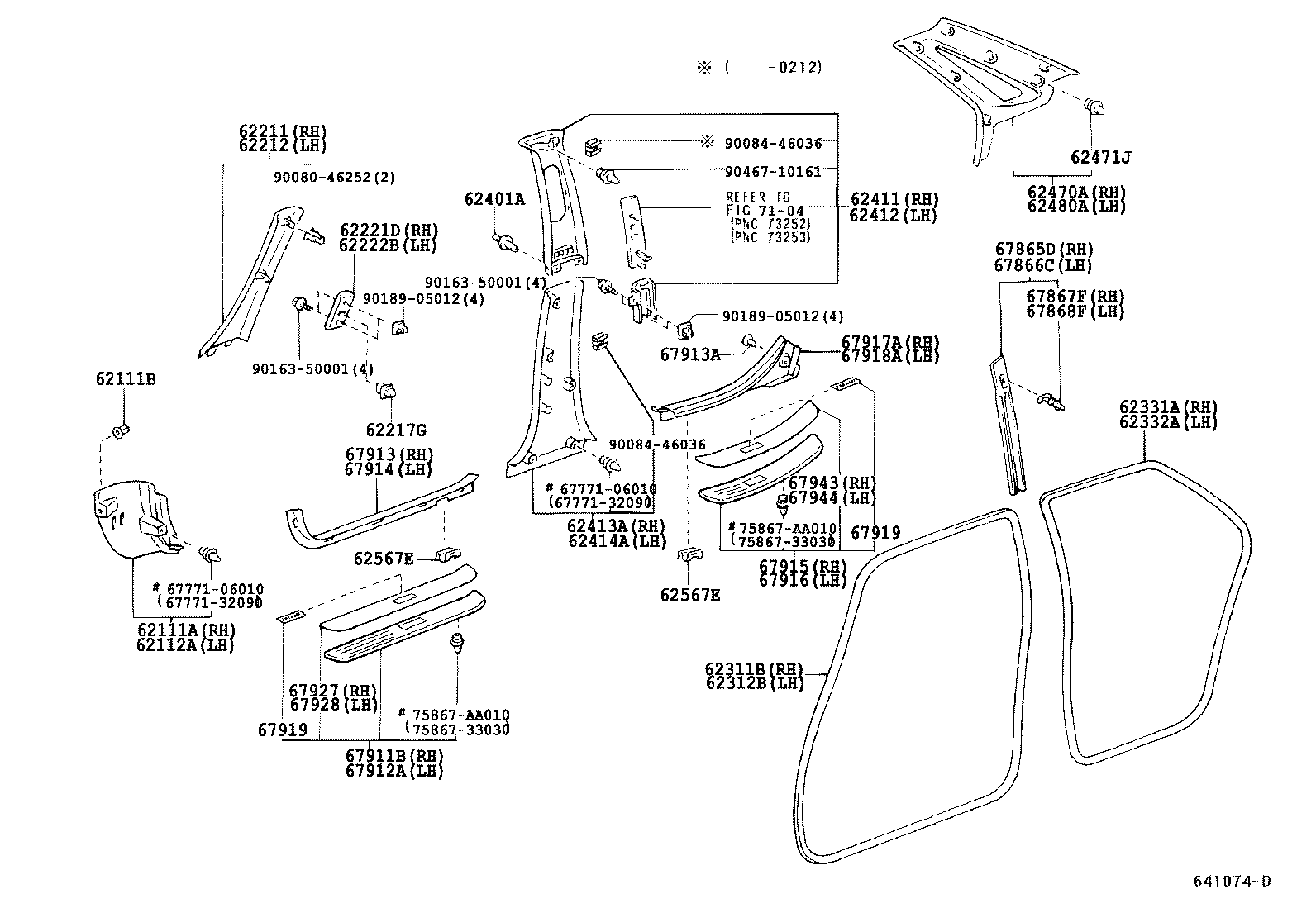

Inside Trim Board & Door Opening Trim Moulding
41 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111A | Trim Sub-assy, Cowl Side, RH |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62221D | Cover, Front Pillar Garnish, RH |
| 62222B | Cover, Front Pillar Garnish, LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62401A | Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER) |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62417F | Pad, Center Pillar Garnish, RH |
| 62418A | Pad, Center Pillar Garnish, LH |
| 62470A | Garnish Assy, Roof Side, Inner RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62480A | Garnish Assy, Roof Side, Inner LH |
| 62567E | Clamp, Rocker Panel Inner Protector, NO.2 |
| 67865D | Weatherstrip, Center Pillar Upper End, RH |
| 67866C | Weatherstrip, Center Pillar Upper End, LH |
| 67867F | Retainer, Door Weatherstrip, RH |
| 67868F | Retainer, Door Weatherstrip, LH |
| 67911B | Plate, Front Door Scuff, Outside, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67913A | Clip(FOR SCUFF PLATE) |
| 67914 | Plate, Front Door Scuff, LH |
| 67915 | Plate, Rear Door Scuff, Outside RH |
| 67916 | Plate, Rear Door Scuff, Outside LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67919 | Ornament, Door Scuff |
| 67927 | Ornament, Front Door Scuff, RH |
| 67928 | Ornament, Front Door Scuff, LH |
| 67943 | Ornament, Rear Door Scuff, RH |
| 67944 | Ornament, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
