Toyota Pronard
2000-02 → 2003-01 · chassis MCX20 · catalogue 361120 · Japan
Discontinued model
Data version 2004-01
Wiring & Clamp
46 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82111 | Wire, Engine Room Main |
| 82113 | Wire, Engine Room, NO.3 |
| 82119 | Wire, Sensor |

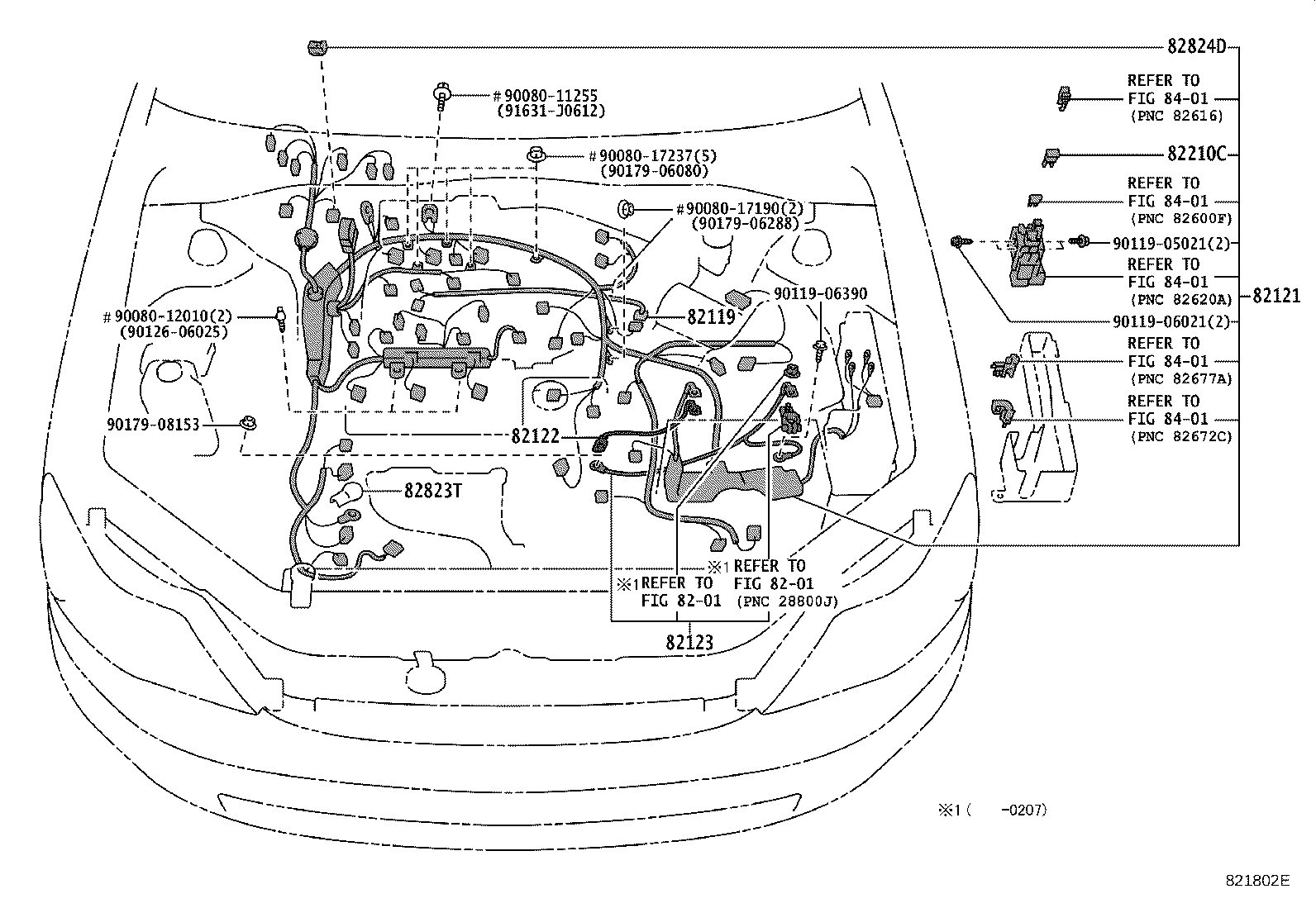

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82123 | Wire, Engine, NO.3 |

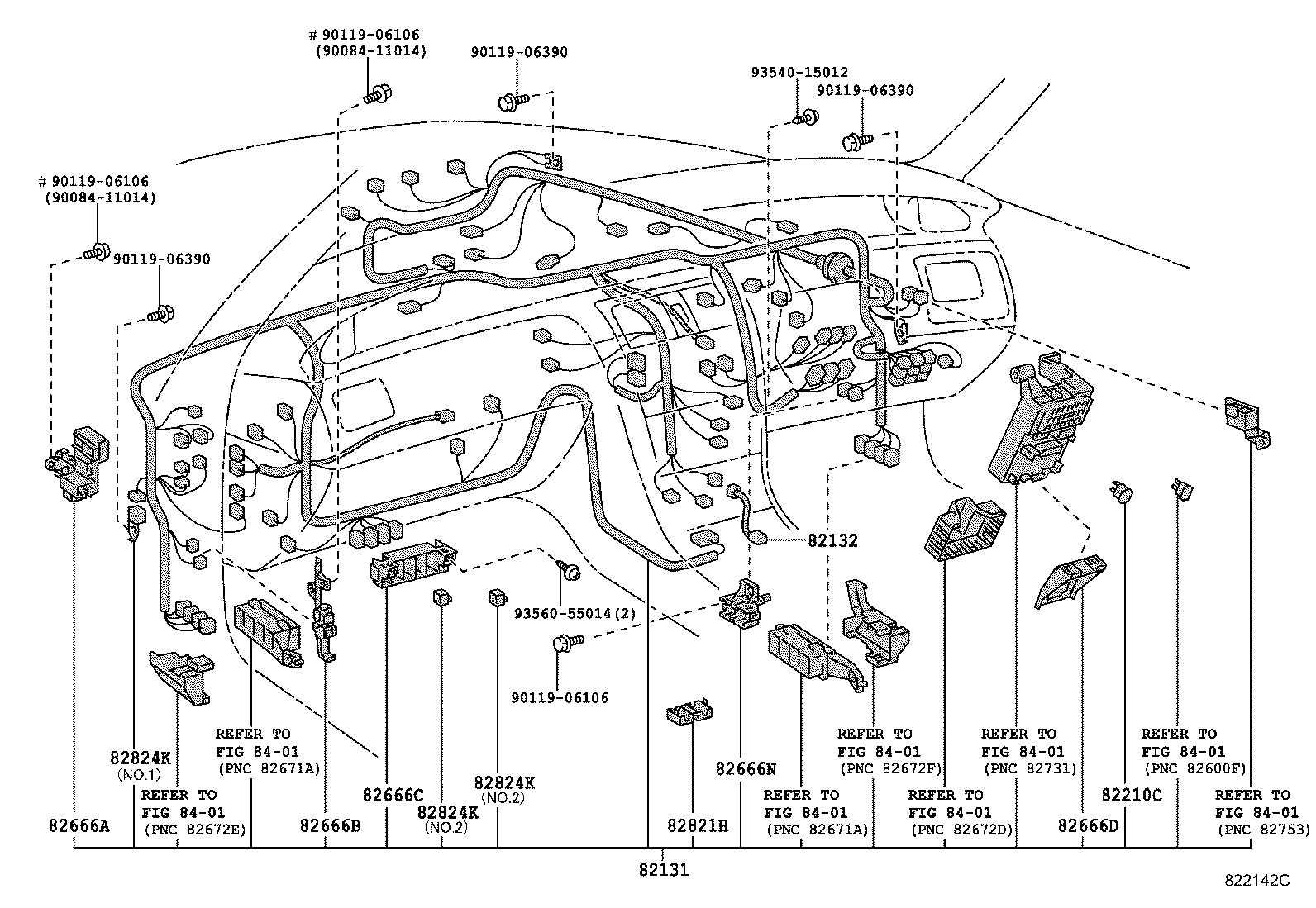

| 82131 | Wire, Cowl |
| 82132 | Wire, Cowl, NO.2 |

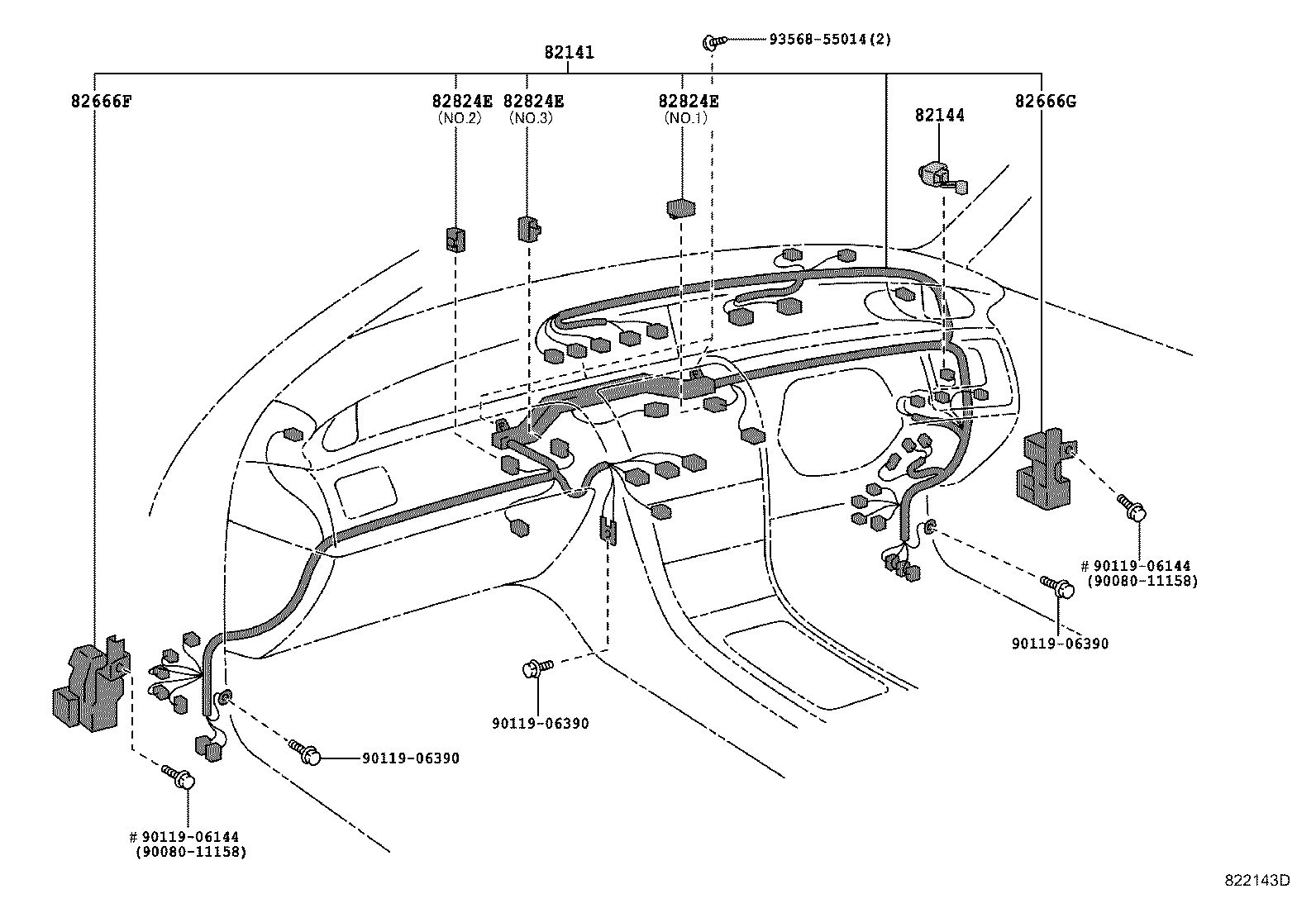

| 82141 | Wire, Instrument Panel |
| 82144 | Wire, Instrument Panel, NO.4 |

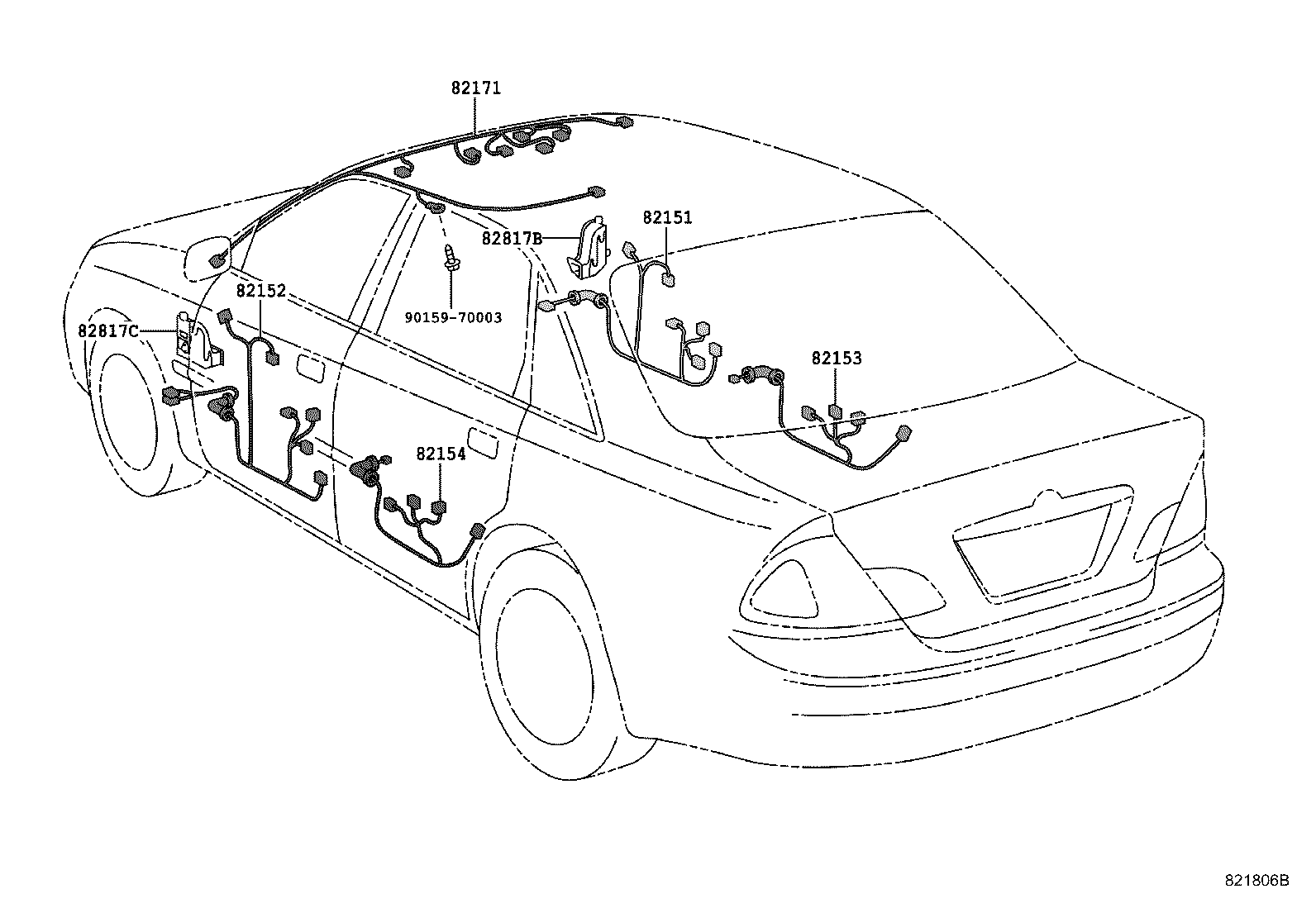

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |

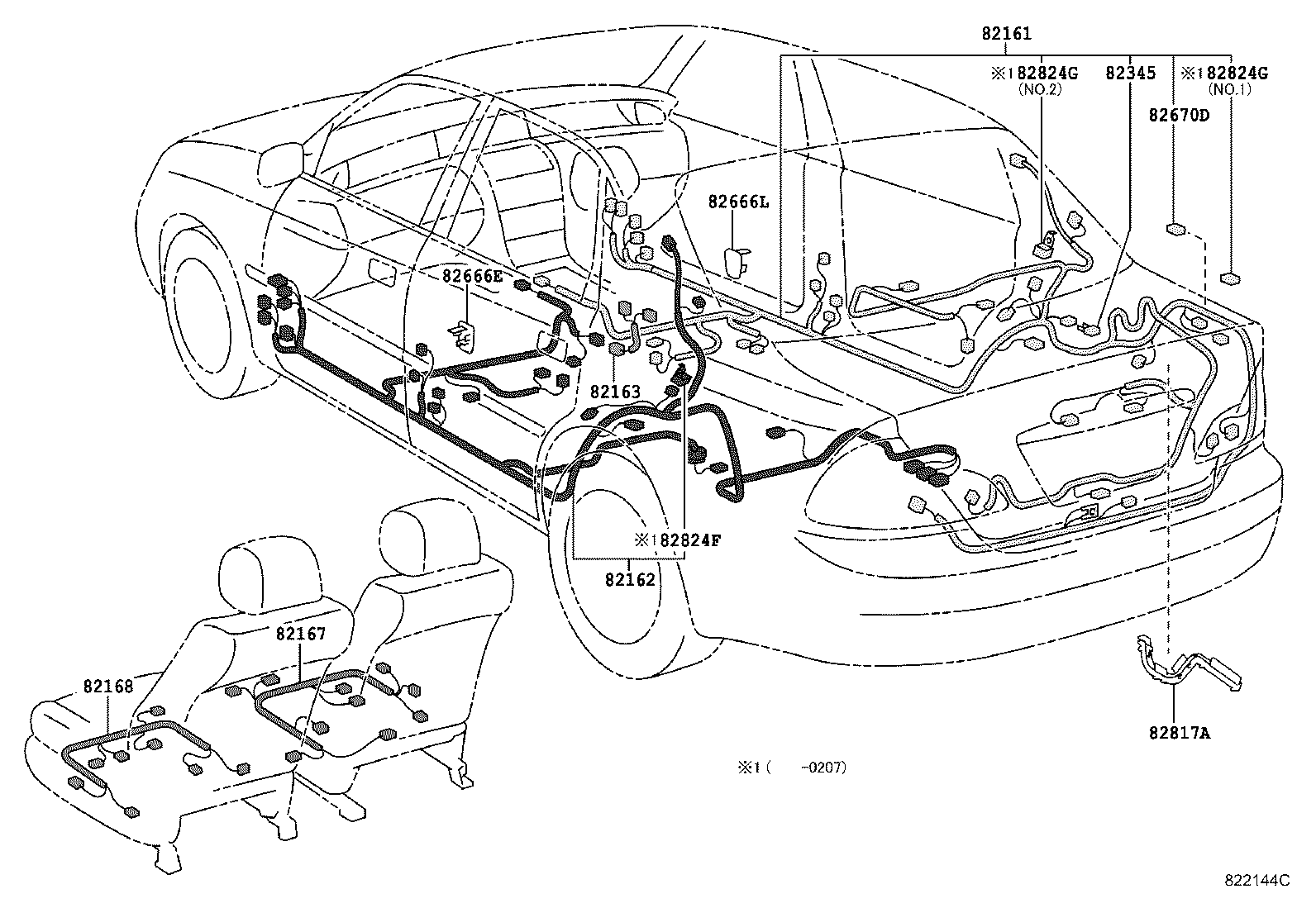

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82163 | Wire, Floor, NO.3 |
| 82167 | Wire, Seat, NO.1 |
| 82168 | Wire, Seat, NO.2 |
| 82171 | Wire, Roof, NO.1 |
| 82210C | Fusible Link |
| 82345 | Diode |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82666N | Holder, Connector NO.10 |
| 82670D | Block Assy, Junction,NO.2 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82821E | Cover, Connector |
| 82821H | Cover, Connector |
| 82823T | Cap, Alternator Terminal |

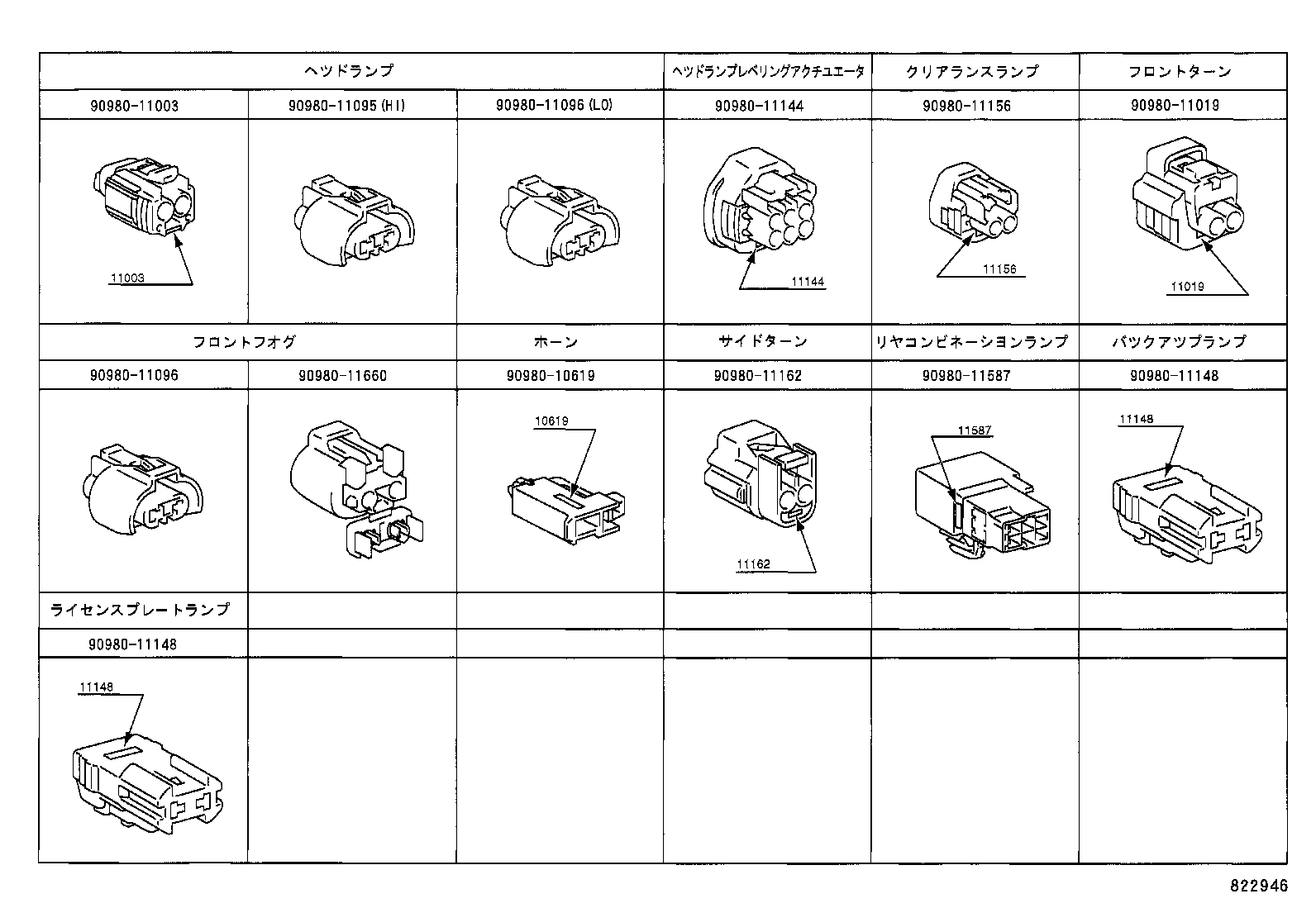

| 82824 | Connector, Wiring Harness |
| 82824D | Connector, Wiring Harness |
| 82824E | Connector, Wiring Harness |
| 82824F | Connector, Wiring Harness |
| 82824G | Connector, Wiring Harness |
| 82824K | Connector, Wiring Harness |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
