Toyota Pronard

2000-02 → 2003-01 · chassis MCX20 · catalogue 361120 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

17 part groups · 8 illustrations

Illustrations

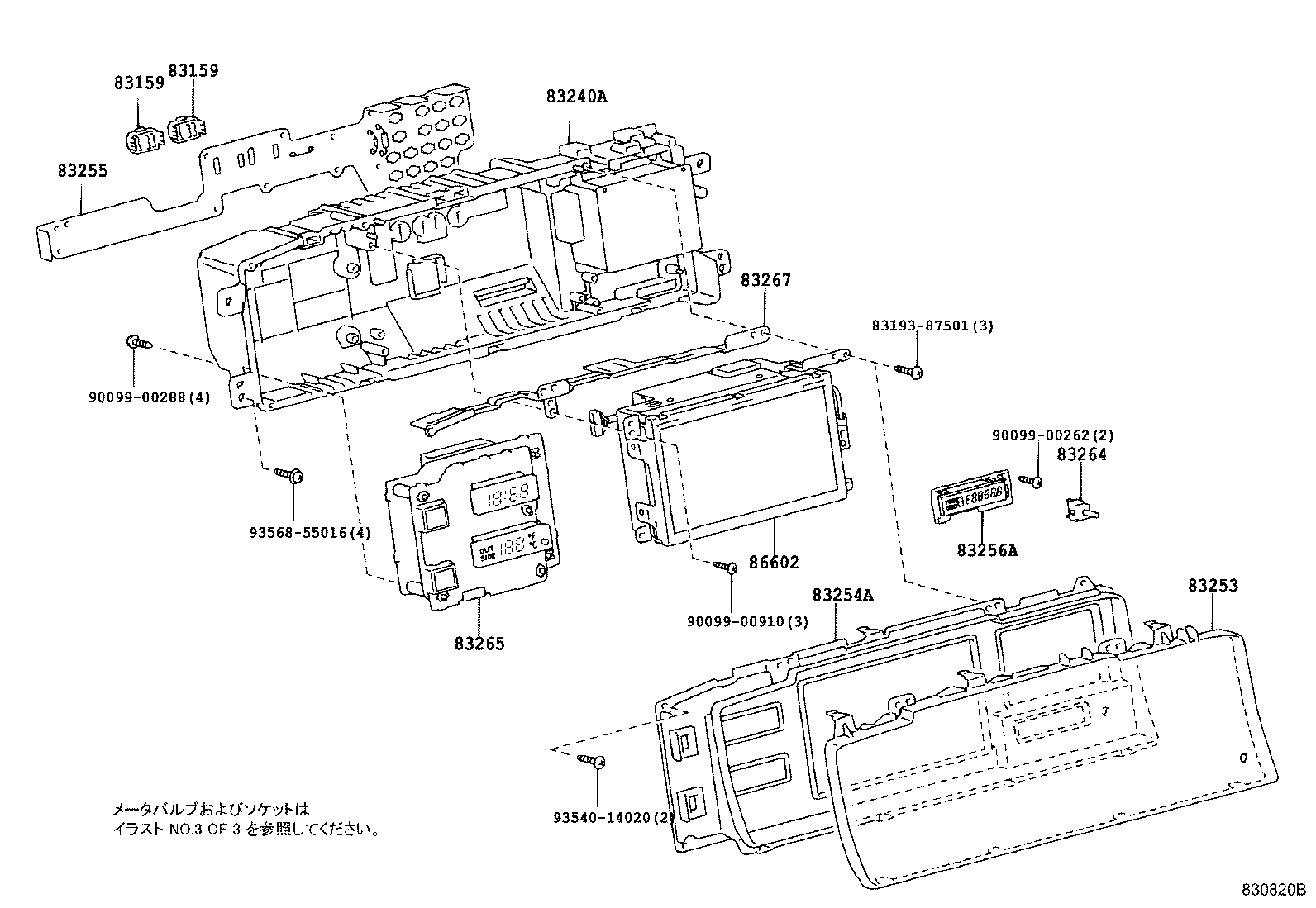

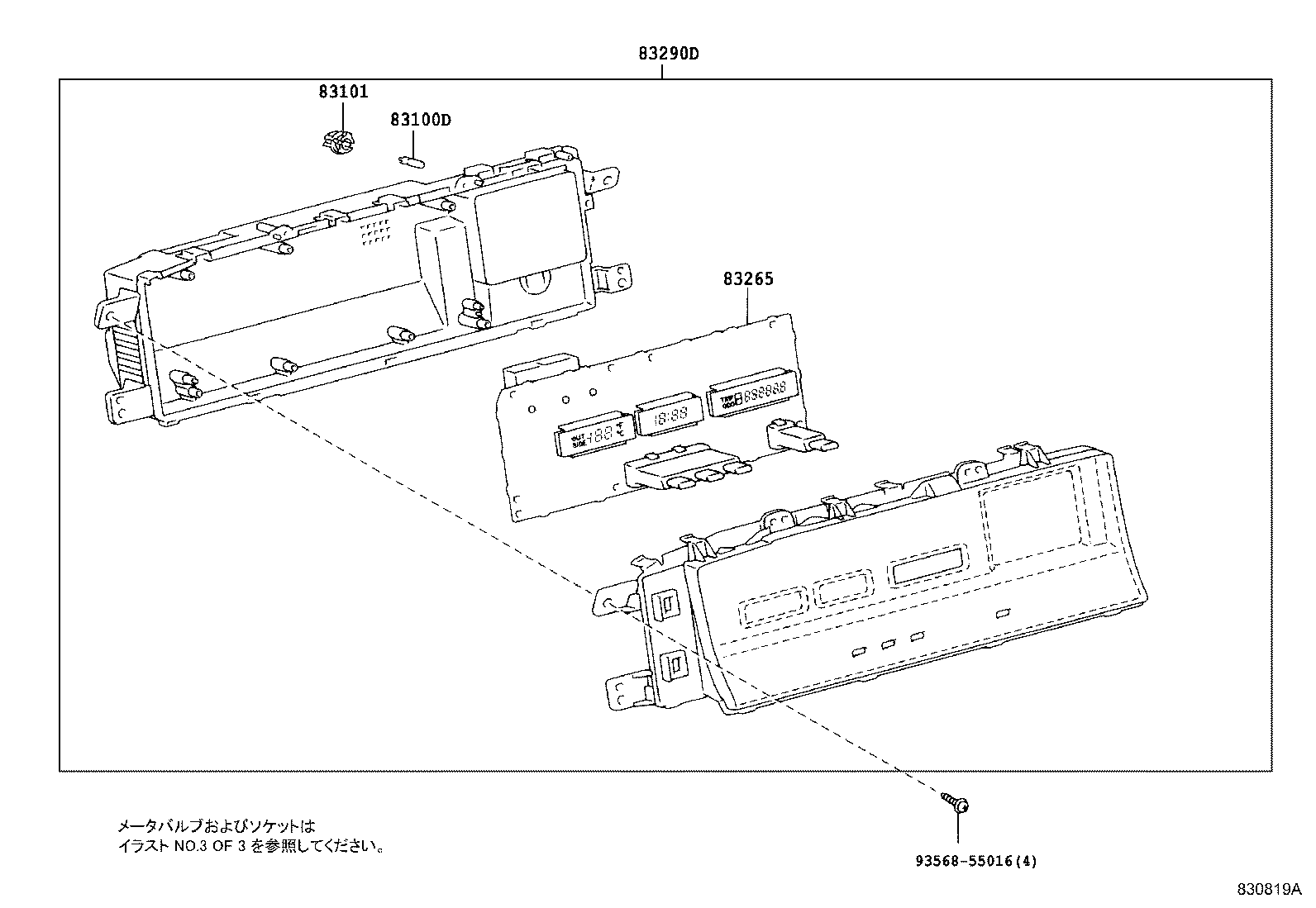

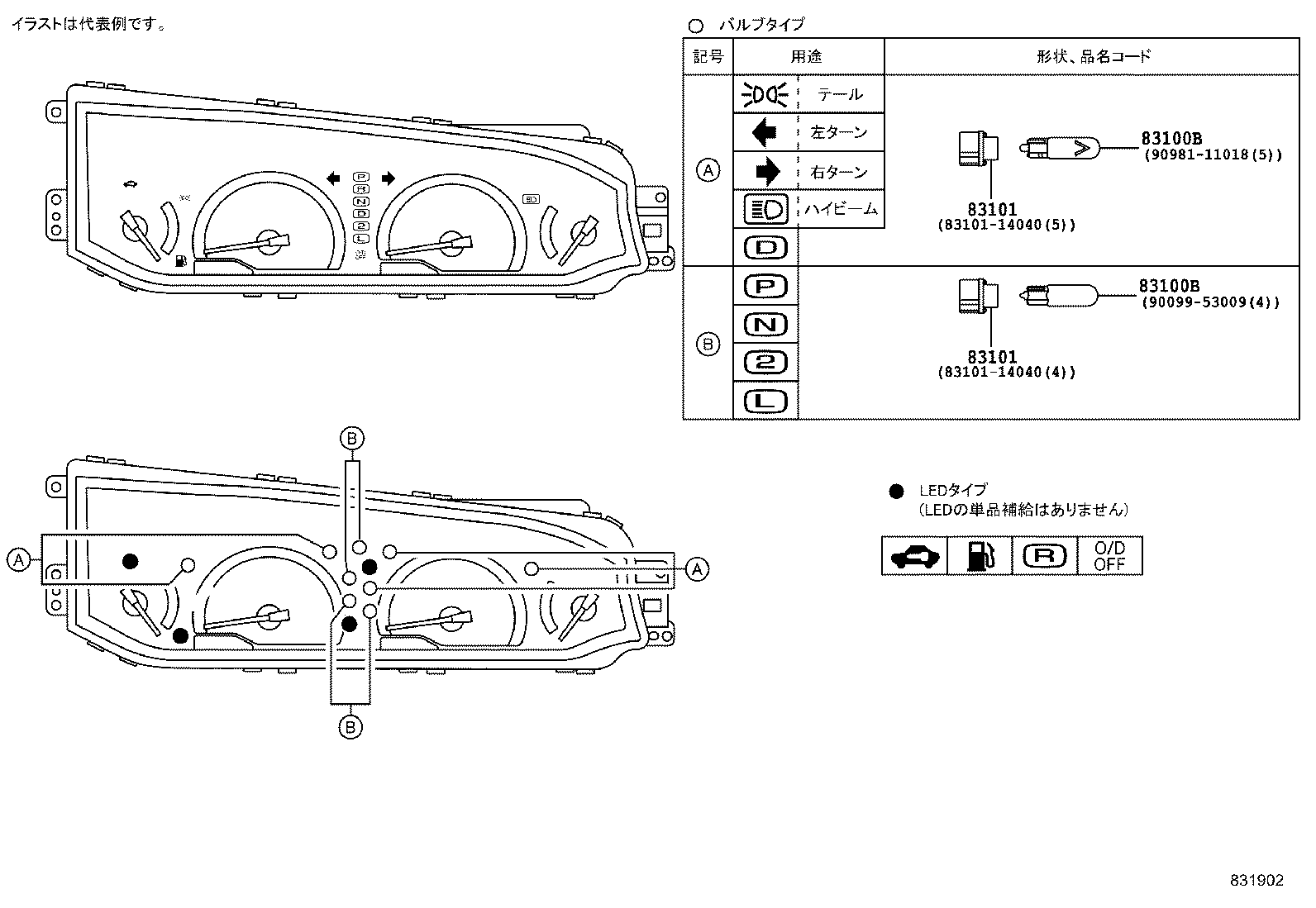

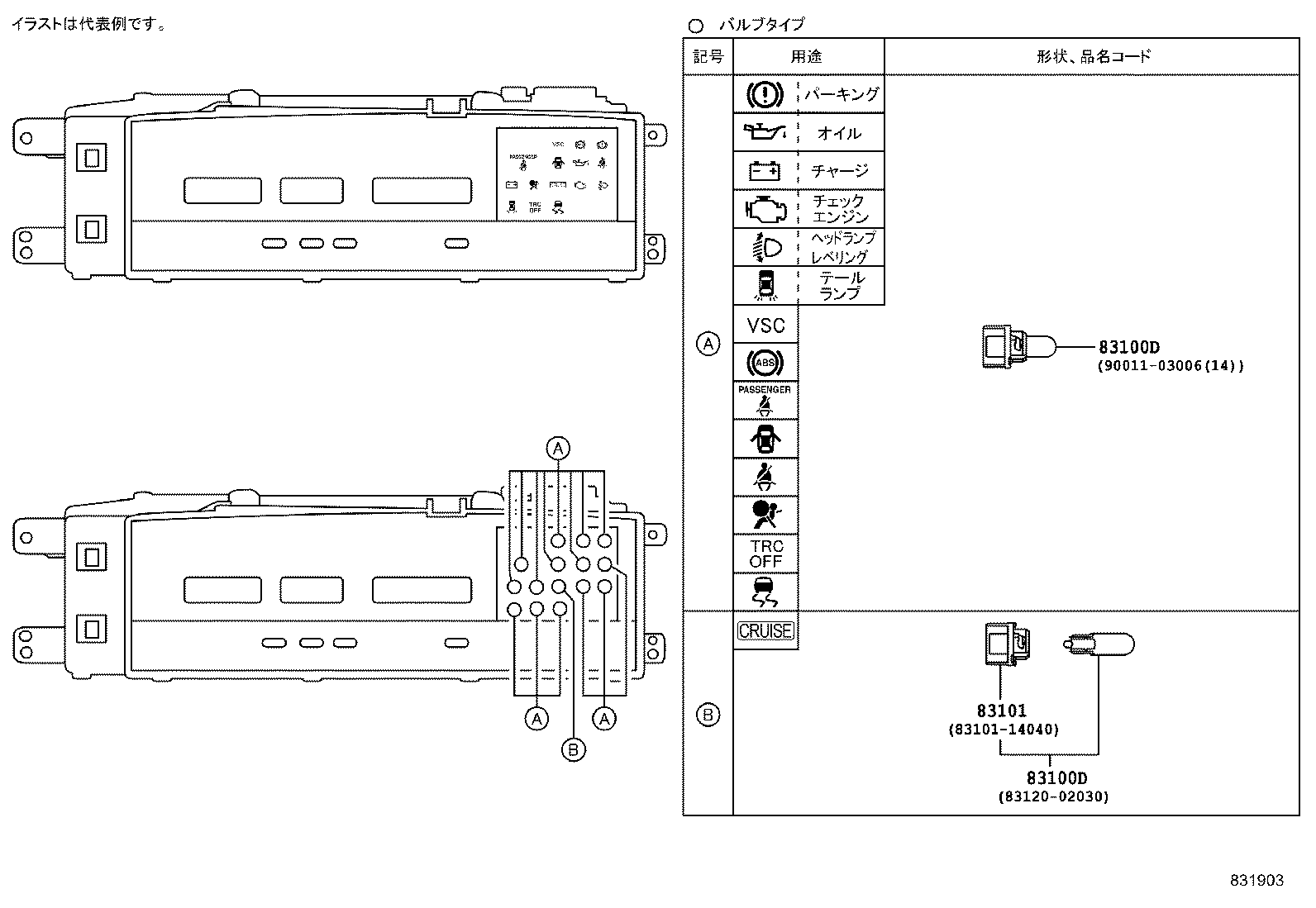

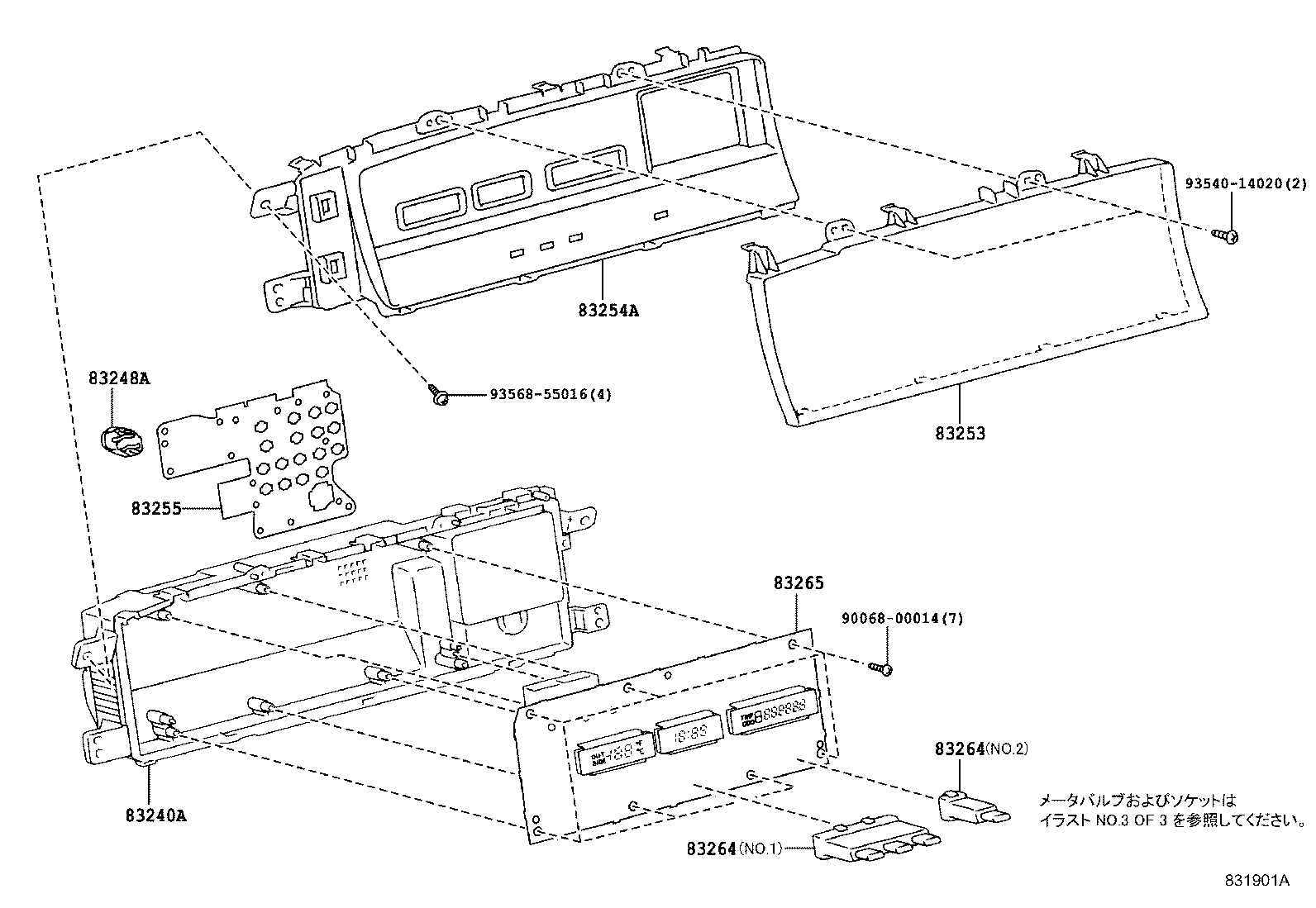

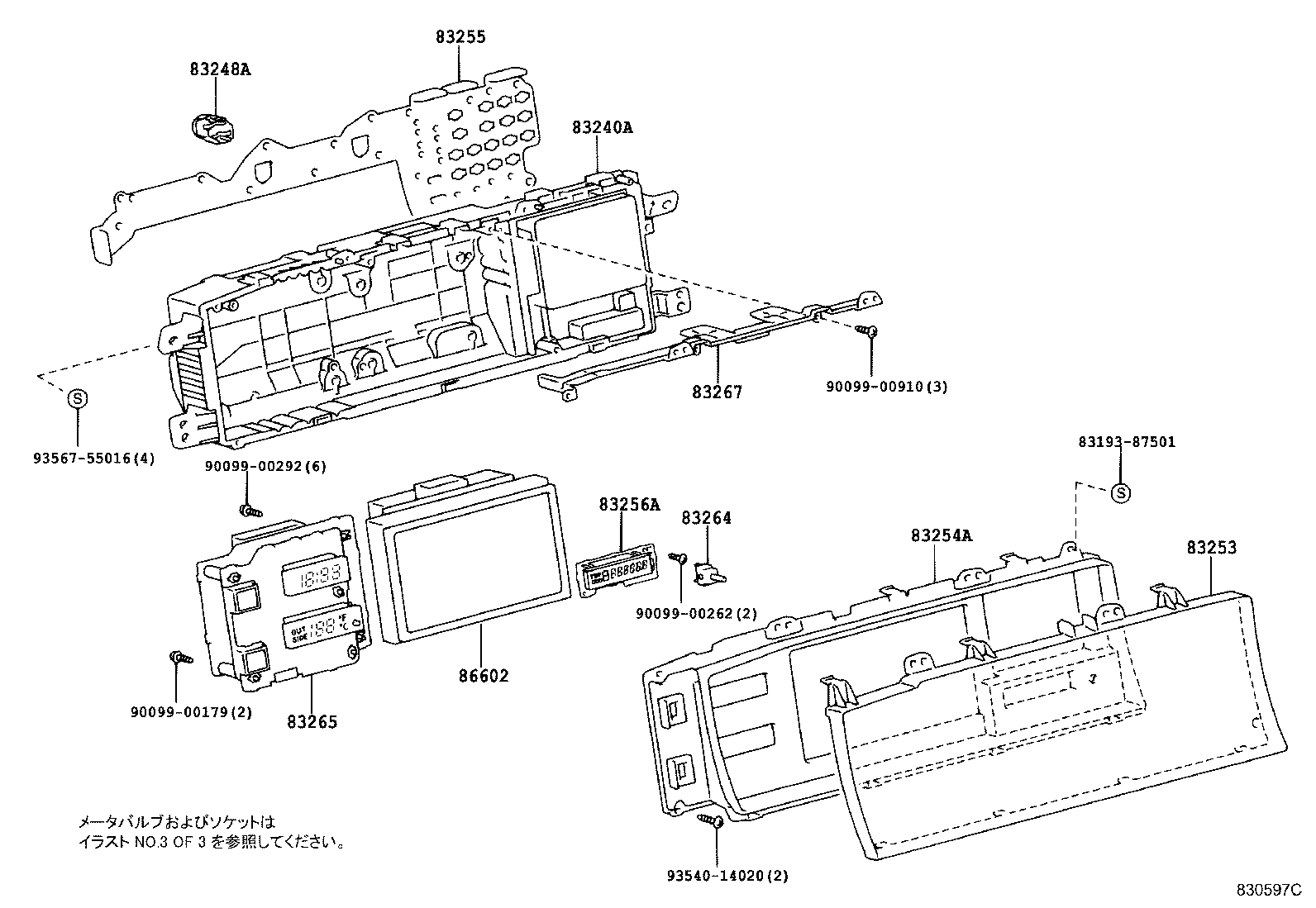

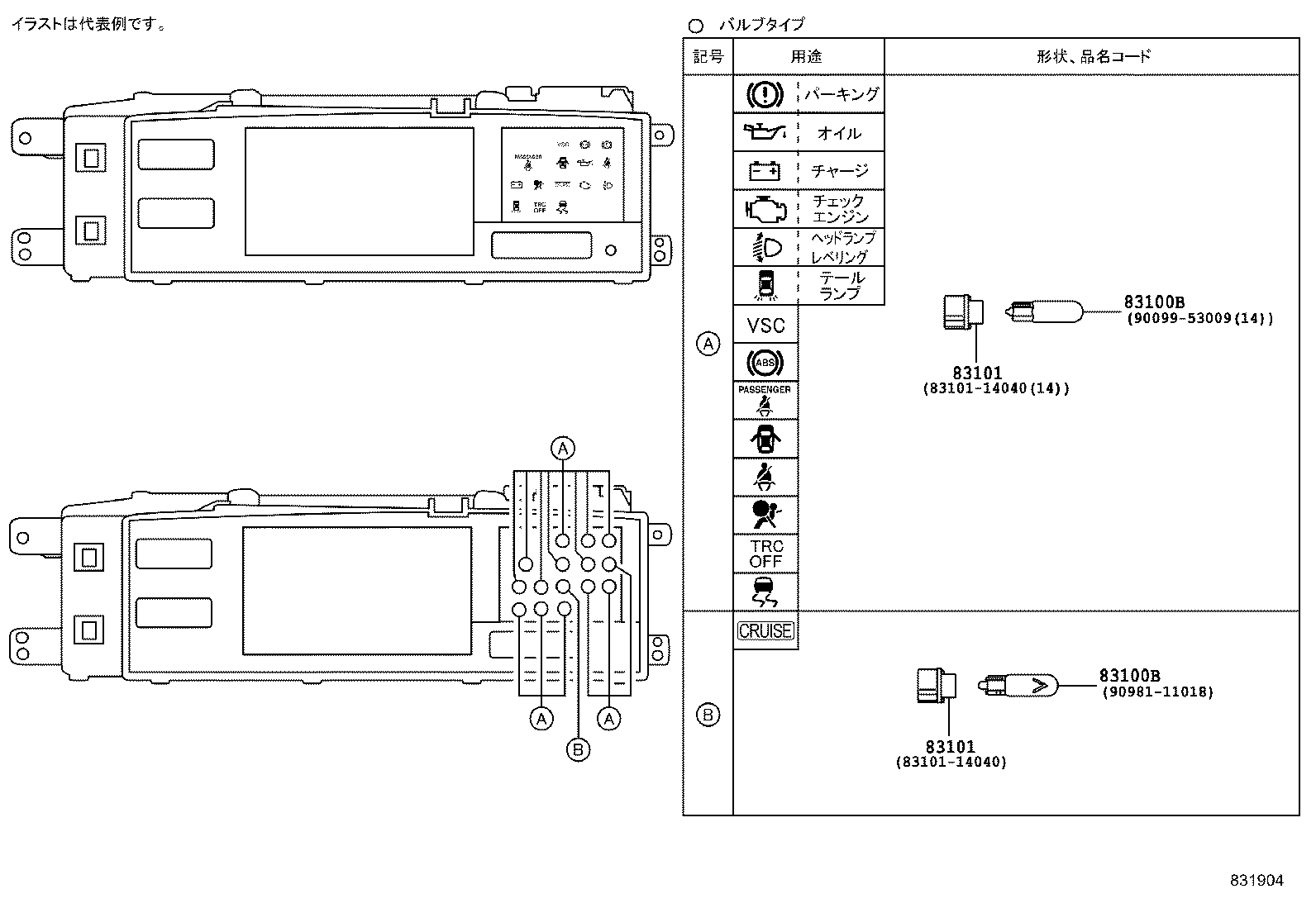

Figure 830596D 830596D 2000-02 → — Figure 831901A 831901A 2000-02 → 2002-07 Figure 830597C 830597C 2000-02 → 2002-07 Figure 830819A 830819A 2002-07 → — Figure 830820B 830820B 2002-07 → — Figure 831902 831902 2000-02 → — Figure 831903 831903 2000-02 → — Figure 831904 831904 2000-02 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83100D Bulb, Combination Meter, NO.2
83101 Socket Sub-assy, Combination Meter Bulb
83138 Glass, Speedometer
83159 Switch, Meter, NO.1
83240A Case Assy, Center Display
83248A Alarmer, Center Display
83253 Glass, Center Display
83254A Plate, Center Display Decoration
83255 Plate Center Display Circuit
83256A Computer, Accessory Meter, NO.2
83264 Knob, Center Display
83265 Computer, Center Display
83267 Cover, Accessory Meter
83290D Meter Assy, Accessory
86602 Display Sub-assy, Multi Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
