Toyota Celsior

1989-11 → 1994-10 · chassis UCF1# · catalogue 431110 · Japan

Discontinued model Data version 1995-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

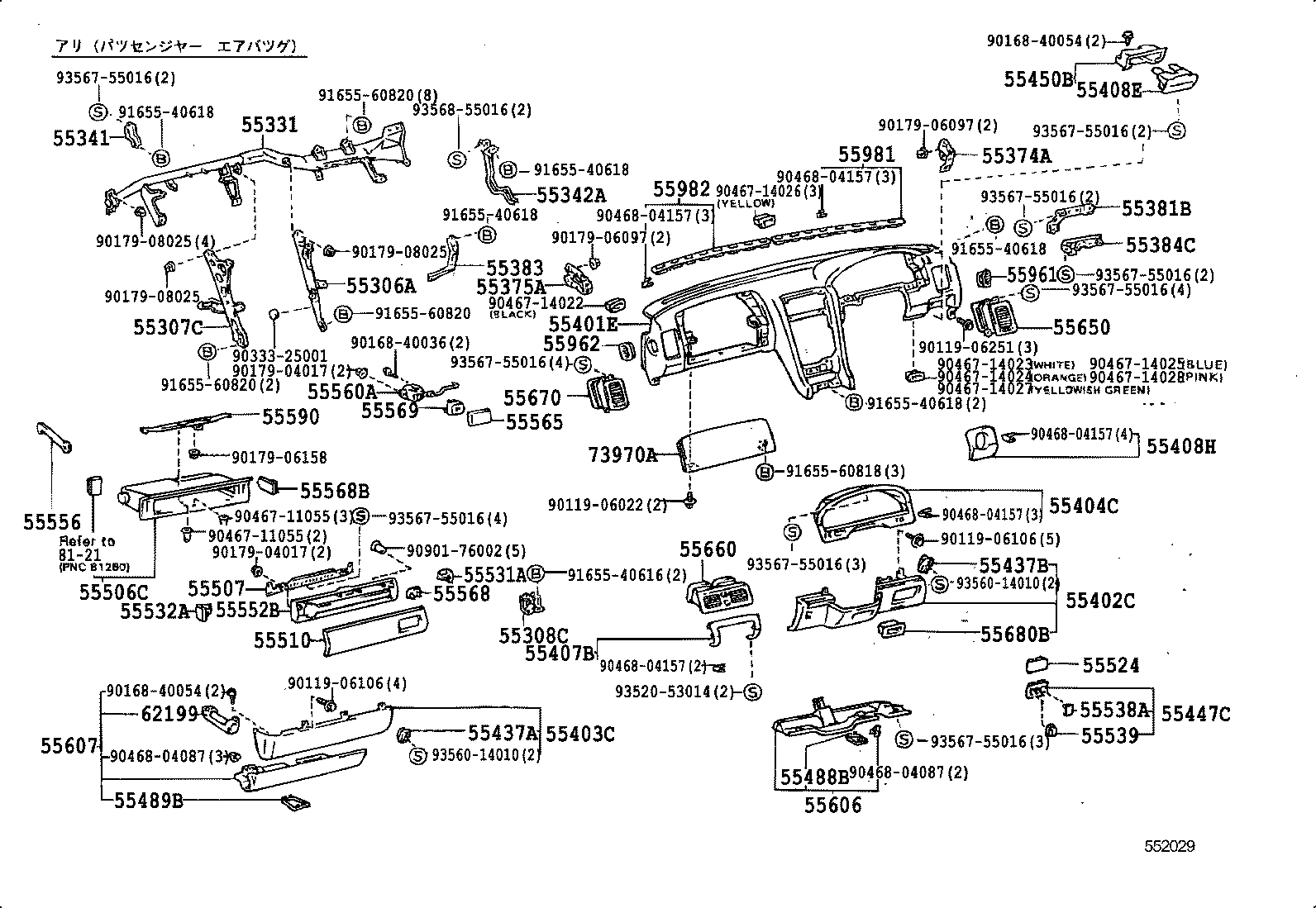

Exploded illustration 552029 9016840054 — not listed in this catalogue 9356755016 — not listed in this catalogue 55450B — BOX ASSY, COIN (8 parts) 55408E — BOX SUB-ASSY, INSTRUMENT PANEL COIN (8 parts) 9165560820 — not listed in this catalogue 9356855016 — not listed in this catalogue 9165540618 — not listed in this catalogue 9017906097 — not listed in this catalogue 55331 — REINFORCEMENT, INSTRUMENT PANEL (2 parts) 9356755016 — not listed in this catalogue 55341 — BRACE, INSTRUMENT PANEL, NO.1 (1 parts) 55374A — BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH (1 parts) 55981 — GARNISH, DEFROSTER NOZZLE, NO.1 (8 parts) 9165540618 — not listed in this catalogue 9046804157 — not listed in this catalogue 9046714026 — not listed in this catalogue 55982 — GARNISH, DEFROSTER NOZZLE, NO.2 (8 parts) 55342A — BRACE, INSTRUMENT PANEL TO COWL, NO.2 (1 parts) 9356755016 — not listed in this catalogue 55381B — BRACKET, FINISH PANEL MOUNTING, NO.1 (1 parts) 9165540618 — not listed in this catalogue 9046804157 — not listed in this catalogue 9017906097 — not listed in this catalogue 55384C — BRACKET, FINISH PANEL MOUNTING, NO.4 (1 parts) 9017908025 — not listed in this catalogue 9165540618 — not listed in this catalogue 9017908025 — not listed in this catalogue 55383 — BRACKET, FINISH PANEL MOUNTING, NO.3 (2 parts) 55961 — NOZZLE, SIDE DEFROSTER, NO.1 (8 parts) 9356755016 — not listed in this catalogue 55306A — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 (1 parts) 55375A — BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH (2 parts) 9356755016 — not listed in this catalogue 9017908025 — not listed in this catalogue 9046714022 — not listed in this catalogue 9165560820 — not listed in this catalogue 55401E — PAD SUB-ASSY, INSTRUMENT PANEL SAFETY (12 parts) 55307C — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 (3 parts) 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (8 parts) 9016840036 — not listed in this catalogue 55962 — NOZZLE, SIDE DEFROSTER, NO.2 (8 parts) 9011906251 — not listed in this catalogue 9033325001 — not listed in this catalogue 9046714025 — not listed in this catalogue 9046714023 — not listed in this catalogue 9356755016 — not listed in this catalogue 9017904017 — not listed in this catalogue 9046714024 — not listed in this catalogue 9046714028 — not listed in this catalogue 9165560820 — not listed in this catalogue 9046714027 — not listed in this catalogue 55560A — LOCK ASSY, GLOVE COMPARTMENT DOOR (2 parts) 55670 — REGISTER ASSY, INSTRUMENT PANEL, NO.3 (8 parts) 9165540618 — not listed in this catalogue 55569 — COVER, GLOVE COMPARTMENT DOOR LOCK (8 parts) 55590 — PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER (2 parts) 55565 — HANDLE, GLOVE COMPARTMENT DOOR LOCK (8 parts) 9046804157 — not listed in this catalogue 55408H — PAD SUB-ASSY, INSTRUMENT PANEL CYLINDER (8 parts) 9017906158 — not listed in this catalogue 9165560818 — not listed in this catalogue 55568B — PLATE, GLOVE COMPARTMENT DOOR FINISH (2 parts) 9011906022 — not listed in this catalogue 55404C — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 (3 parts) 9356755016 — not listed in this catalogue 9046804157 — not listed in this catalogue 55556 — ARM, GLOVE COMPARTMENT DOOR CHECK (3 parts) 9046711055 — not listed in this catalogue 9046711055 — not listed in this catalogue 9011906106 — not listed in this catalogue 9090176002 — not listed in this catalogue 9017904017 — not listed in this catalogue 55660 — REGISTER ASSY, INSTRUMENT PANEL, NO.2 (2 parts) 8121 — not listed in this catalogue 9356755016 — not listed in this catalogue 55437B — RETAINER, INSTR PANEL FINISH PANEL, NO.2 (2 parts) 9165540616 — not listed in this catalogue 55531A — PANEL, GLOVE COMPARTMENT, NO.1 (1 parts) 9356014010 — not listed in this catalogue 55506C — COMPARTMENT SUB-ASSY, GLOVE (2 parts) 55507 — HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR (2 parts) 55568 — PLATE, GLOVE COMPARTMENT DOOR PAD (1 parts) 55402C — PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH (8 parts) 55552B — DOOR, GLOVE COMPARTMENT, INNER (1 parts) 55532A — PANEL, GLOVE COMPARTMENT, NO.2 (1 parts) 55680B — REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 (8 parts) 55308C — BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER (1 parts) 55510 — DOOR ASSY, GLOVE COMPARTMENT (12 parts) 55407B — BASE SUB-ASSY, SWITCH HOLE (5 parts) 55524 — COVER, SWITCH BACE HOLE (8 parts) 9046804157 — not listed in this catalogue 9011906106 — not listed in this catalogue 9016840054 — not listed in this catalogue 9352053014 — not listed in this catalogue 55538A — COVER, COOLER SWITCH HOLE (8 parts) 62199 — HOLDER, FUSEE (1 parts) 55447C — BASE, SWITCH HOLE, NO.2 (8 parts) 55437A — RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 (1 parts) 55403C — PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH (12 parts) 55539 — COVER, SPARE SWITCH HOLE (8 parts) 9356755016 — not listed in this catalogue 55607 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 (12 parts) 9356014010 — not listed in this catalogue 9046804087 — not listed in this catalogue 9046804087 — not listed in this catalogue 55488B — LENS, FRONT FOOT LAMP, NO.1 (1 parts) 55489B — LENS, FRONT FOOT LAMP, NO.2 (1 parts) 55606 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 (14 parts) 73970A — AIRBAG ASSY, INSTRUMENT PANEL PASSENGER (8 parts)
552029 · 52 callouts, 57 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
255 parts on this figure
Part number Description Fitment Price
55306A — Brace Sub-assy, Instrument Panel, NO.1
55306-50020 Brace Sub-assy, Instrument Panel, NO.1
1989-11 → 1994-10 ended
UCF1# ¥4,020
55307C — Brace Sub-assy, Instrument Panel, NO.2
55307-50020 Brace Sub-assy, Instrument Panel, NO.2
1989-11 → 1992-08 ended
UCF1# ¥3,050
55307-50040 Brace Sub-assy, Instrument Panel, NO.2
1992-08 → 1994-10 ended
UCF1# ¥2,730
55307-50050 note Brace Sub-assy, Instrument Panel, NO.2
1992-08 → 1994-10 ended
UCF1# ¥3,050
55308C — Bracket Sub-assy, Instrument Panel, Center
55308-50010 Bracket Sub-assy, Instrument Panel, Center
1989-11 → 1994-10 ended
UCF1# ¥1,060
55331 — Reinforcement, Instrument Panel
55330-50020 Reinforcement, Instrument Panel
1989-11 → 1994-10 ended
UCF1# ¥20,200
55330-50040 note Reinforcement, Instrument Panel
1992-08 → 1994-10 ended
UCF1# ¥21,400
55341 — Brace, Instrument Panel, NO.1
55341-50020 Brace, Instrument Panel, NO.1
1989-11 → 1994-10 ended
UCF1# ¥520
55342A — Brace, Instrument Panel TO Cowl, NO.2
55342-50020 Brace, Instrument Panel TO Cowl, NO.2
1989-11 → 1994-10 ended
UCF1# ¥1,340
55374A — Bracket, Instrument Panel Lower Mounting, RH
55374-50020 Bracket, Instrument Panel Lower Mounting, RH
1989-11 → 1994-10 ended
UCF1# ¥1,050
55375A — Bracket, Instrument Panel Lower Mounting, LH
55375-50020 Bracket, Instrument Panel Lower Mounting, LH
1989-11 → 1992-08 ended
UCF1# ¥1,060
55375-50030 Bracket, Instrument Panel Lower Mounting, LH
1992-08 → 1994-10 ended
UCF1# ¥1,060
55381B — Bracket, Finish Panel Mounting, NO.1
55381-50010 Bracket, Finish Panel Mounting, NO.1
1989-11 → 1994-10 ended
UCF1# ¥1,280
55383 — Bracket, Finish Panel Mounting, NO.3
55383-50020 Bracket, Finish Panel Mounting, NO.3
1989-11 → 1992-08 ended
UCF1# ¥930
55383-50021 Bracket, Finish Panel Mounting, NO.3
1992-08 → 1994-10 ended
UCF1# ¥910
55384C — Bracket, Finish Panel Mounting, NO.4
55384-50020 Bracket, Finish Panel Mounting, NO.4
1989-11 → 1994-10 ended
UCF1# ¥740
55401E — Pad Sub-assy, Instrument Panel Safety
55401-50020-03 note Pad Sub-assy, Instrument Panel Safety
1989-11 → 1992-08 ended
UCF1# ¥70,700
55401-50020-04 note Pad Sub-assy, Instrument Panel Safety
1989-11 → 1992-08 ended
UCF1# ¥70,700
55401-50020-05 note Pad Sub-assy, Instrument Panel Safety
1989-11 → 1992-08 ended
UCF1# B,C ¥70,700
55401-50020-06 note Pad Sub-assy, Instrument Panel Safety
1989-11 → 1992-08 ended
UCF1# B,C ¥70,700
55401-50020-E0 note Pad Sub-assy, Instrument Panel Safety
1992-08 → 1994-10 ended
UCF1# B,C ¥70,700
55401-50020-K0 note Pad Sub-assy, Instrument Panel Safety
1992-08 → 1994-10 ended
UCF1# B,C ¥70,700
55401-50020-P0 note Pad Sub-assy, Instrument Panel Safety
1992-08 → 1994-10 ended
UCF1# ¥70,700
55401-50020-W3 note Pad Sub-assy, Instrument Panel Safety
1992-08 → 1994-10 ended
UCF1# ¥70,700
55401-50040-B0 note Pad Sub-assy, Instrument Panel Safety
1992-08 → 1994-10 ended
UCF1# ¥73,400
55401-50040-E0 note Pad Sub-assy, Instrument Panel Safety
1992-08 → 1994-10 ended
UCF1# B,C ¥73,400
55401-50040-J0 note Pad Sub-assy, Instrument Panel Safety
1992-08 → 1994-10 ended
UCF1# ¥73,400
55401-50040-K0 note Pad Sub-assy, Instrument Panel Safety
1992-08 → 1994-10 ended
UCF1# B,C ¥73,400
55402C — Pad Sub-assy, Instrument Panel, Lower RH
55402-50020-03 note Pad Sub-assy, Instrument Panel, Lower RH
1989-11 → 1992-08 ended
UCF1# ¥20,900
55402-50020-04 note Pad Sub-assy, Instrument Panel, Lower RH
1989-11 → 1992-08 ended
UCF1# ¥20,900
55402-50020-06 note Pad Sub-assy, Instrument Panel, Lower RH
1989-11 → 1992-08 ended
UCF1# B,C ¥20,900
55402-50020-08 note Pad Sub-assy, Instrument Panel, Lower RH
1989-11 → 1992-08 ended
UCF1# B,C ¥20,900
55402-50020-A0 note Pad Sub-assy, Instrument Panel, Lower RH
1992-08 → 1994-10 ended
UCF1# B,C ¥20,900
55402-50020-J0 note Pad Sub-assy, Instrument Panel, Lower RH
1992-08 → 1994-10 ended
UCF1# ¥20,900
55402-50020-K0 note Pad Sub-assy, Instrument Panel, Lower RH
1992-08 → 1994-10 ended
UCF1# B,C ¥20,900
55402-50020-S7 note Pad Sub-assy, Instrument Panel, Lower RH
1992-08 → 1994-10 ended
UCF1# ¥20,900
55403C — Pad Sub-assy, Instrument Panel, Lower LH
55403-50020-03 note Pad Sub-assy, Instrument Panel, Lower LH
1989-11 → 1992-08 ended
UCF1# ¥14,000
55403-50020-04 note Pad Sub-assy, Instrument Panel, Lower LH
1989-11 → 1992-08 ended
UCF1# ¥14,000
55403-50020-06 note Pad Sub-assy, Instrument Panel, Lower LH
1989-11 → 1992-08 ended
UCF1# B,C ¥14,000
55403-50020-08 note Pad Sub-assy, Instrument Panel, Lower LH
1989-11 → 1992-08 ended
UCF1# B,C ¥14,000
55403-50020-A0 note Pad Sub-assy, Instrument Panel, Lower LH
1992-08 → 1994-10 ended
UCF1# B,C ¥14,000
55403-50020-K0 note Pad Sub-assy, Instrument Panel, Lower LH
1992-08 → 1994-10 ended
UCF1# B,C ¥14,000
55403-50020-S7 note Pad Sub-assy, Instrument Panel, Lower LH
1992-08 → 1994-10 ended
UCF1# ¥14,000
55403-50020-W4 note Pad Sub-assy, Instrument Panel, Lower LH
1992-08 → 1994-10 ended
UCF1# ¥14,000
55403-50030-A0 note Pad Sub-assy, Instrument Panel, Lower LH
1992-08 → 1994-10 ended
UCF1# B,C ¥29,400
55403-50030-B0 note Pad Sub-assy, Instrument Panel, Lower LH
1992-08 → 1994-10 ended
UCF1# ¥29,400
55403-50030-J0 note Pad Sub-assy, Instrument Panel, Lower LH
1992-08 → 1994-10 ended
UCF1# ¥29,400
55403-50030-K0 note Pad Sub-assy, Instrument Panel, Lower LH
1992-08 → 1994-10 ended
UCF1# B,C ¥29,400
55404C — Panel Sub-assy, Instrument Cluster Finish, NO.2
55404-50040 Panel Sub-assy, Instrument Cluster Finish, NO.2
1989-11 → 1992-08 ended
UCF1# A,C ¥6,400
55404-50050 Panel Sub-assy, Instrument Cluster Finish, NO.2
1989-11 → 1992-08 ended
UCF10 B ¥10,000
55404-50090 Panel Sub-assy, Instrument Cluster Finish, NO.2
1992-08 → 1994-10 ended
UCF1# ¥6,400
55407B — Base Sub-assy, Switch Hole
55407-50010 Base Sub-assy, Switch Hole
1989-11 → 1994-10 ended
UCF10 A ¥19,700
55407-50020 Base Sub-assy, Switch Hole
1989-11 → 1994-10 ended
UCF1# B,C ¥19,700
55407-50020 note Base Sub-assy, Switch Hole
1991-01 → 1994-10 ended
UCF10 A ¥19,700
55407-50060 note Base Sub-assy, Switch Hole
1989-11 → 1992-08 ended
UCF11 ¥19,700
55407-50070 note Base Sub-assy, Switch Hole
1992-08 → 1994-10 ended
UCF11 ¥19,700
55408E — Box Sub-assy, Instrument Panel Coin
55408-50050-03 note Box Sub-assy, Instrument Panel Coin
1989-11 → 1992-08 ended
UCF1# ¥1,850
55408-50050-04 note Box Sub-assy, Instrument Panel Coin
1989-11 → 1992-08 ended
UCF1# ¥1,870
55408-50050-05 note Box Sub-assy, Instrument Panel Coin
1989-11 → 1992-08 ended
UCF1# B,C ¥1,850
55408-50050-06 note Box Sub-assy, Instrument Panel Coin
1989-11 → 1992-08 ended
UCF1# B,C ¥1,850
55408-50060-B0 note Box Sub-assy, Instrument Panel Coin
1992-08 → 1994-10 ended
UCF1# ¥1,850
55408-50060-E0 note Box Sub-assy, Instrument Panel Coin
1992-08 → 1994-10 ended
UCF1# B,C ¥1,850
55408-50060-J0 note Box Sub-assy, Instrument Panel Coin
1992-08 → 1994-10 ended
UCF1# ¥1,850
55408-50060-K0 note Box Sub-assy, Instrument Panel Coin
1992-08 → 1994-10 ended
UCF1# B,C ¥1,850
55408H — Pad Sub-assy, Instrument Panel Cylinder
55408-50020-03 note Pad Sub-assy, Instrument Panel Cylinder
1989-11 → 1992-08 ended
UCF1# ¥2,290
55408-50020-04 note Pad Sub-assy, Instrument Panel Cylinder
1989-11 → 1992-08 ended
UCF1# ¥2,290
55408-50020-05 note Pad Sub-assy, Instrument Panel Cylinder
1989-11 → 1992-08 ended
UCF1# B,C ¥2,290
55408-50020-06 note Pad Sub-assy, Instrument Panel Cylinder
1989-11 → 1992-08 ended
UCF1# B,C ¥2,290
55408-50020-E0 note Pad Sub-assy, Instrument Panel Cylinder
1992-08 → 1994-10 ended
UCF1# B,C ¥2,290
55408-50020-K0 note Pad Sub-assy, Instrument Panel Cylinder
1992-08 → 1994-10 ended
UCF1# B,C ¥2,290
55408-50020-P0 note Pad Sub-assy, Instrument Panel Cylinder
1992-08 → 1994-10 ended
UCF1# ¥2,290
55408-50020-W3 note Pad Sub-assy, Instrument Panel Cylinder
1992-08 → 1994-10 ended
UCF1# ¥2,290
55437A — Retainer, Instrument Panel Finish Panel, NO.1
55437-50010 Retainer, Instrument Panel Finish Panel, NO.1
1989-11 → 1994-10 ended
UCF1# ¥320
55437B — Retainer, Instr Panel Finish Panel, NO.2
55437-50010 Retainer, Instr Panel Finish Panel, NO.2
1989-11 → 1992-08 ended
UCF1# ¥320
55437-50010 Retainer, Instr Panel Finish Panel, NO.2
1992-08 → 1994-10 ended
UCF1# ¥320
55447C — Base, Switch Hole, NO.2
55447-50010-03 note Base, Switch Hole, NO.2
1989-11 → 1992-08 ended
UCF1# ¥1,780
55447-50010-04 note Base, Switch Hole, NO.2
1989-11 → 1992-08 ended
UCF1# ¥1,780
55447-50010-05 note Base, Switch Hole, NO.2
1989-11 → 1992-08 ended
UCF1# B,C ¥1,780
55447-50010-06 note Base, Switch Hole, NO.2
1989-11 → 1992-08 ended
UCF1# B,C ¥1,780
55447-50010-B0 note Base, Switch Hole, NO.2
1992-08 → 1994-10 ended
UCF1# ¥1,780
55447-50010-E0 note Base, Switch Hole, NO.2
1992-08 → 1994-10 ended
UCF1# B,C ¥1,780
55447-50010-J0 note Base, Switch Hole, NO.2
1992-08 → 1994-10 ended
UCF1# ¥1,780
55447-50010-K0 note Base, Switch Hole, NO.2
1992-08 → 1994-10 ended
UCF1# B,C ¥1,780
55450B — Box Assy, Coin
55450-50020-03 note Box Assy, Coin
1989-11 → 1992-08 ended
UCF1# ¥7,900
55450-50020-04 note Box Assy, Coin
1989-11 → 1992-08 ended
UCF1# ¥7,900
55450-50020-05 note Box Assy, Coin
1989-11 → 1992-08 ended
UCF1# B,C ¥7,900
55450-50020-06 note Box Assy, Coin
1989-11 → 1992-08 ended
UCF1# B,C ¥7,900
55450-50030-B0 note Box Assy, Coin
1992-08 → 1994-10 ended
UCF1# ¥7,900
55450-50030-E0 note Box Assy, Coin
1992-08 → 1994-10 ended
UCF1# B,C ¥7,900
55450-50030-J0 note Box Assy, Coin
1992-08 → 1994-10 ended
UCF1# ¥7,900
55450-50030-K0 note Box Assy, Coin
1992-08 → 1994-10 ended
UCF1# B,C ¥7,900
55488B — Lens, Front Foot Lamp, NO.1
55488-50010 Lens, Front Foot Lamp, NO.1
1989-11 → 1994-10 ended
UCF1# ¥740
55489B — Lens, Front Foot Lamp, NO.2
55489-50010 Lens, Front Foot Lamp, NO.2
1989-11 → 1994-10 ended
UCF1# ¥280
55506C — Compartment Sub-assy, Glove
55506-50020 Compartment Sub-assy, Glove
1989-11 → 1994-10 ended
UCF1# ¥12,000
55506-50040 note Compartment Sub-assy, Glove
1992-08 → 1994-10 ended
UCF1# ¥13,000
55507 — Hinge Sub-assy, Glove Compartment Door
55505-50020 Hinge Sub-assy, Glove Compartment Door
1989-11 → 1994-10 ended
UCF1# ¥3,010
55505-50040 note Hinge Sub-assy, Glove Compartment Door
1992-08 → 1994-10 ended
UCF1# ¥3,300
55510 — Door Assy, Glove Compartment
55503-50020-B0 note Door Assy, Glove Compartment
1992-08 → 1994-10 ended
UCF1# ¥12,000
55503-50020-E0 note Door Assy, Glove Compartment
1992-08 → 1994-10 ended
UCF1# B,C ¥12,000
55503-50020-J0 note Door Assy, Glove Compartment
1992-08 → 1994-10 ended
UCF1# ¥12,000
55503-50020-K0 note Door Assy, Glove Compartment
1992-08 → 1994-10 ended
UCF1# B,C ¥12,000
55550-50020-03 note Door Assy, Glove Compartment
1989-11 → 1992-08 ended
UCF1# ¥16,700
55550-50020-04 note Door Assy, Glove Compartment
1989-11 → 1992-08 ended
UCF1# ¥16,700
55550-50020-05 note Door Assy, Glove Compartment
1989-11 → 1992-08 ended
UCF1# B,C ¥16,700
55550-50020-06 note Door Assy, Glove Compartment
1989-11 → 1992-08 ended
UCF1# B,C ¥16,700
55550-50020-E0 note Door Assy, Glove Compartment
1992-08 → 1994-10 ended
UCF1# B,C ¥16,700
55550-50020-K0 note Door Assy, Glove Compartment
1992-08 → 1994-10 ended
UCF1# B,C ¥16,700
55550-50020-P0 note Door Assy, Glove Compartment
1992-08 → 1994-10 ended
UCF1# ¥16,700
55550-50020-W3 note Door Assy, Glove Compartment
1992-08 → 1994-10 ended
UCF1# ¥16,700
55524 — Cover, Switch Bace Hole
55524-50010-03 note Cover, Switch Bace Hole
1989-11 → 1992-08 ended
UCF1# ¥1,430
55524-50010-04 note Cover, Switch Bace Hole
1989-11 → 1992-08 ended
UCF1# ¥1,430
55524-50010-05 note Cover, Switch Bace Hole
1989-11 → 1992-08 ended
UCF1# B,C ¥1,430
55524-50010-06 note Cover, Switch Bace Hole
1989-11 → 1992-08 ended
UCF1# B,C ¥1,430
55524-50010-E0 note Cover, Switch Bace Hole
1992-08 → 1994-10 ended
UCF1# B,C ¥1,430
55524-50010-K0 note Cover, Switch Bace Hole
1992-08 → 1994-10 ended
UCF1# B,C ¥1,430
55524-50010-P0 note Cover, Switch Bace Hole
1992-08 → 1994-10 ended
UCF1# ¥1,430
55524-50010-W3 note Cover, Switch Bace Hole
1992-08 → 1994-10 ended
UCF1# ¥1,430
55531A — Panel, Glove Compartment, NO.1
55531-50020 Panel, Glove Compartment, NO.1
1989-11 → 1994-10 ended
UCF1# ¥390
55532A — Panel, Glove Compartment, NO.2
55532-50020 Panel, Glove Compartment, NO.2
1989-11 → 1994-10 ended
UCF1# ¥350
55538A — Cover, Cooler Switch Hole
55538-50010-03 note Cover, Cooler Switch Hole
1989-11 → 1992-08 ended
UCF1# ¥520
55538-50010-04 note Cover, Cooler Switch Hole
1989-11 → 1992-08 ended
UCF1# ¥520
55538-50010-05 note Cover, Cooler Switch Hole
1989-11 → 1992-08 ended
UCF1# B,C ¥520
55538-50010-06 note Cover, Cooler Switch Hole
1989-11 → 1992-08 ended
UCF1# B,C ¥520
55538-50010-B0 note Cover, Cooler Switch Hole
1992-08 → 1994-10 ended
UCF1# ¥520
55538-50010-E0 note Cover, Cooler Switch Hole
1992-08 → 1994-10 ended
UCF1# B,C ¥520
55538-50010-J0 note Cover, Cooler Switch Hole
1992-08 → 1994-10 ended
UCF1# ¥520
55538-50010-K0 note Cover, Cooler Switch Hole
1992-08 → 1994-10 ended
UCF1# B,C ¥520
55539 — Cover, Spare Switch Hole
55539-50010-03 note Cover, Spare Switch Hole
1989-11 → 1992-08 ended
UCF1# ¥600
55539-50010-04 note Cover, Spare Switch Hole
1989-11 → 1992-08 ended
UCF1# ¥600
55539-50010-05 note Cover, Spare Switch Hole
1989-11 → 1992-08 ended
UCF1# B,C ¥600
55539-50010-06 note Cover, Spare Switch Hole
1989-11 → 1992-08 ended
UCF1# B,C ¥600
55539-50010-B0 note Cover, Spare Switch Hole
1992-08 → 1994-10 ended
UCF1# ¥600
55539-50010-E0 note Cover, Spare Switch Hole
1992-08 → 1994-10 ended
UCF1# B,C ¥600
55539-50010-J0 note Cover, Spare Switch Hole
1992-08 → 1994-10 ended
UCF1# ¥600
55539-50010-K0 note Cover, Spare Switch Hole
1992-08 → 1994-10 ended
UCF1# B,C ¥600
55552B — Door, Glove Compartment, Inner
55552-50040 Door, Glove Compartment, Inner
1992-08 → 1994-10 ended
UCF1# ¥1,830
55556 — Arm, Glove Compartment Door Check
55556-50010 Arm, Glove Compartment Door Check
1989-11 → 1994-10 ended
UCF1# ¥760
55556-50040 note Arm, Glove Compartment Door Check
1992-10 → 1994-10 ended
UCF1# ¥470
55556-50050 note Arm, Glove Compartment Door Check
1992-08 → 1992-10 ended
UCF1# ¥470
55560A — Lock Assy, Glove Compartment Door
55560-50030 Lock Assy, Glove Compartment Door
1989-11 → 1994-10 ended
UCF1# ¥3,000
55560-50040 note Lock Assy, Glove Compartment Door
1992-08 → 1994-10 ended
UCF1# ¥2,960
55565 — Handle, Glove Compartment Door Lock
55565-50010-03 note Handle, Glove Compartment Door Lock
1989-11 → 1992-08 ended
UCF1# ¥520
55565-50010-04 note Handle, Glove Compartment Door Lock
1989-11 → 1992-08 ended
UCF1# ¥520
55565-50010-05 note Handle, Glove Compartment Door Lock
1989-11 → 1992-08 ended
UCF1# B,C ¥520
55565-50010-06 note Handle, Glove Compartment Door Lock
1989-11 → 1992-08 ended
UCF1# B,C ¥520
55565-50010-E0 note Handle, Glove Compartment Door Lock
1992-08 → 1994-10 ended
UCF1# B,C ¥520
55565-50010-K0 note Handle, Glove Compartment Door Lock
1992-08 → 1994-10 ended
UCF1# B,C ¥520
55565-50010-P0 note Handle, Glove Compartment Door Lock
1992-08 → 1994-10 ended
UCF1# ¥520
55565-50010-W3 note Handle, Glove Compartment Door Lock
1992-08 → 1994-10 ended
UCF1# ¥520
55568 — Plate, Glove Compartment Door Pad
55568-50010 Plate, Glove Compartment Door Pad
1989-11 → 1994-10 ended
UCF1# ¥110
55568B — Plate, Glove Compartment Door Finish
55568-50020 Plate, Glove Compartment Door Finish
1992-08 → 1993-01 ended
UCF1# ¥1,120
55568-50030 Plate, Glove Compartment Door Finish
1993-01 → 1994-10 ended
UCF1# ¥1,240
55569 — Cover, Glove Compartment Door Lock
55569-50010-03 note Cover, Glove Compartment Door Lock
1989-11 → 1992-08 ended
UCF1# ¥440
55569-50010-04 note Cover, Glove Compartment Door Lock
1989-11 → 1992-08 ended
UCF1# ¥440
55569-50010-05 note Cover, Glove Compartment Door Lock
1989-11 → 1992-08 ended
UCF1# B,C ¥440
55569-50010-06 note Cover, Glove Compartment Door Lock
1989-11 → 1992-08 ended
UCF1# B,C ¥440
55569-50010-E0 note Cover, Glove Compartment Door Lock
1992-08 → 1994-10 ended
UCF1# B,C ¥440
55569-50010-K0 note Cover, Glove Compartment Door Lock
1992-08 → 1994-10 ended
UCF1# B,C ¥440
55569-50010-P0 note Cover, Glove Compartment Door Lock
1992-08 → 1994-10 ended
UCF1# ¥440
55569-50010-W3 note Cover, Glove Compartment Door Lock
1992-08 → 1994-10 ended
UCF1# ¥440
55590 — Plate Assy, Grove Compartment Door Lock Striker
55590-50020 Plate Assy, Grove Compartment Door Lock Striker
1989-11 → 1994-10 ended
UCF1# ¥990
55590-50030 note Plate Assy, Grove Compartment Door Lock Striker
1992-08 → 1994-10 ended
UCF1# ¥1,160
55606 — Cover Sub-assy, Instrument Panel Under, NO.1
55606-50020-03 note Cover Sub-assy, Instrument Panel Under, NO.1
1989-11 → 1990-07 ended
UCF1# ¥6,100
55606-50020-04 note Cover Sub-assy, Instrument Panel Under, NO.1
1989-11 → 1990-07 ended
UCF1# ¥6,100
55606-50020-06 note Cover Sub-assy, Instrument Panel Under, NO.1
1989-11 → 1990-07 ended
UCF1# B,C ¥6,100
55606-50020-08 note Cover Sub-assy, Instrument Panel Under, NO.1
1989-11 → 1990-07 ended
UCF1# B,C ¥6,100
55606-50021-03 note Cover Sub-assy, Instrument Panel Under, NO.1
1990-07 → 1992-08 ended
UCF1# ¥6,000
55606-50021-04 note Cover Sub-assy, Instrument Panel Under, NO.1
1990-07 → 1992-08 ended
UCF1# ¥6,000
55606-50021-06 note Cover Sub-assy, Instrument Panel Under, NO.1
1990-07 → 1992-08 ended
UCF1# B,C ¥6,000
55606-50021-08 note Cover Sub-assy, Instrument Panel Under, NO.1
1990-07 → 1992-08 ended
UCF1# B,C ¥6,000
55606-50040-A0 note Cover Sub-assy, Instrument Panel Under, NO.1
1992-08 → 1994-10 ended
UCF1# B,C ¥9,400
55606-50040-B0 note Cover Sub-assy, Instrument Panel Under, NO.1
1992-08 → 1994-10 ended
UCF1# B,C ¥9,400
55606-50040-J0 note Cover Sub-assy, Instrument Panel Under, NO.1
1992-08 → 1994-10 ended
UCF1# B,C ¥9,400
55606-50040-K0 note Cover Sub-assy, Instrument Panel Under, NO.1
1992-08 → 1994-10 ended
UCF1# B,C ¥9,400
55606-50050-B0 note Cover Sub-assy, Instrument Panel Under, NO.1
1992-08 → 1994-10 ended
UCF10 A ¥6,000
55606-50050-J0 note Cover Sub-assy, Instrument Panel Under, NO.1
1992-08 → 1994-10 ended
UCF10 A ¥6,000
55607 — Cover Sub-assy, Instrument Panel Under, NO.2
55607-50020-03 note Cover Sub-assy, Instrument Panel Under, NO.2
1989-11 → 1989-12 ended
UCF1# ¥8,100
55607-50020-04 note Cover Sub-assy, Instrument Panel Under, NO.2
1989-11 → 1989-12 ended
UCF1# ¥8,100
55607-50020-06 note Cover Sub-assy, Instrument Panel Under, NO.2
1989-11 → 1989-12 ended
UCF1# B,C ¥8,100
55607-50020-08 note Cover Sub-assy, Instrument Panel Under, NO.2
1989-11 → 1989-12 ended
UCF1# B,C ¥8,100
55607-50030-03 note Cover Sub-assy, Instrument Panel Under, NO.2
1989-12 → 1992-08 ended
UCF1# ¥8,100
55607-50030-04 note Cover Sub-assy, Instrument Panel Under, NO.2
1989-12 → 1992-08 ended
UCF1# ¥8,100
55607-50030-06 note Cover Sub-assy, Instrument Panel Under, NO.2
1989-12 → 1992-08 ended
UCF1# B,C ¥8,100
55607-50030-08 note Cover Sub-assy, Instrument Panel Under, NO.2
1989-12 → 1992-08 ended
UCF1# B,C ¥8,100
55607-50060-A0 note Cover Sub-assy, Instrument Panel Under, NO.2
1992-08 → 1994-10 ended
UCF1# B,C ¥7,400
55607-50060-B0 note Cover Sub-assy, Instrument Panel Under, NO.2
1992-08 → 1994-10 ended
UCF1# ¥7,400
55607-50060-J0 note Cover Sub-assy, Instrument Panel Under, NO.2
1992-08 → 1994-10 ended
UCF1# ¥7,400
55607-50060-K0 note Cover Sub-assy, Instrument Panel Under, NO.2
1992-08 → 1994-10 ended
UCF1# B,C ¥7,400
55650 — Register Assy, Instrument Panel, NO.1
55650-50020-03 note Register Assy, Instrument Panel, NO.1
1989-11 → 1992-08 ended
UCF1# ¥5,700
55650-50020-04 note Register Assy, Instrument Panel, NO.1
1989-11 → 1992-08 ended
UCF1# ¥5,700
55650-50020-05 note Register Assy, Instrument Panel, NO.1
1989-11 → 1992-08 ended
UCF1# B,C ¥5,700
55650-50020-06 note Register Assy, Instrument Panel, NO.1
1989-11 → 1992-08 ended
UCF1# B,C ¥5,700
55650-50020-E0 note Register Assy, Instrument Panel, NO.1
1992-08 → 1994-10 ended
UCF1# B,C ¥5,700
55650-50020-K0 note Register Assy, Instrument Panel, NO.1
1992-08 → 1994-10 ended
UCF1# B,C ¥5,700
55650-50020-P0 note Register Assy, Instrument Panel, NO.1
1992-08 → 1994-10 ended
UCF1# ¥5,700
55650-50020-W3 note Register Assy, Instrument Panel, NO.1
1992-08 → 1994-10 ended
UCF1# ¥5,700
55660 — Register Assy, Instrument Panel, NO.2
55660-50010 Register Assy, Instrument Panel, NO.2
1989-11 → 1994-10 ended
UCF1# ¥13,200
55660-50020 note Register Assy, Instrument Panel, NO.2
1992-08 → 1994-10 ended
UCF1# B,C ¥13,200
55670 — Register Assy, Instrument Panel, NO.3
55670-50020-03 note Register Assy, Instrument Panel, NO.3
1989-11 → 1992-08 ended
UCF1# ¥5,700
55670-50020-04 note Register Assy, Instrument Panel, NO.3
1989-11 → 1992-08 ended
UCF1# ¥5,700
55670-50020-05 note Register Assy, Instrument Panel, NO.3
1989-11 → 1992-08 ended
UCF1# B,C ¥5,700
55670-50020-06 note Register Assy, Instrument Panel, NO.3
1989-11 → 1992-08 ended
UCF1# B,C ¥5,700
55670-50020-E0 note Register Assy, Instrument Panel, NO.3
1992-08 → 1994-10 ended
UCF1# B,C ¥5,700
55670-50020-K0 note Register Assy, Instrument Panel, NO.3
1992-08 → 1994-10 ended
UCF1# B,C ¥5,700
55670-50020-P0 note Register Assy, Instrument Panel, NO.3
1992-08 → 1994-10 ended
UCF1# ¥5,700
55670-50020-W3 note Register Assy, Instrument Panel, NO.3
1992-08 → 1994-10 ended
UCF1# ¥5,700
55680B — Register Assy, Instrument Panel, Lower NO.1
55680-50010-03 note Register Assy, Instrument Panel, Lower NO.1
1989-11 → 1992-08 ended
UCF1# ¥1,970
55680-50010-04 note Register Assy, Instrument Panel, Lower NO.1
1989-11 → 1992-08 ended
UCF1# ¥1,970
55680-50010-06 note Register Assy, Instrument Panel, Lower NO.1
1989-11 → 1992-08 ended
UCF1# B,C ¥1,970
55680-50010-08 note Register Assy, Instrument Panel, Lower NO.1
1989-11 → 1992-08 ended
UCF1# B,C ¥1,970
55680-50010-A0 note Register Assy, Instrument Panel, Lower NO.1
1992-08 → 1993-05 ended
UCF1# B,C ¥1,970
55680-50010-K0 note Register Assy, Instrument Panel, Lower NO.1
1992-08 → 1993-05 ended
UCF1# B,C ¥1,970
55680-50010-S7 note Register Assy, Instrument Panel, Lower NO.1
1992-08 → 1993-05 ended
UCF1# ¥1,970
55680-50010-W4 note Register Assy, Instrument Panel, Lower NO.1
1992-08 → 1993-05 ended
UCF1# ¥1,970
55961 — Nozzle, Side Defroster, NO.1
55961-50010-03 note Nozzle, Side Defroster, NO.1
1989-11 → 1992-08 ended
UCF1# ¥990
55961-50010-04 note Nozzle, Side Defroster, NO.1
1989-11 → 1992-08 ended
UCF1# ¥990
55961-50010-05 note Nozzle, Side Defroster, NO.1
1989-11 → 1992-08 ended
UCF1# B,C ¥990
55961-50010-06 note Nozzle, Side Defroster, NO.1
1989-11 → 1992-08 ended
UCF1# B,C ¥990
55961-50010-E0 note Nozzle, Side Defroster, NO.1
1992-08 → 1994-10 ended
UCF1# B,C ¥990
55961-50010-K0 note Nozzle, Side Defroster, NO.1
1992-08 → 1994-10 ended
UCF1# B,C ¥990
55961-50010-P0 note Nozzle, Side Defroster, NO.1
1992-08 → 1994-10 ended
UCF1# ¥990
55961-50010-W3 note Nozzle, Side Defroster, NO.1
1992-08 → 1994-10 ended
UCF1# ¥990
55962 — Nozzle, Side Defroster, NO.2
55962-50010-03 note Nozzle, Side Defroster, NO.2
1989-11 → 1992-08 ended
UCF1# ¥1,000
55962-50010-04 note Nozzle, Side Defroster, NO.2
1989-11 → 1992-08 ended
UCF1# ¥1,000
55962-50010-05 note Nozzle, Side Defroster, NO.2
1989-11 → 1992-08 ended
UCF1# B,C ¥1,000
55962-50010-06 note Nozzle, Side Defroster, NO.2
1989-11 → 1992-08 ended
UCF1# B,C ¥1,000
55962-50010-E0 note Nozzle, Side Defroster, NO.2
1992-08 → 1994-10 ended
UCF1# B,C ¥1,000
55962-50010-K0 note Nozzle, Side Defroster, NO.2
1992-08 → 1994-10 ended
UCF1# B,C ¥1,000
55962-50010-P0 note Nozzle, Side Defroster, NO.2
1992-08 → 1994-10 ended
UCF1# ¥1,000
55962-50010-W3 note Nozzle, Side Defroster, NO.2
1992-08 → 1994-10 ended
UCF1# ¥1,000
55981 — Garnish, Defroster Nozzle, NO.1
55981-50020-03 note Garnish, Defroster Nozzle, NO.1
1989-11 → 1992-08 ended
UCF1# ¥3,270
55981-50020-04 note Garnish, Defroster Nozzle, NO.1
1989-11 → 1992-08 ended
UCF1# ¥3,270
55981-50020-05 note Garnish, Defroster Nozzle, NO.1
1989-11 → 1992-08 ended
UCF1# B,C ¥3,270
55981-50020-06 note Garnish, Defroster Nozzle, NO.1
1989-11 → 1992-08 ended
UCF1# B,C ¥3,270
55981-50040-B0 note Garnish, Defroster Nozzle, NO.1
1992-08 → 1994-10 ended
UCF1# ¥3,240
55981-50040-E0 note Garnish, Defroster Nozzle, NO.1
1992-08 → 1994-10 ended
UCF1# B,C ¥3,240
55981-50040-J0 note Garnish, Defroster Nozzle, NO.1
1992-08 → 1994-10 ended
UCF1# ¥3,240
55981-50040-K0 note Garnish, Defroster Nozzle, NO.1
1992-08 → 1994-10 ended
UCF1# B,C ¥3,240
55982 — Garnish, Defroster Nozzle, NO.2
55982-50020-03 note Garnish, Defroster Nozzle, NO.2
1989-11 → 1992-08 ended
UCF1# ¥3,270
55982-50020-04 note Garnish, Defroster Nozzle, NO.2
1989-11 → 1992-08 ended
UCF1# ¥3,270
55982-50020-05 note Garnish, Defroster Nozzle, NO.2
1989-11 → 1992-08 ended
UCF1# B,C ¥3,270
55982-50020-06 note Garnish, Defroster Nozzle, NO.2
1989-11 → 1992-08 ended
UCF1# B,C ¥3,270
55982-50040-B0 note Garnish, Defroster Nozzle, NO.2
1992-08 → 1994-10 ended
UCF1# ¥3,760
55982-50040-E0 note Garnish, Defroster Nozzle, NO.2
1992-08 → 1994-10 ended
UCF1# B,C ¥3,760
55982-50040-J0 note Garnish, Defroster Nozzle, NO.2
1992-08 → 1994-10 ended
UCF1# ¥3,760
55982-50040-K0 note Garnish, Defroster Nozzle, NO.2
1992-08 → 1994-10 ended
UCF1# B,C ¥3,760
62199 — Holder, Fusee
62199-50010 Holder, Fusee
1989-11 → 1994-10 ended
UCF1# ¥560
73970A — Airbag Assy, Instrument Panel Passenger
73970-50020-B0 note Airbag Assy, Instrument Panel Passenger
1992-08 → 1993-01 ended
UCF1# ¥216,000
73970-50020-E0 note Airbag Assy, Instrument Panel Passenger
1992-08 → 1993-01 ended
UCF1# ¥216,000
73970-50020-J0 note Airbag Assy, Instrument Panel Passenger
1992-08 → 1993-01 ended
UCF1# ¥216,000
73970-50020-K0 note Airbag Assy, Instrument Panel Passenger
1992-08 → 1993-01 ended
UCF1# ¥216,000
73970-50021-B0 note Airbag Assy, Instrument Panel Passenger
1993-01 → 1994-10 ended
UCF1# ¥216,000
73970-50021-E0 note Airbag Assy, Instrument Panel Passenger
1993-01 → 1994-10 ended
UCF1# ¥216,000
73970-50021-J0 note Airbag Assy, Instrument Panel Passenger
1993-01 → 1994-10 ended
UCF1# ¥216,000
73970-50021-K0 note Airbag Assy, Instrument Panel Passenger
1993-01 → 1994-10 ended
UCF1# ¥216,000
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
