Toyota Celsior

1989-11 → 1994-10 · chassis UCF1# · catalogue 431110 · Japan

Discontinued model Data version 1995-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

9 part groups · 2 illustrations

Illustrations

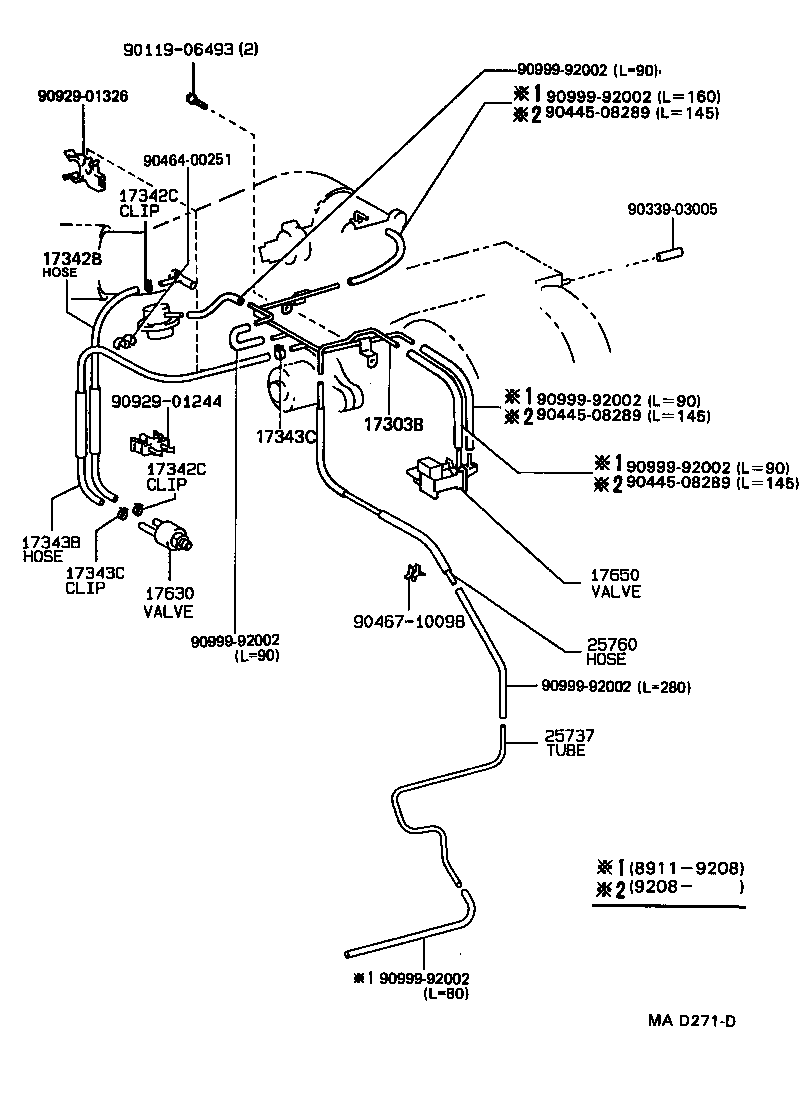

Figure MA9503A MA9503A 1989-11 → — Figure MAD271D MAD271D 1989-11 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
25737 Tube, NO.1
25760 Hose Assy, Vacuum Transmitting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
