Toyota Celsior

1989-11 → 1994-10 · chassis UCF1# · catalogue 431110 · Japan

Discontinued model Data version 1995-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

11 part groups · 2 illustrations

Illustrations

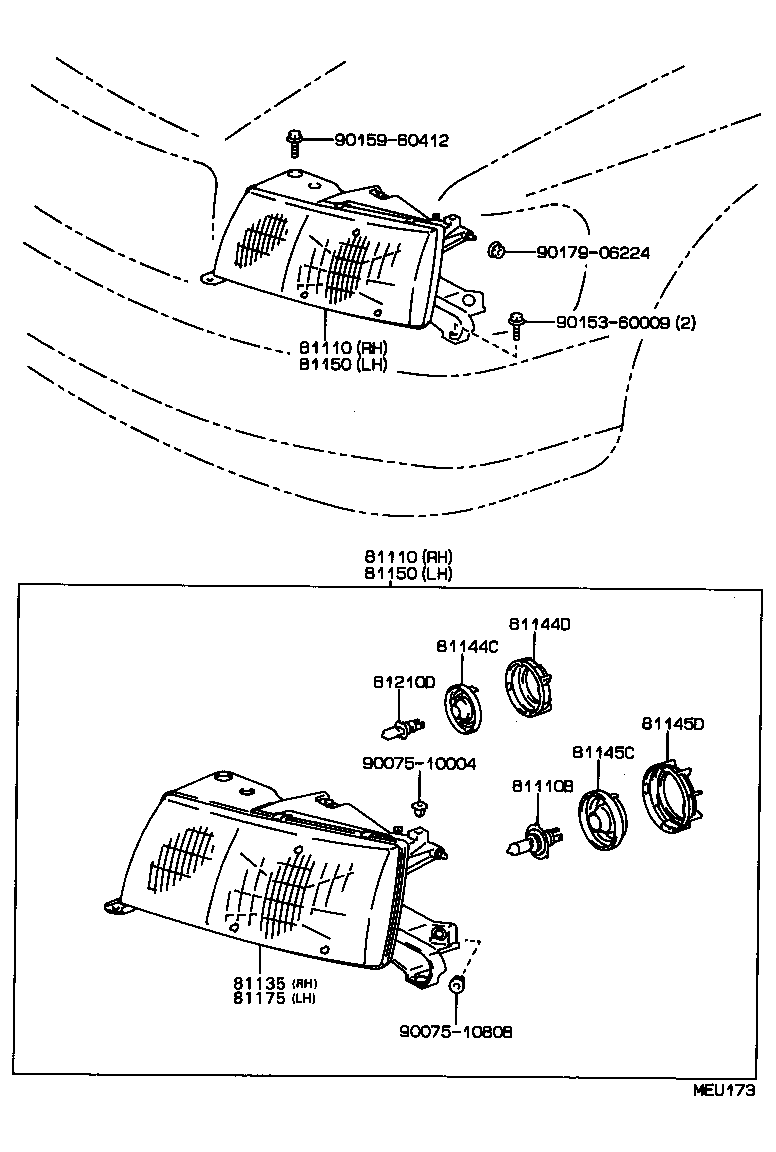

Figure MEP352A MEP352A 1989-11 → 1992-08 Figure MEU173 MEU173 1992-08 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81144C Cover, Headlamp Socket
81144D Cap, Headlamp Locking
81145C Cover, Headlamp Socket, NO.2
81145D Cap, Headlamp Locking NO.2
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81210D Bulb, Fog Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
