Toyota Celsior

1989-11 → 1994-10 · chassis UCF1# · catalogue 431110 · Japan

Discontinued model Data version 1995-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

15 part groups · 3 illustrations

Illustrations

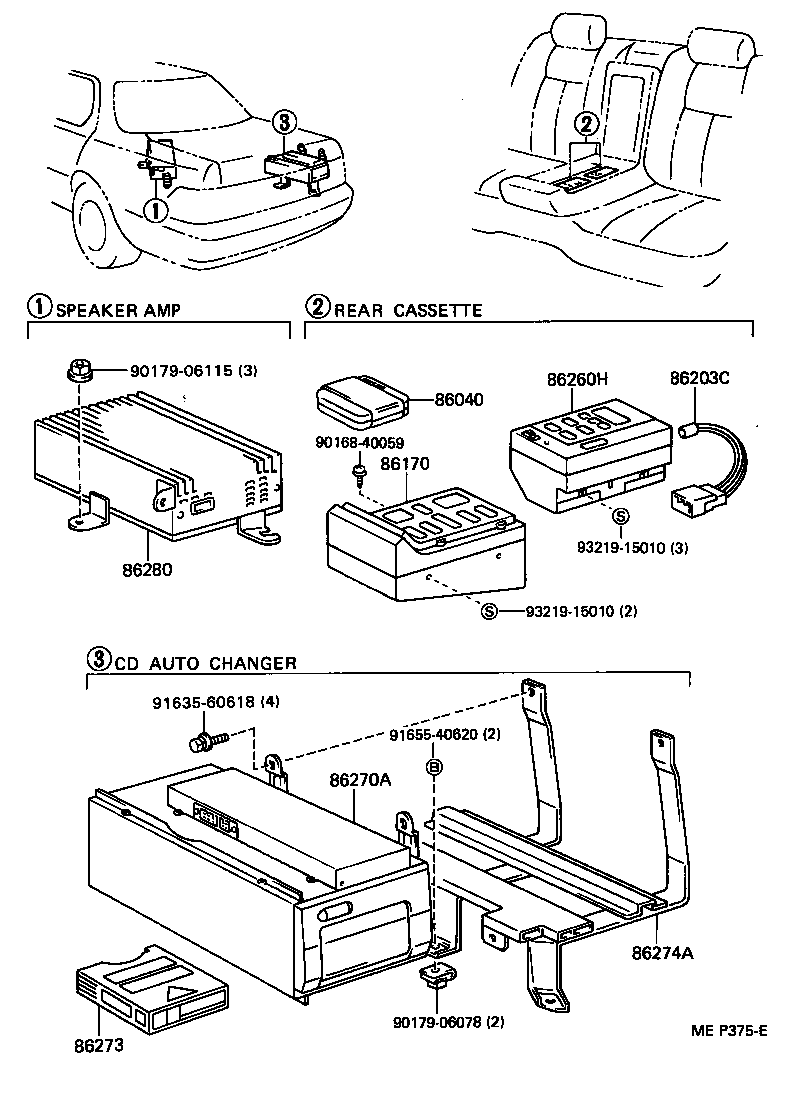

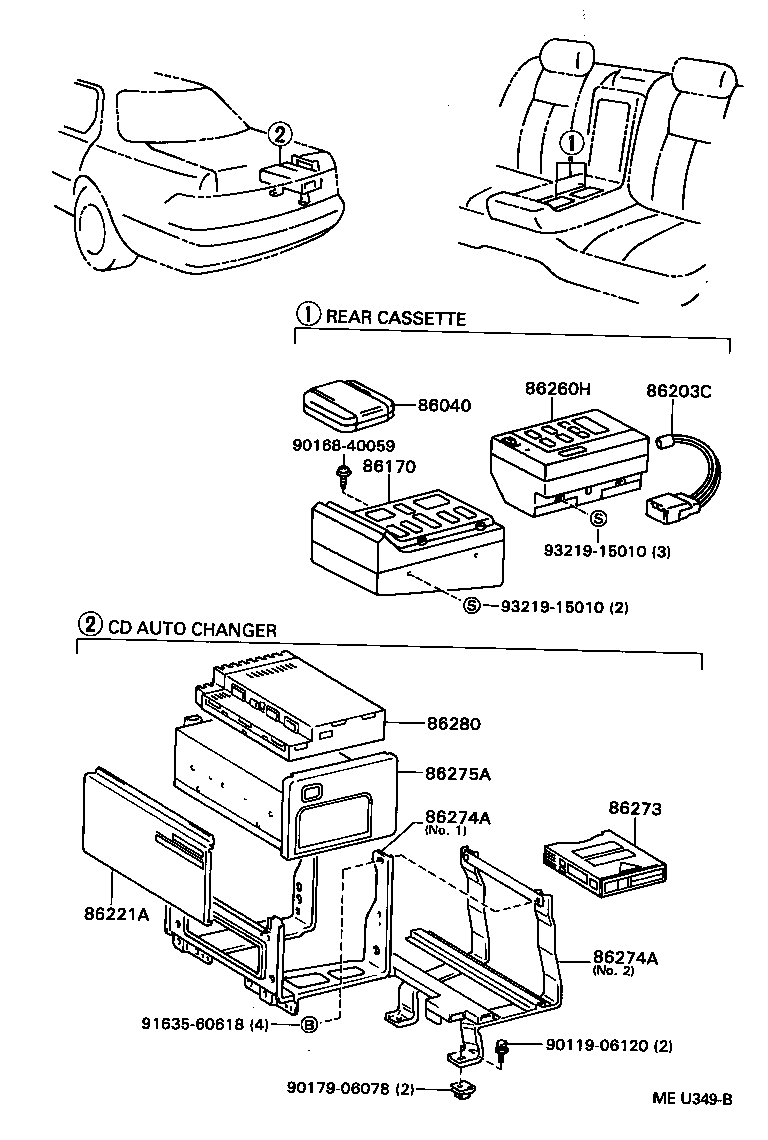

Figure MEP374D MEP374D 1989-11 → — Figure MEP375E MEP375E 1989-11 → 1992-08 Figure MEU349B MEU349B 1992-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86040 Headphone Assy, Stereo
86120 Receiver Assy, Radio
86170 Switch And Volume Assy, Radio
86203C Wire, Tape Player
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
86260H Player, Tape
86270A Disc Player Assy
86273 Magazine, Disc Player
86274A Bracket, Disc Player
86275A Changer, Disc Player
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
