Toyota Celsior
1989-11 → 1994-10 · chassis UCF1# · catalogue 431110 · Japan
Discontinued model
Data version 1995-05
Telephone & Mayday
19 part groups · 4 illustrations
Part groups

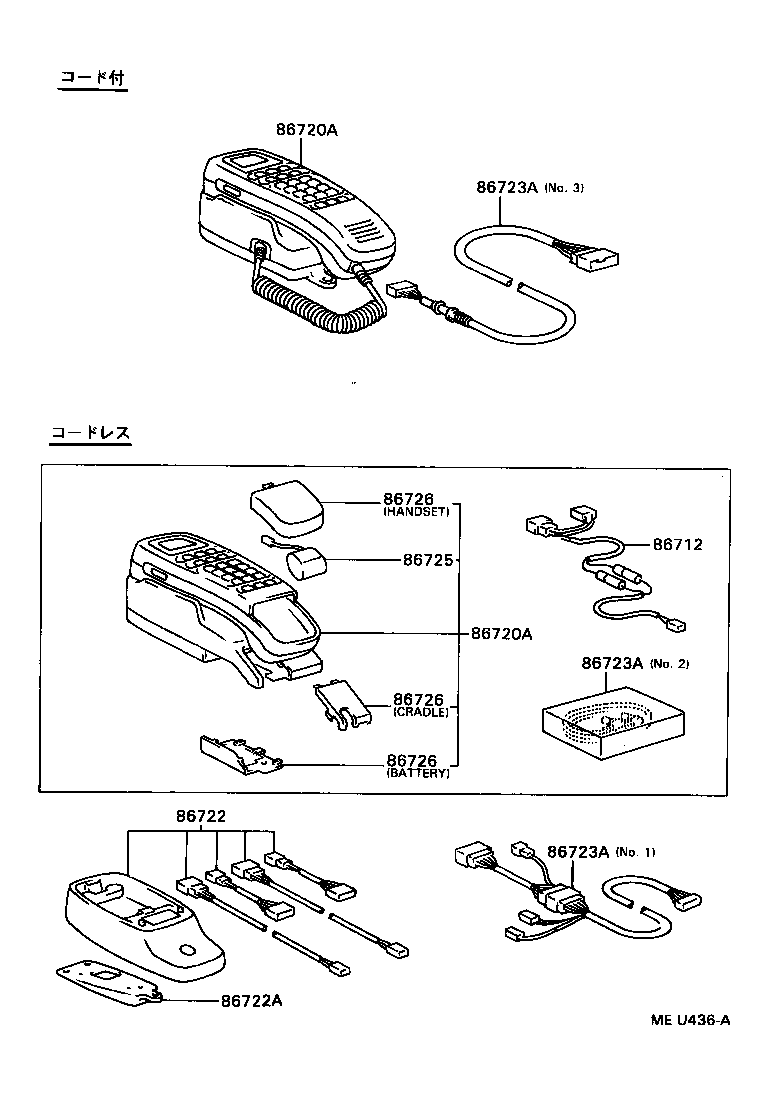

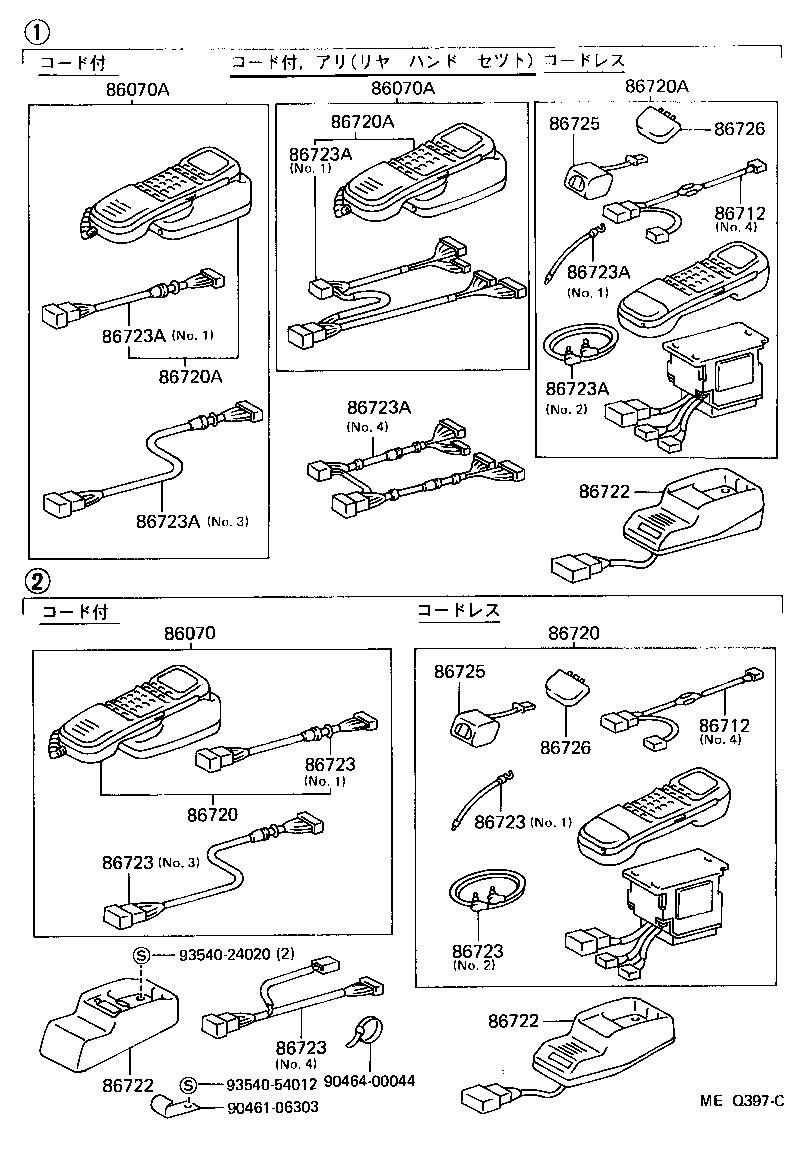

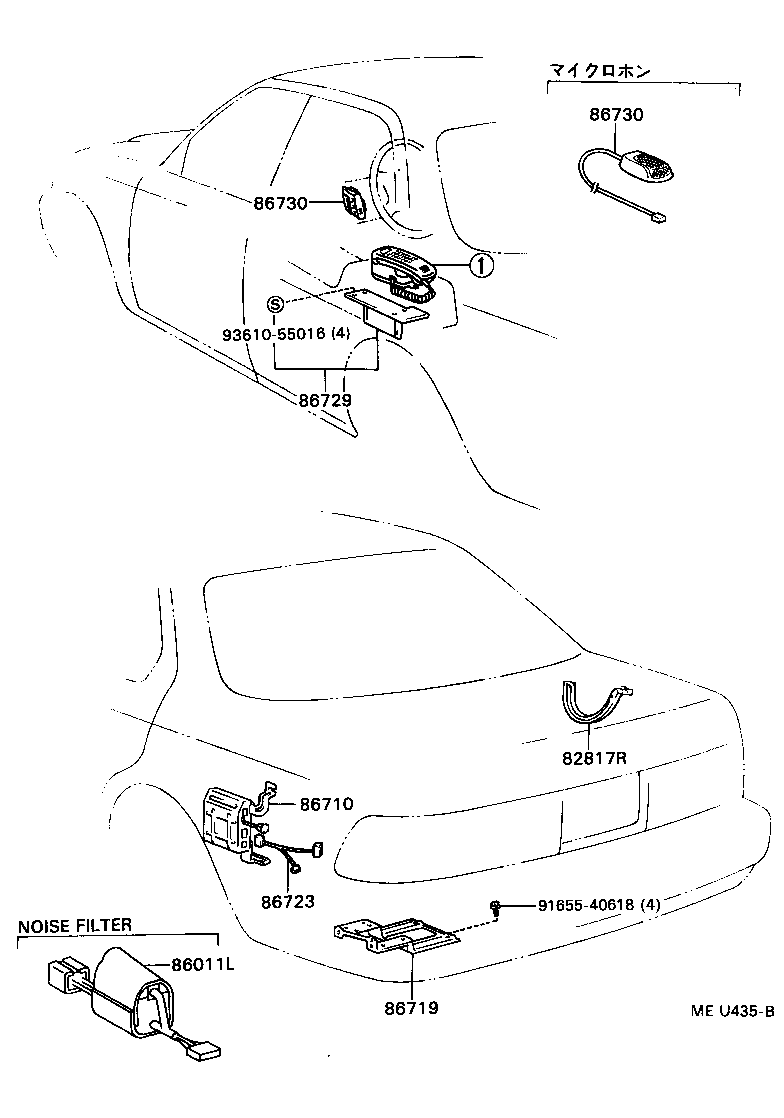

| PNC | Description |
|---|---|
| 82817R | Protector, Wiring Harness, NO.16 |
| 86011L | Filter, Noise |
| 86070 | Mobilephone & Accessory Assy |
| 86070A | Mobilephone & Accessory Assy (HANDSET) |
| 86282B | Bracket, Microphone |
| 86710 | Computer Assy, Telephone |
| 86712 | Wire, Telephone |
| 86719 | Bracket, Telephone |
| 86720 | Mobilephone Assy |
| 86720A | Mobilephone Assy |
| 86722 | Cradle, Mobilephone |
| 86722A | Cradle, Mobilephone |
| 86723 | Wire, Mobilephone |
| 86723A | Wire, Mobilephone |
| 86725 | Battery, Mobilephone |
| 86726 | Cover, Mobilephone |
| 86729 | Bracket, Mobilephone |
| 86730 | Microphone Assy, Telephone |
| 86750 | Switch Assy, Telephone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
