Toyota Celsior

1989-11 → 1994-10 · chassis UCF1# · catalogue 431110 · Japan

Discontinued model Data version 1995-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

7 part groups · 2 illustrations

Illustrations

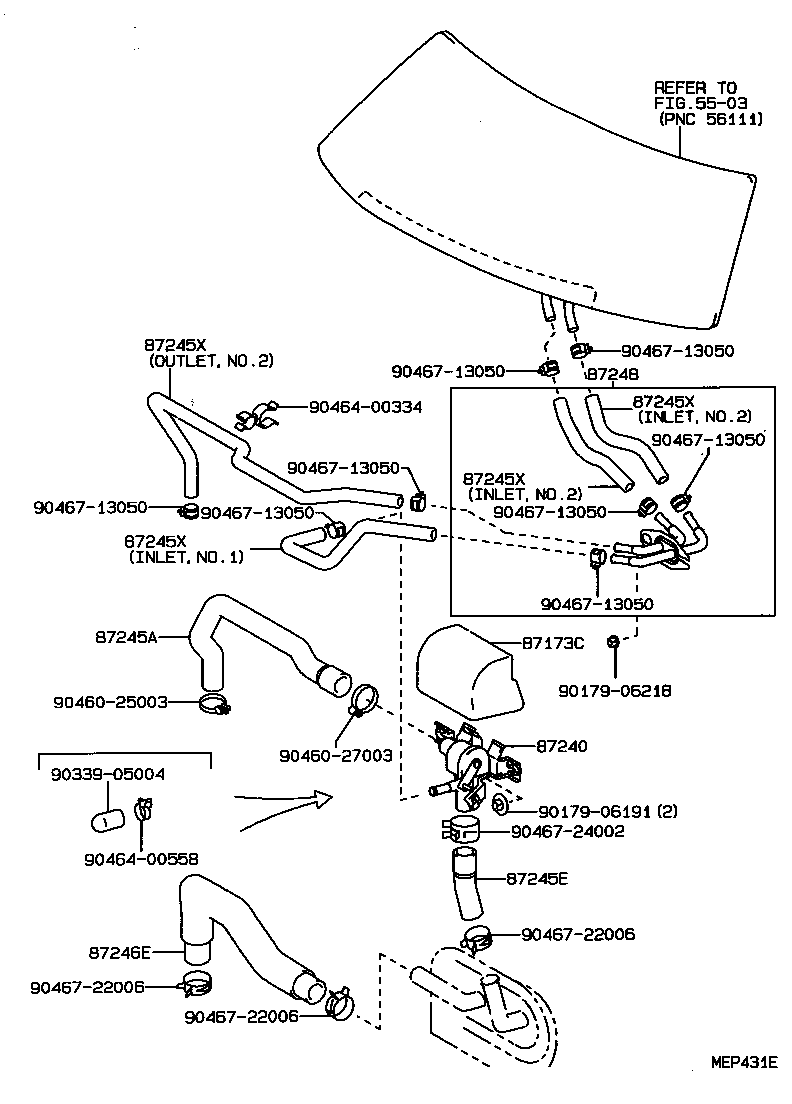

Figure MEP430B MEP430B 1989-11 → — Figure MEP431E MEP431E 1989-11 → —

Part groups

PNCDescription
87173C Protector, Heater
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245E Hose, Heater Water, Inlet E
87245X Hose, Heater Water
87246E Hose, Heater Water, Outlet E
87248 Pipe Sub-assy, Water
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
