Toyota Celsior
1989-11 → 1994-10 · chassis UCF1# · catalogue 431110 · Japan
Discontinued model
Data version 1995-05
Heating & Air Conditioning - Cooler Piping

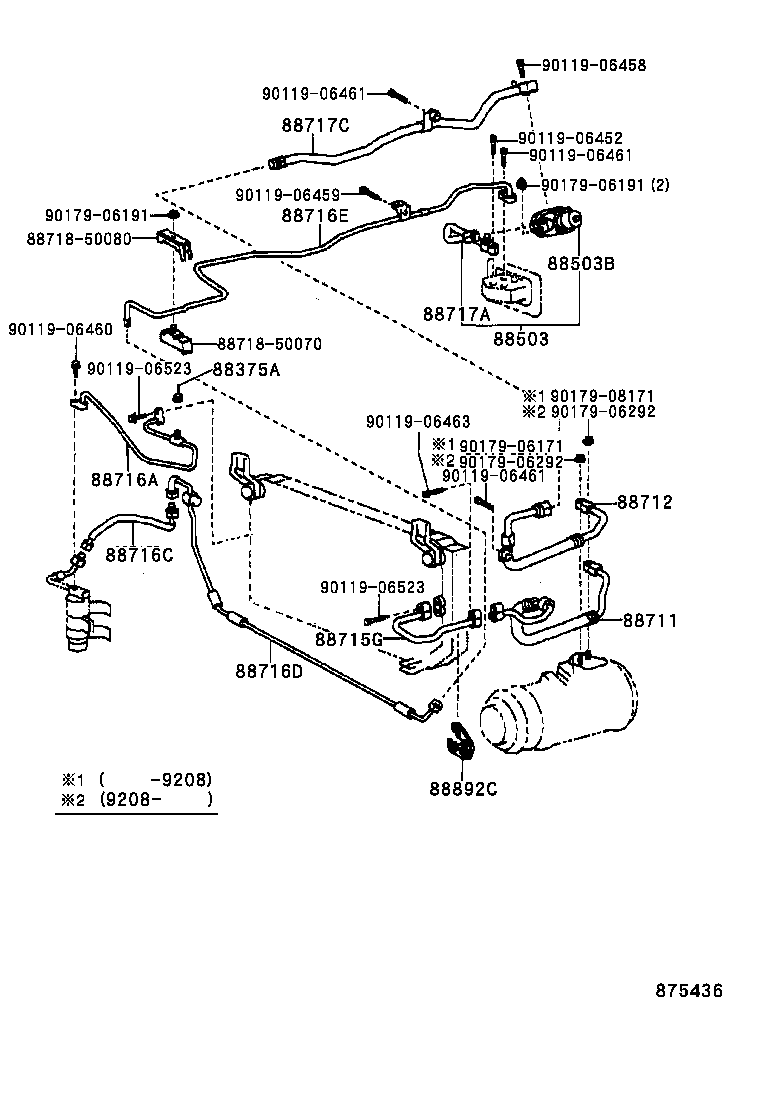

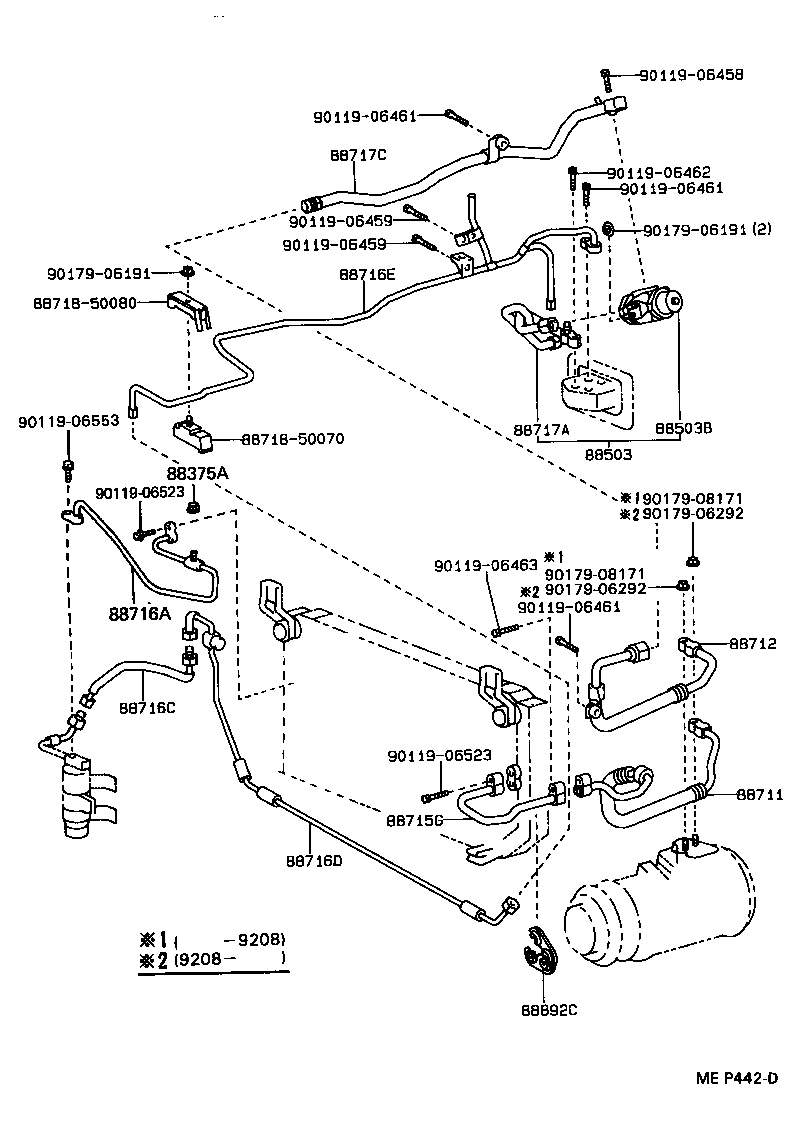

23 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 88375A | Cap, Service Valve (FOR COOLER PIPE) |
| 88460 | Condenser Assy, Cooler |
| 88470 | Receiver & Dryer Assy, Cooler |
| 88471 | Tank, Receiver Air Conditioner |
| 88503 | Regulator Assy, Pressure |
| 88503B | Regulator Sub-assy, Pressure |
| 88645H | Switch, Pressure NO.1 |
| 88710 | Tube Assy, Air Conditioner |
| 88710C | Tube Assy, Air Conditioner |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88715G | Tube, Discharge, G |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716C | Pipe, Cooler Refrigerant Liquid, C |
| 88716D | Pipe, Cooler Refrigerant Liquid, D |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88717C | Pipe, Cooler Refrigerant Suction, C |
| 88723B | Label, Cooler Service Caution |
| 88891A | Packing A (FOR COOLER) |
| 88892C | Plate, Condenser, NO.1 |
| 88897T | Grommet, Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
