Water Pump

25 part groups · 3 illustrations

Illustrations

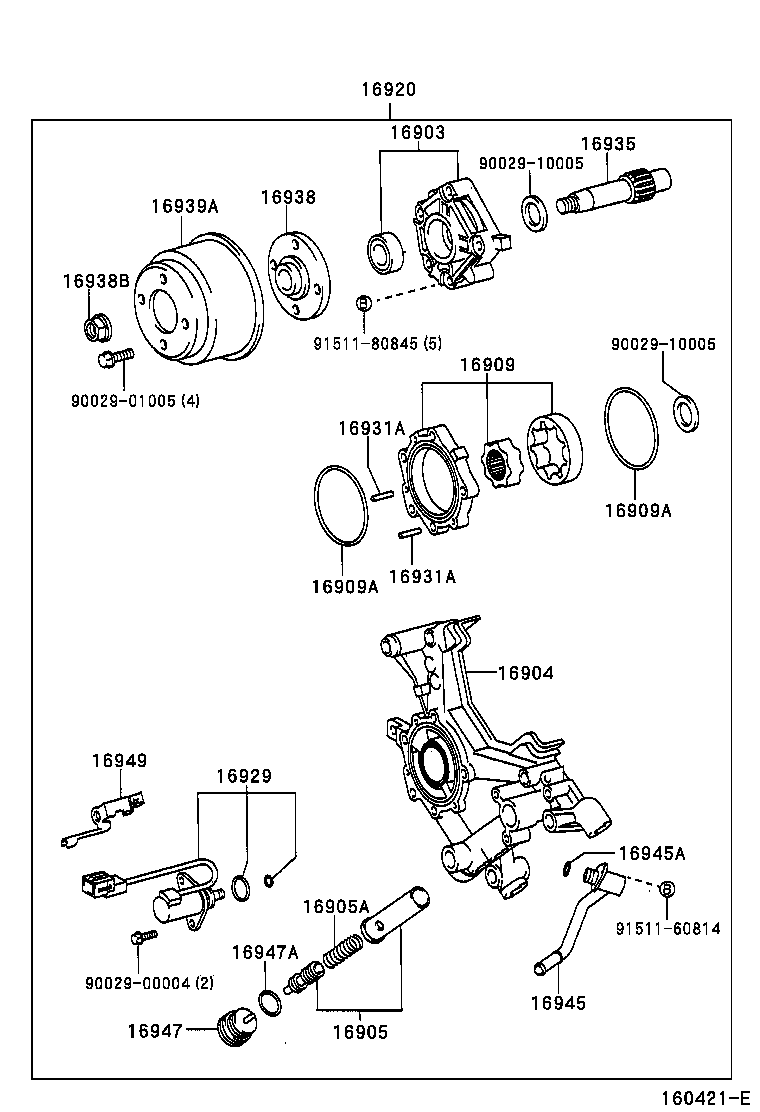

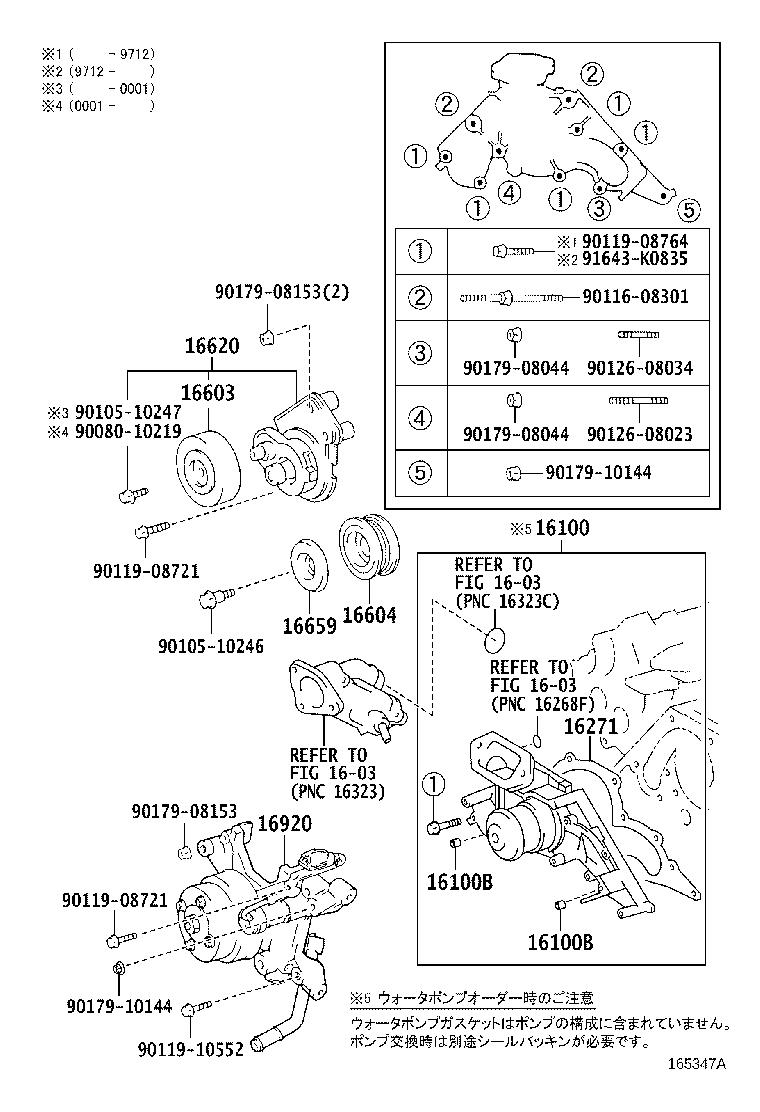

Figure 160199I 160199I 1994-10 → 1997-07 Figure 165347A 165347A 1997-07 → — Figure 160421E 160421E 1994-10 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100B Pin, Ring(FOR WATER PUMP SET)
16271 Gasket, Water Pump
16603 Pulley Sub-assy, Idler, NO.1
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16659 Plate, Idler Pulley Cover, NO.2
16903 Housing Sub-assy, Hydraulic Motor Pump, Front
16904 Housing Sub-assy, Hydraulic Motor Pump, Rear
16905 Body Sub-assy, Hydraulic Motor Pump Spool Valve
16905A Spring, Compression
16909 Gear Set, Hydraulic Motor Gear Pump
16909A Ring, O(FOR HYDRAULIC MOTOR)
16920 Pump Assy, Hydraulic Motor Vane
16929 Valve, Hydraulic Motor Control
16931A Pin, Straight
16935 Shaft, Hydraulic Motor Vane Pump Draive
16938 Seat, Hydraulic Motor Vane Pump Pulley
16938B Nut, Hexagon(FOR HYDRAULIC MOTOR VANE PUMP PULLEY SEAT)
16939A Pulley, Hydraulic Motor Gear
16945 Union, Hydraulic Motor Vane Pump Suction Port
16945A Ring, O(FOR SUCTION PORT UNION)
16947 Plug, Hydraulic Motor Vane Pump Screw
16947A Ring, O(FOR SCREW PLUG)
16949 Clamp, Hydraulic Motor Vane Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
