Toyota Celsior

1994-10 → 2000-08 · chassis UCF2# · catalogue 431120 · Japan

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

9 part groups · 3 illustrations

Illustrations

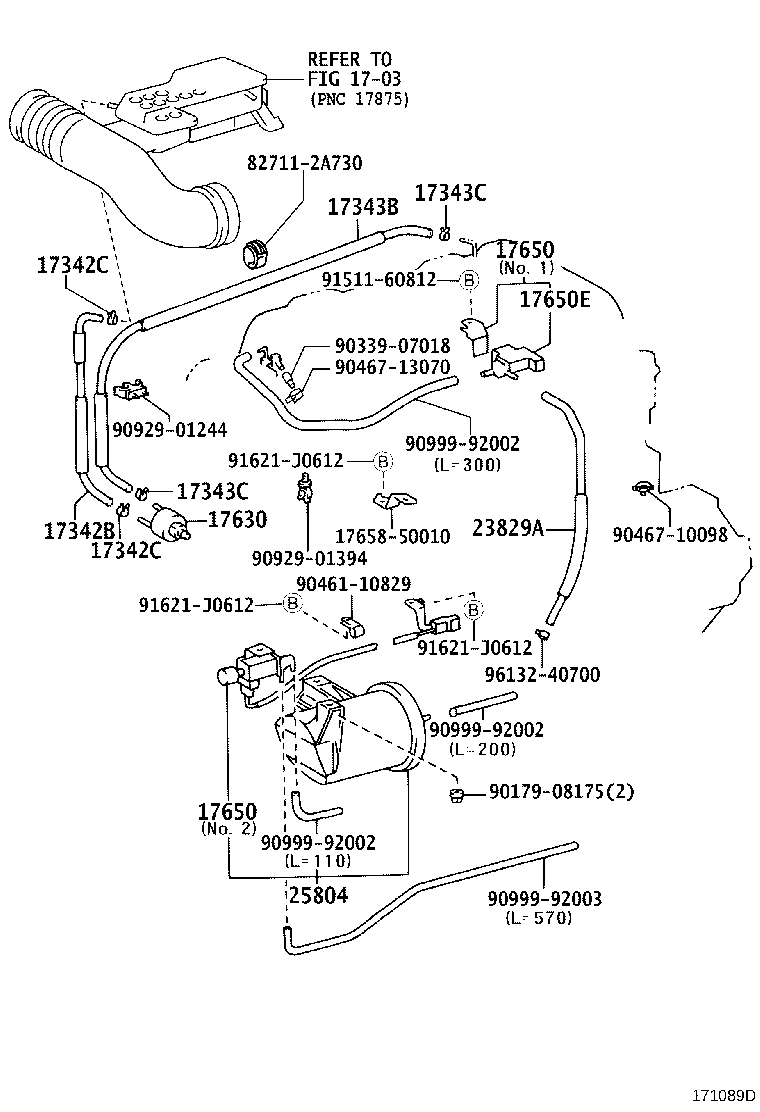

Figure 170020 170020 1994-10 → — Figure MAH562C MAH562C 1994-10 → 1997-07 Figure 171089D 171089D 1997-07 → —

Part groups

PNCDescription
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
23829A Hose, Fuel Vapor Feed
25804 Valve Set, Vacuum Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
