Toyota Celsior

1994-10 → 2000-08 · chassis UCF2# · catalogue 431120 · Japan

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

13 part groups · 2 illustrations

Illustrations

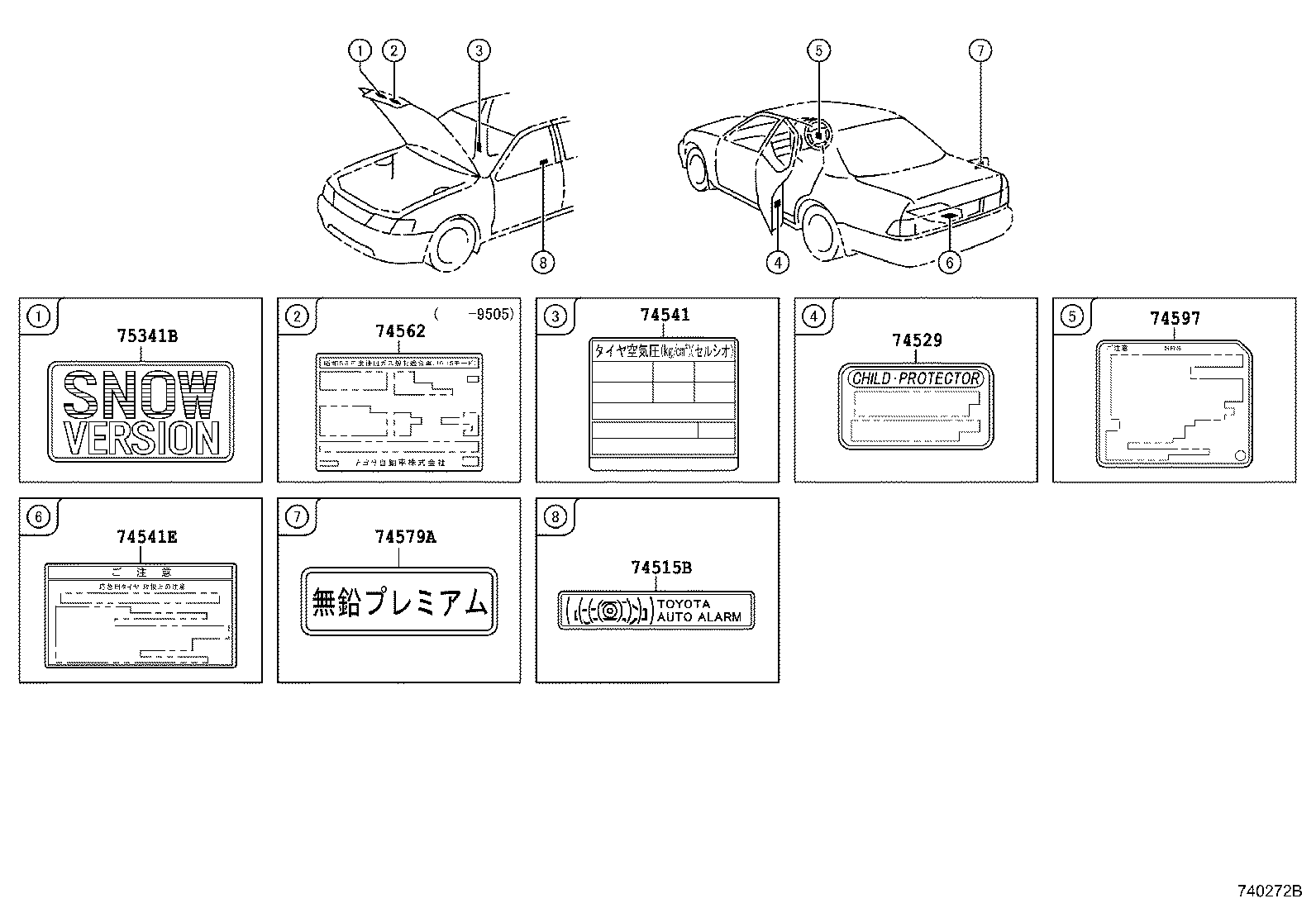

Figure 745863 745863 1994-10 → — Figure 740272B 740272B 1994-10 → —

Part groups

PNCDescription
11291B Plate, Engine Name
11296C Label, Engine Service Information
11297C Label, Engine Service Information, NO.2
13564 Label, Timing Belt Replacement Information
17791A Label, Maintenance Information
74515B Plate, Theft Warning
74529 Plate, Child Proof OR Child Protector Lock Caution
74541 Plate, Tire Pressure Caution
74541E Plate, Compact Spare Tire Caution
74562 Plate, Emission Control System Information
74579A Label, Unleaded Fuel Information
74597 Label, Driver & Passenger Airbag Caution
75341B Plate, Hood Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
