Toyota Celsior
1994-10 → 2000-08 · chassis UCF2# · catalogue 431120 · Japan
Discontinued model
Data version 2001-03

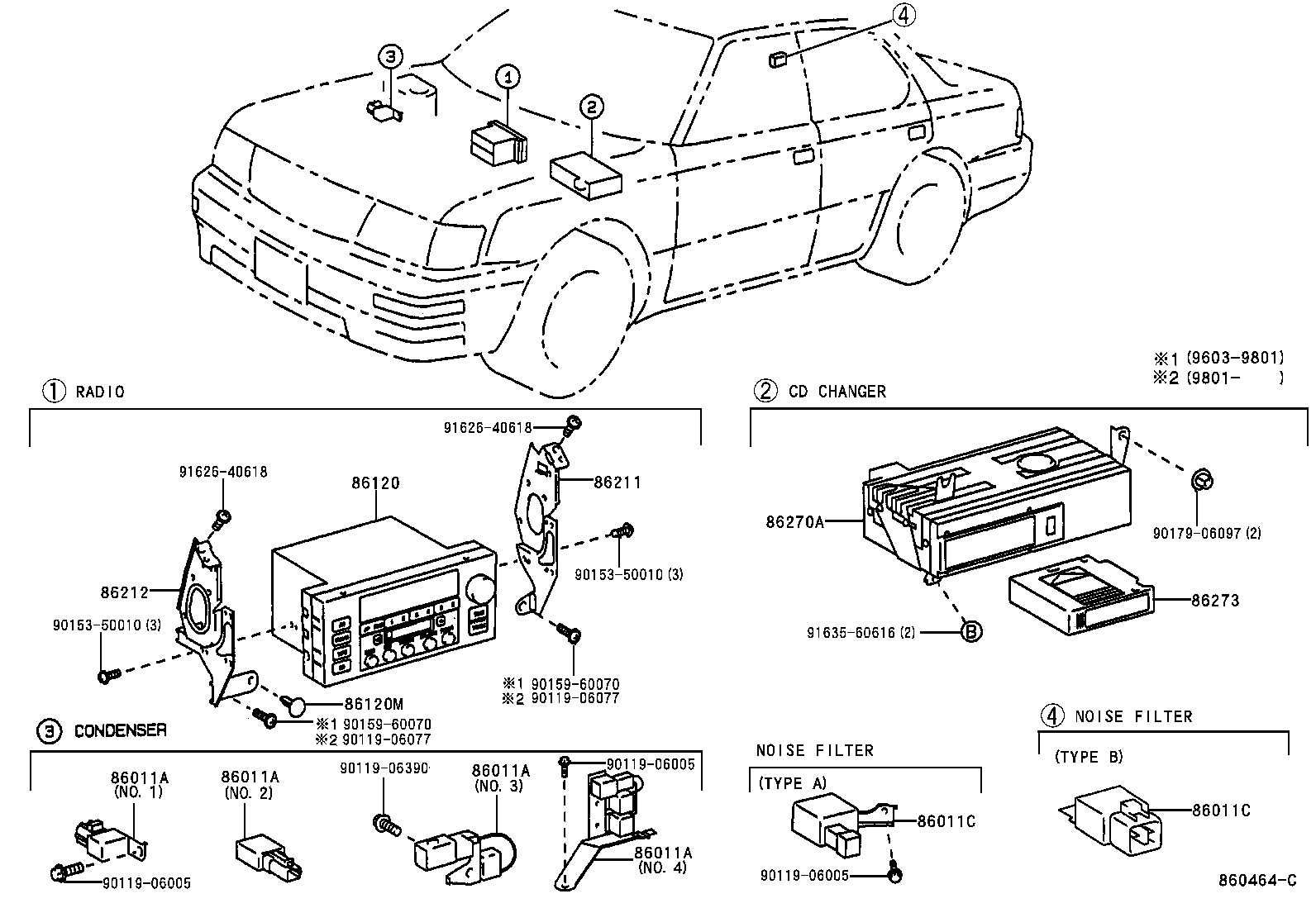

Radio Receiver & Amplifier & Condenser
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |
| 86040 | Headphone Assy, Stereo |
| 86120 | Receiver Assy, Radio |
| 86120M | Clip, Radio Receiver |
| 86170 | Switch And Volume Assy, Radio |
| 86210B | Converter Assy, Voltage |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86260 | Tape Player Assy |
| 86270A | Disc Player Assy |
| 86273 | Magazine, Disc Player |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
