Toyota Celsior
1994-10 → 2000-08 · chassis UCF2# · catalogue 431120 · Japan
Discontinued model
Data version 2001-03

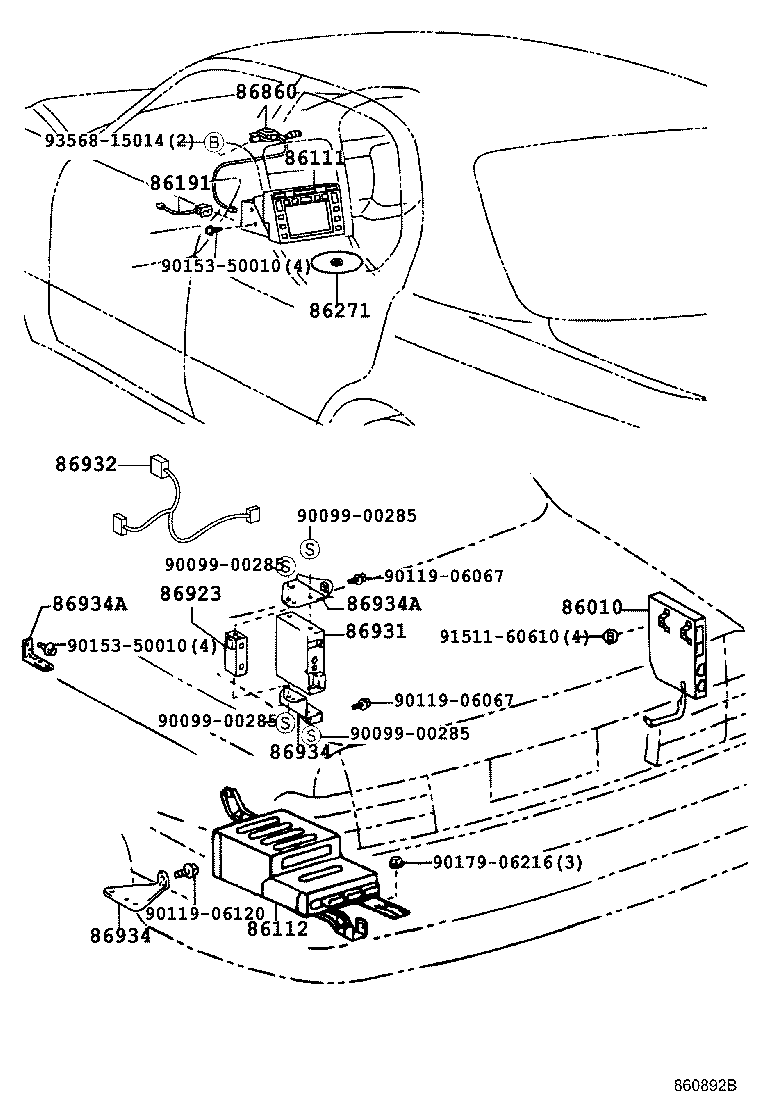

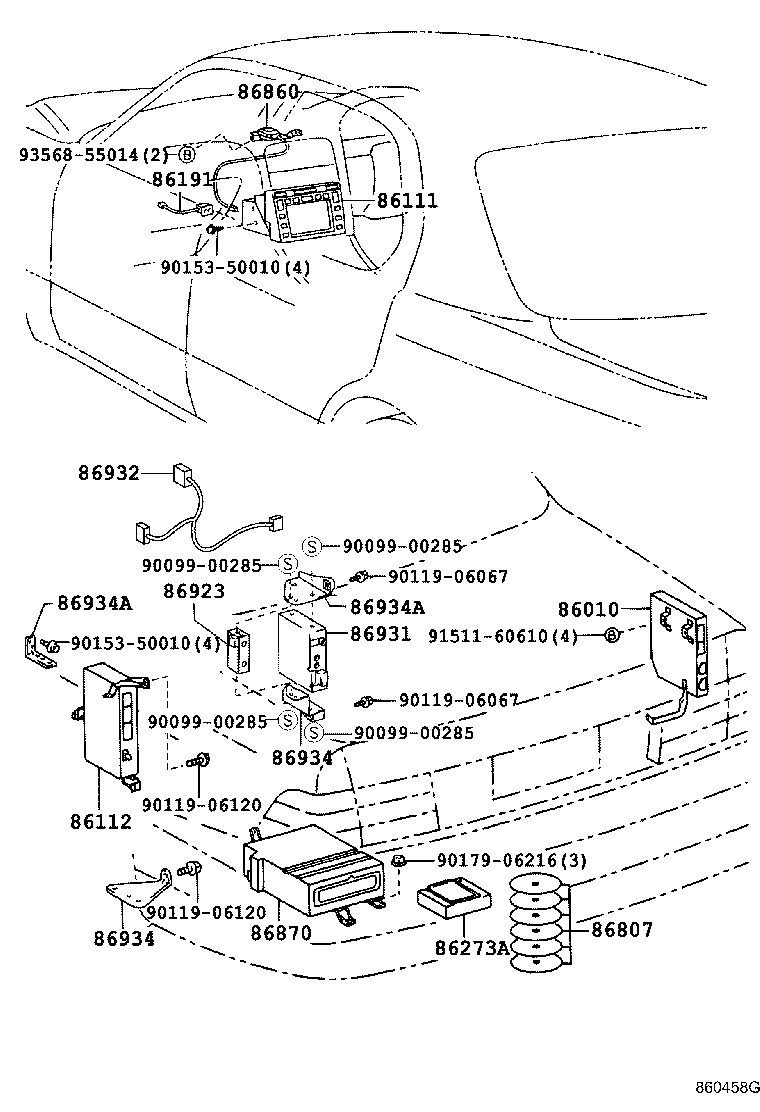

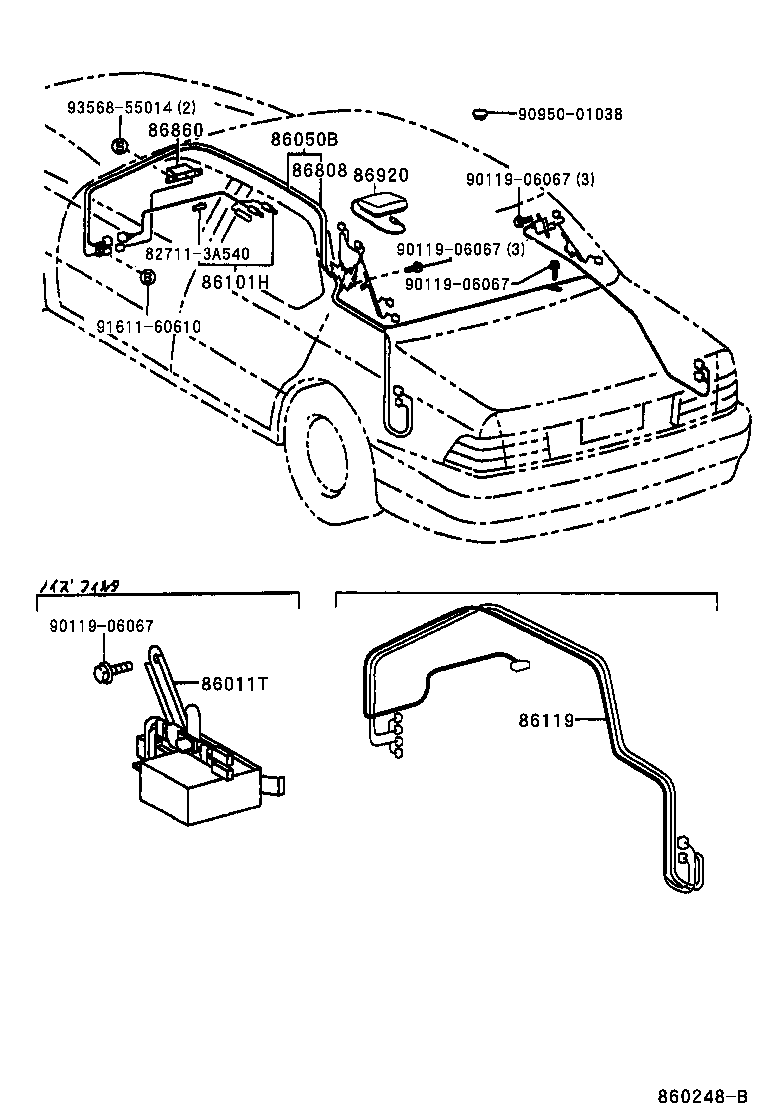

Navigation & Front Monitor Display
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86010 | Tuner Assy, Television |
| 86011T | Filter, Noise |
| 86050B | Antenna Assy, Television |
| 86101H | Cord Sub-assy, Antenna |
| 86111 | Multi-display |
| 86112 | Computer, Multi-display (COMPUTER CRT DISPLAY) |
| 86114 | Computer, Audio Interface |
| 86119 | Wire, Television Switch |
| 86191 | Terminal, Video(VIDEO ADAPTER) |
| 86271 | Disc, Disc Player |
| 86273A | Magazine, Disc Player |
| 86807 | Disc Kit, Cd-rom |
| 86808 | Cord Sub-assy, Navigation Antenna, NO.1 |
| 86851 | Receiver, Navigation |
| 86860 | Antenna Assy, Navigation |
| 86870 | Player Assy, Cd-rom |
| 86920 | Antenna Assy, Traffic Information |
| 86923 | Detector, Traffic Information |
| 86931 | Computer, Traffic Information |
| 86932 | Wire, Traffic Information |
| 86934 | Bracket, Traffic Information, NO.1 |
| 86934A | Bracket, Traffic Information, NO.2 |
| 89226A | Fiber, Optical |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
