Toyota Celsior
1994-10 → 2000-08 · chassis UCF2# · catalogue 431120 · Japan
Discontinued model
Data version 2001-03
Camera & Rear Monitor Display

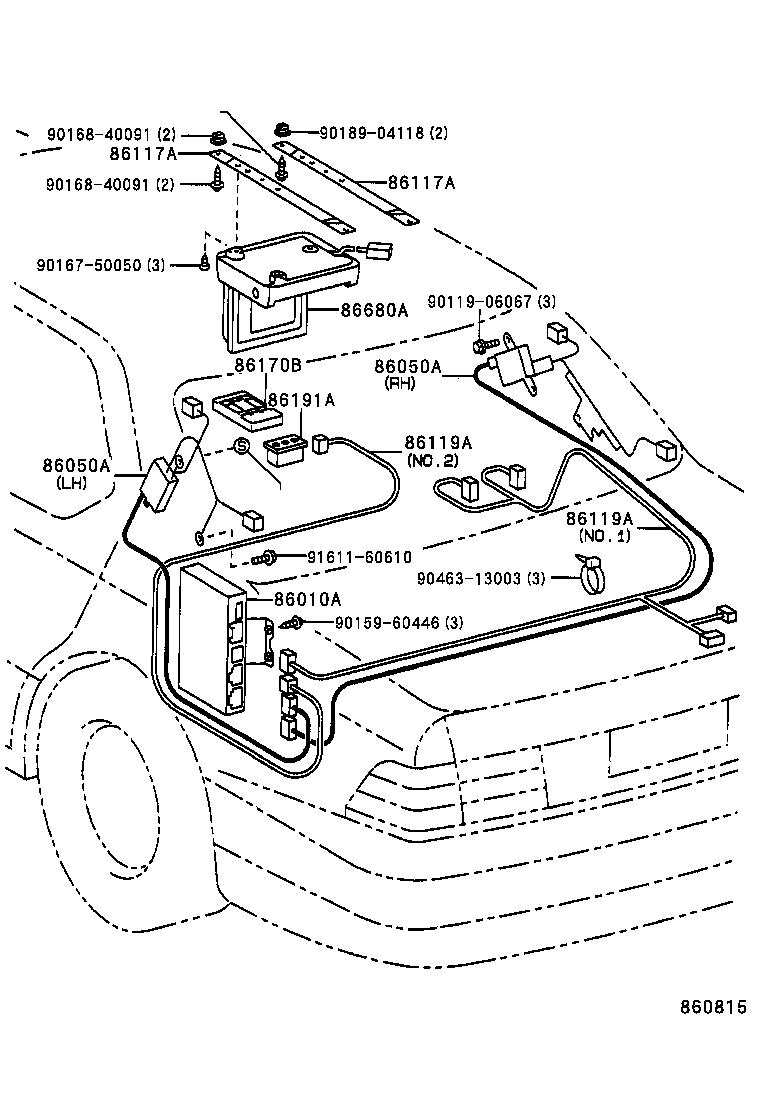

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86010A | Tuner Assy, Television |
| 86050A | Antenna Assy, Television |
| 86116A | Controller, Video |
| 86117A | Bracket, Television Display, A |
| 86119A | Wire, Television Switch |
| 86170B | Switch & Volume Assy, Television |
| 86191A | Terminal, Video(VIDEO ADAPTER) |
| 86680A | Display Assy, Television |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
