Heating & Air Conditioning - Water Piping

8 part groups · 2 illustrations

Illustrations

Figure 871493A

871493A 1994-10 → —

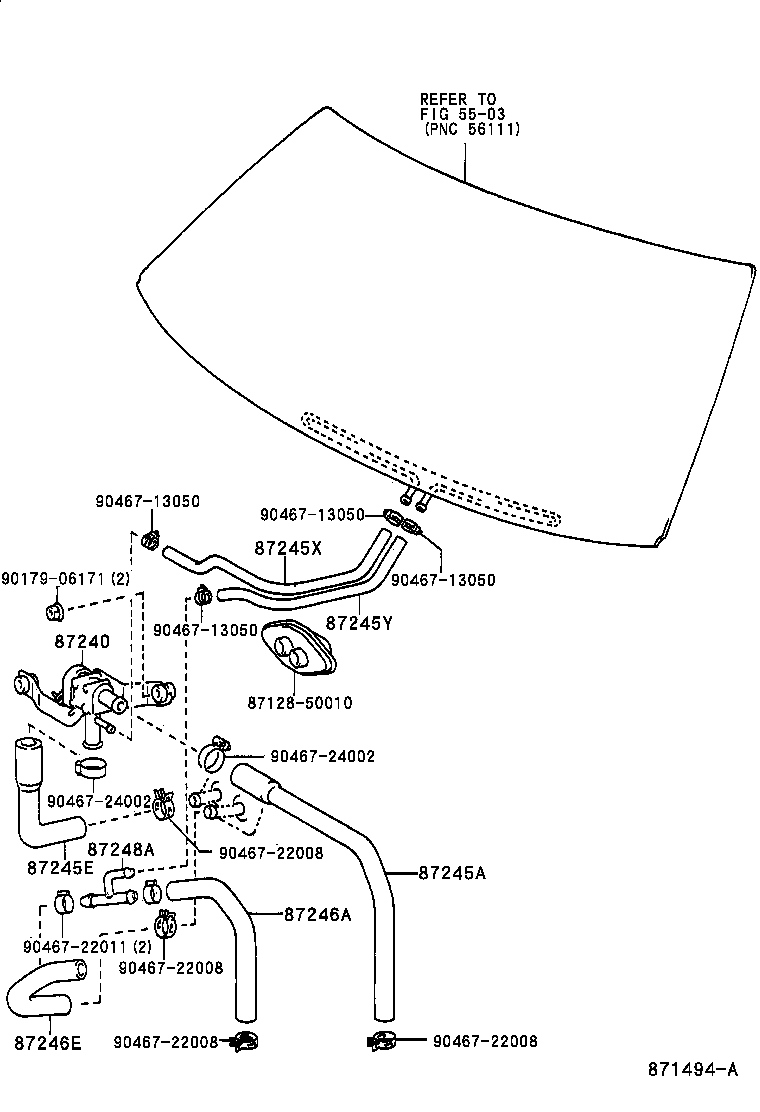

Figure 871494A

871494A 1994-10 → —

Part groups

PNC	Description
87240	Valve Assy, Heater Water
87245A	Hose, Heater Water, Inlet A
87245E	Hose, Heater Water, Inlet E
87245X	Hose, Heater Water
87245Y	Hose, Heater Water
87246A	Hose, Heater Water, Outlet A
87246E	Hose, Heater Water, Outlet E
87248A	Pipe, Heater Water Inlet, A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
