Toyota Celsior
1994-10 → 2000-08 · chassis UCF2# · catalogue 431120 · Japan
Discontinued model
Data version 2001-03

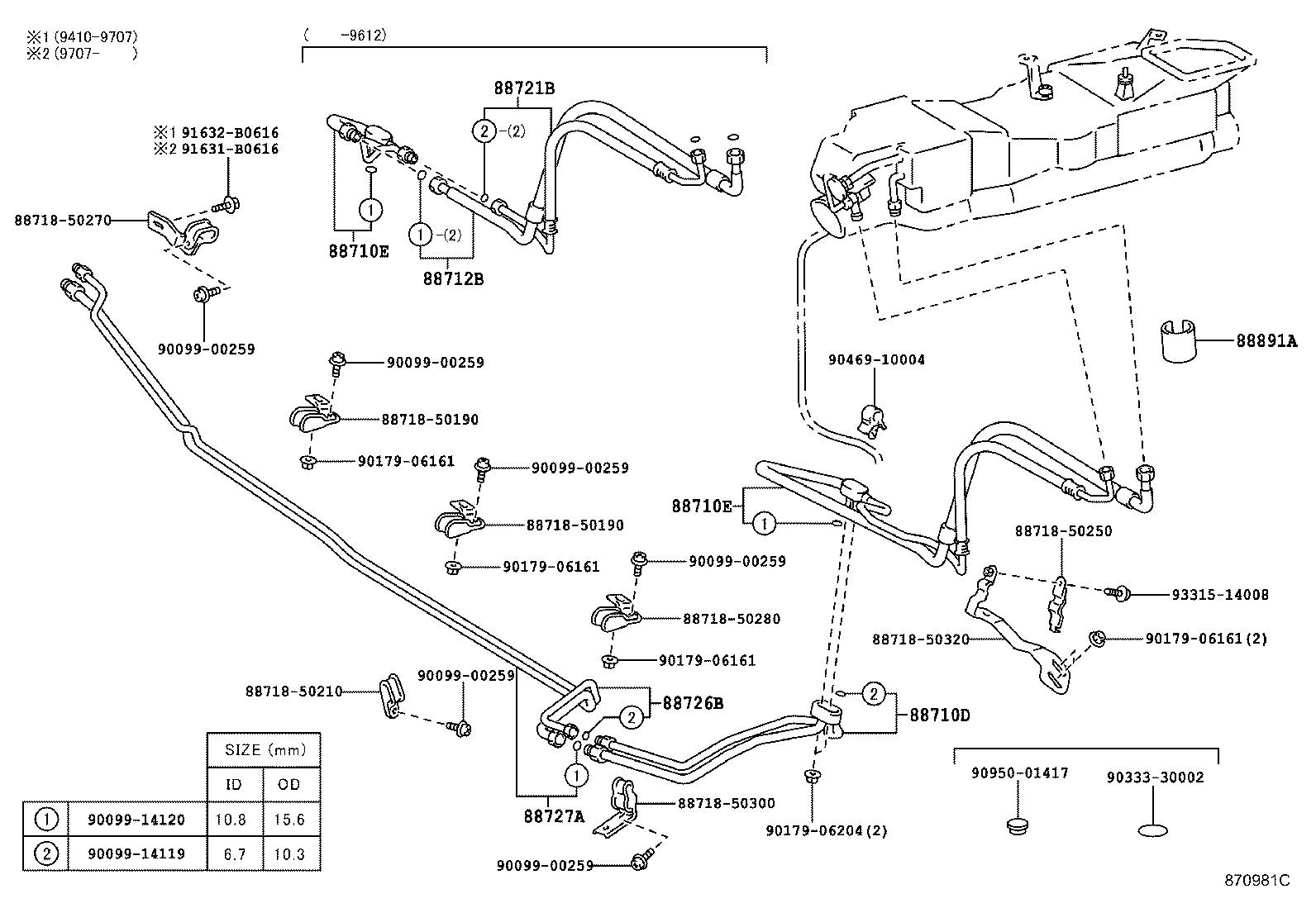

Heating & Air Conditioning - Cooler Piping
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88375A | Cap, Service Valve (FOR COOLER PIPE) |
| 88460 | Condenser Assy, Cooler |
| 88471 | Tank, Receiver Air Conditioner |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88503 | Regulator Assy, Pressure |
| 88645H | Switch, Pressure NO.1 |
| 88710D | Tube Assy, Air Conditioner |
| 88710E | Tube & Accessory Assy, Air Conditioner |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88712B | Hose, Cooler Refrigerant Suction |
| 88716C | Pipe, Cooler Refrigerant Liquid, C |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
| 88717C | Pipe, Cooler Refrigerant Suction, C |
| 88721B | Hose, Liquid, B |
| 88723B | Label, Cooler Service Caution |
| 88726B | Pipe, Cooler Refrigerant Liquid, B |
| 88727A | Pipe, Cooler Refrigerant Suction, A |
| 88891A | Packing A (FOR COOLER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
