Toyota Celsior
2000-08 → 2006-08 · chassis UCF3# · catalogue 431130 · Japan
Discontinued model
Data version 2007-01
Caution Plate (EXTERIOR & INTERIOR)
25 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11291B | Plate, Engine Name |
| 11296C | Label, Engine Service Information |
| 11297C | Label, Engine Service Information, NO.2 |
| 13564 | Label, Timing Belt Replacement Information |
| 16793E | Label, Cooling Fan Caution |
| 17791A | Label, Maintenance Information |
| 69339C | Label, Child Protector Information |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515B | Plate, Theft Warning |

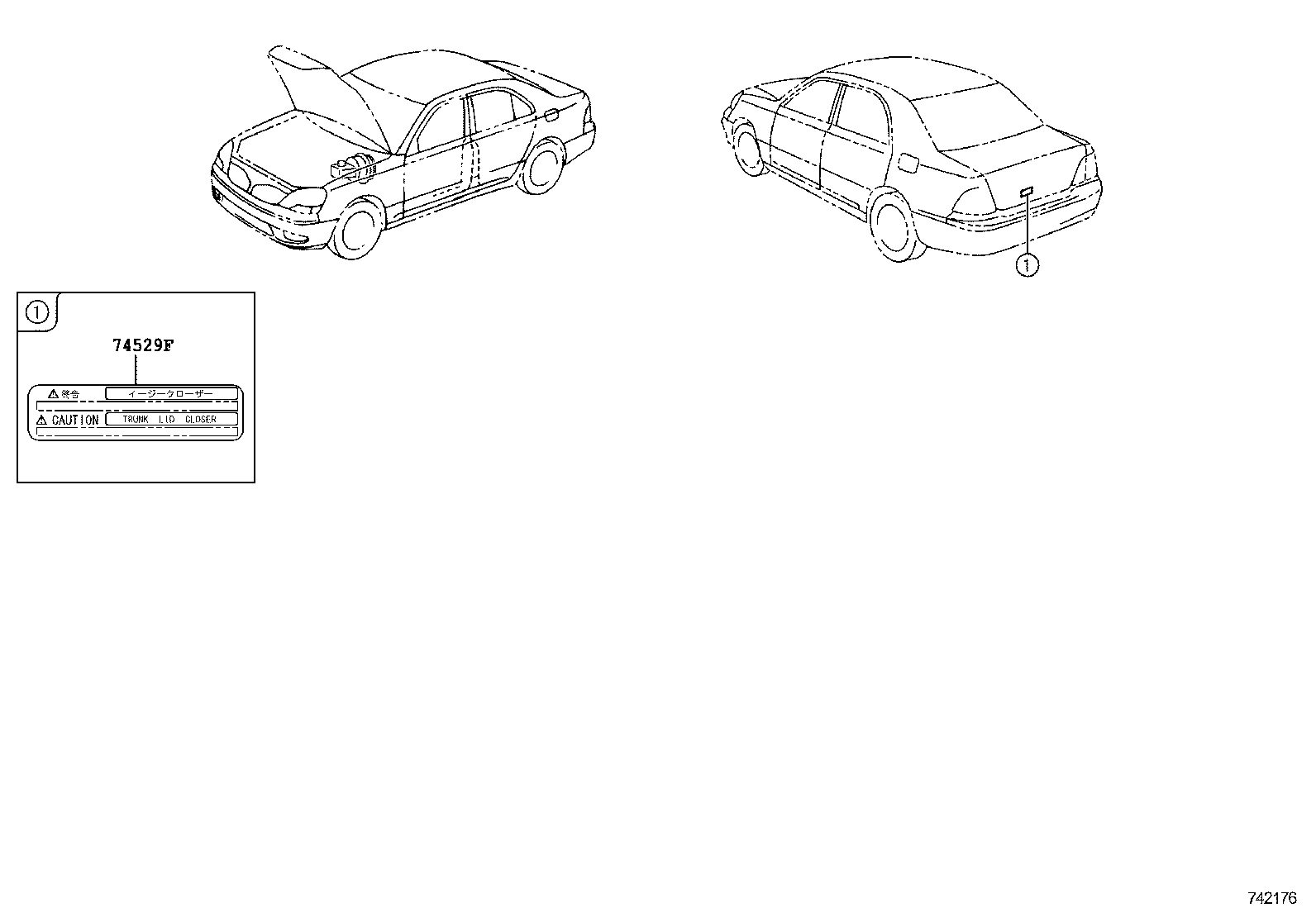

| 74528F | Label, Door Closer Caution, RH |
| 74529E | Label, Door Closer Caution, LH |
| 74529F | Label, Luggage Compartment Door |
| 74533E | Label, Headlamp Voltage Caution |
| 74540 | Plate, Fuse Block Caution |
| 74541 | Plate, Tire Pressure Caution |
| 74541B | Plate, Compact Spare Tire Caution |
| 74561A | Label, Fuel Consumption Information |
| 74562B | Label, Emission Information |
| 74579A | Label, Unleaded Fuel Information |
| 75341B | Plate, Hood Name |
| 86995E | Label, Caution |
| 87511A | Plate, Seat Heater Caution |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
| 89176A | Label, Airbag Deployment Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
