Toyota Celsior

2000-08 → 2006-08 · chassis UCF3# · catalogue 431130 · Japan

Discontinued model Data version 2007-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

24 part groups · 6 illustrations

Illustrations

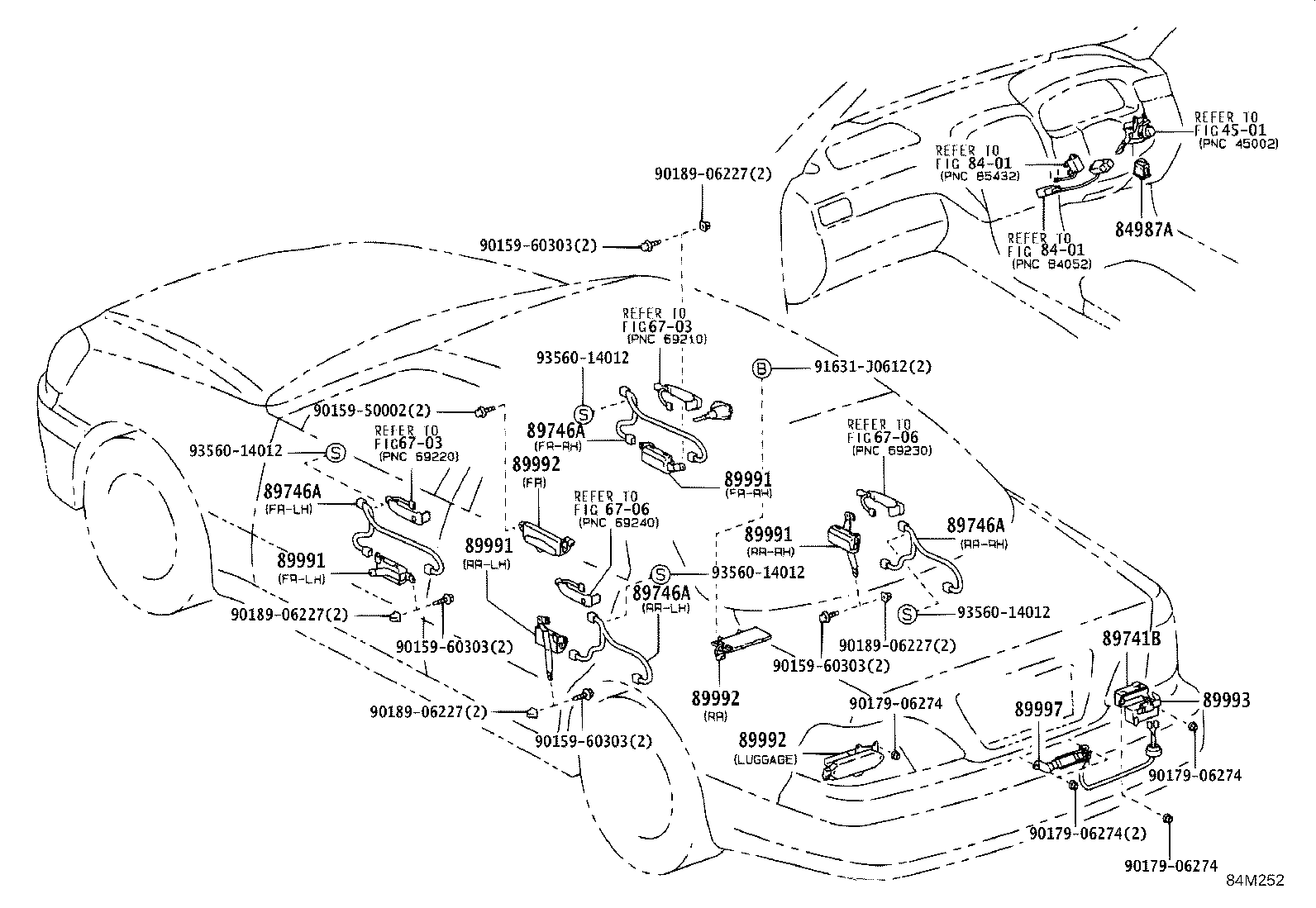

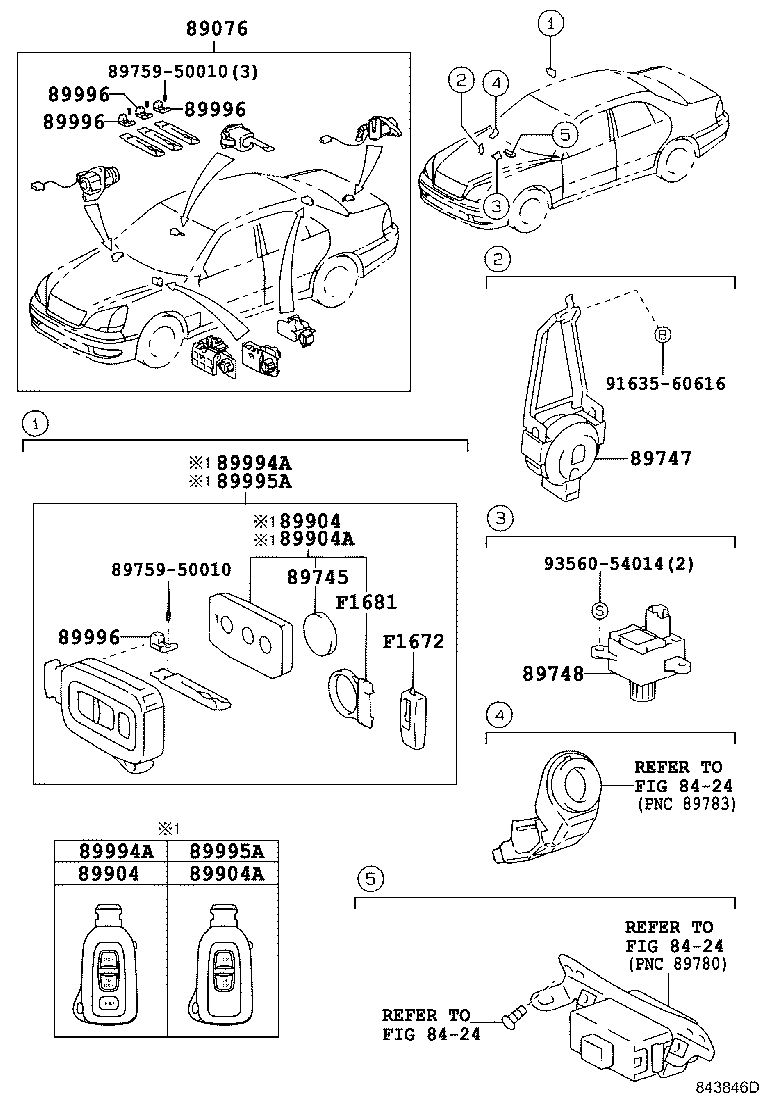

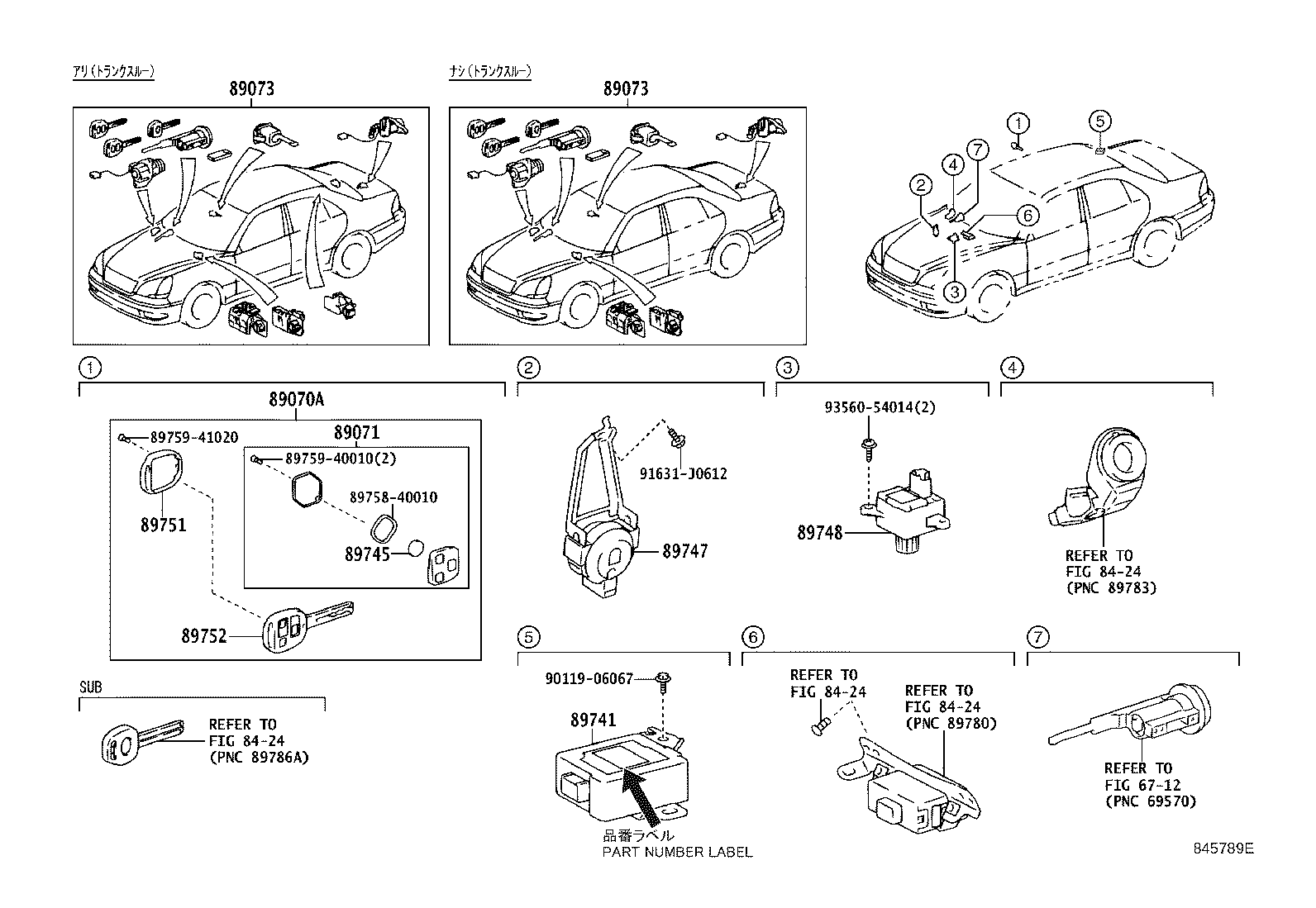

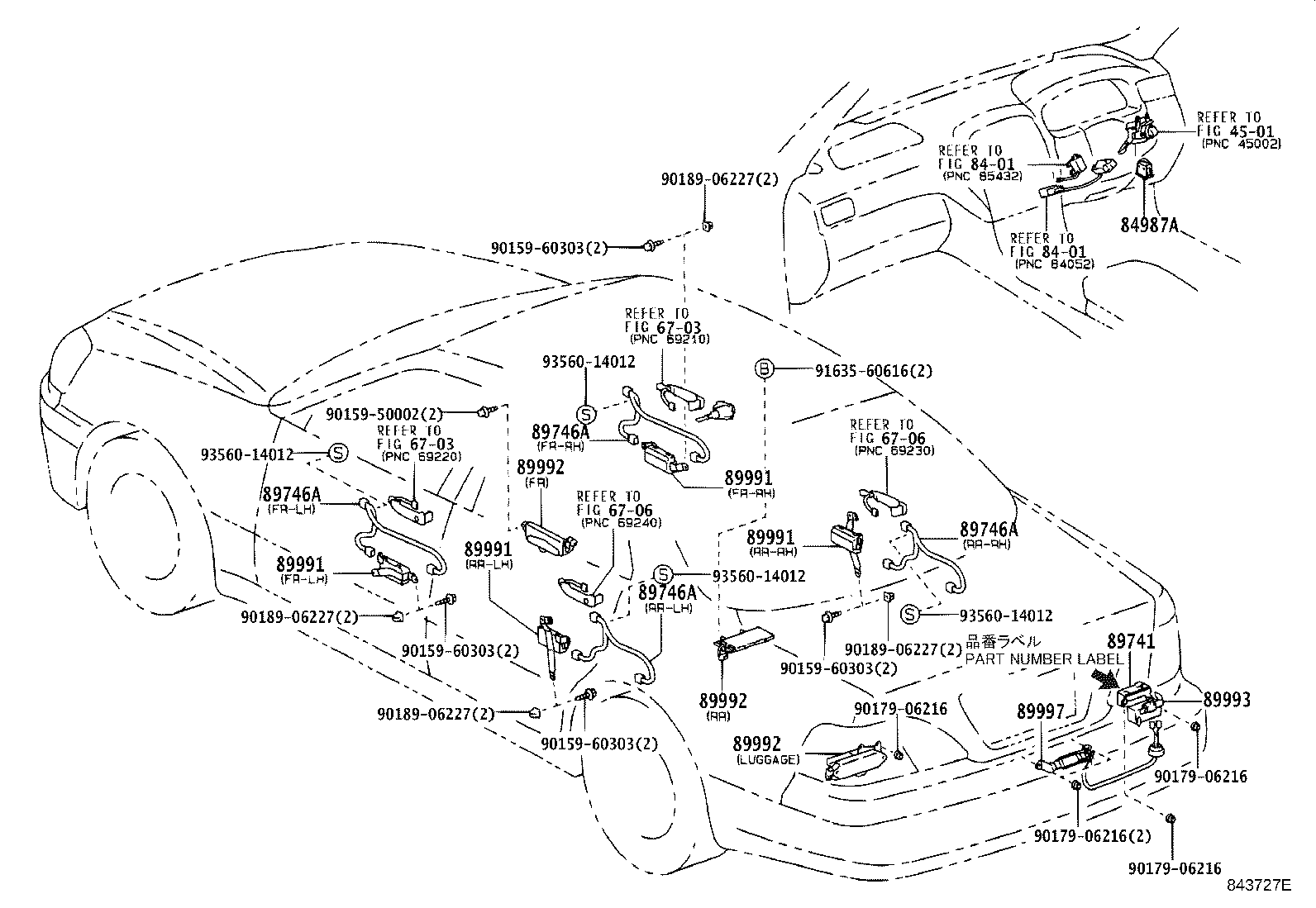

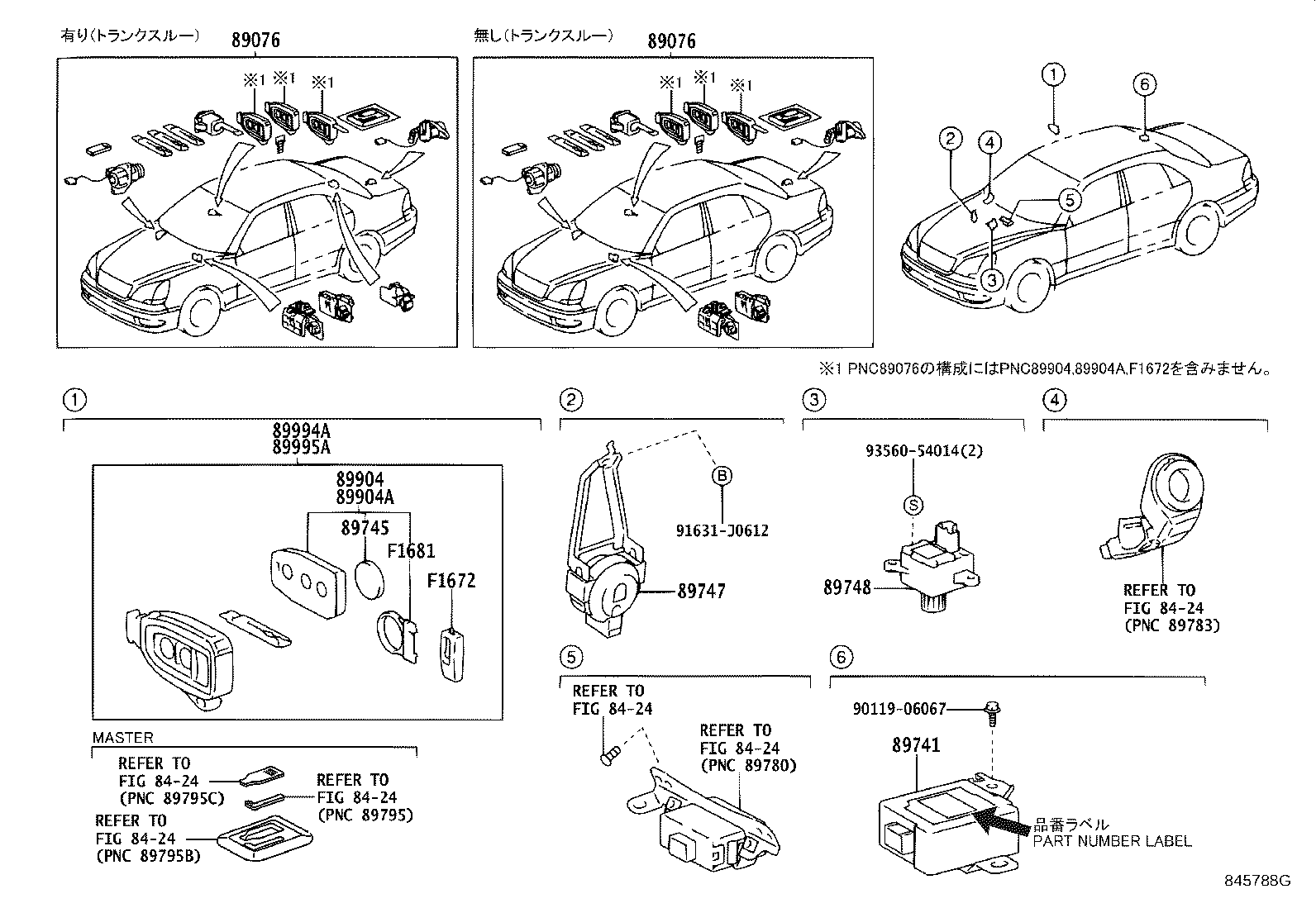

Figure 843726D 843726D 2000-08 → 2003-07 Figure 843846D 843846D 2000-08 → 2003-07 Figure 843727E 843727E 2000-08 → 2003-07 Figure 845789E 845789E 2003-07 → — Figure 845788G 845788G 2003-07 → — Figure 84M252 84M252 2003-07 → —

Part groups

PNCDescription
84987A Switch, Keyless Entry Cancel
89070A Transmitter, Door Control (CUT KEY)
89071 Module Set, Transmitter Sub-assy, Door Control
89073 Cylinder Set, Lock W/Transmitter Housing(LESS MODULE)
89076 Cylinder Set, Lock W/Transmitter Case
89741 Receiver, Door Control
89741B Receiver, Door Control, NO.2
89745 Battery, Transmitter
89746A Harness, Electrical Key Wire
89747 Buzzer, Wireless Door Lock
89748 Controller, Wireless Door Lock Buzzer
89751 Cover, Transmitter Housing
89752 Case, Transmitter Housing
89904 Transmitter Sub-assy, Electrical Key
89904A Transmitter Sub-assy, Electrical Key(SUB KEY)
89991 Oscillator, Door Electrical Key
89992 Oscillator, Indoor Electrical Key
89993 Oscillator, Luggage Electrical Key
89994A Transmitter, Electrical Key(CUT KEY)
89995A Transmitter, Electrical Key Sub(CUT KEY)
89996 Clip, Electrical Key Transmitter
89997 Antenna, Electrical Key
F1672 Cover, Door Control Transmitter, NO.1
F1681 Cover, Door Control Transmitter Battery
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
