Toyota Celsior
2000-08 → 2006-08 · chassis UCF3# · catalogue 431130 · Japan
Discontinued model
Data version 2007-01
Anti-theft Device

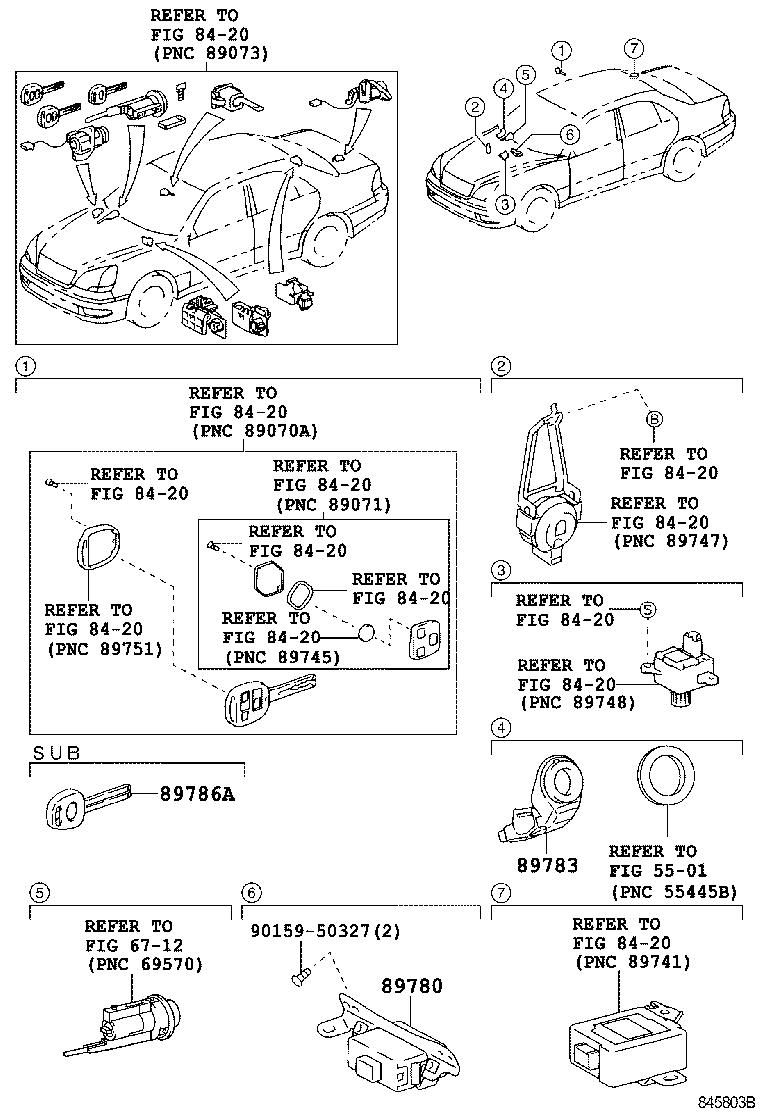

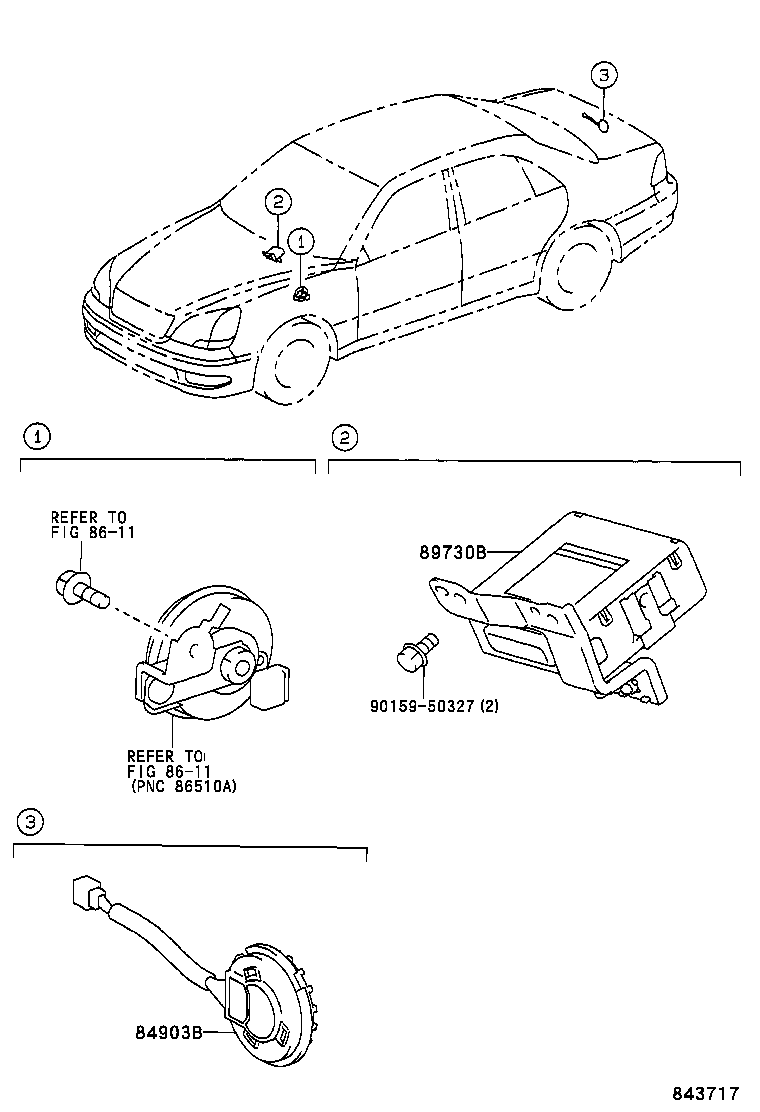

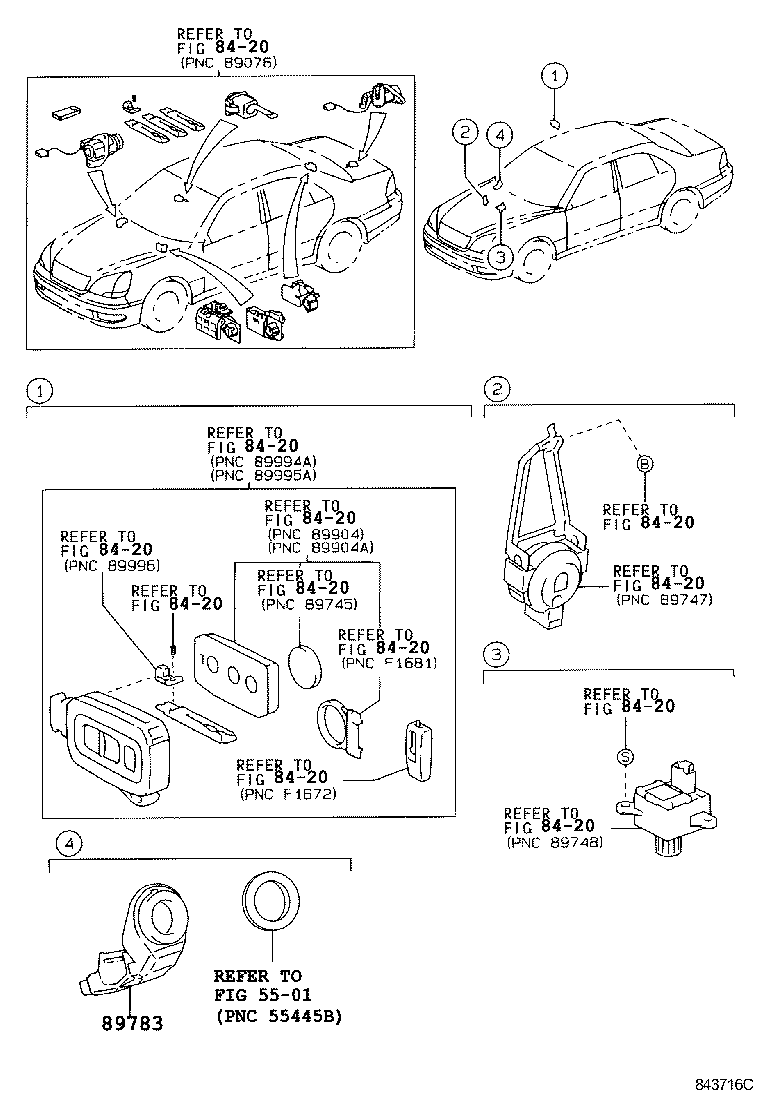

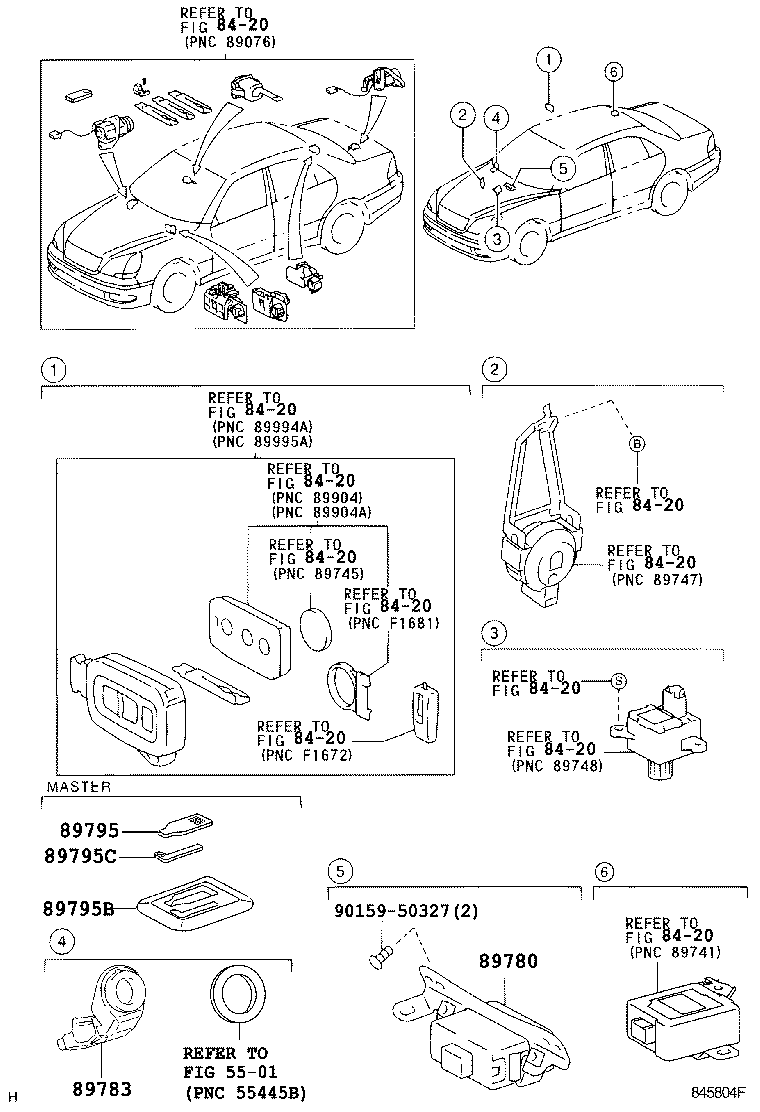

8 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 84903B | Switch Sub-assy, Door Unlock |
| 89730B | Computer Assy, Theft Warning |
| 89780 | Computer Assy, Transponder Key |
| 89783 | Amplifier, Transponder Key |
| 89786A | Transmitter, Transponder Cut Key Sub |
| 89795 | Card, Transponder Key |
| 89795B | Base, Transponder Card Key |
| 89795C | Key, Transponder Key Card Cut |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
