Toyota Celsior

2000-08 → 2006-08 · chassis UCF3# · catalogue 431130 · Japan

Discontinued model Data version 2007-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

18 part groups · 3 illustrations

Illustrations

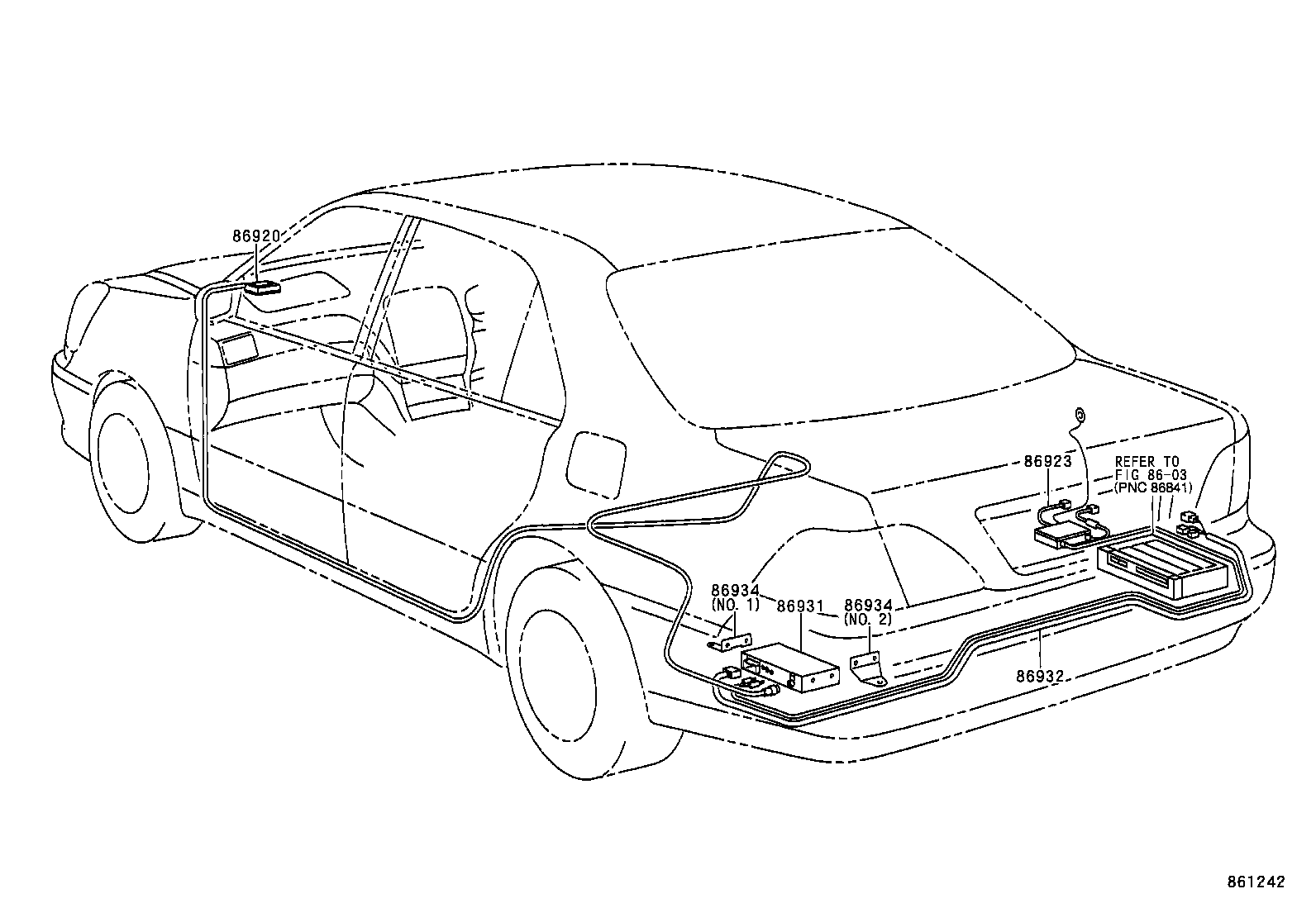

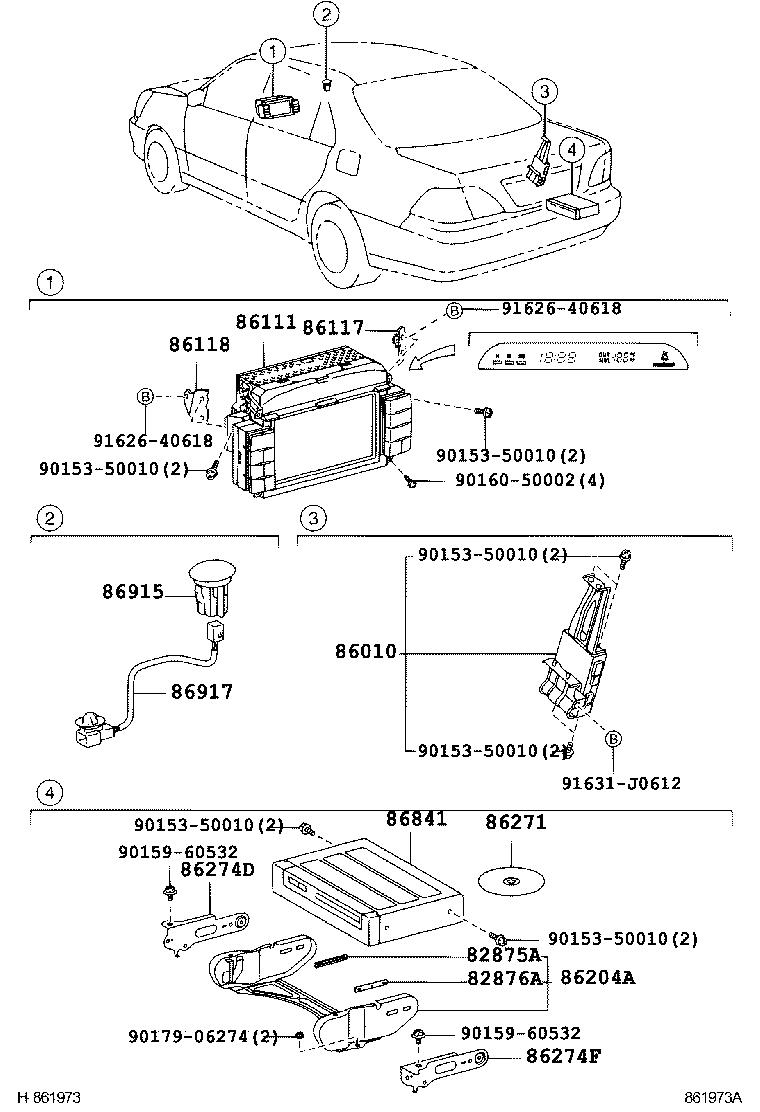

Figure 861241C 861241C 2000-08 → 2003-07 Figure 861242 861242 2000-08 → 2003-07 Figure 861973A 861973A 2003-07 → —

Part groups

PNCDescription
82875A Guide, Computer Integration Bracket, NO.5
82876A Guide, Computer Integration Bracket, NO.6
86010 Tuner Assy, Television
86111 Multi-display
86117 Bracket, Multi-display Controller, A
86118 Bracket, Multi-display Controler, B
86204A Bracket Sub-assy, Disc Player
86271 Disc, Disc Player
86274D Bracket, Disc Player
86274F Bracket, Disc Player, NO.2
86841 Computer, Navigation
86915 Transceiver, Optical Beacon
86917 Wire, Traffic Information Beacon
86920 Antenna Assy, Traffic Information
86923 Detector, Traffic Information
86931 Computer, Traffic Information
86932 Wire, Traffic Information
86934 Bracket, Traffic Information, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
