Toyota Celsior
2000-08 → 2006-08 · chassis UCF3# · catalogue 431130 · Japan
Discontinued model
Data version 2007-01
Camera & Rear Monitor Display
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86104 | Controller Sub-assy, Multi-display |
| 86117A | Bracket, Television Display, A |
| 86119A | Wire, Television Switch |
| 86170B | Switch & Volume Assy, Television |
| 86680A | Display Assy, Television |

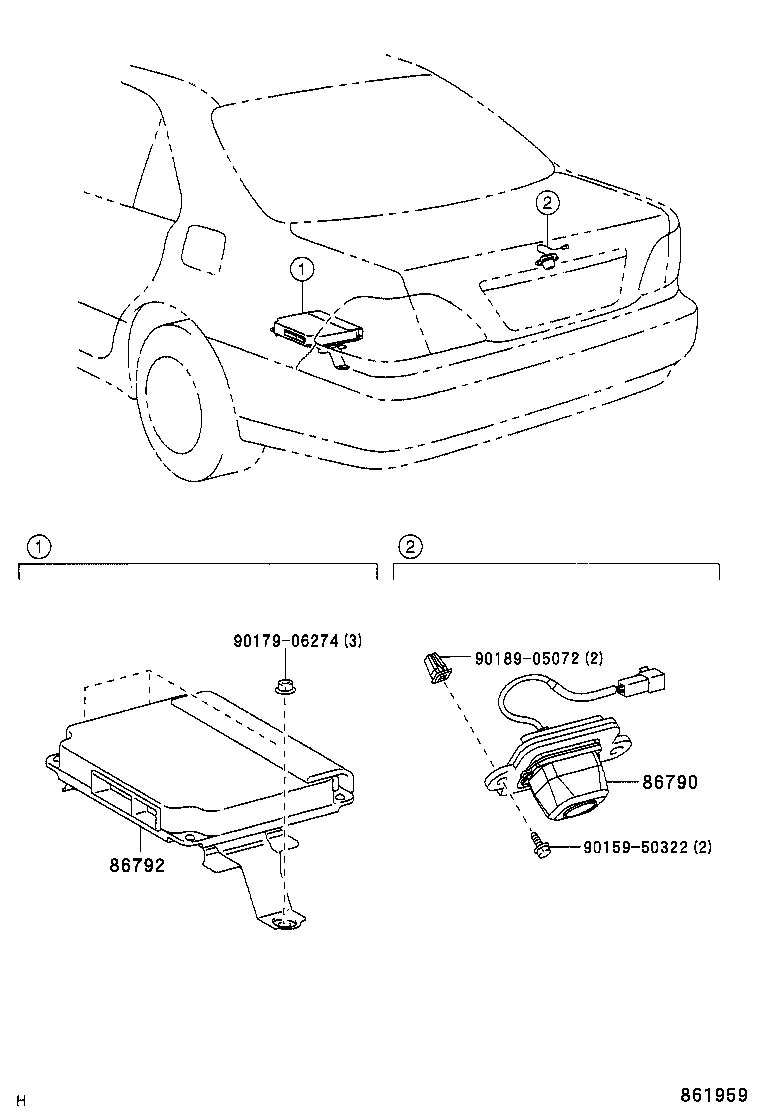

| 86790 | Camera Assy, Television |
| 86792 | Controller, Television Camera |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
