Toyota Lexus LS460/460L

2006-08 → 2012-09 · chassis USF4# · catalogue 431140 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Purifier OR Ion Generator

12 part groups · 6 illustrations

Illustrations

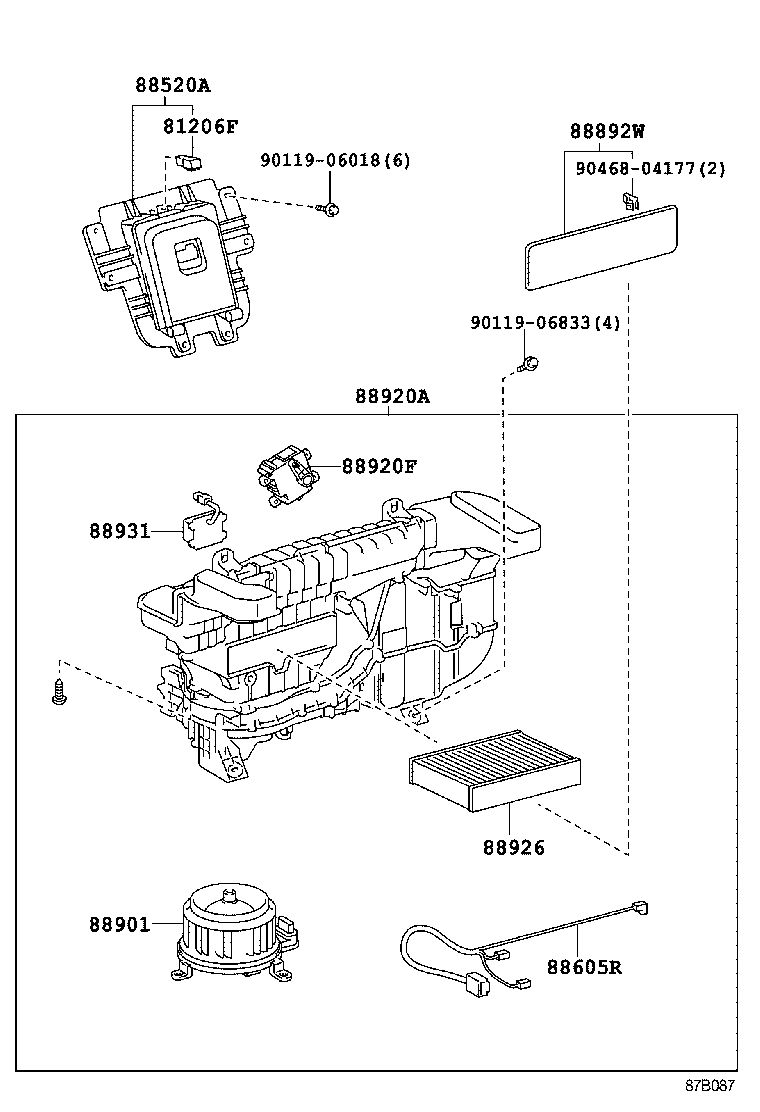

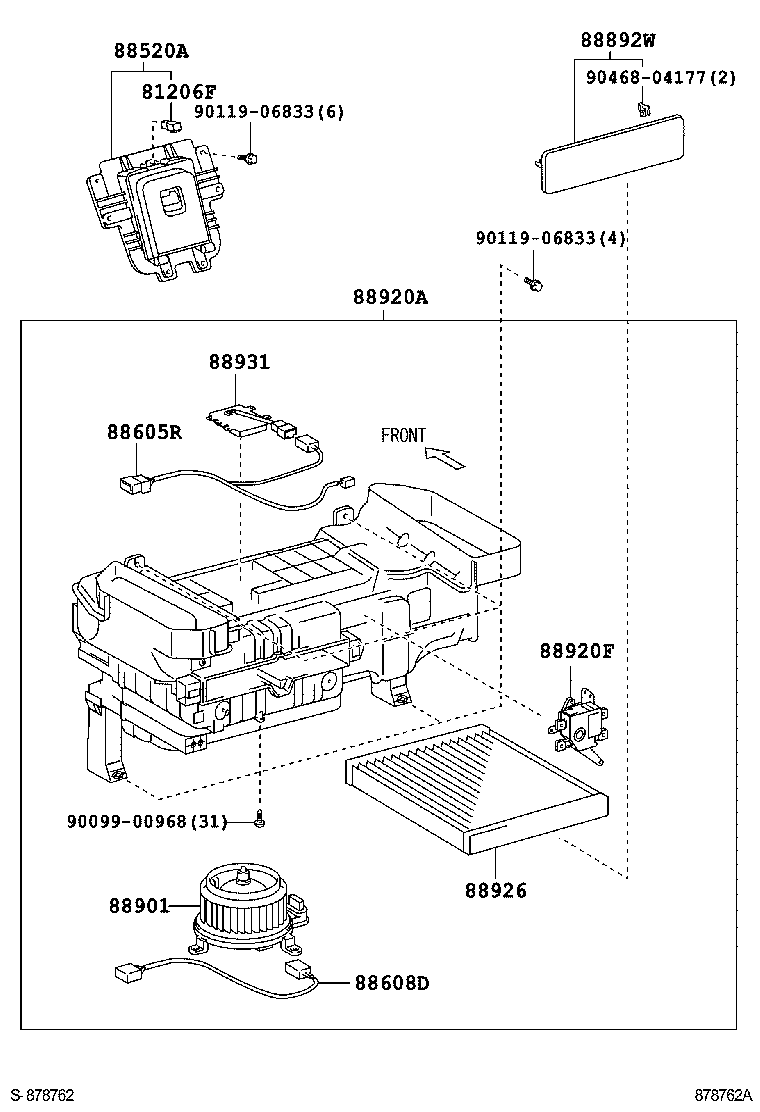

Figure 878761C 878761C 2006-08 → 2009-09 Figure 87B086B 87B086B 2009-09 → — Figure 878762A 878762A 2006-08 → 2008-09 Figure 87A389A 87A389A 2008-09 → 2009-09 Figure 87B087 87B087 2009-09 → — Figure 878763 878763 2006-08 → 2009-09

Part groups

PNCDescription
81206F Lamp Sub-assy, Cooling Box
88051A Generator Sub-assy,Ion
88520A Box Assy, Cooling
88605R Harness Sub-assy, Air Purifier
88608D Harness Sub-assy, Wiring Air Indicater, NO.2
88892W Cover, Air Purifier
88901 Motor Sub-assy, Air Purifier
88920A Purifier Assy, Air
88920D Enricher Assy, Oxygen
88920F Servo Sub-assy, Damper(FOR EXHAUST MODE)
88926 Filter, Air Purifier
88931 Sensor, Smoke
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
