Toyota Lexus LS460/460L

2012-09 → 2017-08 · chassis USF4# · catalogue 431150 · Japan

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Purifier OR Ion Generator

10 part groups · 2 illustrations

Illustrations

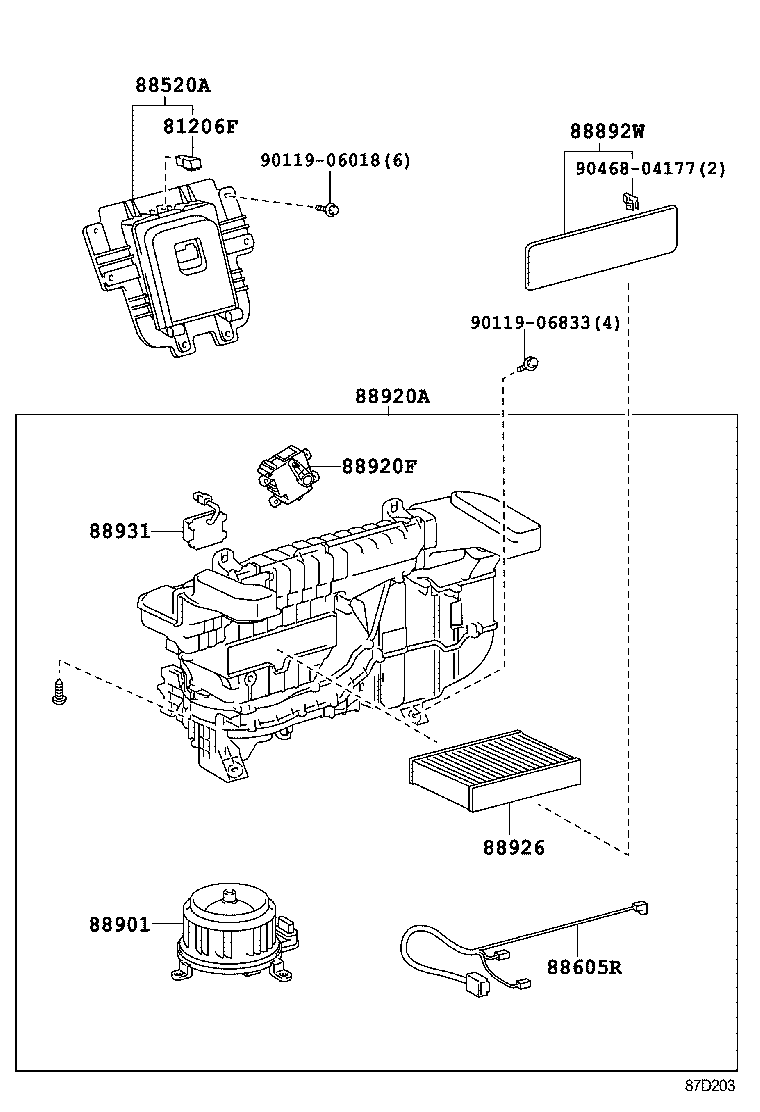

Figure 87D243 87D243 2012-09 → — Figure 87D203 87D203 2012-09 → —

Part groups

PNCDescription
81206F Lamp Sub-assy, Cooling Box
88051A Generator Sub-assy,Ion
88520A Box Assy, Cooling
88605R Harness Sub-assy, Air Purifier
88892W Cover, Air Purifier
88901 Motor Sub-assy, Air Purifier
88920A Purifier Assy, Air
88920F Servo Sub-assy, Damper(FOR EXHAUST MODE)
88926 Filter, Air Purifier
88931 Sensor, Smoke
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
