Water Pump

5 part groups · 2 illustrations

Illustrations

Figure 166788B

166788B 2017-10 → —

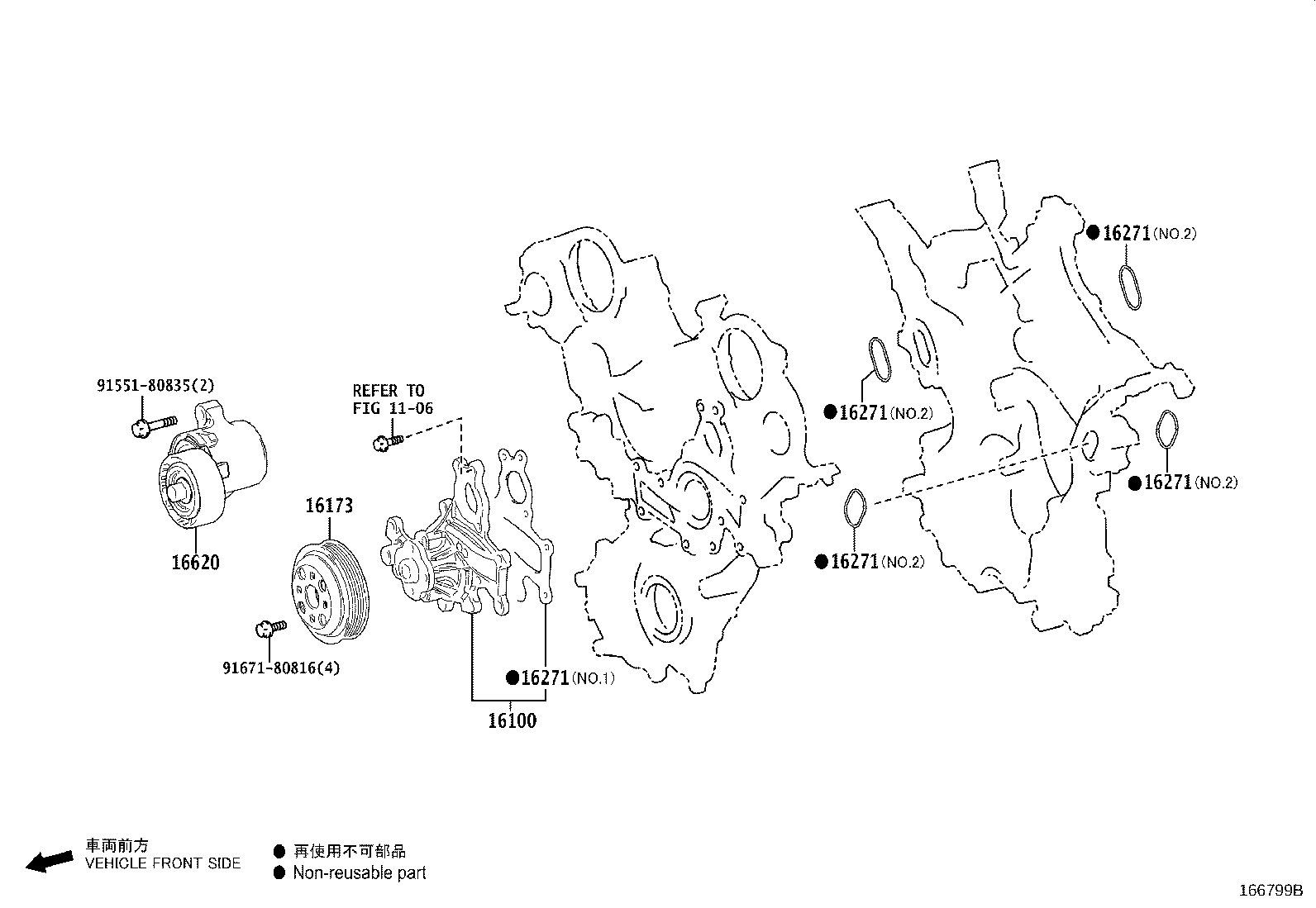

Figure 166799B

166799B 2017-12 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16193A	Bolt(FOR WATER PUMP COVER)
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
