Toyota Lexus LS500/500H
2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431160 · Japan
Supported model
Data version 2020-11

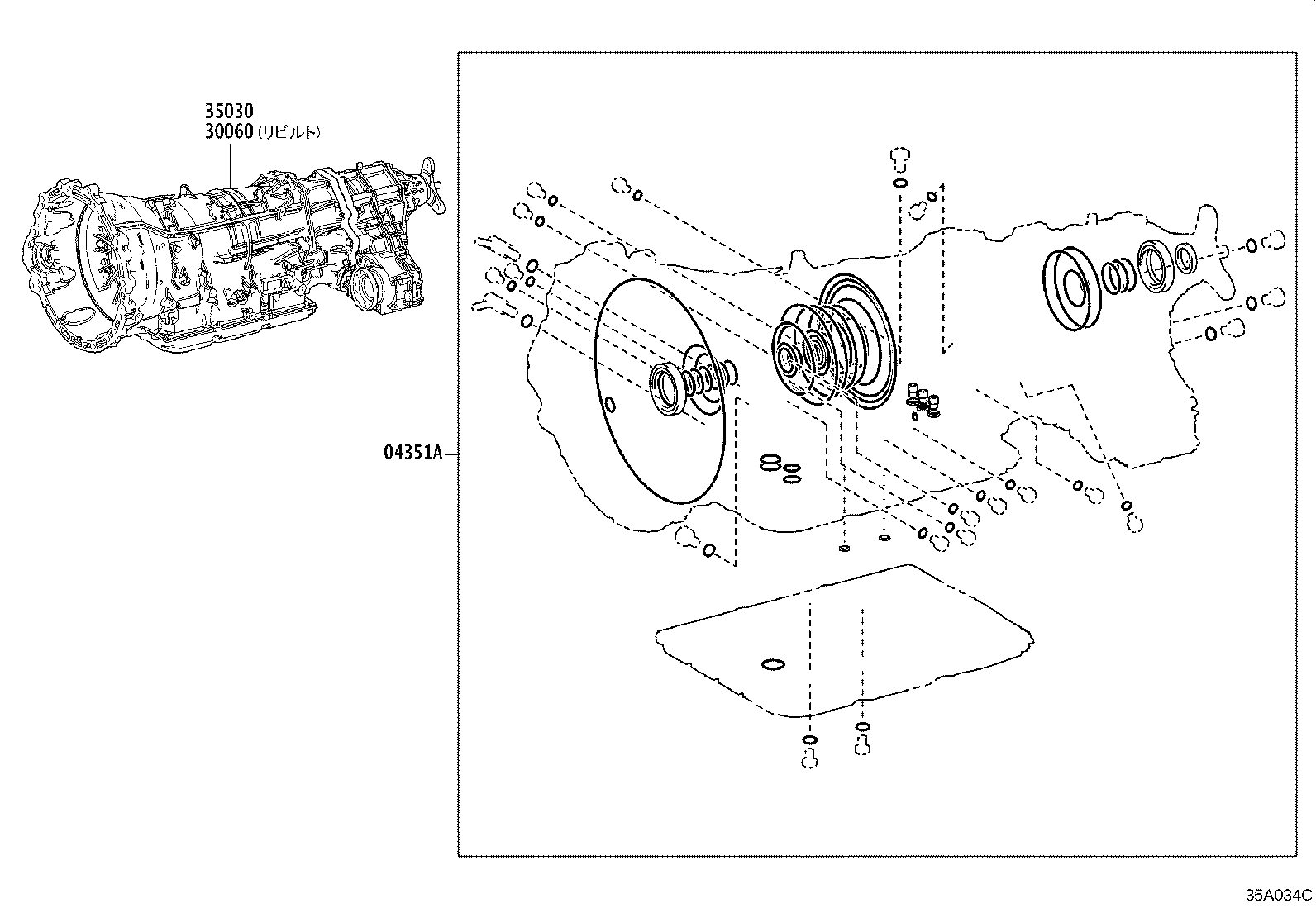

Transaxle OR Transmission Assy & Gasket Kit (ATM)
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04351A | Gasket Kit, Transaxle Overhaul(ATM) |
| 30030 | Transmission Assy, Rebuilt |
| 30060 | Transmission Assy, W/Transfer, Rebuilt |
| 35000 | Transmission Assy, Automatic |
| 35030 | Transmission Assy, Automatic W/Transfer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
