Toyota Lexus LS500/500H

2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431160 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

32 part groups · 3 illustrations

Illustrations

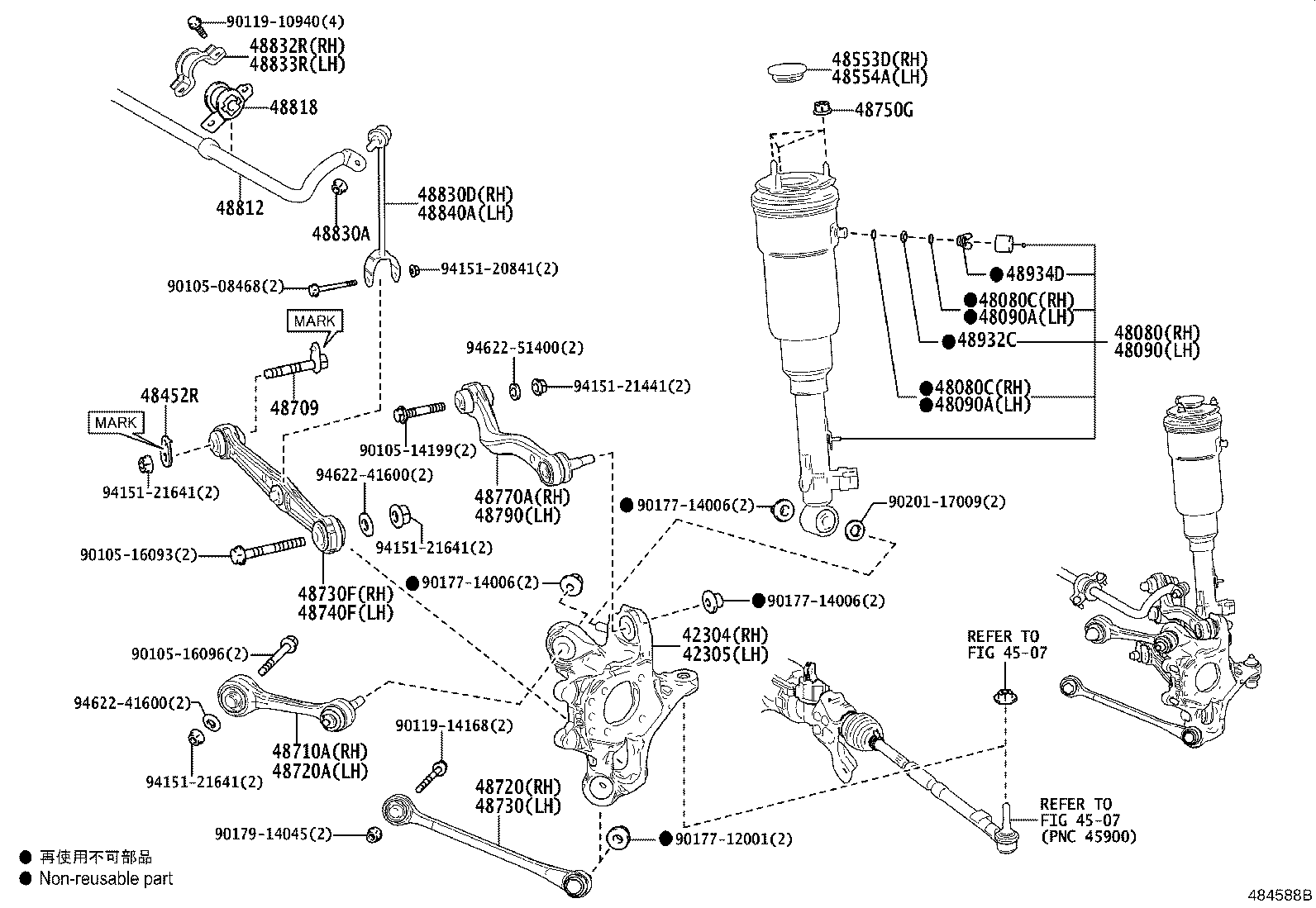

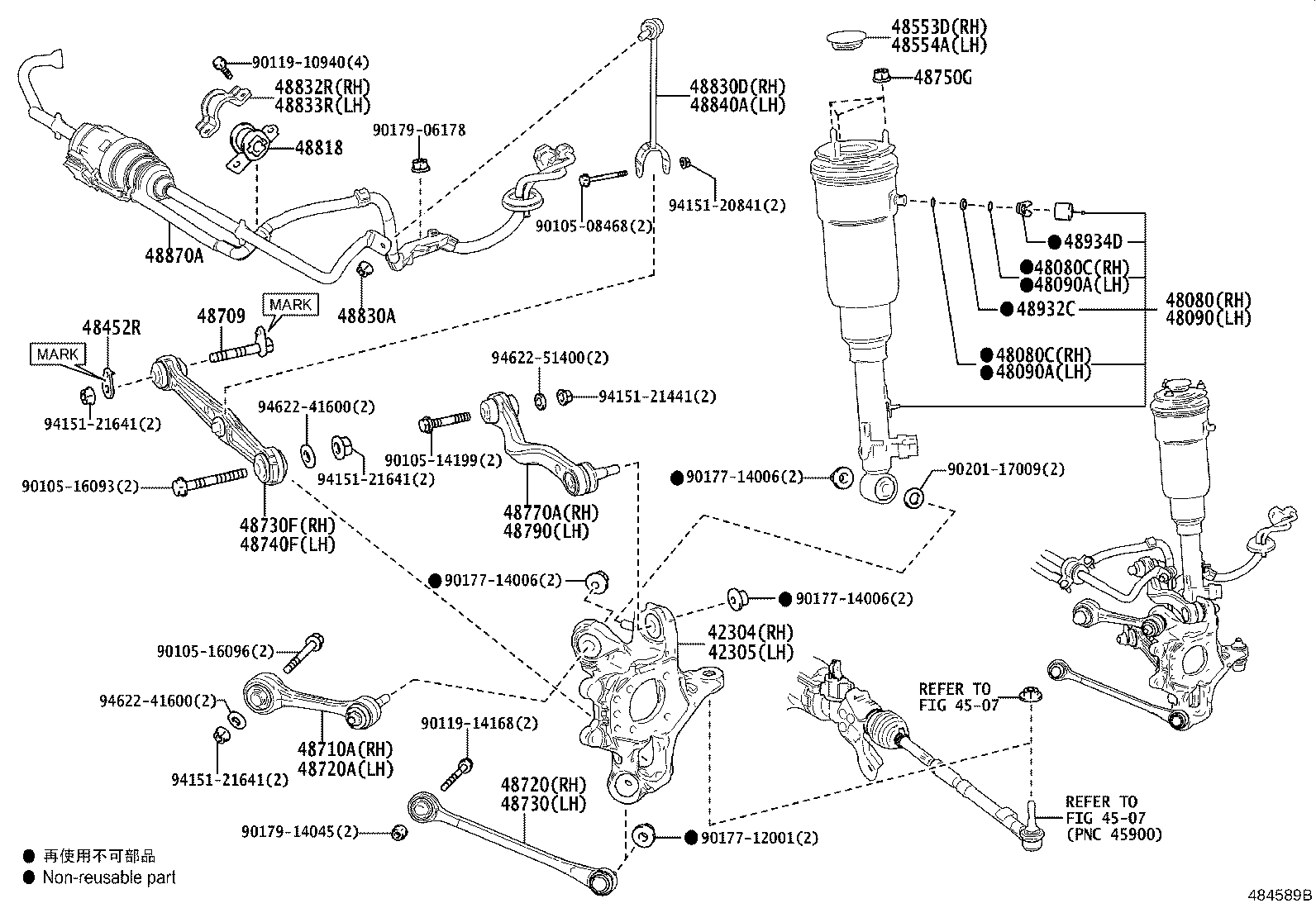

Figure 484587B 484587B 2017-10 → — Figure 484588B 484588B 2017-10 → — Figure 484589B 484589B 2017-12 → —

Part groups

PNCDescription
42304 Carrier Sub-assy, Rear Axle, RH
42305 Carrier Sub-assy, Rear Axle, LH
48080 Cylinder Assy, Pneumatic, Rear RH W/Shock Absorber
48080C Ring, O(FOR REAR PNEUMATIC CYLINDER RH)
48090 Cylinder Assy, Pneumatic, Rear LH W/Shock Absorber
48090A Ring, O(FOR REAR PNEUMATIC CYLINDER LH)
48409 Cam Sub-assy, Rear Suspension Toe Adjust
48452R Plate, Rear Suspension Toe Adjust, NO.2
48553D Cap, Rear Shock Absorber, RH
48554A Cap, Rear Shock Absorber, LH
48705 Link Sub-assy, Toe Control, RH
48706B Link Sub-assy, Toe Control, LH
48709 Attachment Sub-assy, Rear Suspension Arm
48710A Arm Assy, Rear Suspension, NO.1 RH
48720 Arm Assy, Lower Control, RH
48720A Arm Assy, Rear Suspension, NO.1 LH
48730 Arm Assy, Lower Control, LH
48730F Arm Assy, Rear Suspension, NO.2 RH
48740F Arm Assy, Rear Suspension, NO.2 LH
48750G Nut(FOR REAR SUSPENSION SUPPORT)
48770A Arm Assy, Upper Control, Rear RH
48790 Arm Assy, Upper Control, Rear LH
48812 Bar, Stabilizer, Rear
48818 Bush, Stabilizer, Rear
48830A Nut(FOR REAR STABILIZER LINK)
48830D Link Assy, Rear Stabilizer, RH
48832R Bracket, Rear Stabilizer Bar, NO.1 RH
48833R Bracket, Rear Stabilizer Bar, NO.1 LH
48840A Link Assy, Rear Stabilizer, LH
48870A Acutuator Assy, Rear Active Stabilizer Control
48932C Plate, Height Control Tube
48934D Connector, Height Control Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
