Toyota Lexus LS500/500H
2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431160 · Japan
Supported model
Data version 2020-11

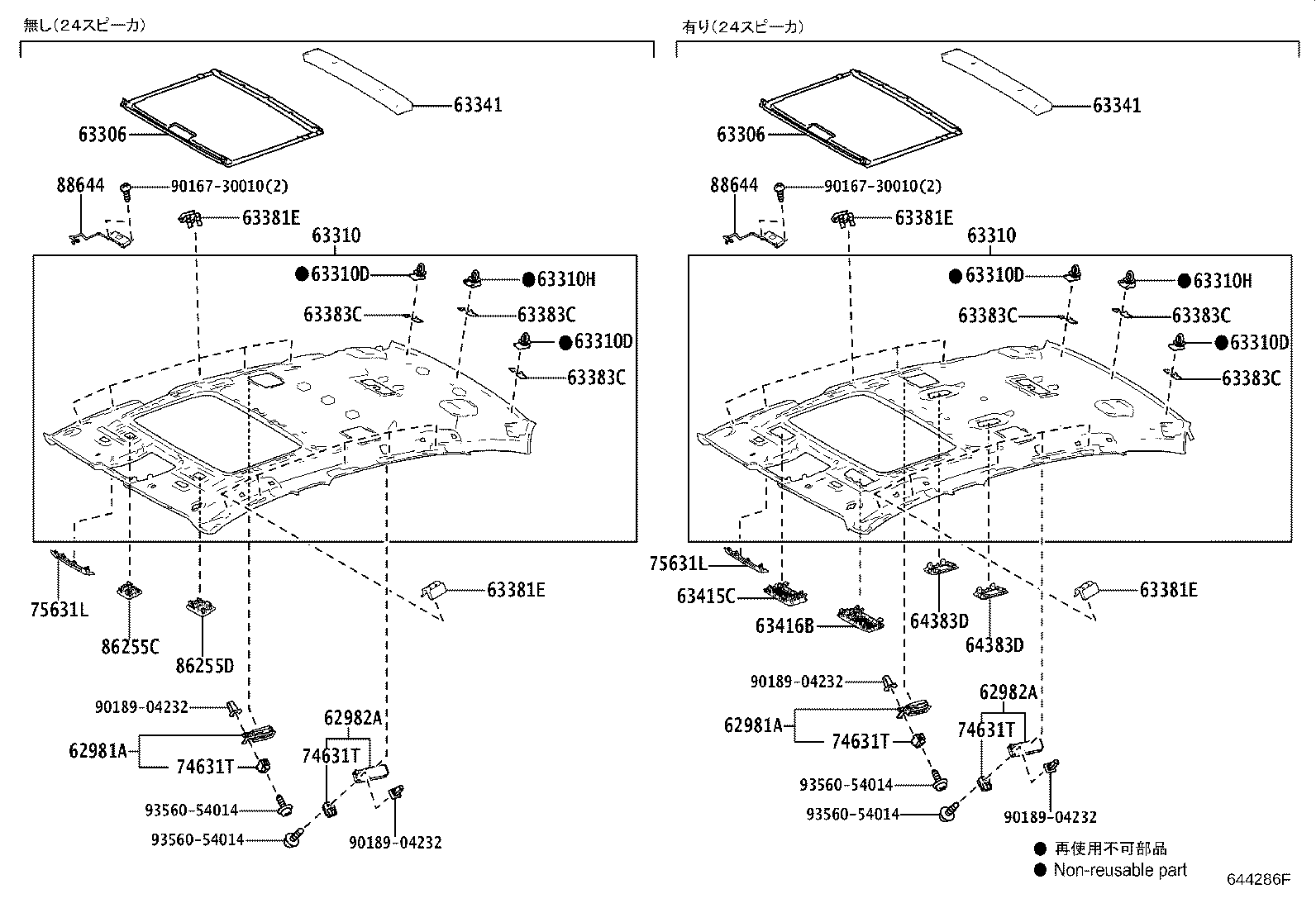

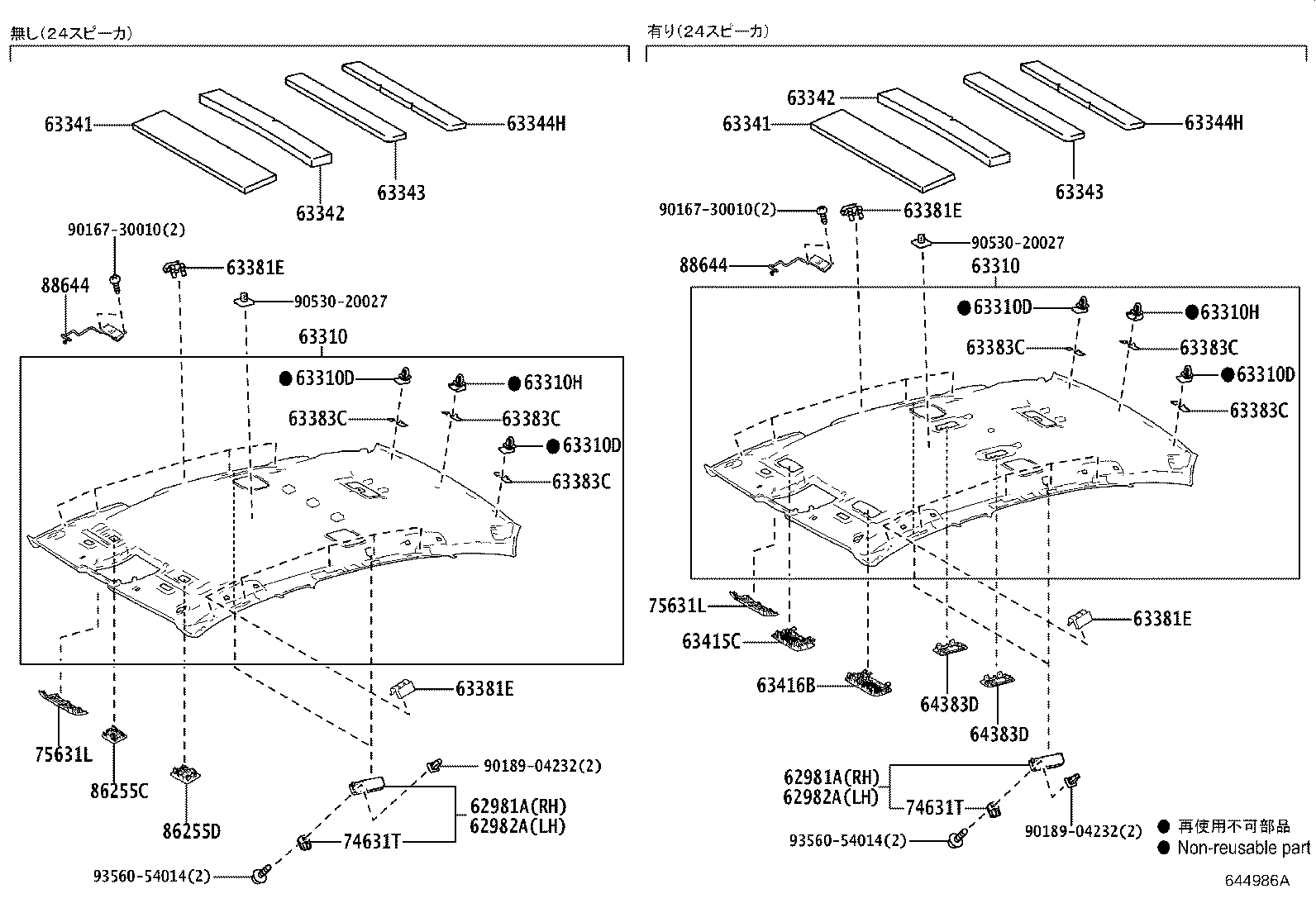

Roof Headlining & Silencer Pad
20 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62981A | Bezel, Roof Side Register, RH |
| 62982A | Bezel, Roof Side Register, LH |
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63344H | Pad, Roof Silencer, NO.4 |
| 63381E | Retainer, Roof Headlining Trim, Front |
| 63383C | Retainer, Roof Headlining Trim, Rear |
| 63415C | Grille, Roof Speaker, RH |
| 63416B | Grille, Roof Speaker, LH |
| 64383D | Grille, Rear Speaker |
| 74631T | Hook, Coat |
| 75631L | Garnish, Roof Top, Front |
| 86255C | Case, Microphone, RH |
| 86255D | Case, Microphone, LH |
| 88644 | Sensor, Air Conditioner Infrared Rays |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
