Toyota Lexus LS500/500H

2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431160 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

11 part groups · 3 illustrations

Illustrations

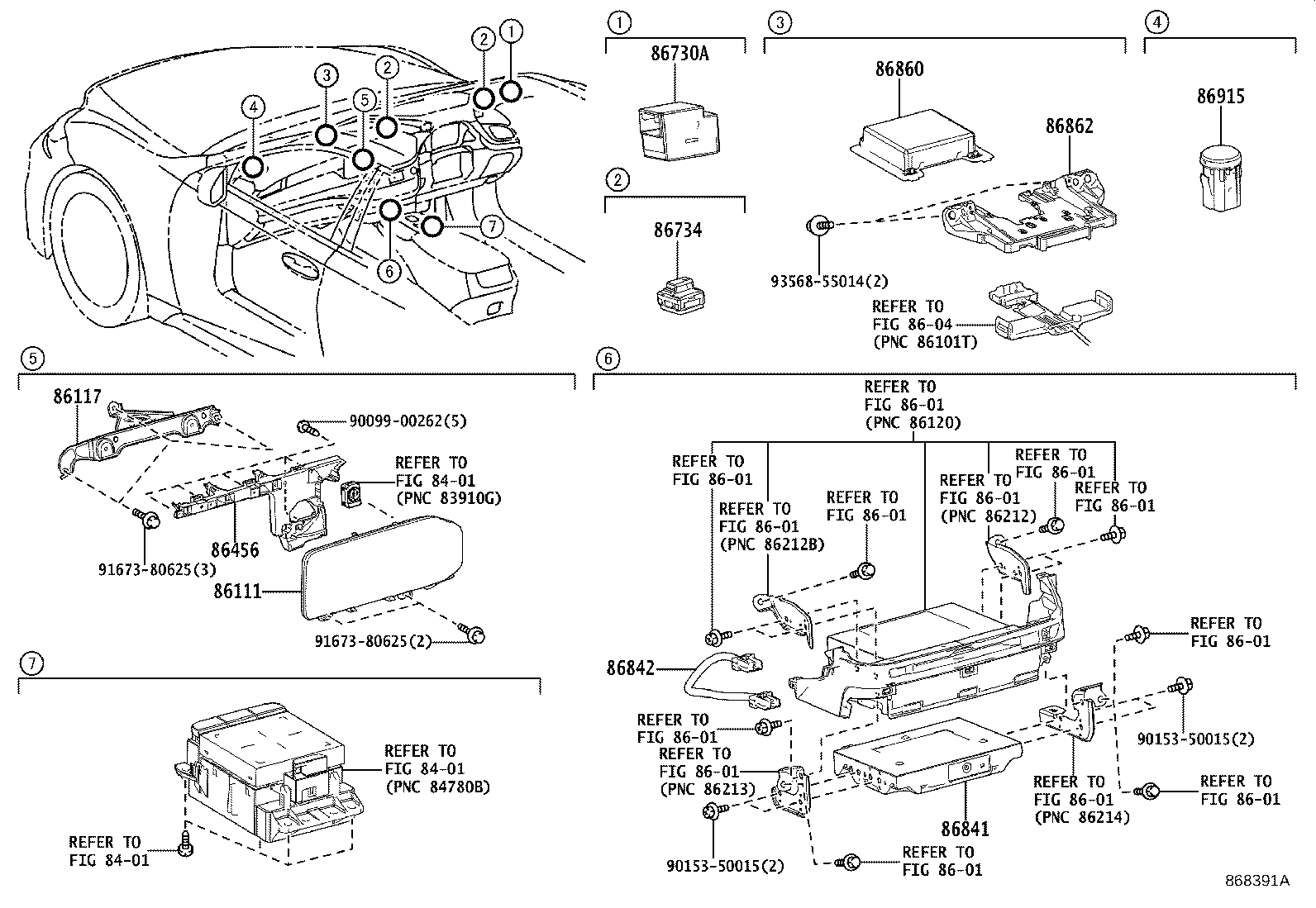

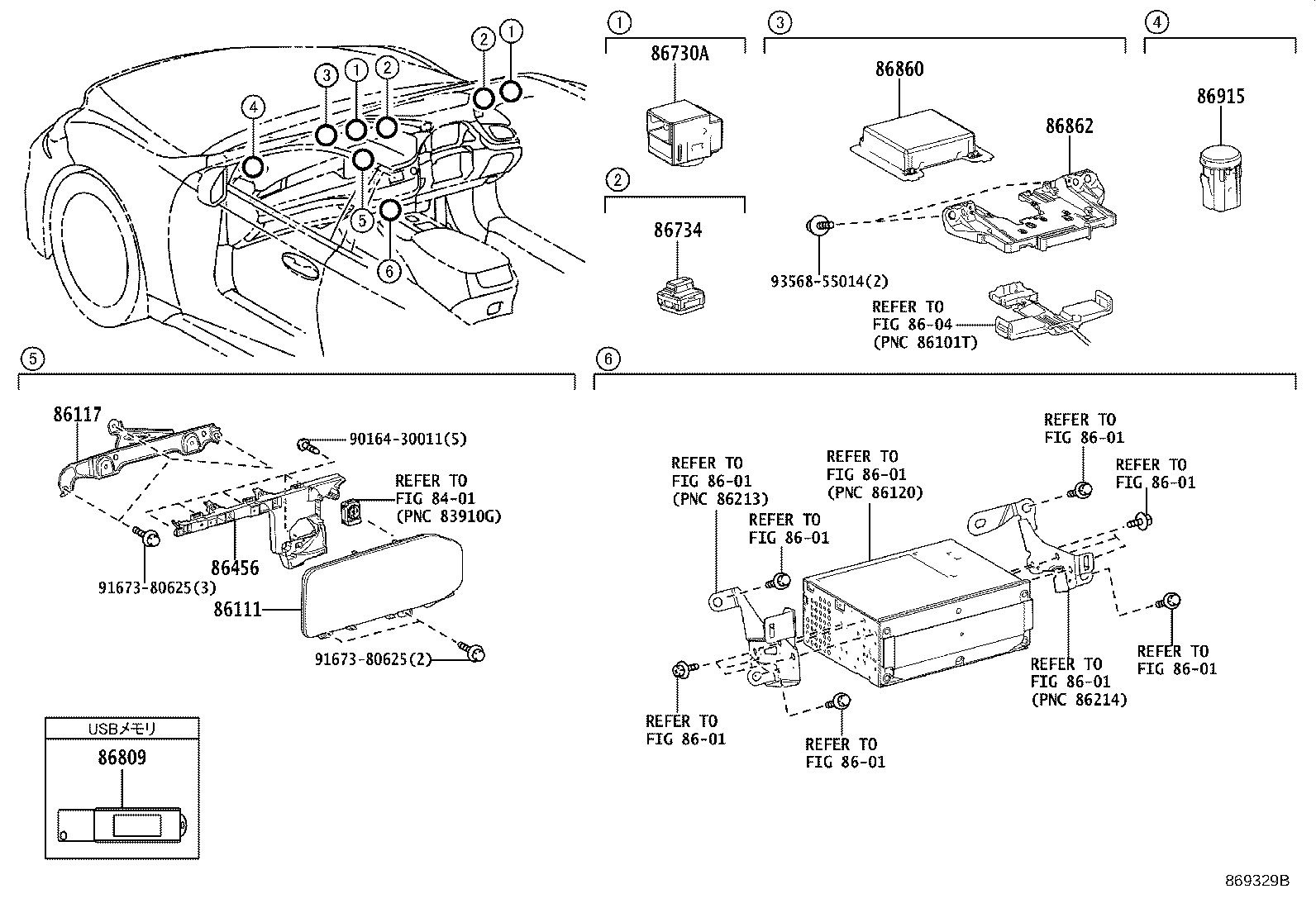

Figure 867036B 867036B 2017-10 → 2020-10 Figure 868391A 868391A 2020-10 → 2022-10 Figure 869329B 869329B 2022-10 → —

Part groups

PNCDescription
86111 Multi-display
86117 Bracket, Multi-display Controller, A
86456 Cover, Multi-media Module
86730A Microphone Assy, Telephone
86734 Microphone, Active Noise Control
86809 Usb Set, Usb Memory Navigation Data
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
86915 Transceiver, Optical Beacon
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
