Toyota Lexus LS500/500H

2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431160 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

5 part groups · 6 illustrations

Illustrations

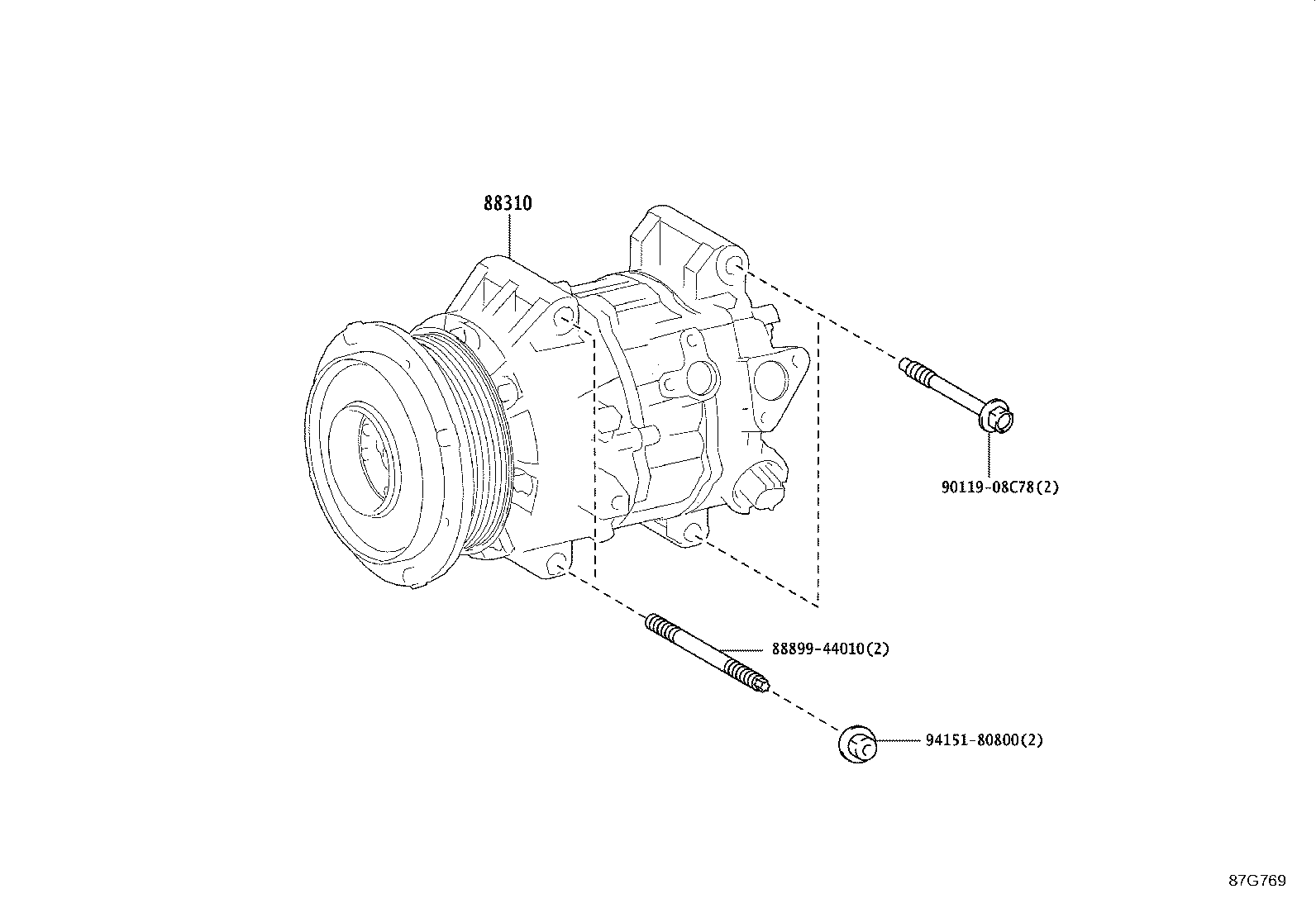

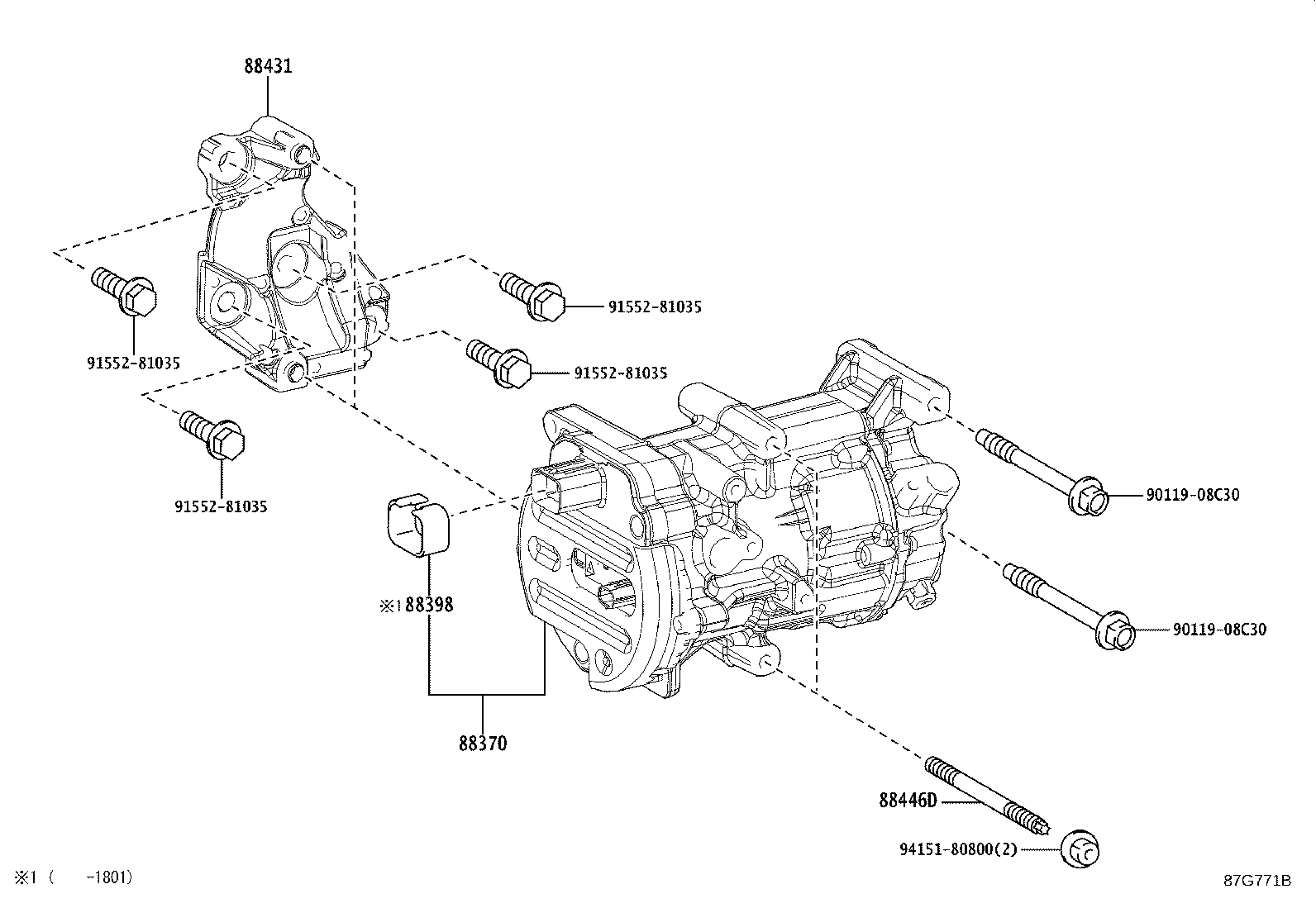

Figure 87G770B 87G770B 2017-10 → 2020-10 Figure 87G770B 87G770B 2020-10 → — Figure 87G771B 87G771B 2017-10 → 2020-10 Figure 87G771B 87G771B 2020-10 → — Figure 87G769 87G769 2017-12 → 2020-10 Figure 87G769 87G769 2020-10 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88370 Compressor Assy, W/Motor
88398 Packing, Compressor
88431 Bracket, Compressor Mounting, NO.1
88446D Bolt, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
