Toyota Lexus LS600H/600HL

2007-04 → 2012-09 · chassis UVF4# · catalogue 432110 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

10 part groups · 2 illustrations

Illustrations

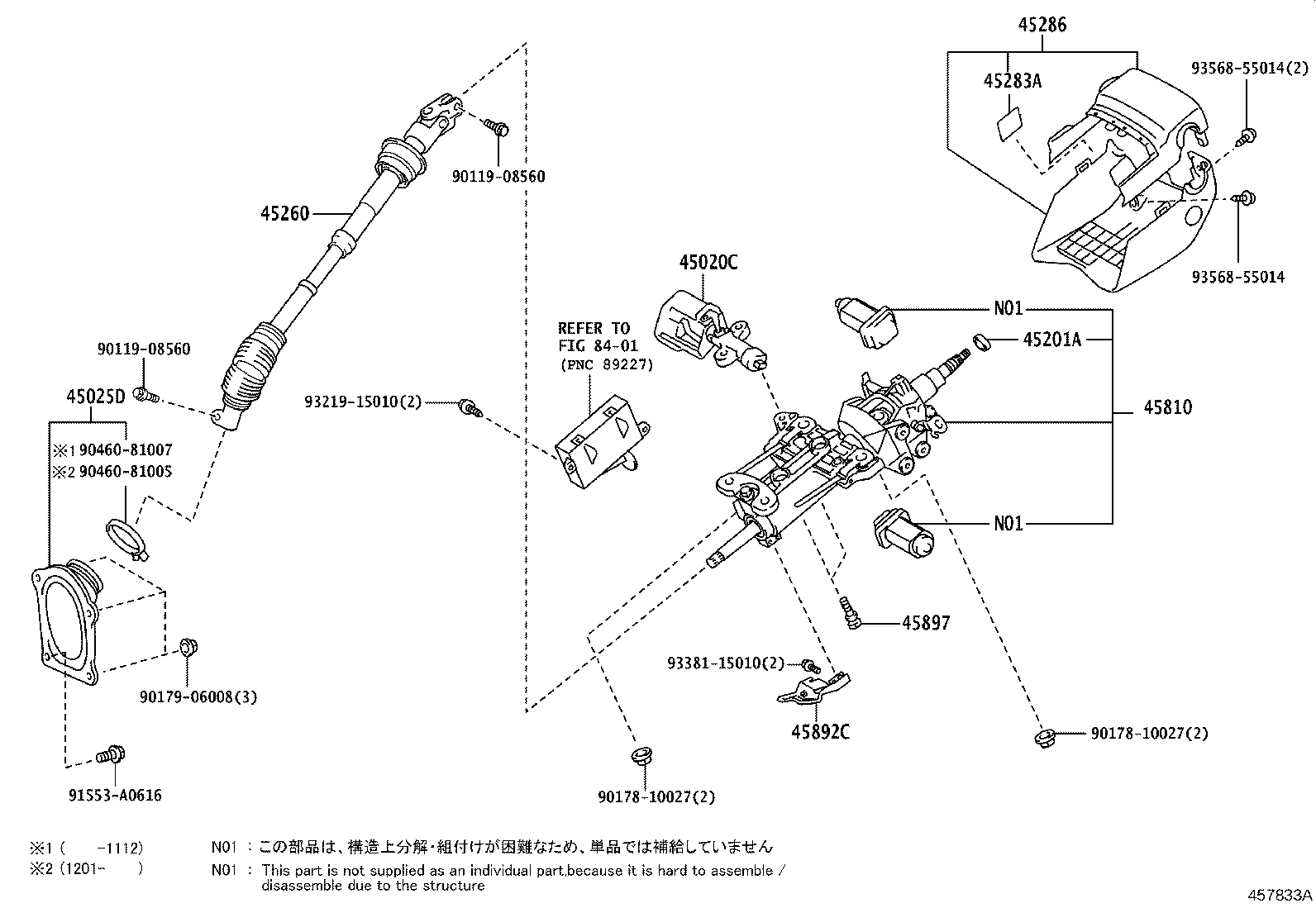

Figure 457832A 457832A 2007-04 → 2010-11 Figure 457833A 457833A 2010-11 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45201A Bearing(FOR STEERING MAIN SHAFT)
45250 Column Assy, Steering
45260 Shaft Assy, Steering Intermediate, NO.2
45283A Plate, Beam Change & Turn Signal Caution
45286 Cover, Steering Column
45810 Gear Assy, Tilt Steering, W/Motor
45892C Bracket, Return Spring
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
