Toyota Lexus LS600H/600HL
2007-04 → 2012-09 · chassis UVF4# · catalogue 432110 · Japan
Supported model
Data version 2013-01

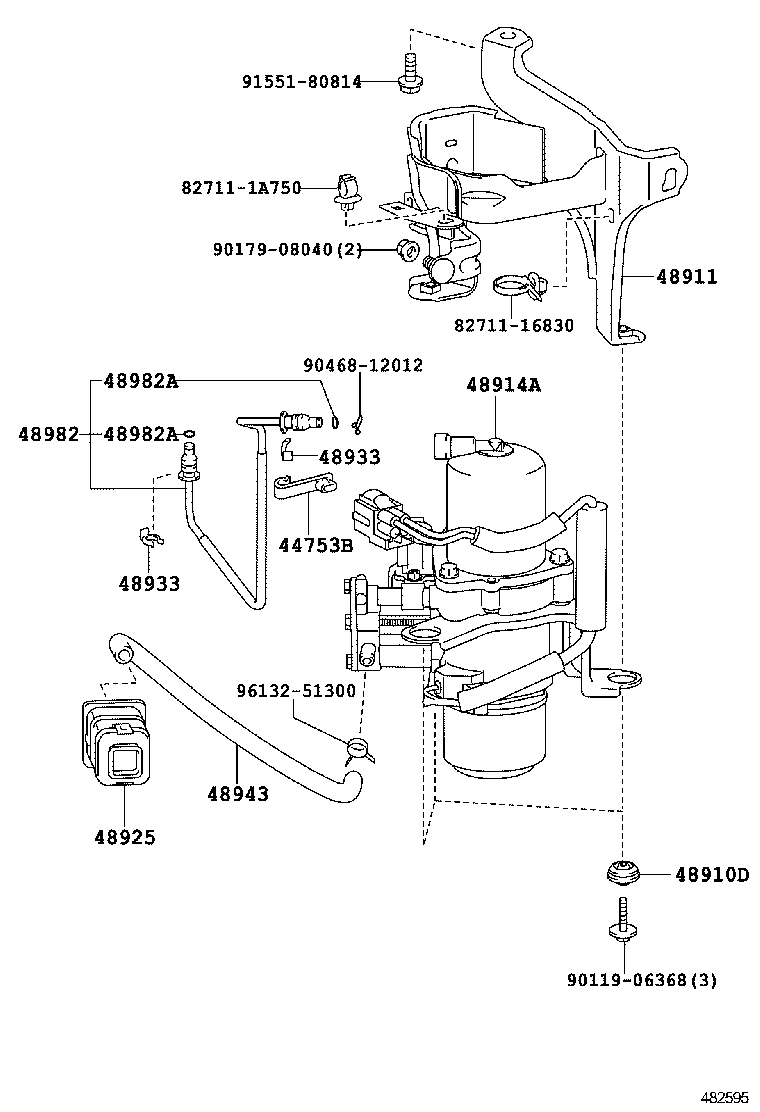

Height Control (AUTO-LEVELER)
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44753B | Clamp, Height Control Tube, NO.1 |
| 44753C | Clamp, Height Control Tube, NO.2 |
| 48095 | Valve Sub-assy, Height Control, NO.1 |
| 48095C | Bush(FOR HEIGHT CONTROL VALVE NO.1) |
| 48095D | Ring, O(FOR HEIGHT CONTROL VALVE) |
| 48096 | Valve Sub-assy, Height Control, NO.2 |
| 48096A | Bush, NO.2(FOR HEIGHT CONTROL VALVE) |
| 48096B | Cushion, NO.2(FOR HEIGHT CONTROL VALVE) |
| 48910D | Bush, NO.2(FOR HEIGHT CONTROL COMPRESSOR) |
| 48911 | Bracket, Height Control Compressor |
| 48914A | Compressor, Height Control, NO.1 |
| 48925 | Filter, Height Control |
| 48932A | Plate, Height Control Tube |
| 48933 | Holder, Air Connector Clip |
| 48934B | Connector, Height Control Tube |
| 48943 | Hose, Height Control, NO.1 |
| 48978 | Cover, Height Control Compressor |
| 48980C | Harness Assy, Height Control Valve |
| 48982 | Tube, Height Control, NO.2 |
| 48982A | Ring, O(FOR HEIGHT CONTROL TUBE NO.2) |
| 48983 | Tube, Height Control, NO.3 |
| 48984 | Tube, Height Control, NO.4 |
| 48986 | Tube, Height Control, NO.6 |
| 48987 | Tube, Height Control, NO.7 |
| 48988 | Tube, Height Control, NO.8 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
