Toyota Lexus LS600H/600HL

2007-04 → 2012-09 · chassis UVF4# · catalogue 432110 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

36 part groups · 3 illustrations

Illustrations

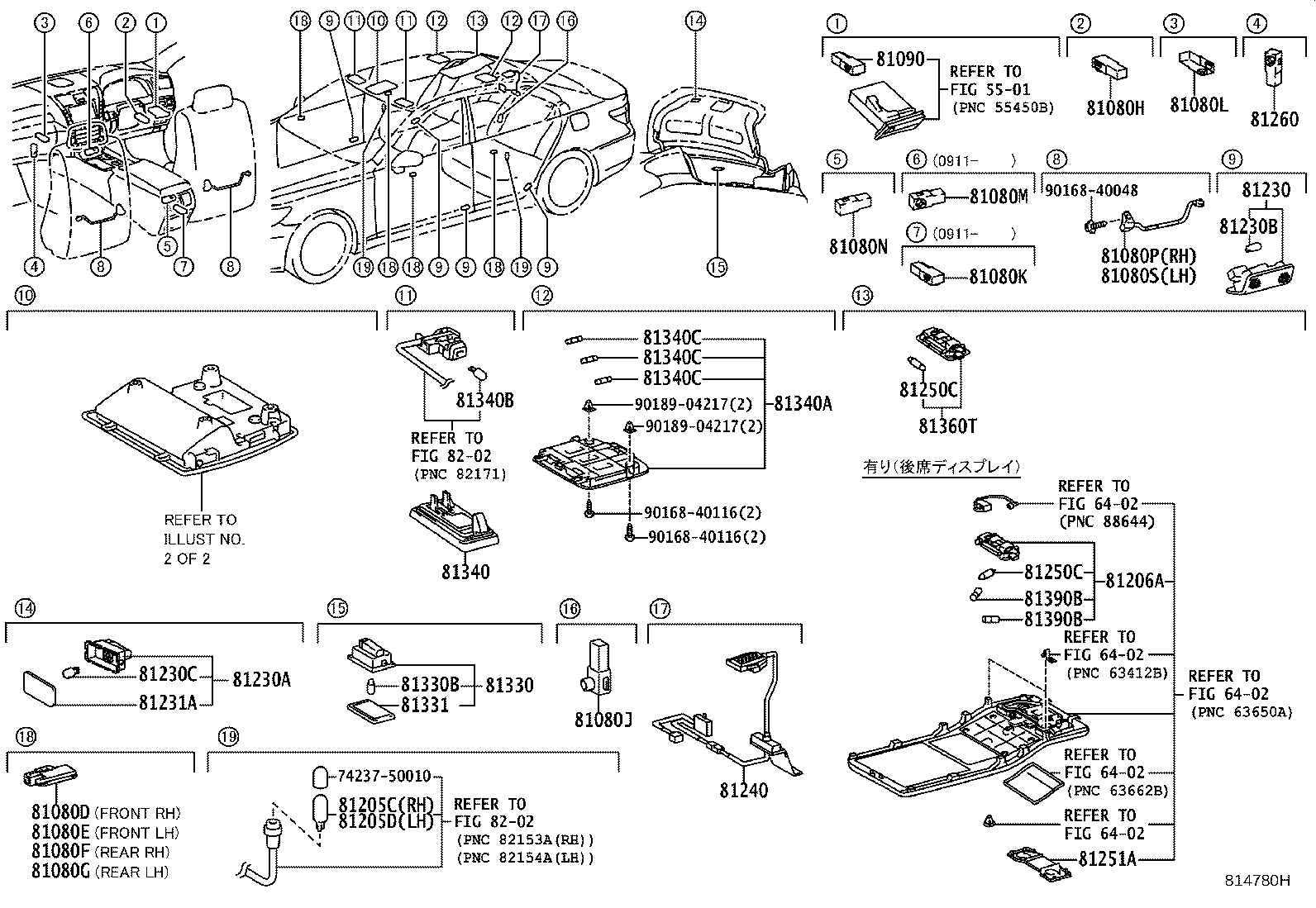

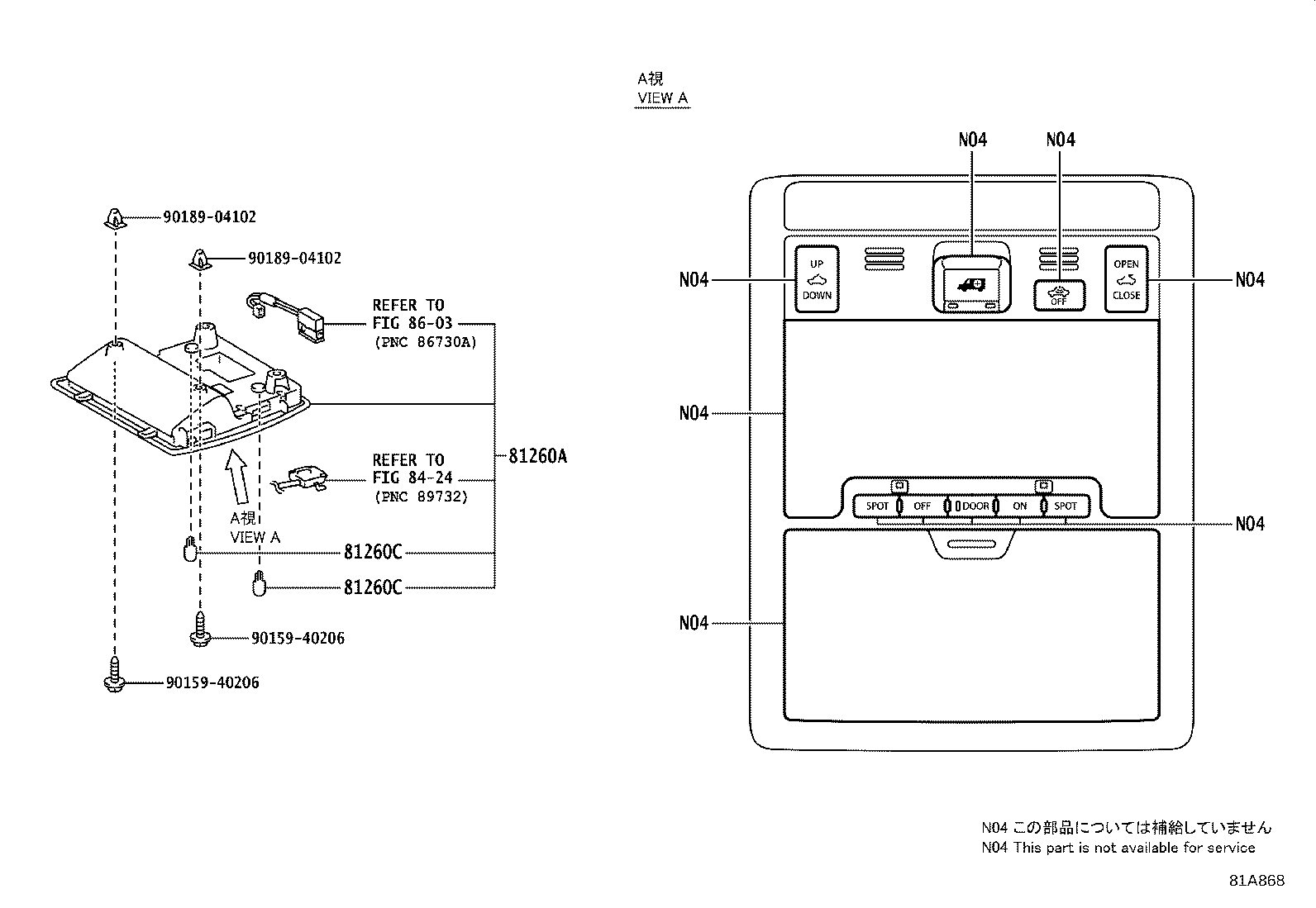

Figure 814195H 814195H 2007-04 → 2008-09 Figure 814780H 814780H 2008-09 → — Figure 81A868 81A868 2007-04 → —

Part groups

PNCDescription
81080D Lamp Assy, Front Door Inside Handle Illumination, RH
81080E Lamp Assy, Front Door Inside Handle Illumination, LH
81080F Lamp Assy, Rear Door Inside Handle Illumination, RH
81080G Lamp Assy, Rear Door Inside Handle Illumination, LH
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080J Lamp Assy, Interior Illumination, NO.1
81080K Lamp Assy, Console Box Illumination
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080M Lamp Assy, Interior Illumination, NO.1
81080N Lamp Assy, Interior Illumination, NO.1
81080P Lamp Assy, Interior Illumination, NO.1 RH
81080S Lamp Assy, Interior Illumination, NO.1 LH
81090 Lamp Assy, Interior Illumination, NO.2
81205C Bulb, Ash Receptacle Lamp, Rear RH
81205D Bulb, Ash Receptacle Lamp, Rear LH
81206A Lamp Sub-assy, Console Box
81230 Lamp Assy, Courtesy
81230A Lamp Assy, Courtesy, NO.2
81230B Bulb(FOR COURTESY LAMP)
81230C Bulb(FOR COURTESY LAMP NO.2)
81231A Lens, Courtesy Lamp, NO.2
81240 Lamp Assy, Room, NO.1
81250C Bulb, Spot Lamp
81251A Lens, Spot Lamp
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81331 Lens, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81340A Lamp Assy, Rear Vanity
81340B Bulb (FOR VANITY LAMP)
81340C Bulb (FOR REAR VANITY LAMP)
81360T Lamp Assy, Spot
81390B Bulb, Spot Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
