Toyota Lexus LS600H/600HL

2007-04 → 2012-09 · chassis UVF4# · catalogue 432110 · Japan

Supported model Data version 2013-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

109 part groups · 19 illustrations

Illustrations

826932B 2007-04 → —

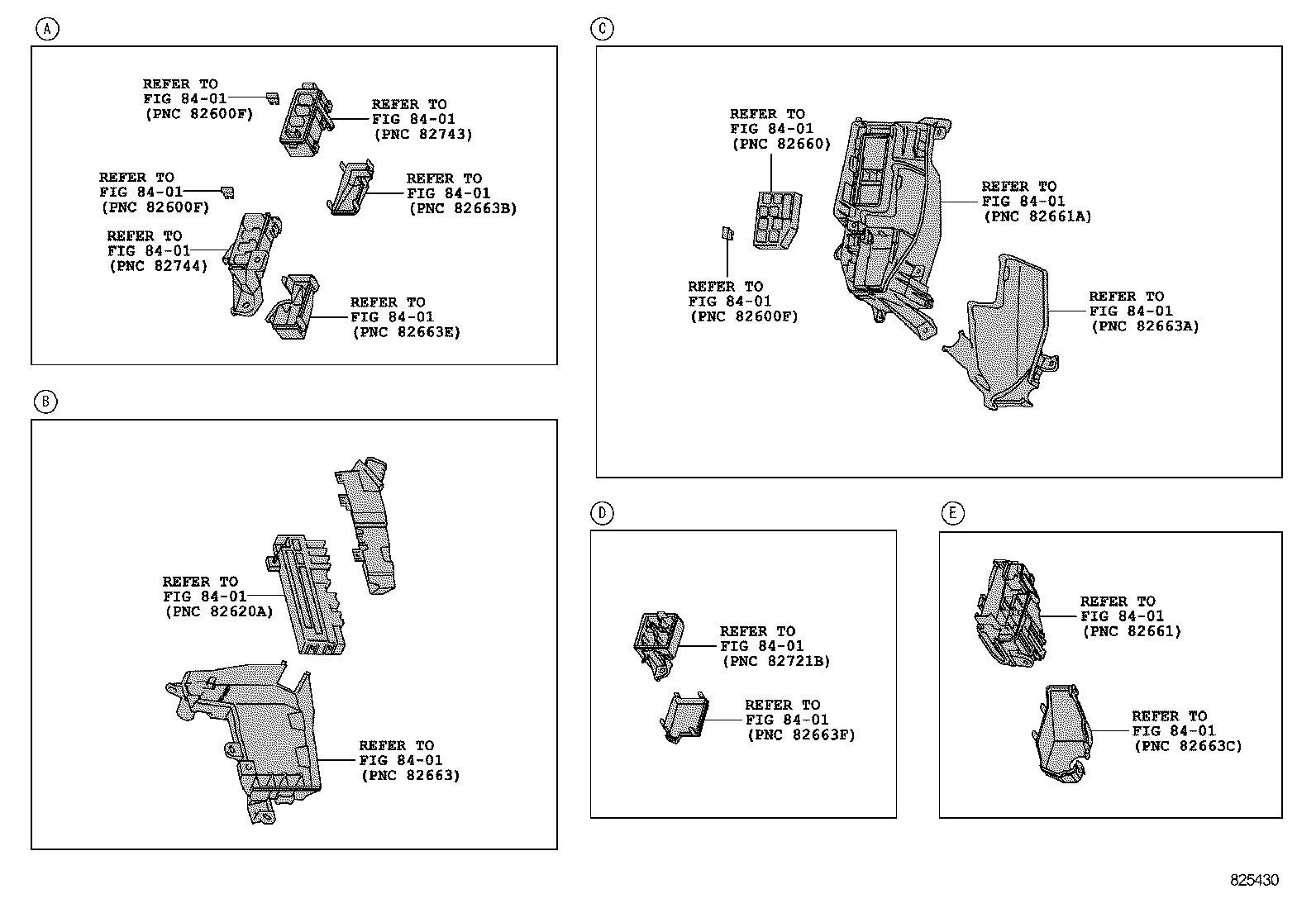

825430 2007-04 → —

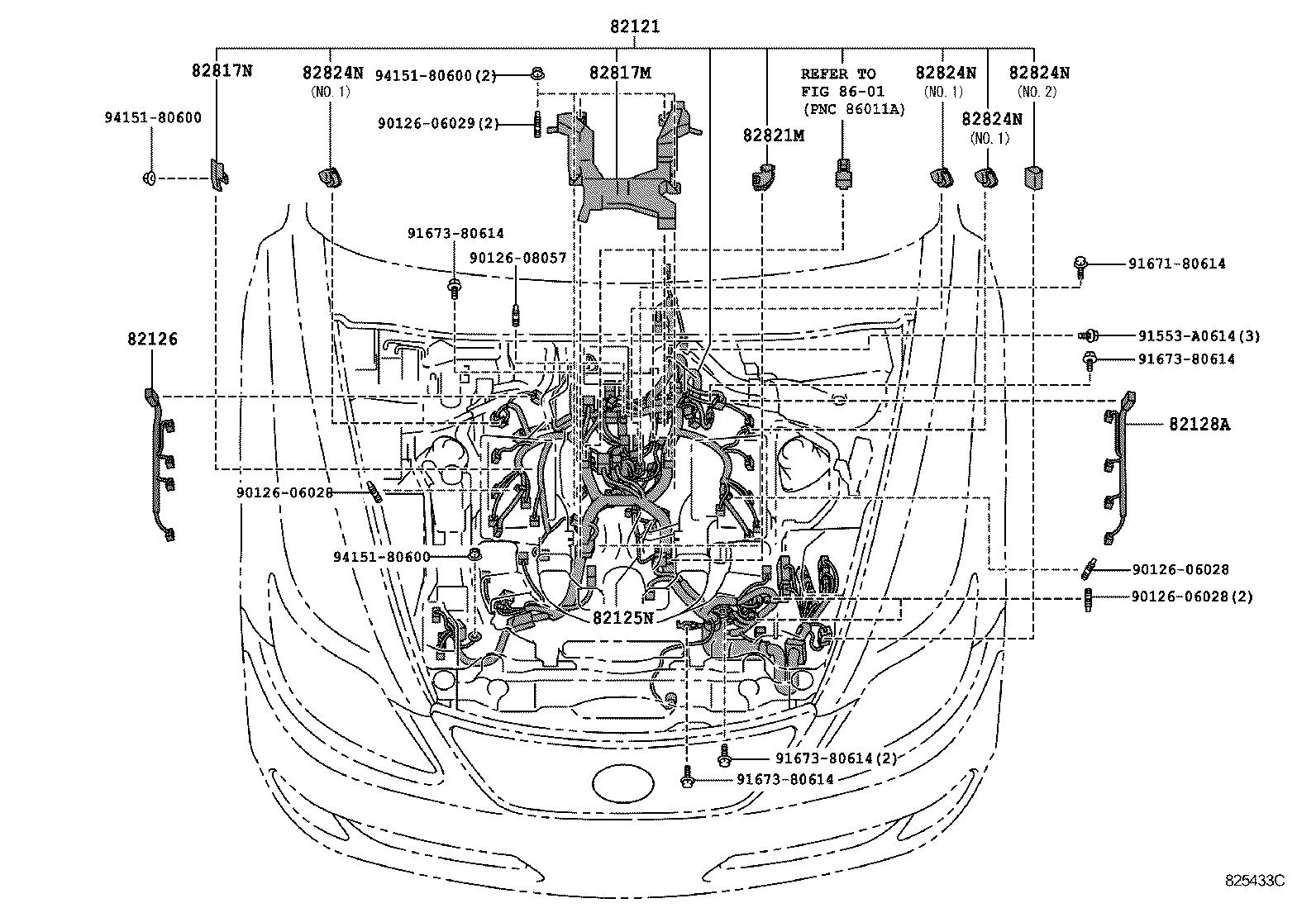

825433C 2007-04 → —

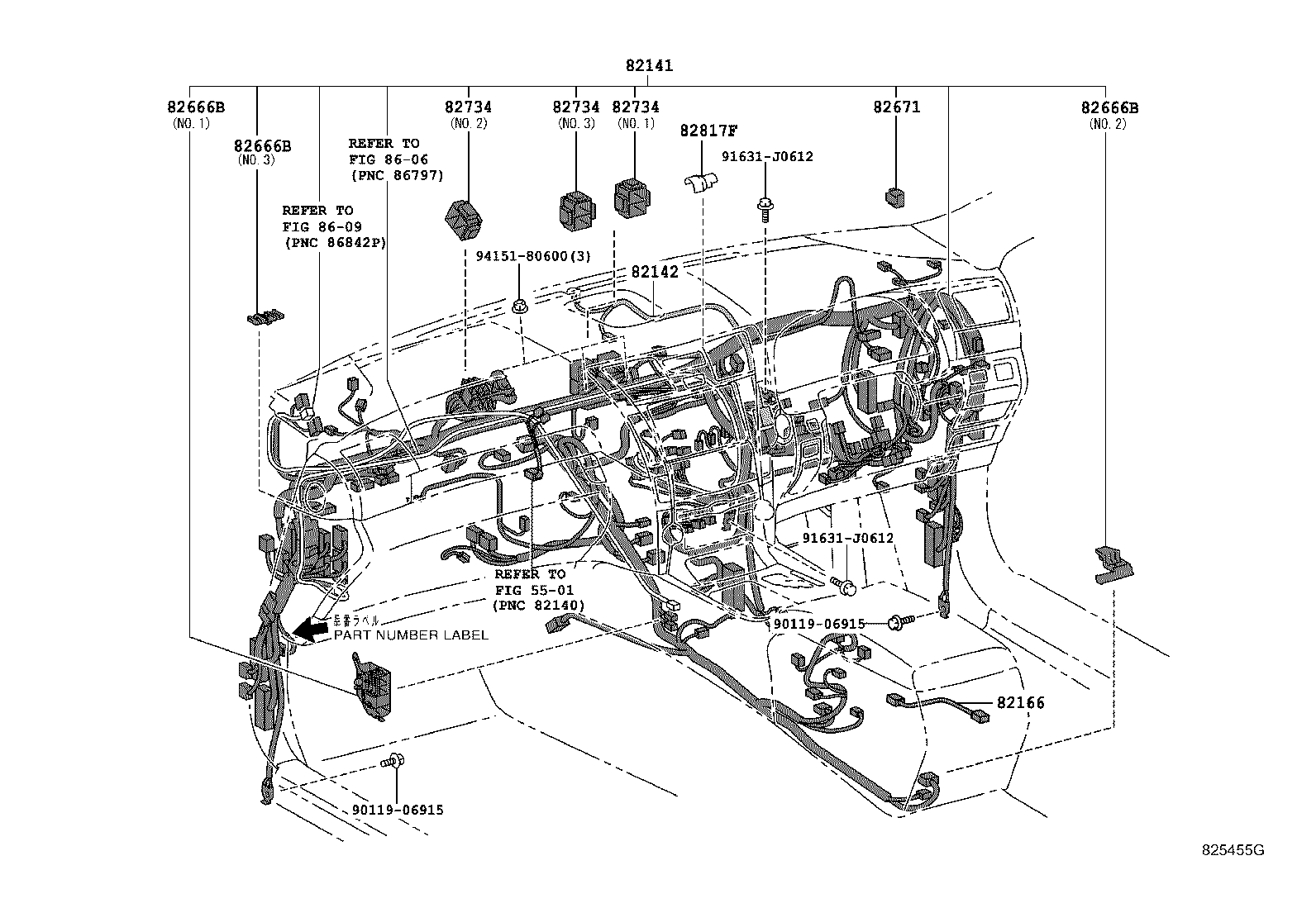

825455G 2007-04 → 2009-11

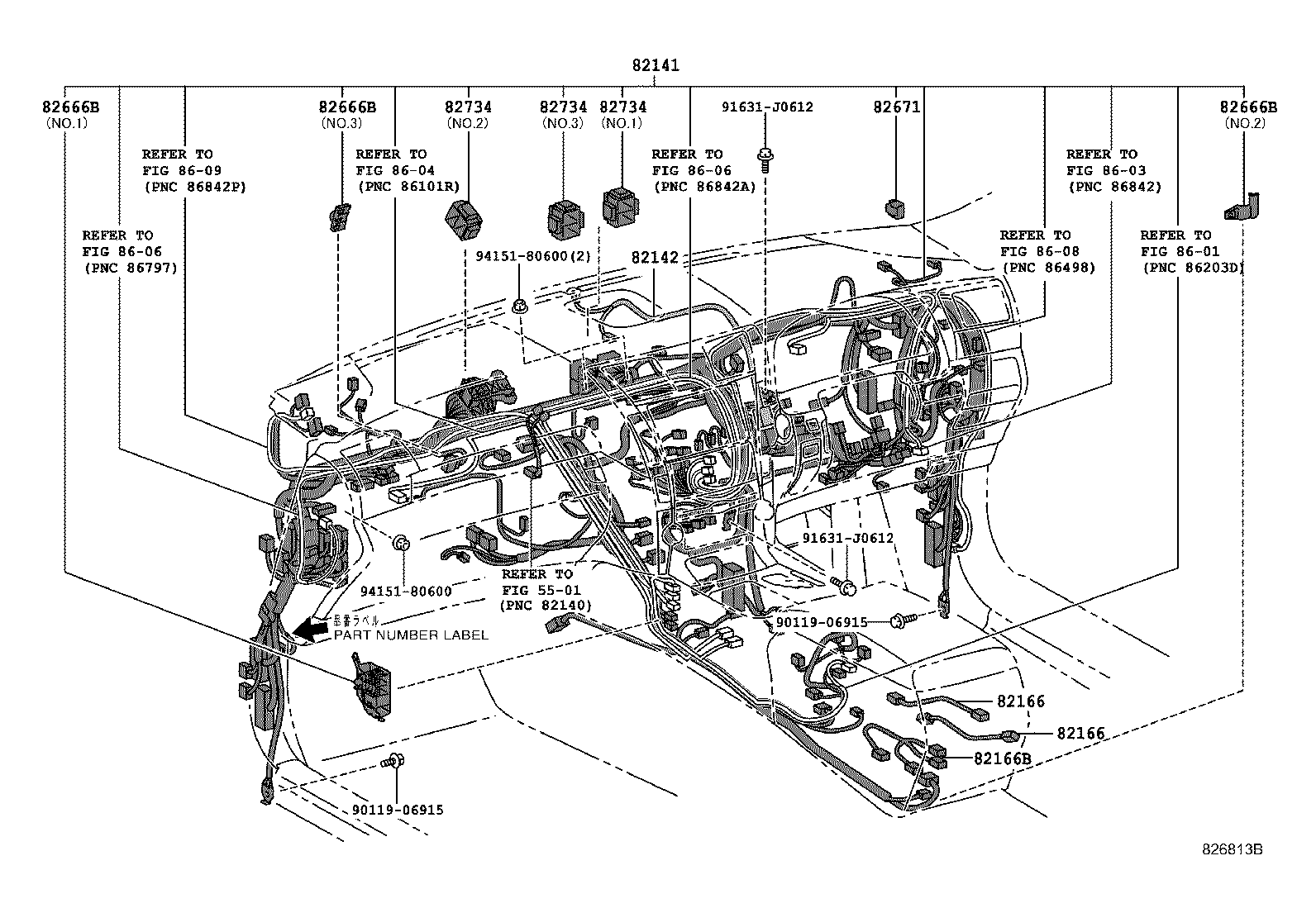

826813B 2009-11 → —

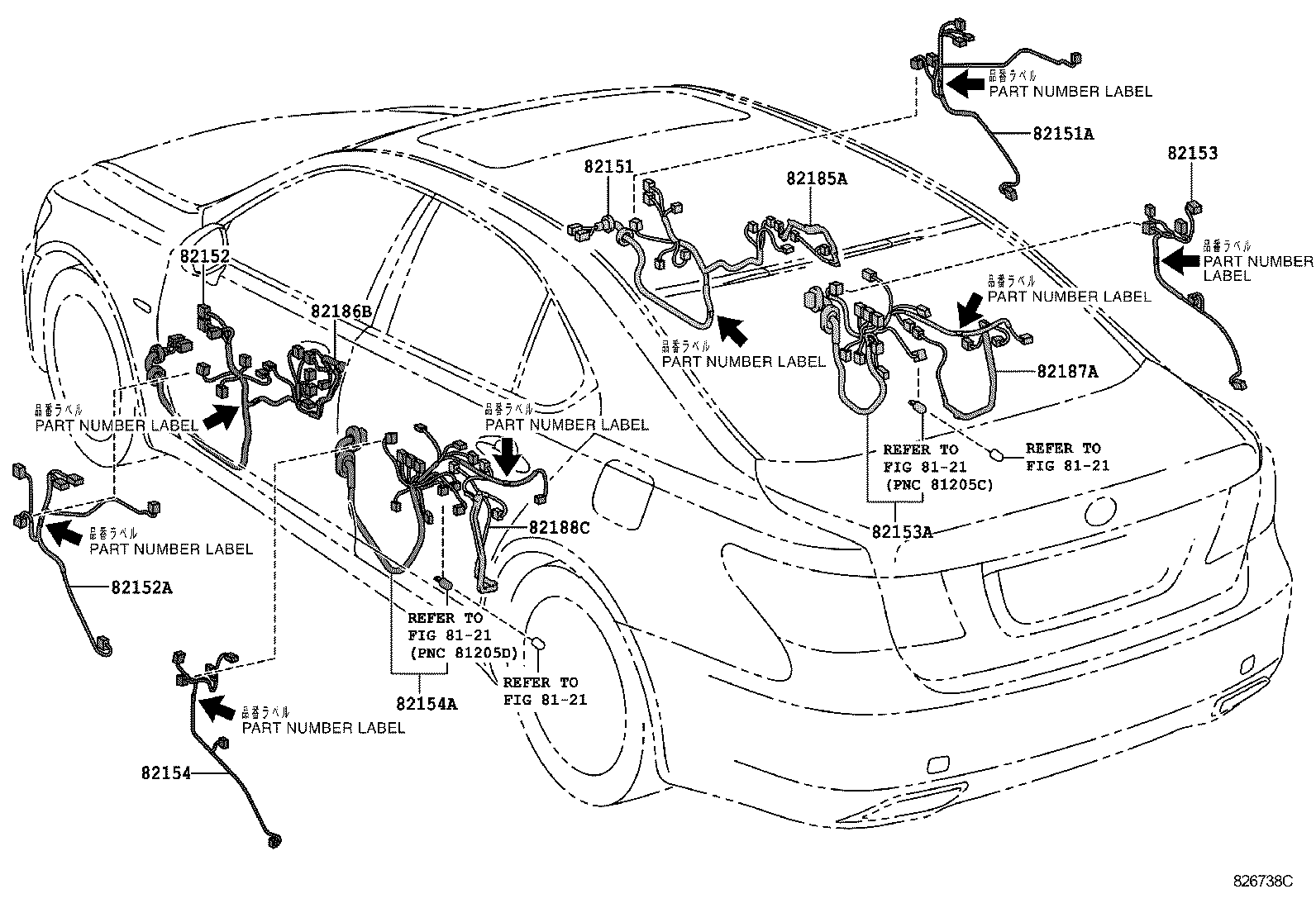

826738C 2007-04 → —

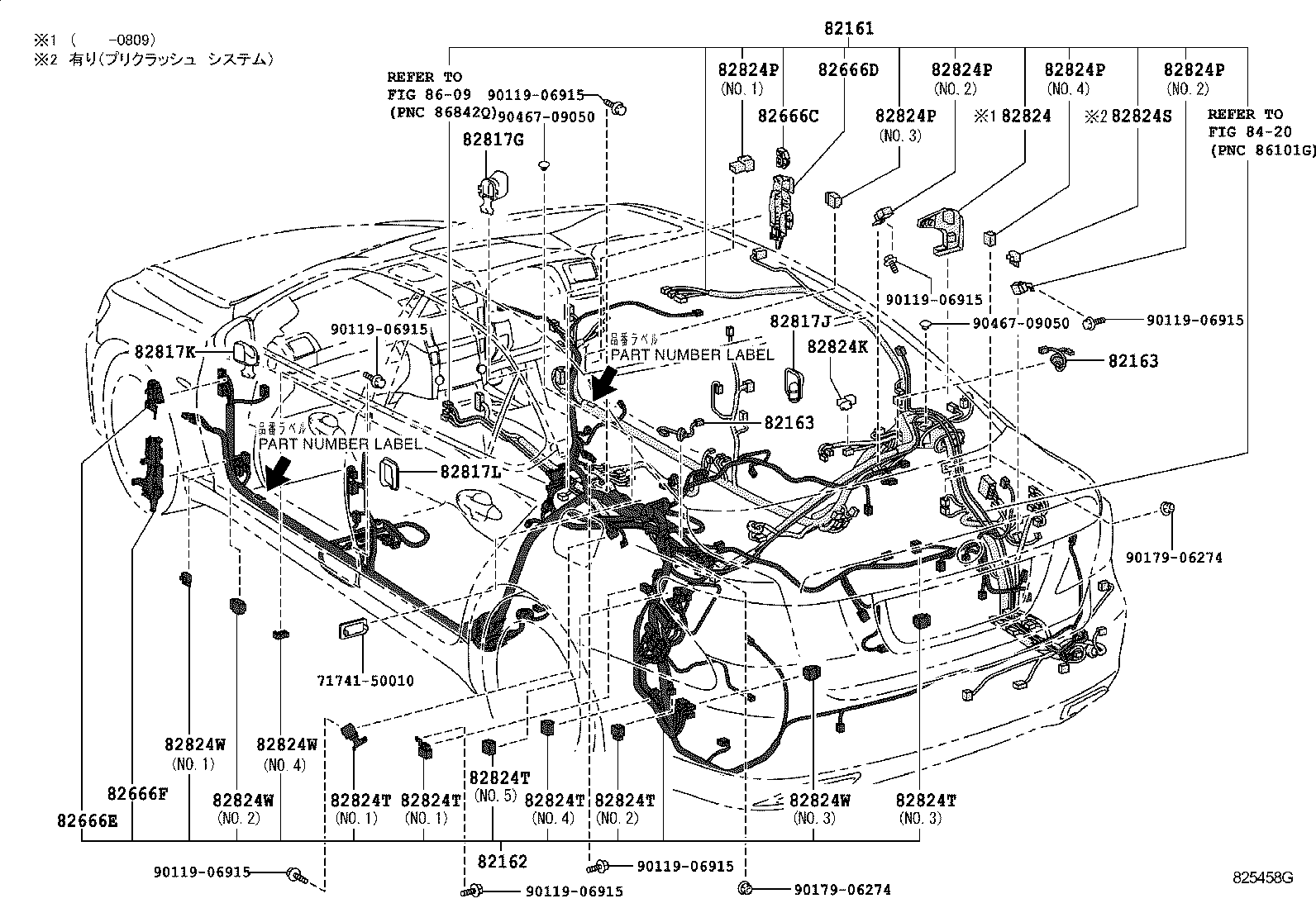

825458G 2007-04 → 2009-11

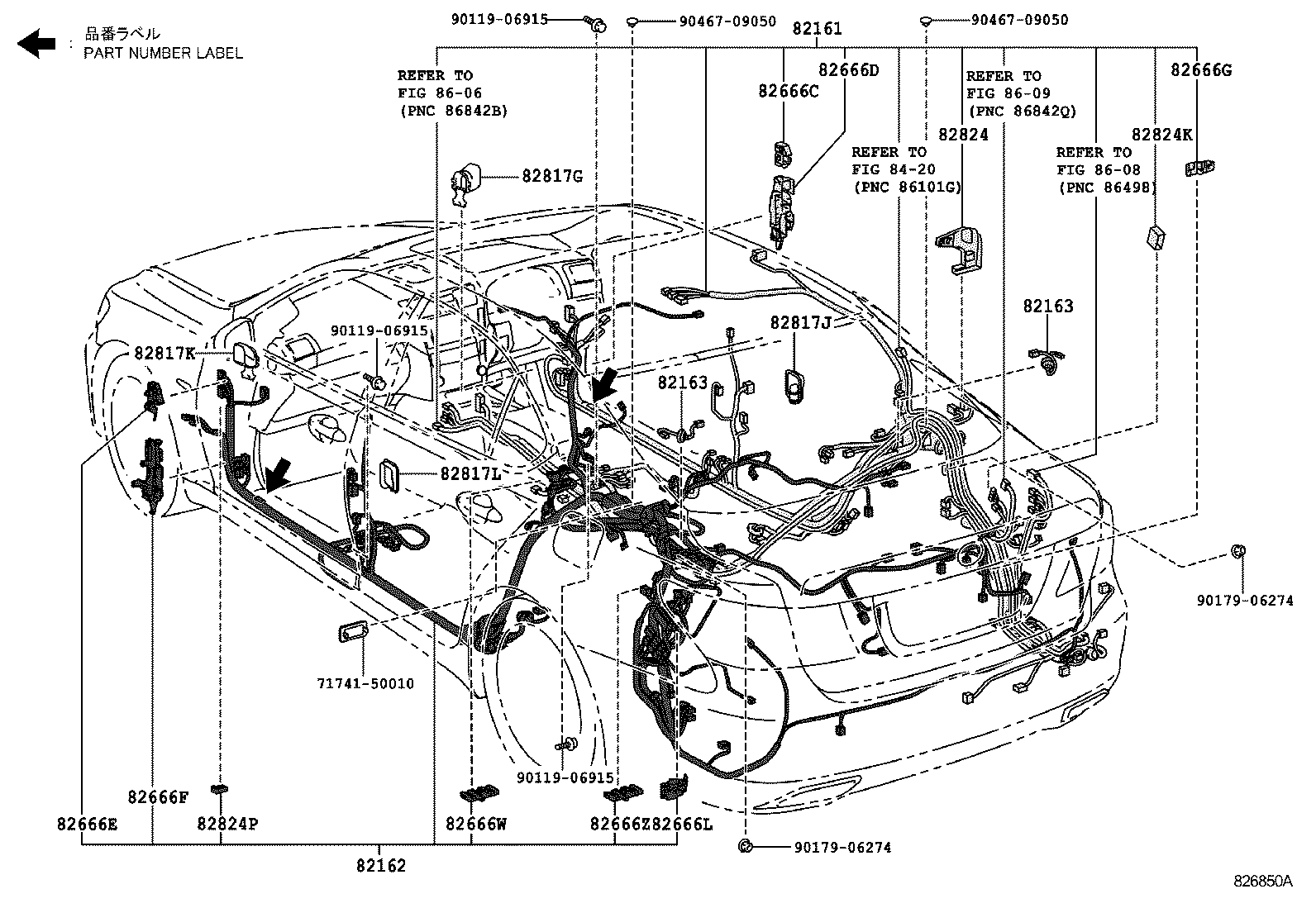

826850A 2009-11 → —

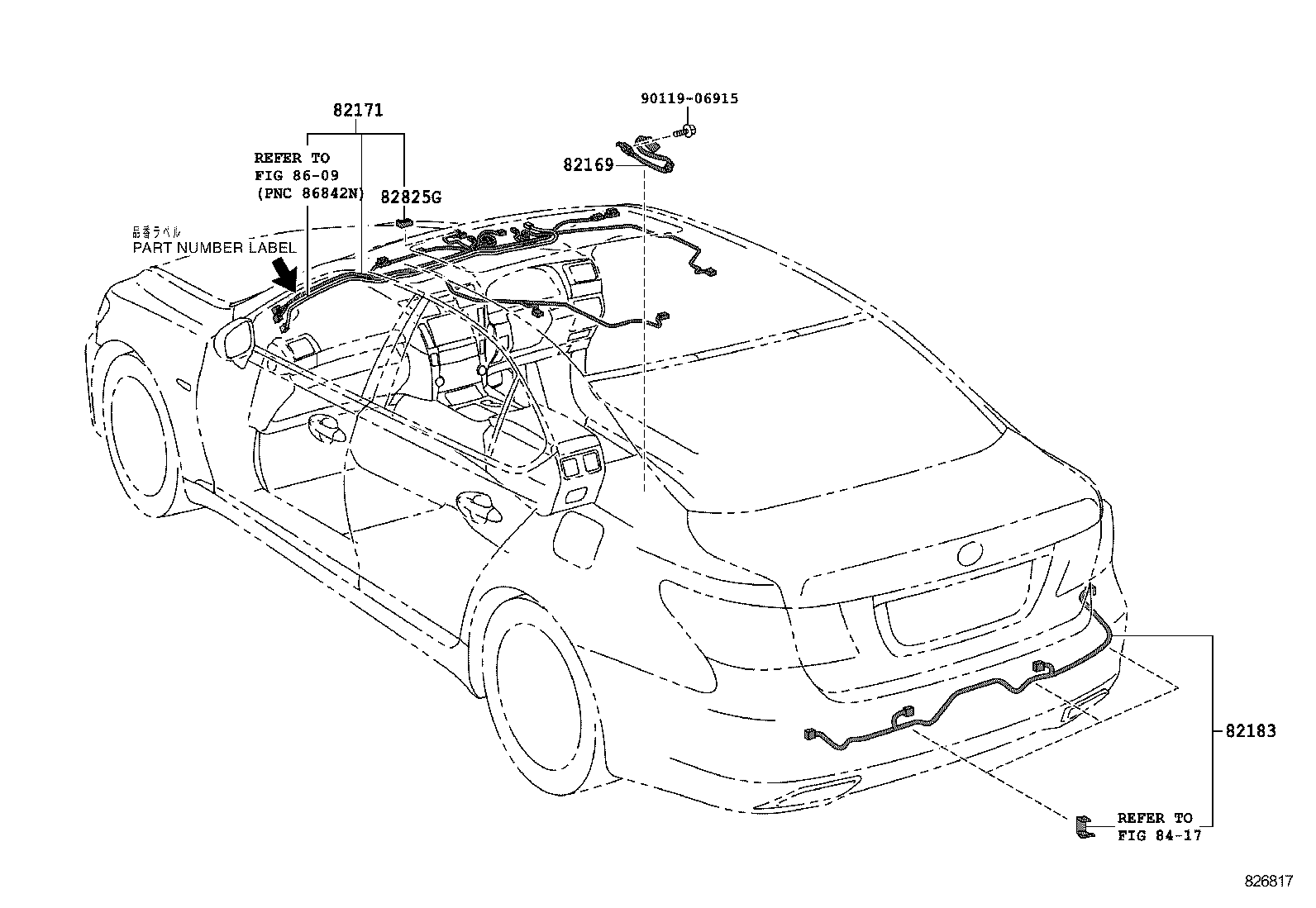

826817 2007-04 → 2009-11

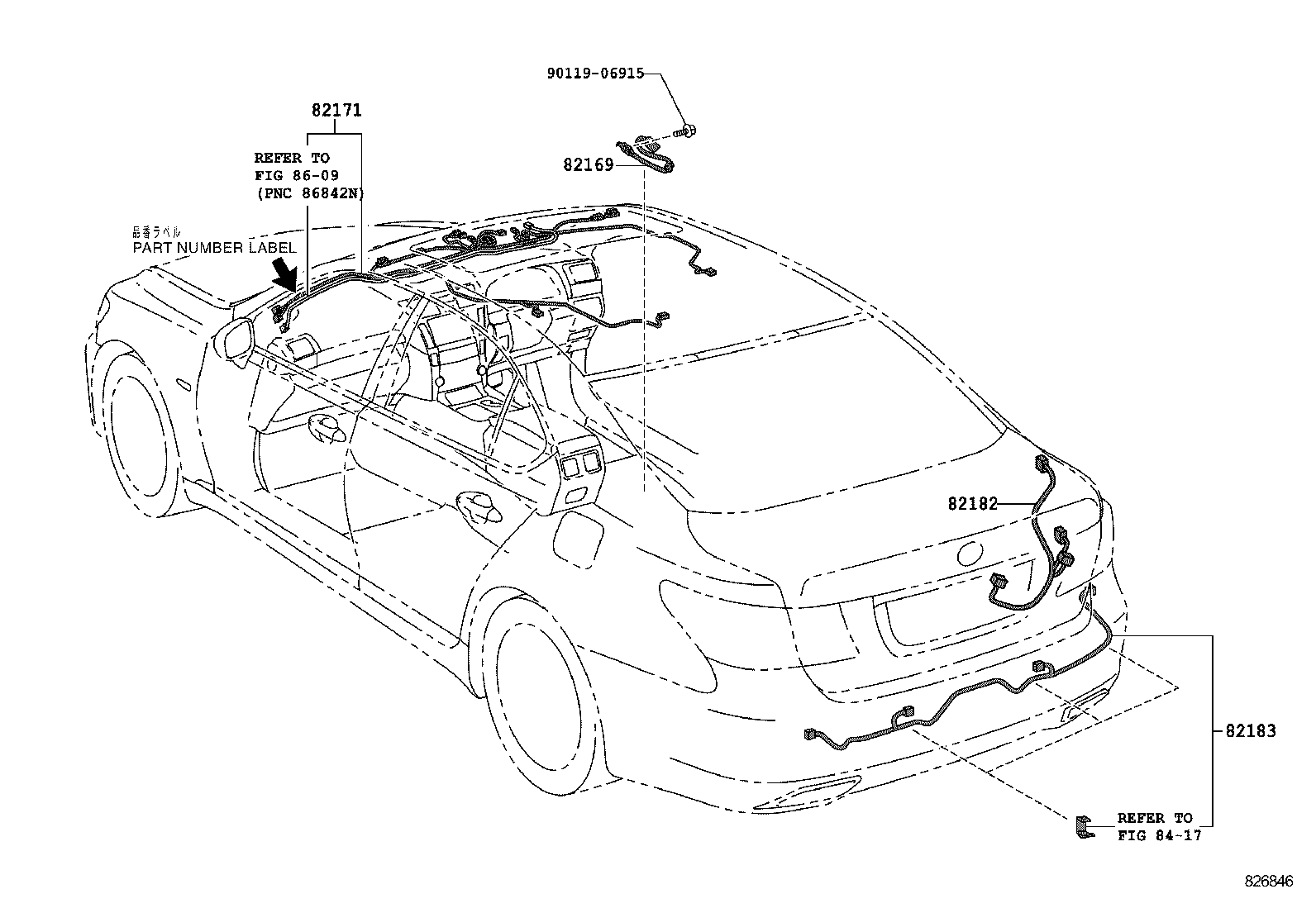

826846 2009-11 → —

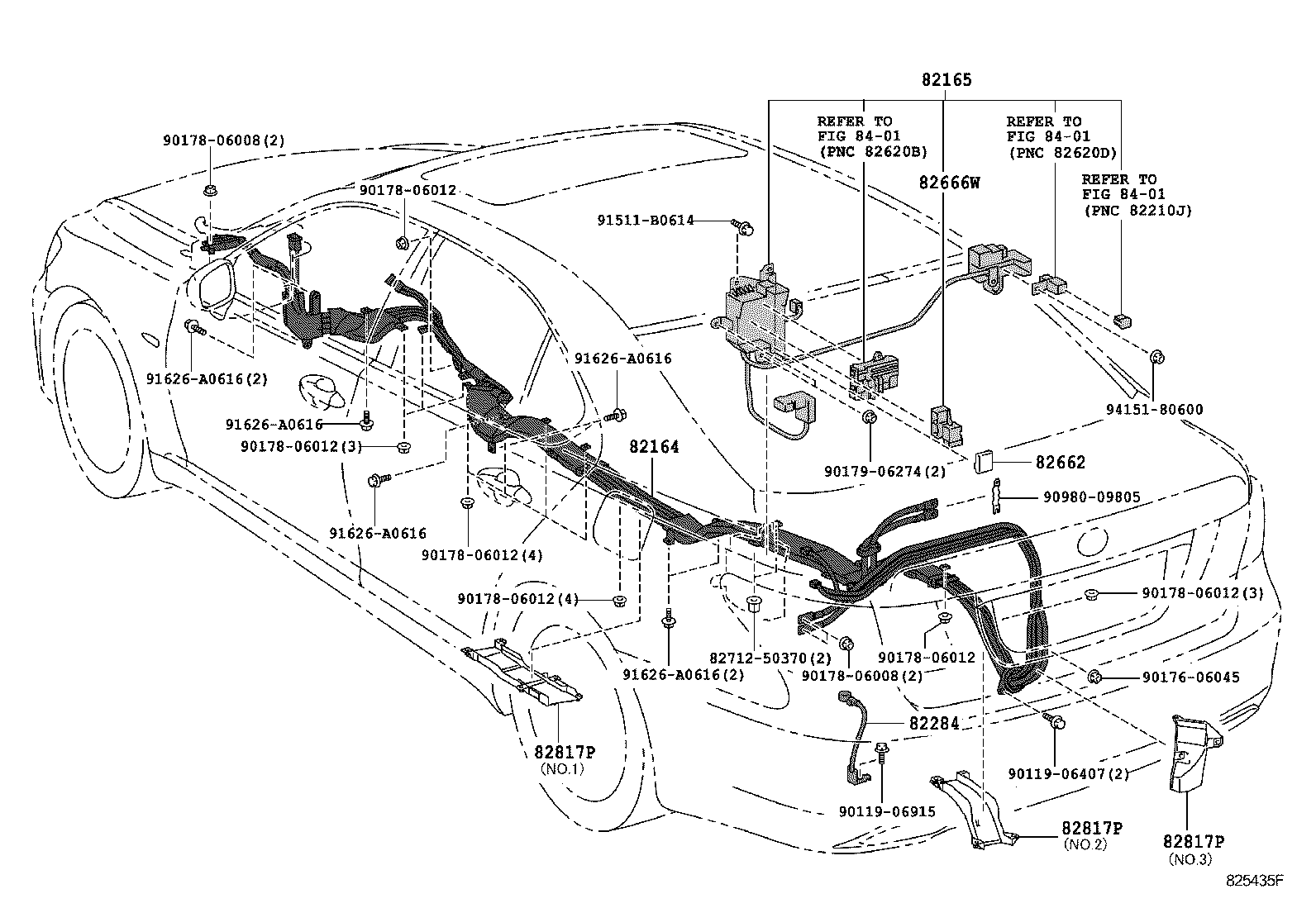

825435F 2007-04 → 2009-11

Part groups

PNC	Description

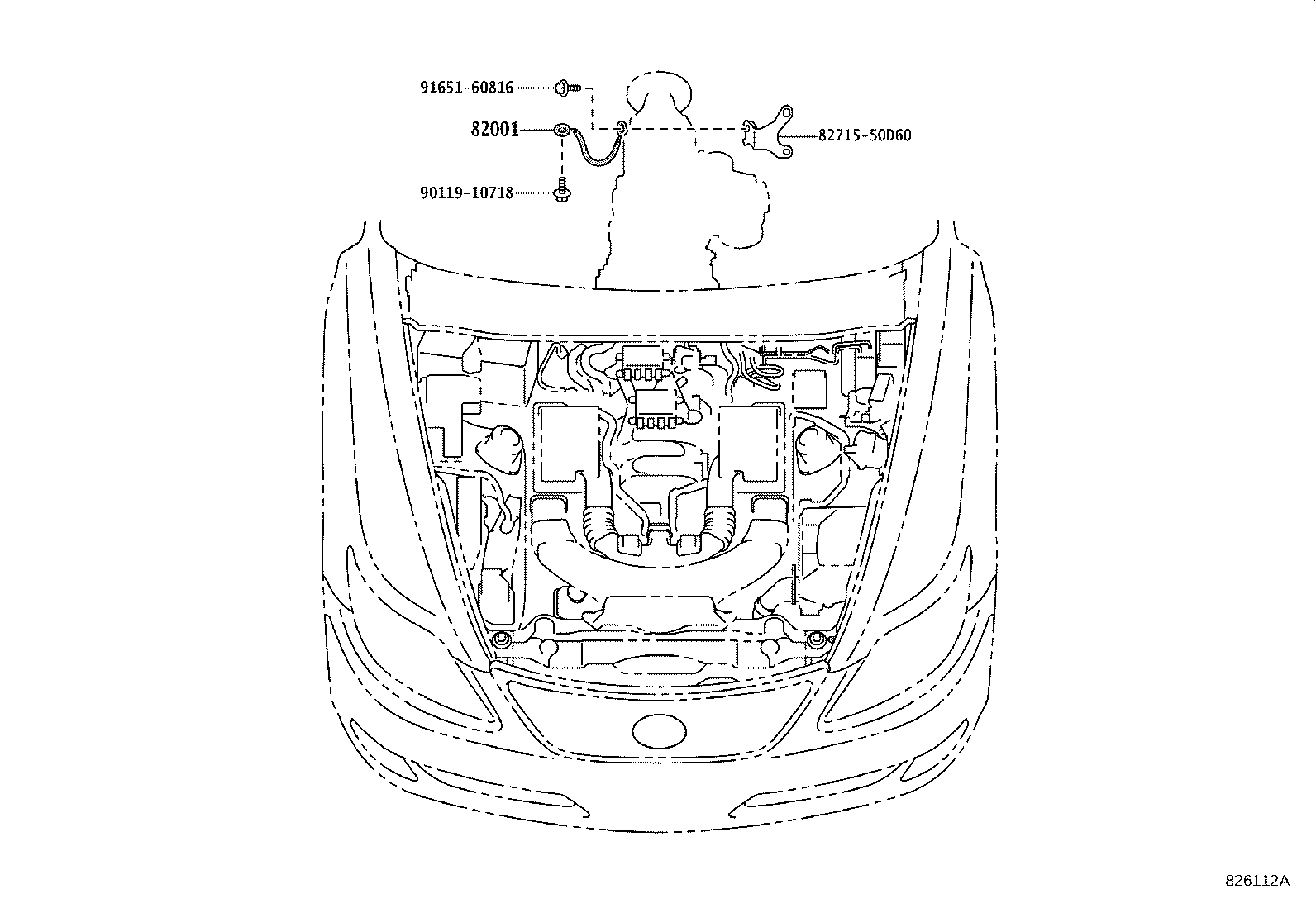

82001	Cable, Bond, NO.1

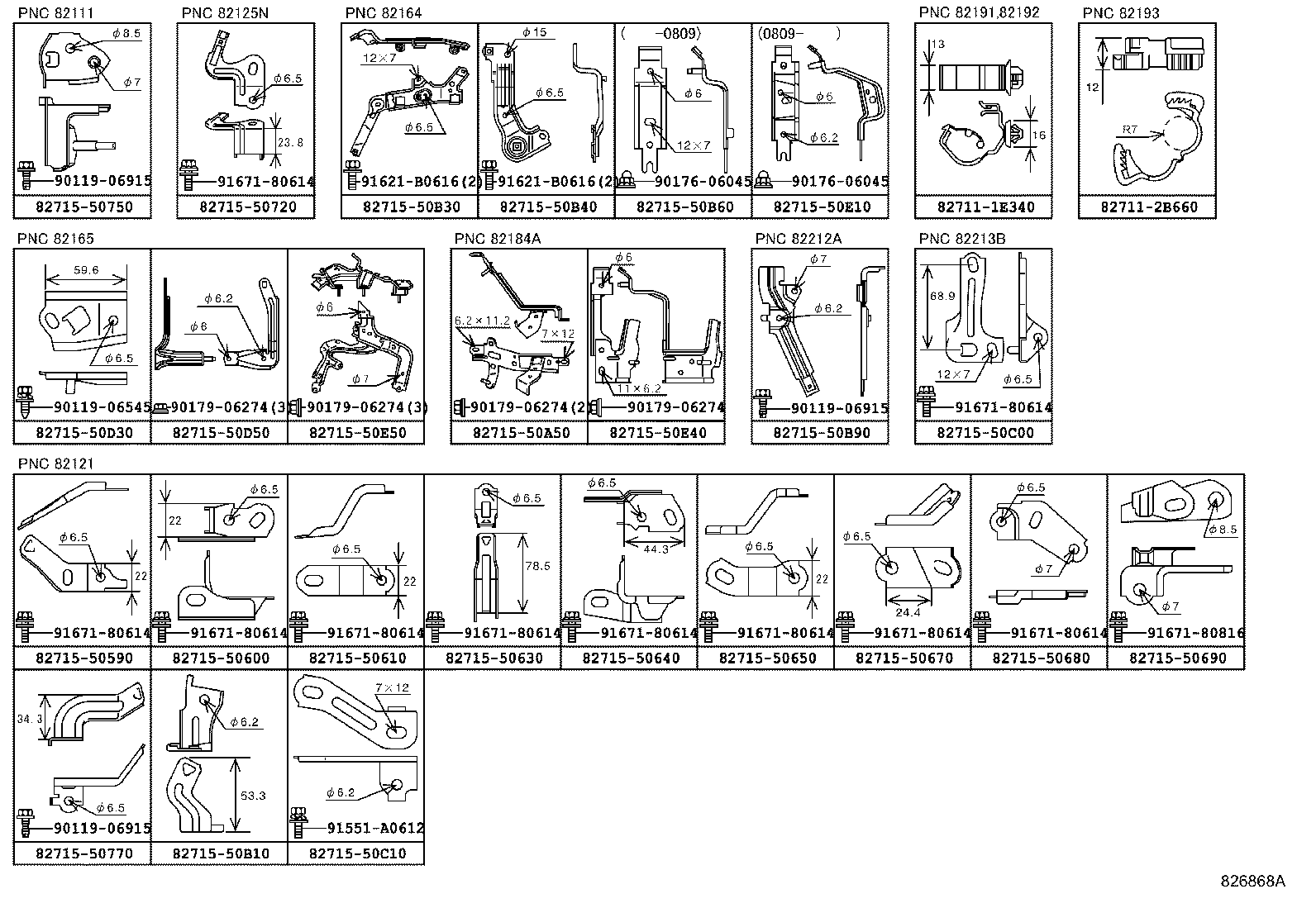

82111	Wire, Engine Room Main
82112	Wire, Engine Room, NO.2
82113	Wire, Engine Room, NO.3
82114	Wire, Engine Room, NO.4
82121	Wire, Engine
82125N	Wire, Engine, NO.5
82126	Wire, Engine
82128A	Wire, Engine, NO.8
82130	Harness Assy, Chassis Wire
82141	Wire, Instrument Panel
82142	Wire, Instrument Panel, NO.2
82151	Wire, Front Door, RH
82151A	Wire, Front Door, NO.2, RH
82152	Wire, Front Door, LH
82152A	Wire, Front Door, NO.2, LH
82153	Wire, Rear Door, NO.1
82153A	Wire, Rear Door, RH
82154	Wire, Rear Door, NO.2
82154A	Wire, Rear Door, LH
82161	Wire, Floor
82162	Wire, Floor, NO.2
82163	Wire, Floor, NO.3

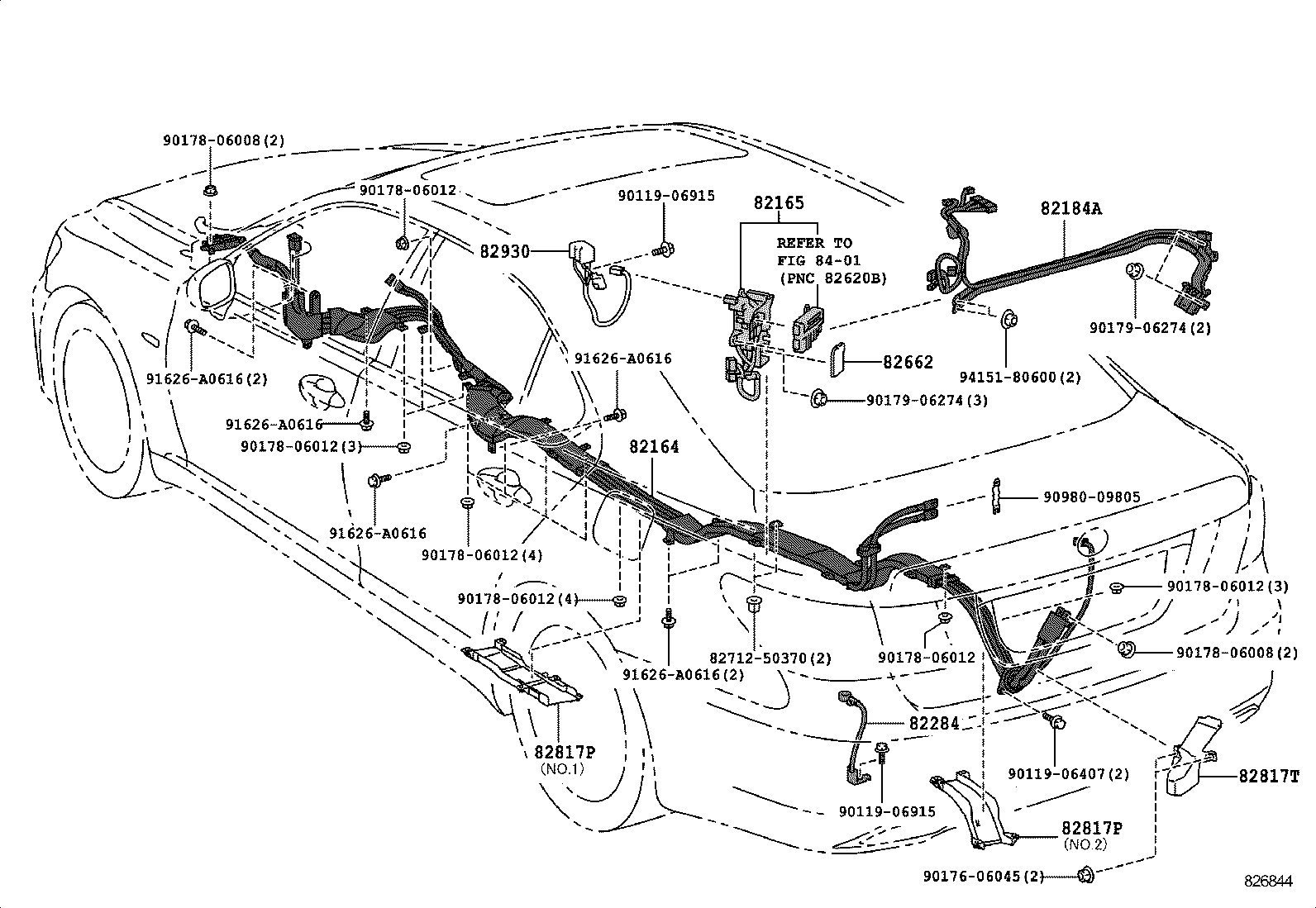

82164	Wire, Frame
82165	Wire, Frame, NO.2
82166	Wire, Console Box
82166B	Wire, Console Box Repair
82169	Wire Frame, NO.3
82171	Wire, Roof, NO.1
82176	Wire, Rear Console Box
82182	Wire, Luggage Room, NO.2
82183	Wire, Luggage Room, NO.3
82184A	Wire, Luggage Room, NO.4
82185A	Wire, Smart Door, Front RH
82186B	Wire, Smart Door, Front LH
82187A	Wire, Smart Door, Rear RH
82188C	Wire, Smart Door, Rear LH

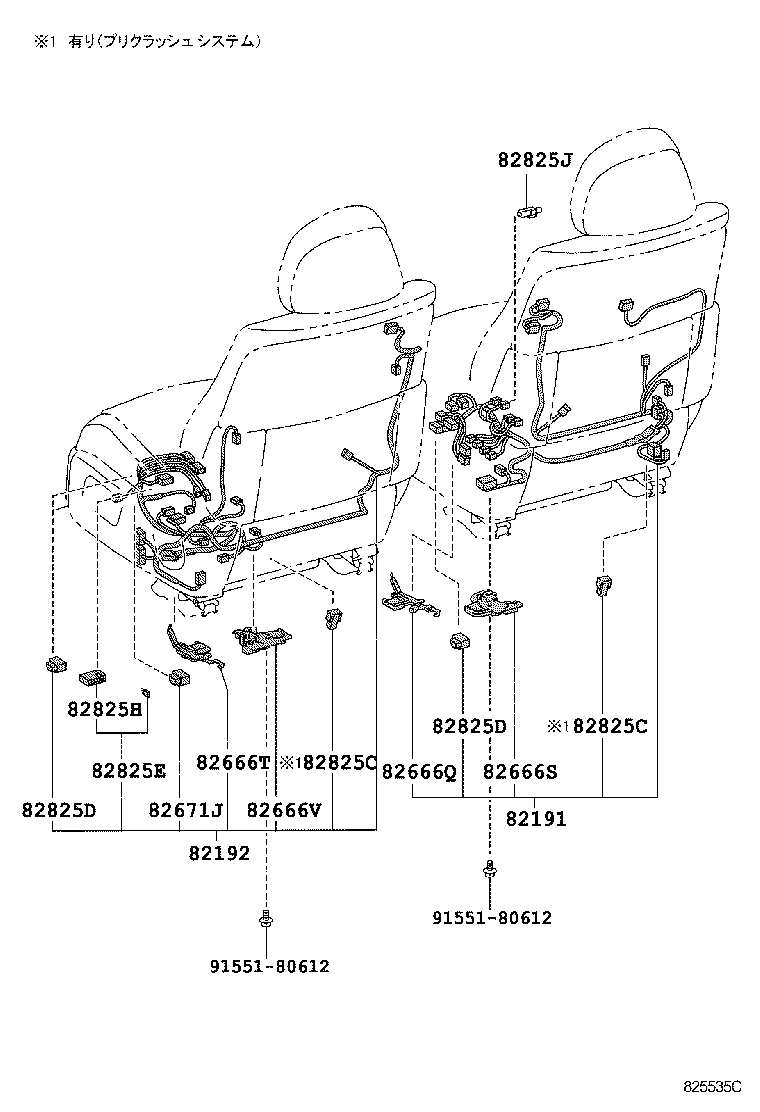

82191	Wire, Front Seat, RH
82192	Wire, Front Seat, LH

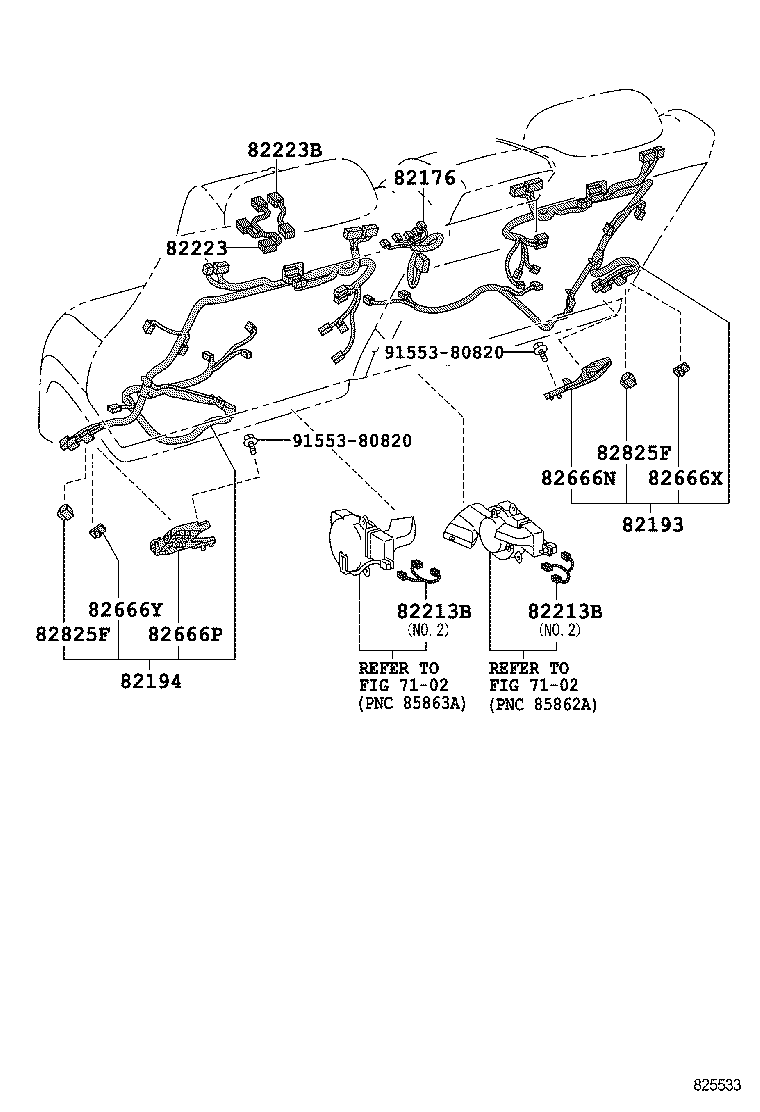

82193	Wire, Rear Seat, RH
82194	Wire, Rear Seat, LH
82212A	Harness, Air Conditioner
82213B	Wire, Heater
82213E	Wire, Heater Blower
82223	Wire, Switch
82223B	Wire, Switch, NO.2
82284	Wire, Earth
82662	Cover, Relay Block, Upper
82666A	Holder, Connector NO.2
82666B	Holder, Connector NO.3
82666C	Holder, Connector NO.4
82666D	Holder, Connector NO.5
82666E	Holder, Connector NO.6
82666F	Holder, Connector NO.7
82666G	Holder, Connector NO.8
82666L	Holder, Connector NO.9
82666N	Holder, Connector NO.10
82666P	Holder, Connector NO.11
82666Q	Holder, Connector NO.12
82666S	Holder, Connector NO.13
82666T	Holder, Connector NO.14
82666V	Holder, Connector NO.15
82666W	Holder, Connector NO.16
82666X	Holder, Connector NO.17
82666Y	Holder, Connector NO.18
82666Z	Holder, Connector NO.19
82671	Block, Junction
82671J	Block, Junction, NO.2
82734	Block, Center Junction
82817	Protector, Wiring Harness, NO.1
82817A	Protector, Wiring Harness, NO.2
82817B	Protector, Wiring Harness, NO.3
82817C	Protector, Wiring Harness, NO.4
82817D	Protector, Wiring Harness, NO.5
82817E	Protector, Wiring Harness, NO.6
82817F	Protector, Wiring Harness, NO.7
82817G	Protector, Wiring Harness, NO.8
82817J	Protector, Wiring Harness, NO.9
82817K	Protector, Wiring Harness, NO.10
82817L	Protector, Wiring Harness, NO.11
82817M	Protector, Wiring Harness, NO.12
82817N	Protector, Wiring Harness, NO.13
82817P	Protector, Wiring Harness, NO.14
82817T	Protector, Wiring Harness, NO.15
82821M	Cover, Connector

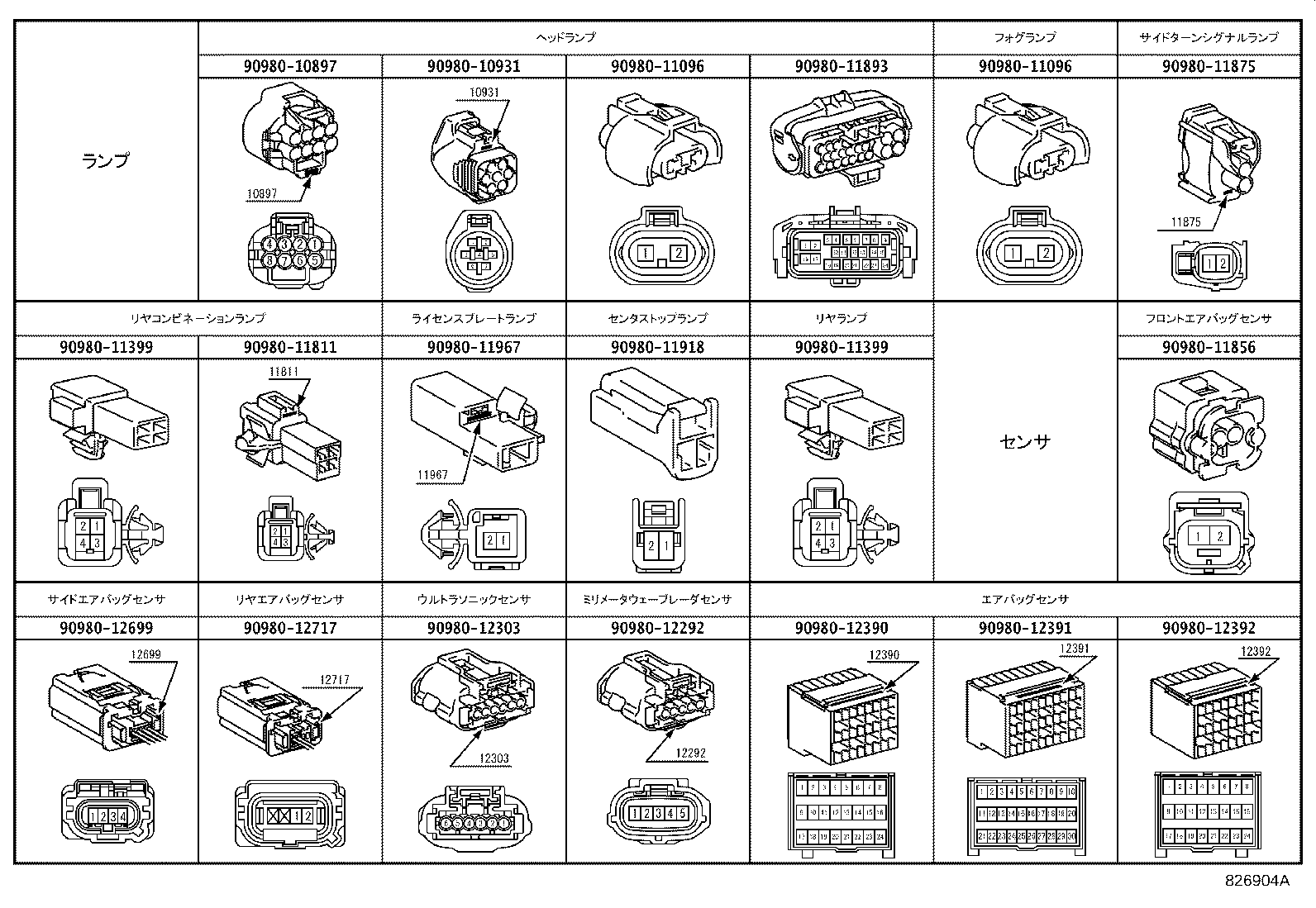

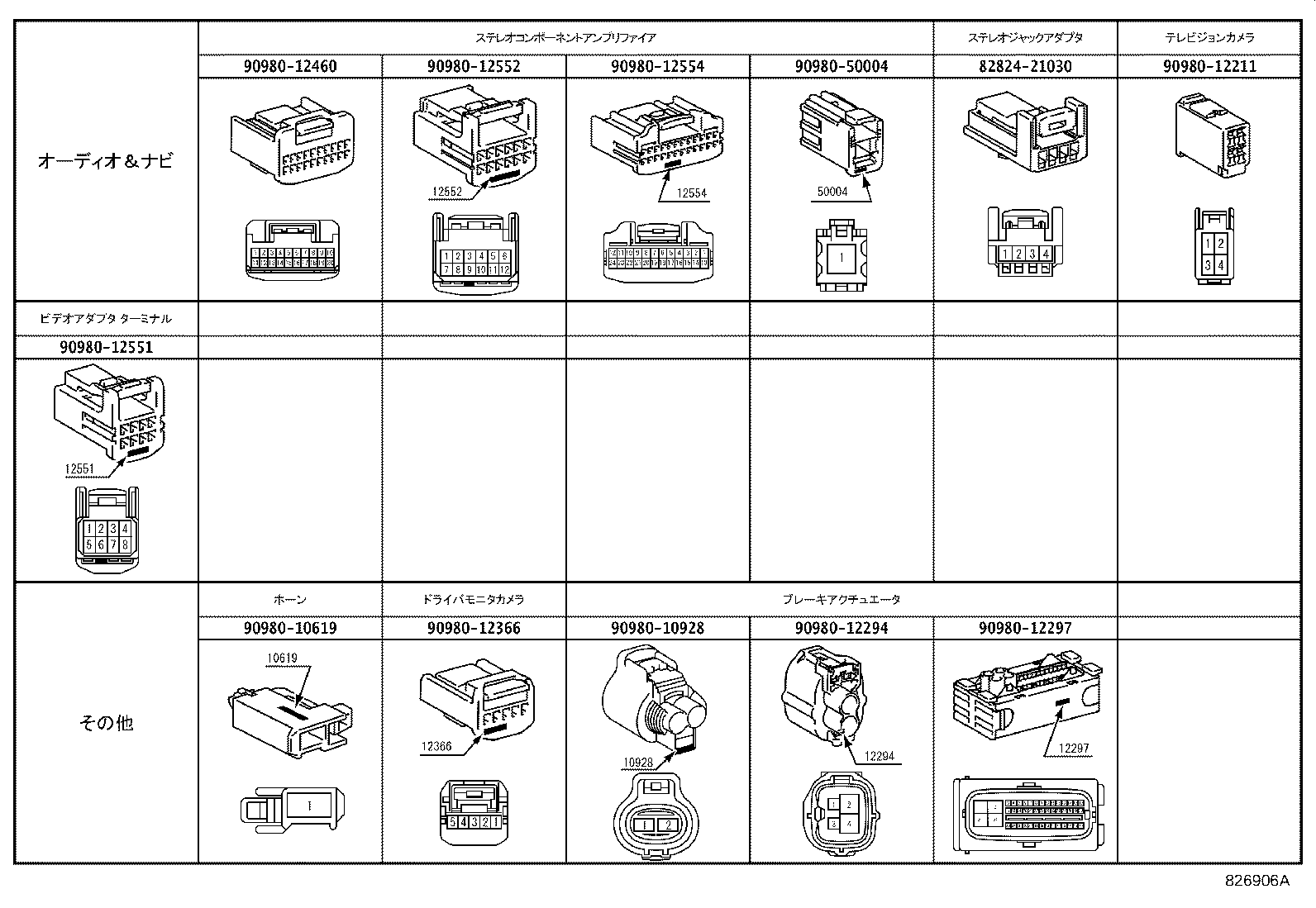

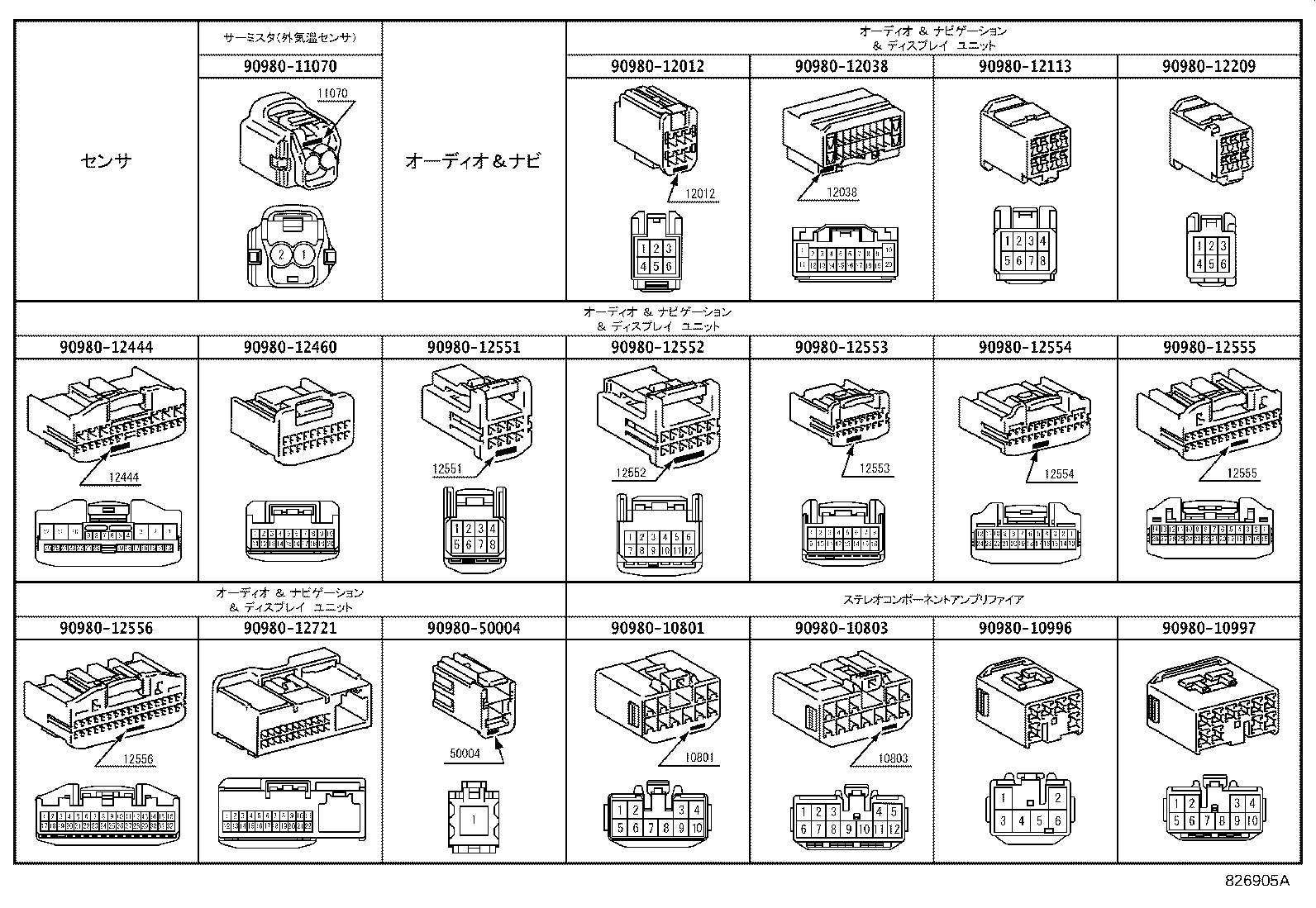

82824	Connector, Wiring Harness
82824D	Connector, Wiring Harness
82824E	Connector, Wiring Harness
82824F	Connector, Wiring Harness
82824G	Connector, Wiring Harness
82824H	Connector, Wiring Harness
82824J	Connector, Wiring Harness
82824K	Connector, Wiring Harness
82824M	Connector, Wiring Harness
82824N	Connector, Wiring Harness
82824P	Connector, Wiring Harness
82824S	Connector, Wiring Harness
82824T	Connector, Wiring Harness
82824W	Connector, Wiring Harness
82824X	Connector, Wiring Harness
82825C	Connector, Wiring Harness
82825D	Connector, Wiring Harness
82825E	Connector, Wiring Harness
82825F	Connector, Wiring Harness
82825G	Connector, Wiring Harness
82825H	Connector, Wiring Harness
82825J	Connector, Wiring Harness
82825K	Connector, Wiring Harness
82930	Condenser Assy, Wiring Harness, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
