Toyota Lexus LS600H/600HL
2007-04 → 2012-09 · chassis UVF4# · catalogue 432110 · Japan
Supported model
Data version 2013-01
Inverter Cooling

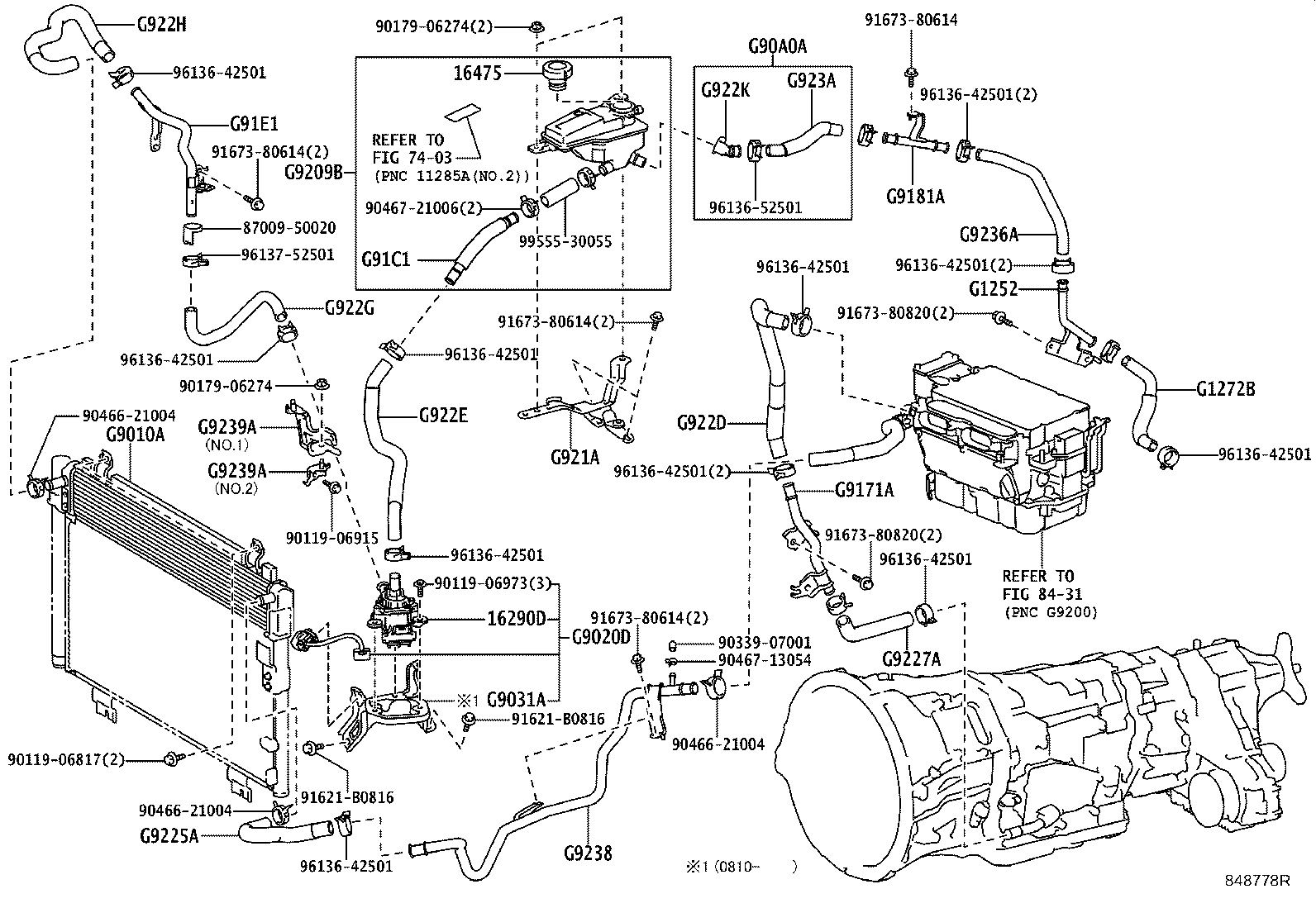

25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16290D | Pump Assy, Water W/Motor |
| 16475 | Cap, Reserve Tank |
| G1252 | Pipe, Motor Cooling, NO.2 |
| G1272B | Hose, Motor Cooling, NO.2 |
| G9010A | Radiator Assy |
| G9020D | Pump Assy, Water W/Motor & Bracket |
| G9031A | Bracket Sub-assy, HV Water Pump |
| G90A0A | Hose Assy, Inverter Cooling, NO.1 |
| G9171A | Pipe, Inverter Cooling, NO.1 |
| G9181A | Pipe, Inverter Cooling, NO.2 |
| G91C1 | Pipe, HV Water Pump Inlet |
| G91E1 | Pipe, HV Water Pump Outlet, NO.2 |
| G9209B | Tank Sub-assy, Inverter Reserve |
| G921A | Bracket, Inverter Reserve Tank, NO.1 |
| G9225A | Hose, Inverter Cooling, NO.7 |
| G9227A | Hose, Inverter Cooling, NO.3 |
| G922D | Hose, Inverter Cooling Outlet, NO.2 |
| G922E | Hose, Hybrid Water Pump Inlet |
| G922G | Hose, Hybrid Water Pump Outlet, NO.2 |
| G922H | Hose, Hybrid Radiator Inlet |
| G922K | Connector, Hybrid Water Hose |
| G9236A | Hose, Inverter Cooling, NO.6 |
| G9238 | Pipe, Inverter Cooling |
| G9239A | Bracket, Inverter Cooling Pipe |
| G923A | Hose, Inverter Cooling, NO.7 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
