Toyota Lexus LS600H/600HL
2007-04 → 2012-09 · chassis UVF4# · catalogue 432110 · Japan
Supported model
Data version 2013-01

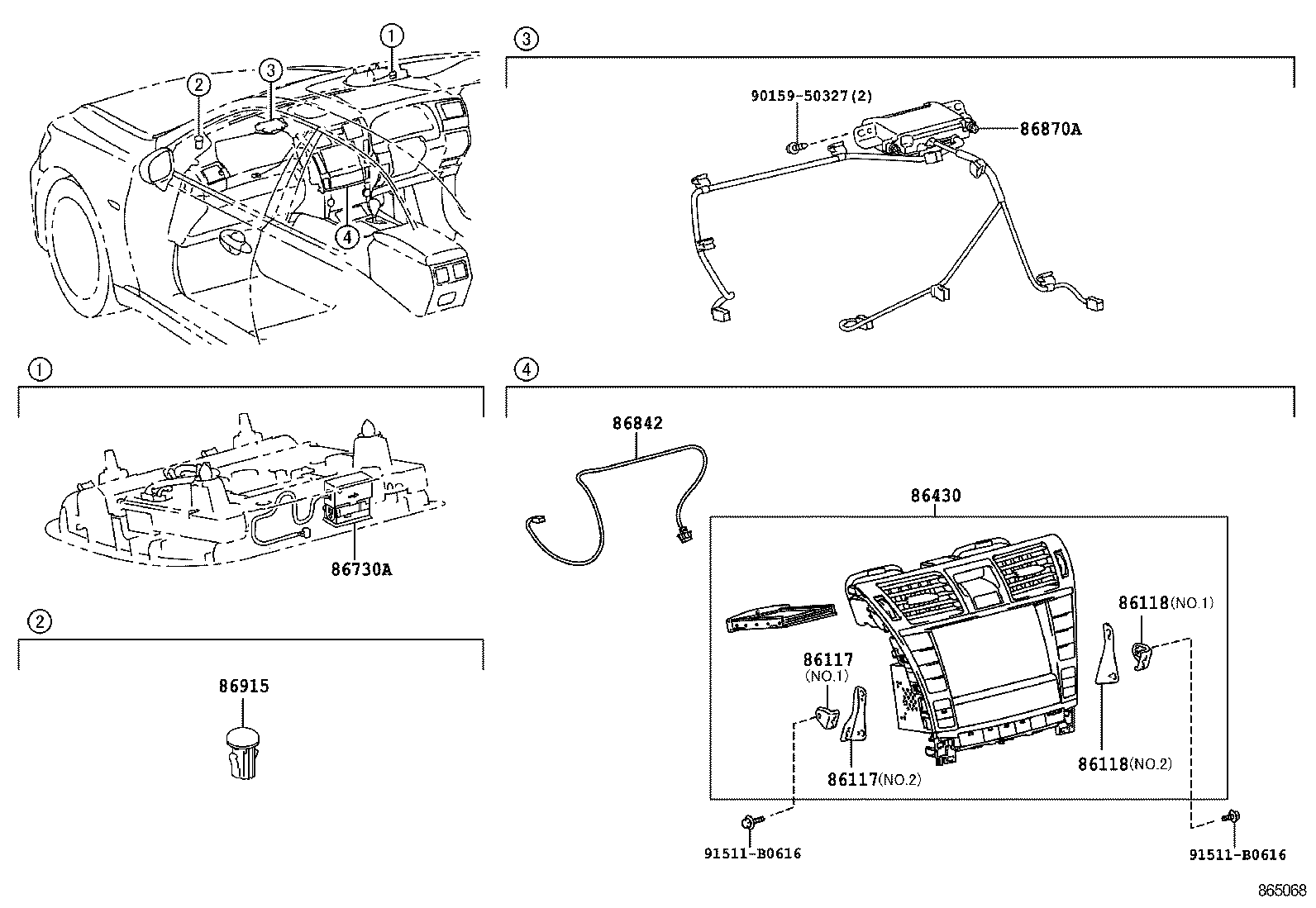

Navigation & Front Monitor Display
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86117 | Bracket, Multi-display Controller, A |
| 86118 | Bracket, Multi-display Controler, B |
| 86271L | Hard Disc |
| 86430 | Display Assy, Multi-media Module |
| 86431 | Display, Display & Navigation Module |
| 86730A | Microphone Assy, Telephone |
| 86842 | Wire, Navigation, NO.1 |
| 86870A | Antenna Assy, Gps & Vics |
| 86915 | Transceiver, Optical Beacon |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
