Toyota Lexus LS600H/600HL
2007-04 → 2012-09 · chassis UVF4# · catalogue 432110 · Japan
Supported model
Data version 2013-01

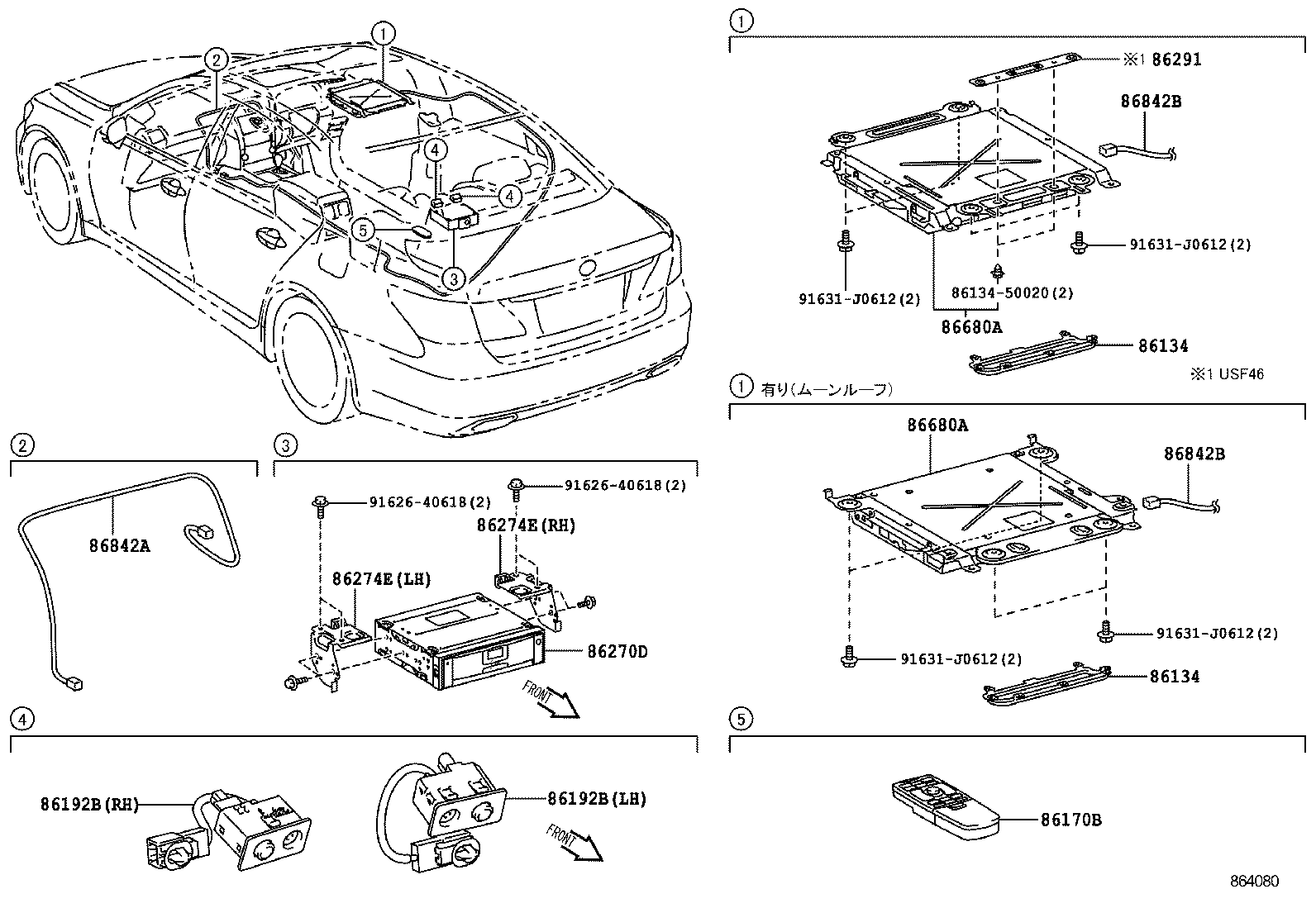

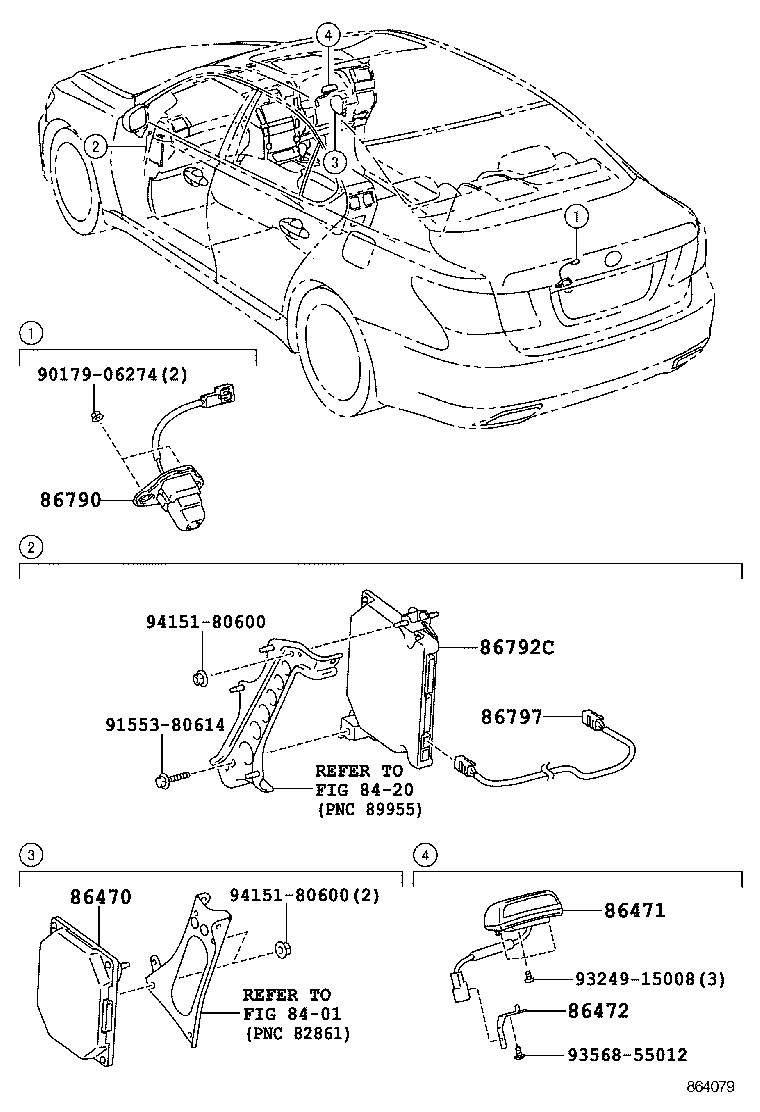

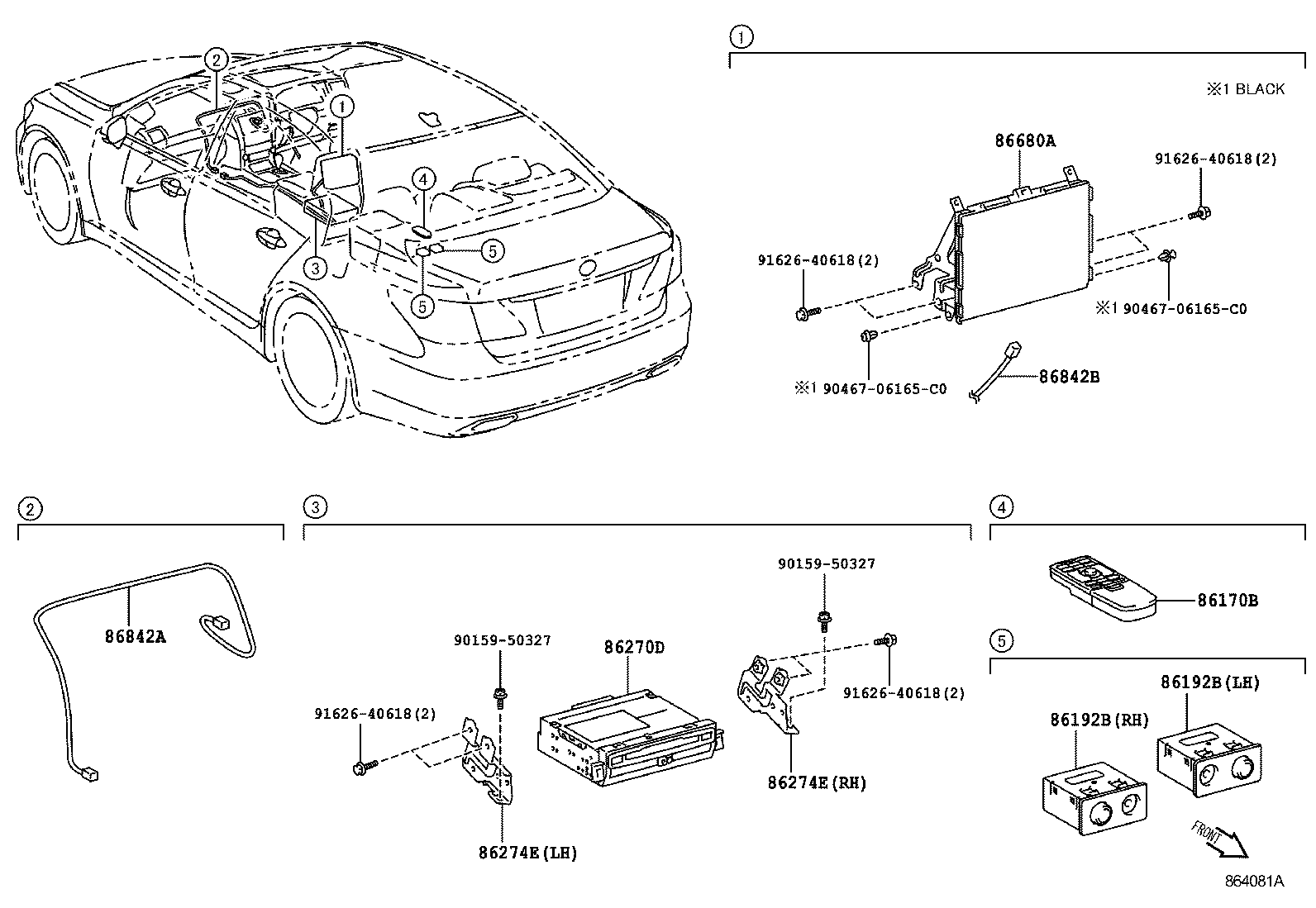

Camera & Rear Monitor Display
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86112B | Selector, Multi-display |
| 86117A | Bracket, Television Display, A |
| 86117C | Bracket, Multi-display Controller, NO.2 |
| 86117E | Bracket, Multi-display Controller, NO.3 |
| 86134 | Parts, Multi-display |
| 86170B | Switch & Volume Assy, Television |
| 86192B | Terminal, Headphone |
| 86270D | Disc Player Assy |
| 86272A | Controller, Disc Player |
| 86274E | Bracket, Disc Player |
| 86291 | Bracket, Television |
| 86470 | Computer Assy, Driver Monitor |
| 86471 | Camera, Driver Monitor |
| 86472 | Bracket, Driver Monitor |
| 86680A | Display Assy, Television |
| 86790 | Camera Assy, Television |
| 86792C | Computer, Parking Assist |
| 86797 | Wire, Television Camera, NO.2 |
| 86842A | Wire, Navigation, NO.1 |
| 86842B | Wire, Navigation, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
