Heating & Air Conditioning - Cooler Unit

50 part groups · 8 illustrations

Illustrations

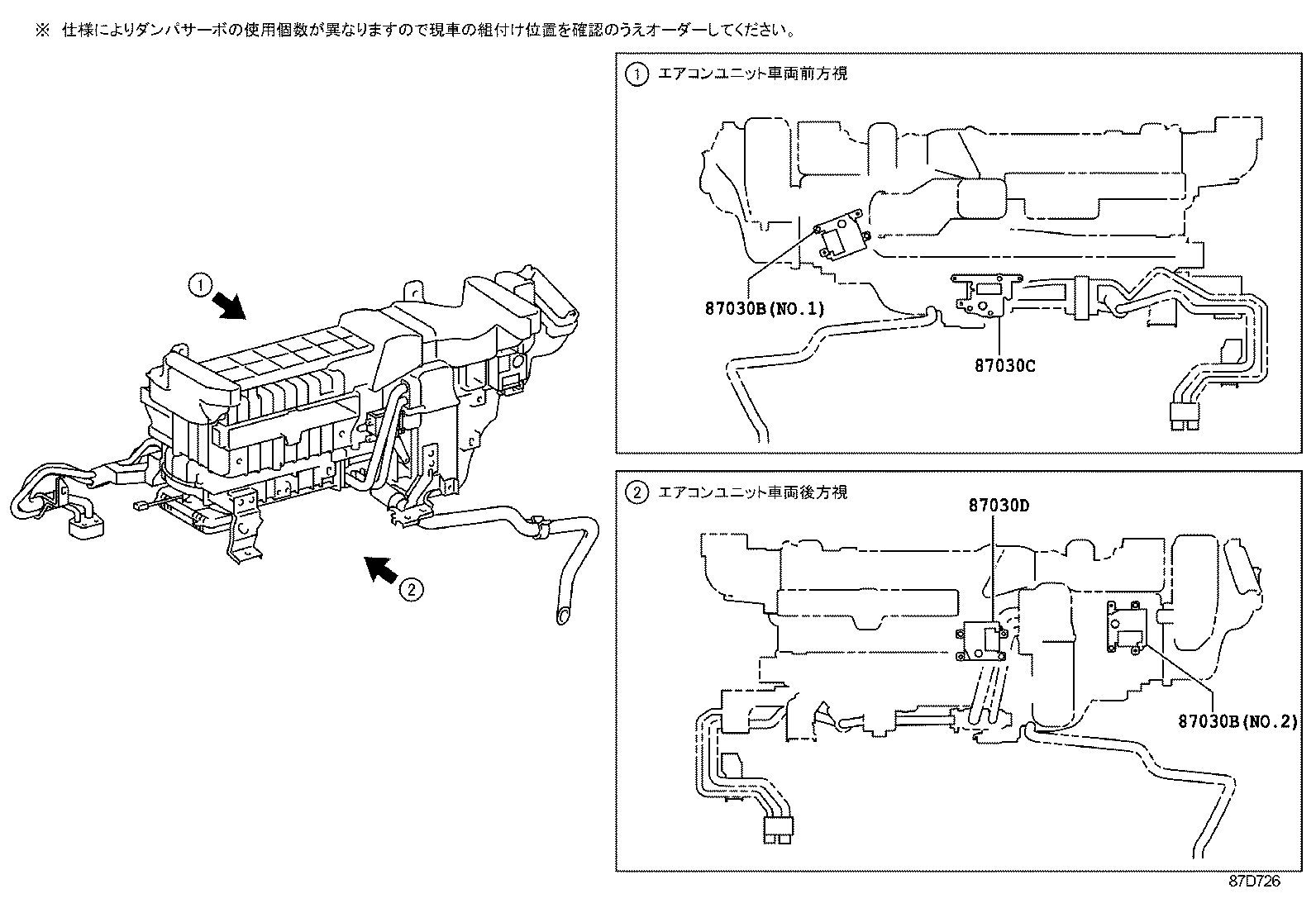

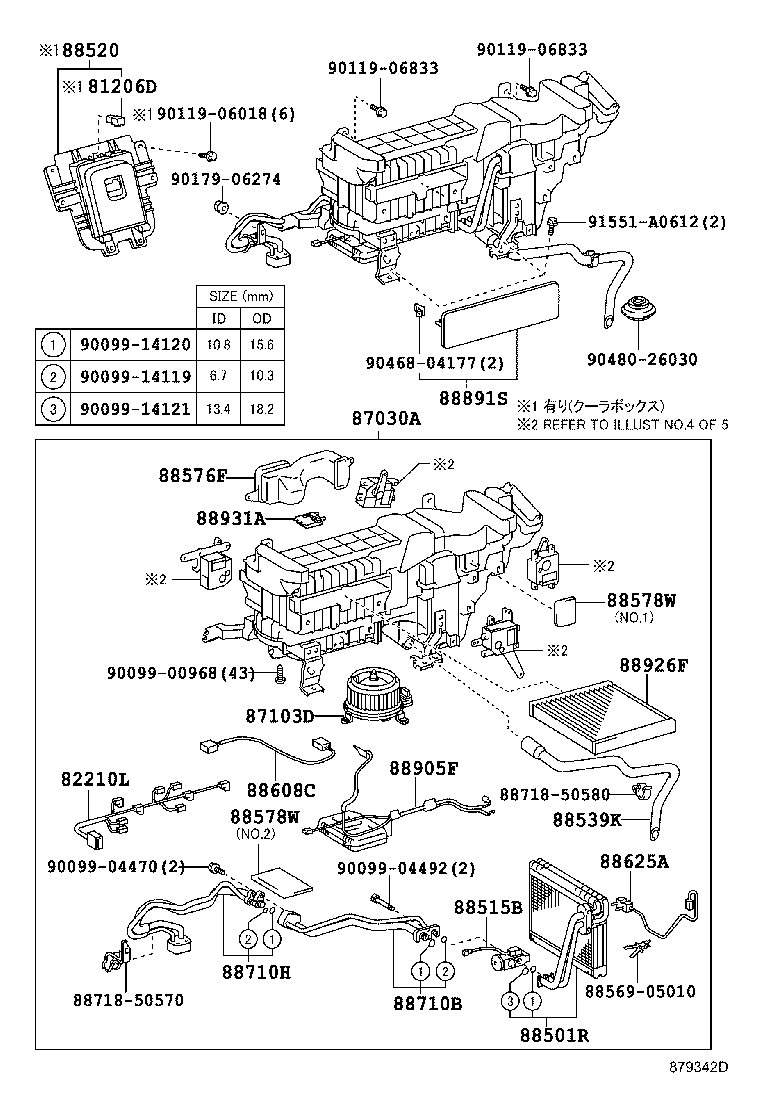

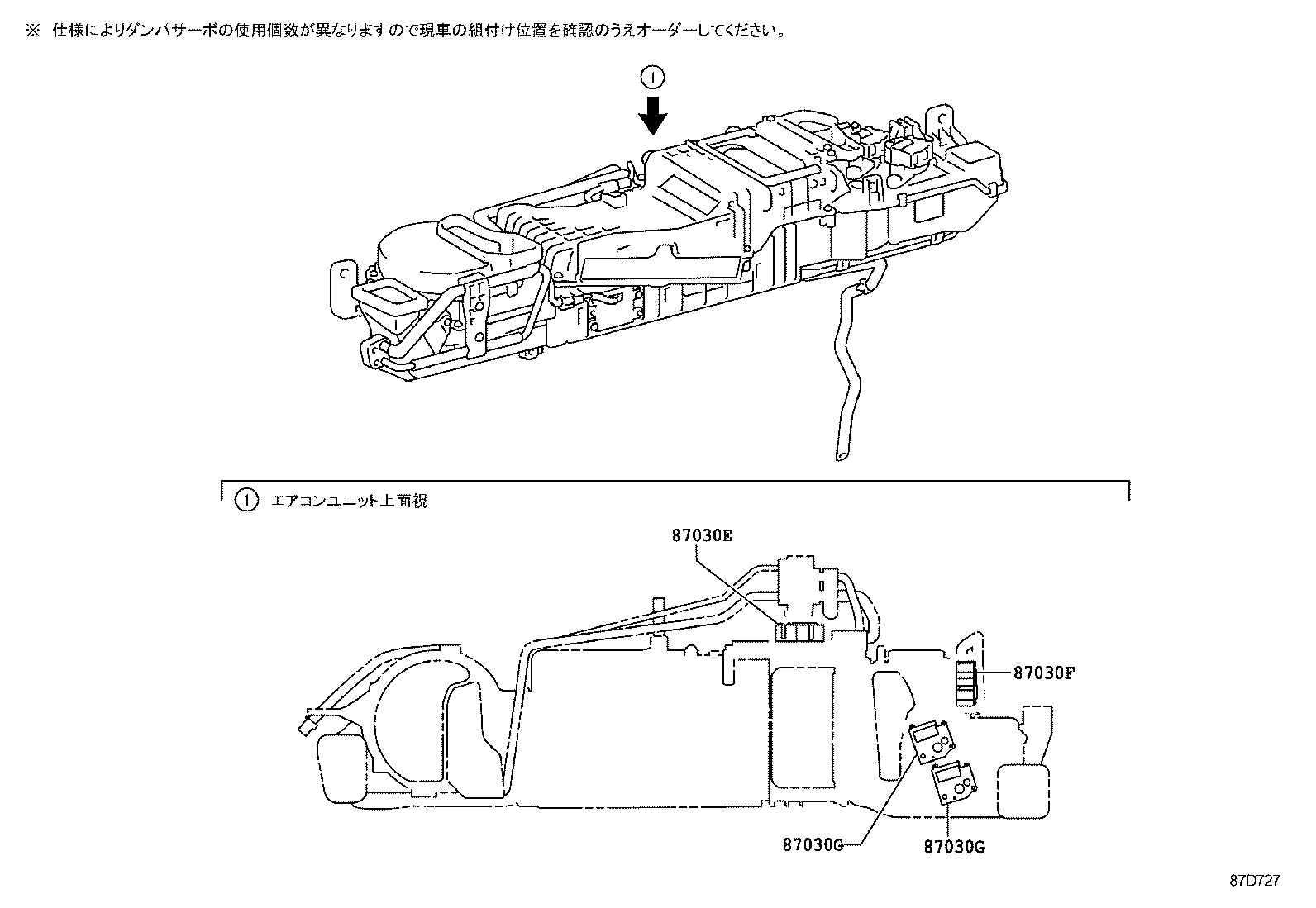

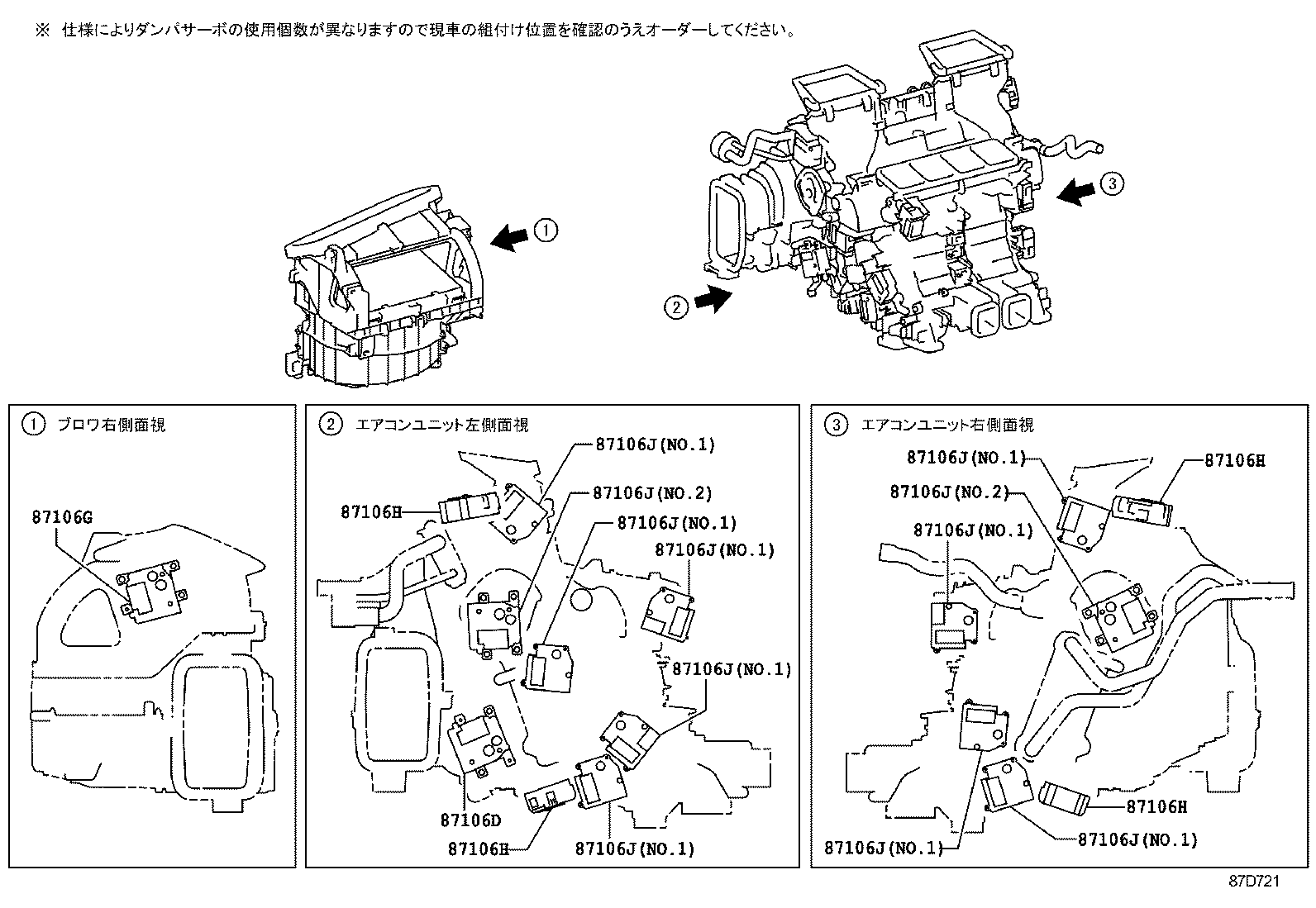

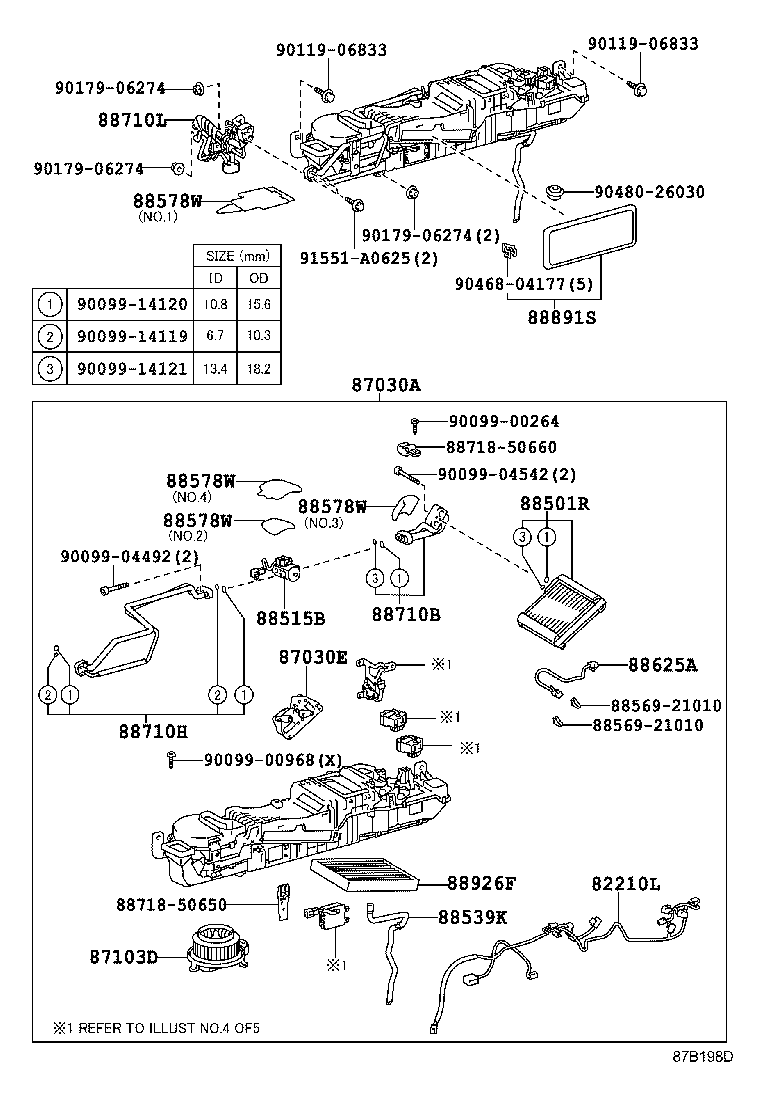

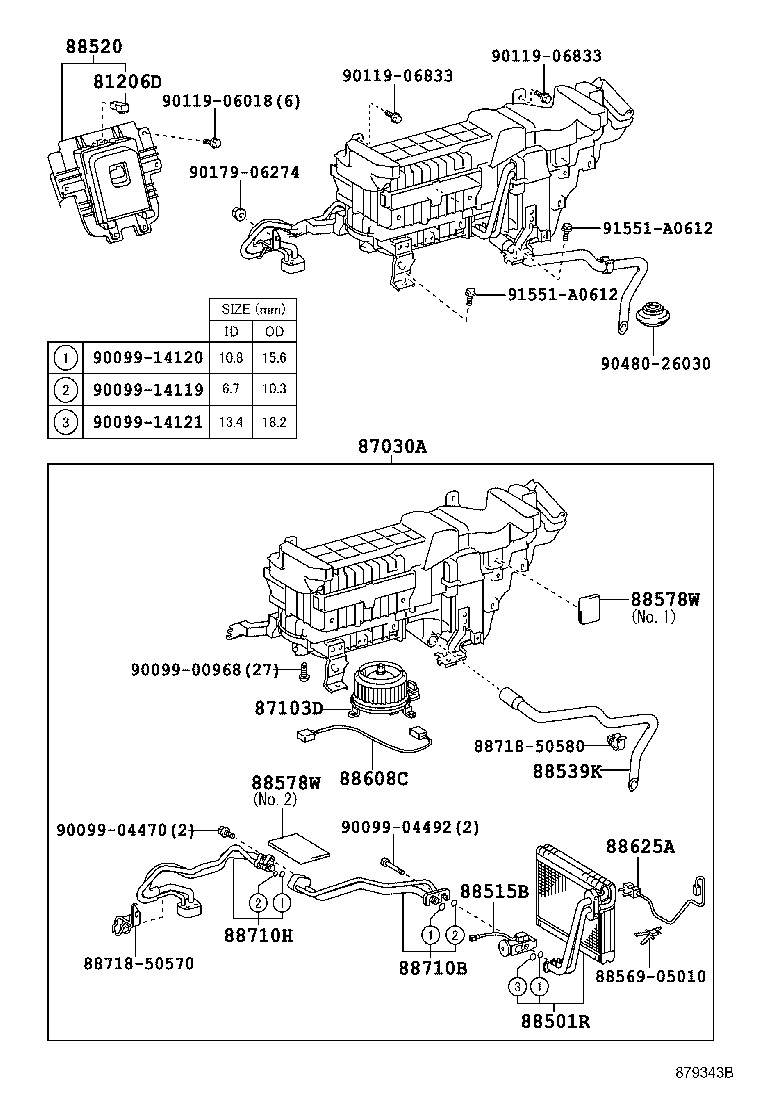

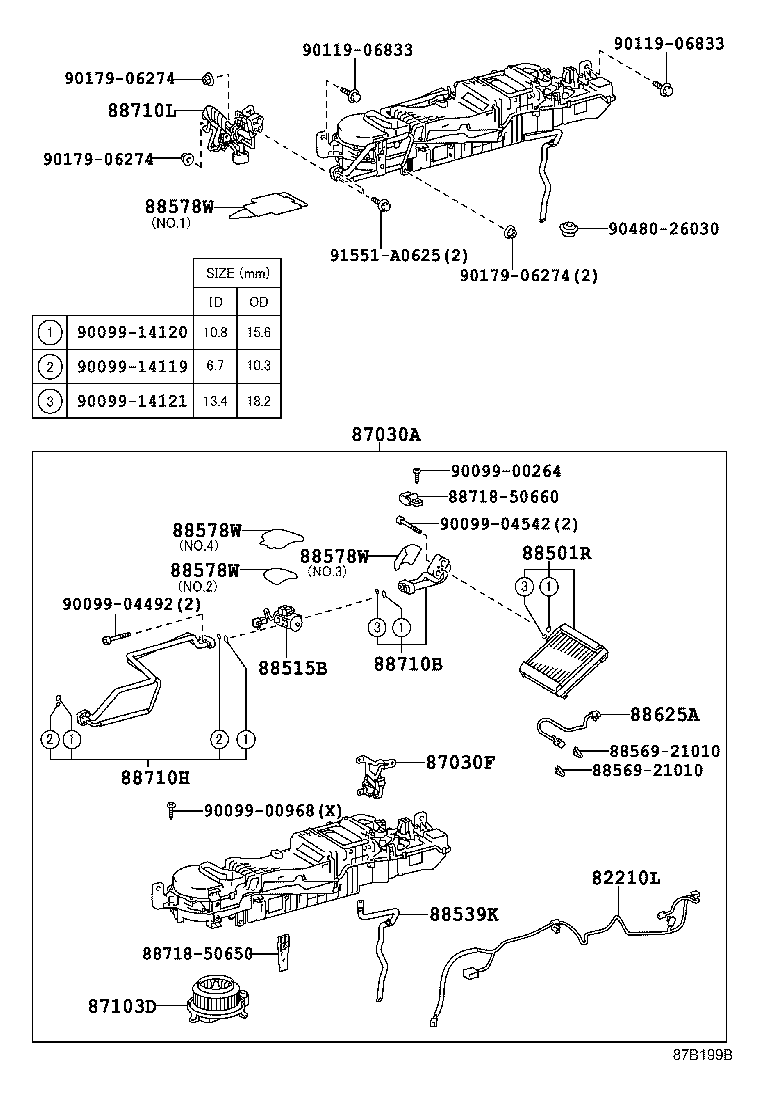

Figure 87D722C 87D722C 2007-04 → — Figure 87D721 87D721 2007-04 → — Figure 879342D 879342D 2007-04 → 2009-11 Figure 87B198D 87B198D 2009-11 → — Figure 879343B 879343B 2007-04 → 2009-11 Figure 87B199B 87B199B 2009-11 → — Figure 87D726 87D726 2007-04 → 2009-11 Figure 87D727 87D727 2009-11 → —

Part groups

PNCDescription
81206D Lamp Sub-assy, Cooling Box
82210K Harness Assy, Air Conditioner
82210L Harness Assy, Air Conditioner, NO.2
87020A Damper Assy, Heater Air
87030A Unit Assy, Cooling, Rear
87030B Servo Sub-assy, Damper (FOR ROOF BLOWER)
87030C Servo Sub-assy, Damper (FOR DIFFUSE MODE)
87030D Servo Sub-assy, Damper (FOR EXHAUST MODE)
87030E Damper Servo Sub-assy, Rear Cooling Unit, NO.1
87030F Damper Servo Sub-assy, Rear Cooling Unit, NO.2
87030G Damper Servo Sub-assy, Rear Cooling Unit, NO.3
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87103D Motor Sub-assy, Blower W/Fan(FOR REAR)
87106D Servo Sub-assy, Damper, NO.1
87106G Servo Sub-assy, Damper(FOR BLOWER)
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87107A Unit Sub-assy, Heater Radiator
87130D Blower Assy
87139C Filter, Clean Air
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88501R Evaporator Sub-assy (REAR)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88520 Box Assy, Cooling
88539G Grommet (FOR COOLER UNIT DRAIN HOSE)
88539J Hose, Drain Cooler
88539K Hose, Drain Cooler
88576F Duct, Cooler Air, NO.2
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88578V Packing, Cooling Unit, NO.3
88578W Packing, Cooling Unit, NO.4
88608 Harness Sub-assy, Wiring Air Conditioner
88608C Harness Sub-assy, Wiring Air Indicator, NO.2
88625 Thermistor, Cooler, NO.1
88625A Thermistor, Cooler NO.2
88650N Amplifier Assy, Air Conditioner
88710A Tube Assy, Air Conditioner
88710B Tube Assy, Air Conditioner
88710H Tube & Accessory Assy, Air Conditioner
88710L Tube & Accessory Assy, Air Conditioner, NO.2
88891S Cover, Cooler, NO.1
88897K Grommet, (FOR COOLER PIPE)
88899M Plate, Cover(FOR AIR FILTER)
88905F Blower Sub-assy, Oxygen Enricher
88926F Filter, Rear Cooler
88931A Sensor, Smoke
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
