Toyota Lexus LC500/500H(CP)

2017-01 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433110 · Japan

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

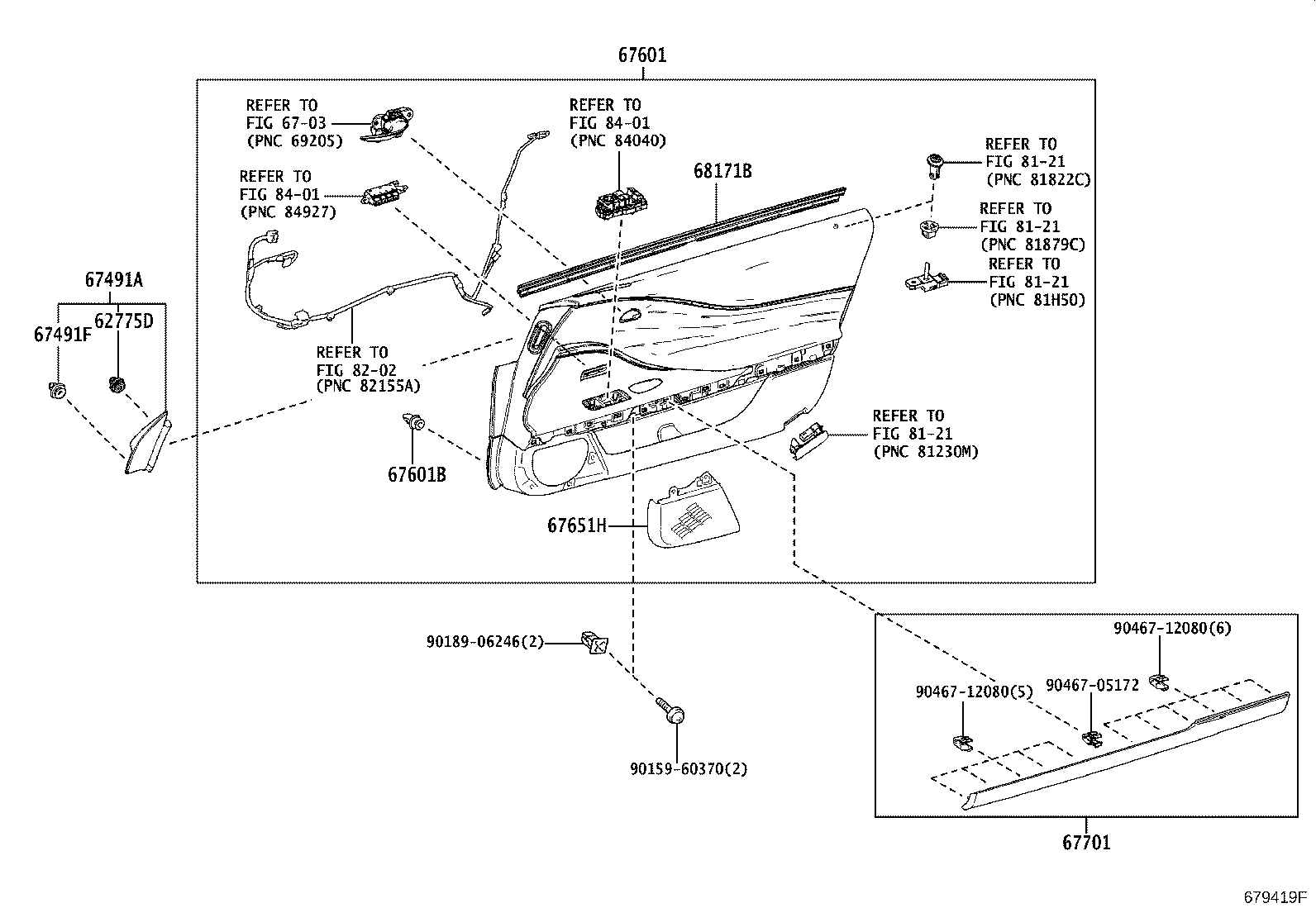

Exploded illustration 679419F 62775D — CLIP, FRONT SIDE WINDOW, RH (1 parts) 67491A — GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH (1 parts) 67491F — CLIP(FOR DOOR TRIM) (1 parts) 67601 — BOARD SUB-ASSY, FRONT DOOR TRIM, RH (27 parts) 67601B — CLIP(FOR FRONT DOOR TRIM BOARD) (1 parts) 67701 — COVER SUB-ASSY, FRONT DOOR TRIM, RH (11 parts) 68171B — WEATHERSTRIP, FRONT DOOR GLASS, INNER RH (1 parts) 9015960370 — not listed in this catalogue 9018906246 — not listed in this catalogue 9046705172 — not listed in this catalogue 9046712080 — not listed in this catalogue 9046712080 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8202 — not listed in this catalogue 8121 — not listed in this catalogue 6703 — not listed in this catalogue 8121 — not listed in this catalogue 8121 — not listed in this catalogue 8121 — not listed in this catalogue 67651H — GRILLE, SPEAKER DOOR, RH (3 parts)
679419F · 8 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
46 parts on this figure
Part number Description Fitment Price
62775D — Clip, Front Side Window, RH
62707-48010 Clip, Front Side Window, RH
2017-01 → —
GWZ100,URZ100 ¥160
67491A — Garnish, Front Door Lower Frame Bracket, RH
67491-11010 Garnish, Front Door Lower Frame Bracket, RH
2017-01 → —
GWZ100,URZ100 ¥1,190
67491F — Clip(FOR DOOR TRIM)
90467-09233 Clip(FOR DOOR TRIM)
2017-01 → —
GWZ100,URZ100 ¥80
67601 — Board Sub-assy, Front Door Trim, RH
67610-11030-20 note Board Sub-assy, Front Door Trim, RH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥320,000
67610-11030-21 note Board Sub-assy, Front Door Trim, RH
2017-01 → 2018-09 ended
GWZ100,URZ100 ¥320,000
67610-11030-21 note Board Sub-assy, Front Door Trim, RH
2018-09 → 2019-06 ended
GWZ100,URZ100 ¥320,000
67610-11030-21 note Board Sub-assy, Front Door Trim, RH
2019-06 → 2020-04 ended
GWZ100,URZ100 ¥320,000
67610-11030-22 note Board Sub-assy, Front Door Trim, RH
2018-09 → 2019-06 ended
GWZ100,URZ100 ¥320,000
67610-11030-E2 note Board Sub-assy, Front Door Trim, RH
2017-01 → 2019-09 ended
GWZ100,URZ100 ¥320,000
67610-11030-E2 note Board Sub-assy, Front Door Trim, RH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥320,000
67610-11030-E4 note Board Sub-assy, Front Door Trim, RH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥320,000
67610-11030-J3 note Board Sub-assy, Front Door Trim, RH
2017-01 → 2018-03 ended
GWZ100,URZ100 ¥320,000
67610-11030-J3 note Board Sub-assy, Front Door Trim, RH
2018-03 → 2018-09 ended
GWZ100,URZ100 ¥320,000
67610-11030-J3 note Board Sub-assy, Front Door Trim, RH
2018-09 → 2020-04 ended
GWZ100,URZ100 ¥320,000
67610-11030-J4 note Board Sub-assy, Front Door Trim, RH
2018-03 → 2018-09 ended
GWZ100,URZ100 ¥320,000
67610-11080-20 note Board Sub-assy, Front Door Trim, RH
2020-04 → 2021-01 ended
GWZ100,URZ100 ¥320,000
67610-11080-21 note Board Sub-assy, Front Door Trim, RH
2020-04 → 2021-01 ended
GWZ100,URZ100 ¥320,000
67610-11080-23 note Board Sub-assy, Front Door Trim, RH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥266,000
67610-11080-24 note Board Sub-assy, Front Door Trim, RH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥266,000
67610-11080-25 note Board Sub-assy, Front Door Trim, RH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥266,000
67610-11080-27 note Board Sub-assy, Front Door Trim, RH
2021-11 → —
GWZ100,URZ100 ¥266,000
67610-11080-28 note Board Sub-assy, Front Door Trim, RH
2021-11 → 2022-02 ended
GWZ100,URZ100 ¥266,000
67610-11080-28 note Board Sub-assy, Front Door Trim, RH
2022-02 → —
GWZ100,URZ100 ¥266,000
67610-11080-29 note Board Sub-assy, Front Door Trim, RH
2022-02 → —
GWZ100,URZ100 ¥266,000
67610-11080-40 note Board Sub-assy, Front Door Trim, RH
2021-11 → —
GWZ100,URZ100 ¥266,000
67610-11080-C9 note Board Sub-assy, Front Door Trim, RH
2020-04 → 2021-01 ended
GWZ100,URZ100 ¥320,000
67610-11080-E3 note Board Sub-assy, Front Door Trim, RH
2020-04 → 2021-01 ended
GWZ100,URZ100 ¥320,000
67610-11080-E4 note Board Sub-assy, Front Door Trim, RH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥266,000
67610-11080-E5 note Board Sub-assy, Front Door Trim, RH
2021-11 → —
GWZ100,URZ100 ¥241,000
67610-11100-C1 note Board Sub-assy, Front Door Trim, RH
2021-01 → 2021-11 ended
GWZ100,URZ100 —
67601B — Clip(FOR FRONT DOOR TRIM BOARD)
90467-09233 Clip(FOR FRONT DOOR TRIM BOARD)
2017-01 → —
GWZ100,URZ100 ¥80
67651H — Grille, Speaker Door, RH
67651-11010-C0 note Grille, Speaker Door, RH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥3,230
67651-11010-C0 note Grille, Speaker Door, RH
2020-04 → —
GWZ100,URZ100 ¥3,230
67651-11010-E0 note Grille, Speaker Door, RH
2020-04 → —
GWZ100,URZ100 ¥3,230
67701 — Cover Sub-assy, Front Door Trim, RH
67701-11010-C3 note Cover Sub-assy, Front Door Trim, RH
2017-01 → 2021-01 ended
GWZ100,URZ100 ¥17,100
67701-11010-C3 note Cover Sub-assy, Front Door Trim, RH
2021-01 → 2022-01 ended
GWZ100,URZ100 ¥17,100
67701-11010-C3 note Cover Sub-assy, Front Door Trim, RH
2022-01 → 2022-02 ended
GWZ100,URZ100 ¥17,100
67701-11010-C3 note Cover Sub-assy, Front Door Trim, RH
2022-02 → —
GWZ100,URZ100 ¥17,100
67701-11010-C4 note Cover Sub-assy, Front Door Trim, RH
2021-01 → 2022-01 ended
GWZ100,URZ100 ¥18,800
67701-11010-C5 note Cover Sub-assy, Front Door Trim, RH
2022-02 → —
GWZ100,URZ100 ¥18,800
67701-11010-E1 note Cover Sub-assy, Front Door Trim, RH
2017-01 → 2019-09 ended
GWZ100,URZ100 ¥17,100
67701-11010-E1 note Cover Sub-assy, Front Door Trim, RH
2019-09 → —
GWZ100,URZ100 ¥17,100
67701-11010-E3 note Cover Sub-assy, Front Door Trim, RH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥22,600
67701-11010-E4 note Cover Sub-assy, Front Door Trim, RH
2020-04 → —
GWZ100,URZ100 ¥18,800
67701-11010-J1 note Cover Sub-assy, Front Door Trim, RH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥22,600
68171B — Weatherstrip, Front Door Glass, Inner RH
68171-11010 Weatherstrip, Front Door Glass, Inner RH
2017-01 → —
GWZ100,URZ100 ¥2,880
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
