Toyota Lexus LC500/500H(CP)

2017-01 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433110 · Japan

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

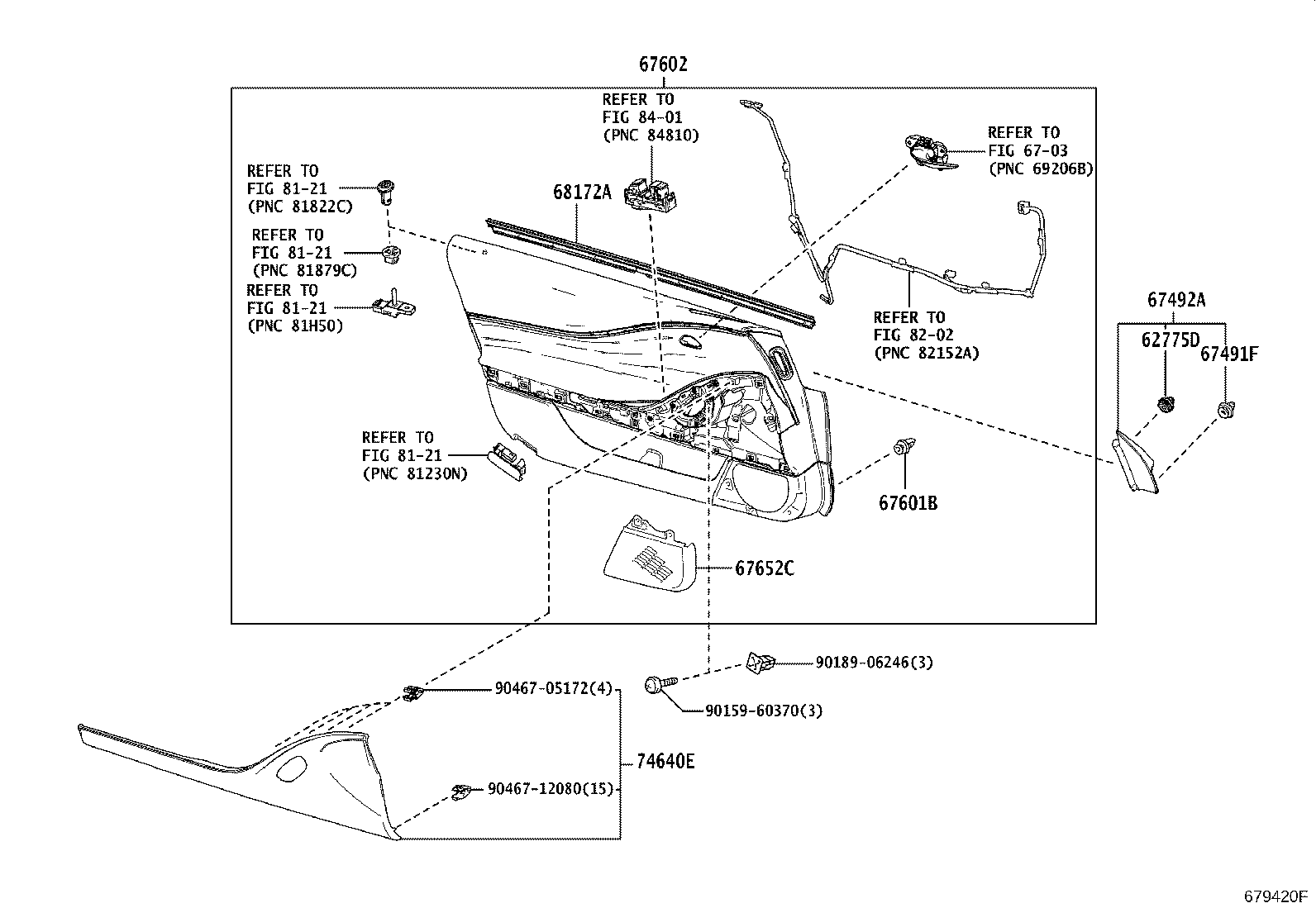

Exploded illustration 679420F 67652C — GRILLE, SPEAKER DOOR, LH (3 parts) 67492A — GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH (1 parts) 67602 — BOARD SUB-ASSY, FRONT DOOR TRIM, LH (27 parts) 68172A — WEATHERSTRIP, FRONT DOOR GLASS, INNER LH (1 parts) 74640E — GRIP ASSY, FRONT DOOR ASSIST, LH (13 parts) 62775D — CLIP, FRONT SIDE WINDOW, RH (1 parts) 67491F — CLIP(FOR DOOR TRIM) (1 parts) 9015960370 — not listed in this catalogue 9018906246 — not listed in this catalogue 9046705172 — not listed in this catalogue 9046712080 — not listed in this catalogue 67601B — CLIP(FOR FRONT DOOR TRIM BOARD) (1 parts) 8121 — not listed in this catalogue 6703 — not listed in this catalogue 8401 — not listed in this catalogue 8121 — not listed in this catalogue 8121 — not listed in this catalogue 8121 — not listed in this catalogue
679420F · 8 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
48 parts on this figure
Part number Description Fitment Price
62775D — Clip, Front Side Window, RH
62707-48010 Clip, Front Side Window, RH
2017-01 → —
GWZ100,URZ100 ¥160
67491F — Clip(FOR DOOR TRIM)
90467-09233 Clip(FOR DOOR TRIM)
2017-01 → —
GWZ100,URZ100 ¥80
67492A — Garnish, Front Door Lower Frame Bracket, LH
67492-11010 Garnish, Front Door Lower Frame Bracket, LH
2017-01 → —
GWZ100,URZ100 ¥1,190
67601B — Clip(FOR FRONT DOOR TRIM BOARD)
90467-09233 Clip(FOR FRONT DOOR TRIM BOARD)
2017-01 → —
GWZ100,URZ100 ¥80
67602 — Board Sub-assy, Front Door Trim, LH
67620-11030-20 note Board Sub-assy, Front Door Trim, LH
2017-01 → 2018-09 ended
GWZ100,URZ100 ¥257,000
67620-11030-20 note Board Sub-assy, Front Door Trim, LH
2019-06 → 2020-04 ended
GWZ100,URZ100 ¥257,000
67620-11030-20 note Board Sub-assy, Front Door Trim, LH
2018-09 → 2019-06 ended
GWZ100,URZ100 ¥257,000
67620-11030-21 note Board Sub-assy, Front Door Trim, LH
2018-09 → 2019-06 ended
GWZ100,URZ100 ¥257,000
67620-11030-C9 note Board Sub-assy, Front Door Trim, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥257,000
67620-11030-E1 note Board Sub-assy, Front Door Trim, LH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥257,000
67620-11030-E1 note Board Sub-assy, Front Door Trim, LH
2017-01 → 2019-09 ended
GWZ100,URZ100 ¥257,000
67620-11030-E2 note Board Sub-assy, Front Door Trim, LH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥257,000
67620-11030-J3 note Board Sub-assy, Front Door Trim, LH
2018-03 → 2018-09 ended
GWZ100,URZ100 ¥257,000
67620-11030-J3 note Board Sub-assy, Front Door Trim, LH
2017-01 → 2018-03 ended
GWZ100,URZ100 ¥257,000
67620-11030-J3 note Board Sub-assy, Front Door Trim, LH
2018-09 → 2020-04 ended
GWZ100,URZ100 ¥257,000
67620-11030-J4 note Board Sub-assy, Front Door Trim, LH
2018-03 → 2018-09 ended
GWZ100,URZ100 ¥257,000
67620-11090-20 note Board Sub-assy, Front Door Trim, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥214,000
67620-11090-21 note Board Sub-assy, Front Door Trim, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥214,000
67620-11090-23 note Board Sub-assy, Front Door Trim, LH
2021-11 → —
GWZ100,URZ100 ¥214,000
67620-11090-24 note Board Sub-assy, Front Door Trim, LH
2021-11 → 2022-02 ended
GWZ100,URZ100 ¥195,000
67620-11090-24 note Board Sub-assy, Front Door Trim, LH
2022-02 → —
GWZ100,URZ100 ¥195,000
67620-11090-25 note Board Sub-assy, Front Door Trim, LH
2022-02 → —
GWZ100,URZ100 ¥214,000
67620-11090-26 note Board Sub-assy, Front Door Trim, LH
2021-11 → —
GWZ100,URZ100 ¥214,000
67620-11090-C6 note Board Sub-assy, Front Door Trim, LH
2020-04 → 2021-01 ended
GWZ100,URZ100 ¥257,000
67620-11090-C7 note Board Sub-assy, Front Door Trim, LH
2020-04 → 2021-01 ended
GWZ100,URZ100 ¥257,000
67620-11090-C8 note Board Sub-assy, Front Door Trim, LH
2020-04 → 2021-01 ended
GWZ100,URZ100 ¥257,000
67620-11090-C9 note Board Sub-assy, Front Door Trim, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥214,000
67620-11090-E2 note Board Sub-assy, Front Door Trim, LH
2020-04 → 2021-01 ended
GWZ100,URZ100 ¥257,000
67620-11090-E3 note Board Sub-assy, Front Door Trim, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥214,000
67620-11090-E4 note Board Sub-assy, Front Door Trim, LH
2021-11 → —
GWZ100,URZ100 ¥195,000
67620-11110-C1 note Board Sub-assy, Front Door Trim, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥214,000
67652C — Grille, Speaker Door, LH
67652-11010-C0 note Grille, Speaker Door, LH
2020-04 → —
GWZ100,URZ100 ¥3,230
67652-11010-C0 note Grille, Speaker Door, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥3,230
67652-11010-E0 note Grille, Speaker Door, LH
2020-04 → —
GWZ100,URZ100 ¥3,230
68172A — Weatherstrip, Front Door Glass, Inner LH
68172-11010 Weatherstrip, Front Door Glass, Inner LH
2017-01 → —
GWZ100,URZ100 ¥2,880
74640E — Grip Assy, Front Door Assist, LH
74640-11010-C5 note Grip Assy, Front Door Assist, LH
2017-01 → 2021-01 ended
GWZ100,URZ100 ¥14,000
74640-11010-C7 note Grip Assy, Front Door Assist, LH
2022-02 → —
GWZ100,URZ100 ¥10,500
74640-11010-C7 note Grip Assy, Front Door Assist, LH
2022-01 → 2022-02 ended
GWZ100,URZ100 ¥10,500
74640-11010-C7 note Grip Assy, Front Door Assist, LH
2021-01 → 2022-01 ended
GWZ100,URZ100 ¥10,500
74640-11010-C8 note Grip Assy, Front Door Assist, LH
2021-01 → 2022-01 ended
GWZ100,URZ100 ¥11,600
74640-11010-C9 note Grip Assy, Front Door Assist, LH
2022-02 → —
GWZ100,URZ100 ¥11,600
74640-11010-E3 note Grip Assy, Front Door Assist, LH
2019-09 → 2021-01 ended
GWZ100,URZ100 ¥14,000
74640-11010-E3 note Grip Assy, Front Door Assist, LH
2017-01 → 2019-09 ended
GWZ100,URZ100 ¥14,000
74640-11010-E5 note Grip Assy, Front Door Assist, LH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥14,000
74640-11010-E6 note Grip Assy, Front Door Assist, LH
2020-04 → 2021-01 ended
GWZ100,URZ100 ¥14,000
74640-11010-E7 note Grip Assy, Front Door Assist, LH
2021-01 → —
GWZ100,URZ100 ¥11,600
74640-11010-E8 note Grip Assy, Front Door Assist, LH
2021-01 → —
GWZ100,URZ100 ¥10,500
74640-11010-J3 note Grip Assy, Front Door Assist, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥14,000
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
