Toyota Lexus LC500/500H(CP)

2017-01 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433110 · Japan

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

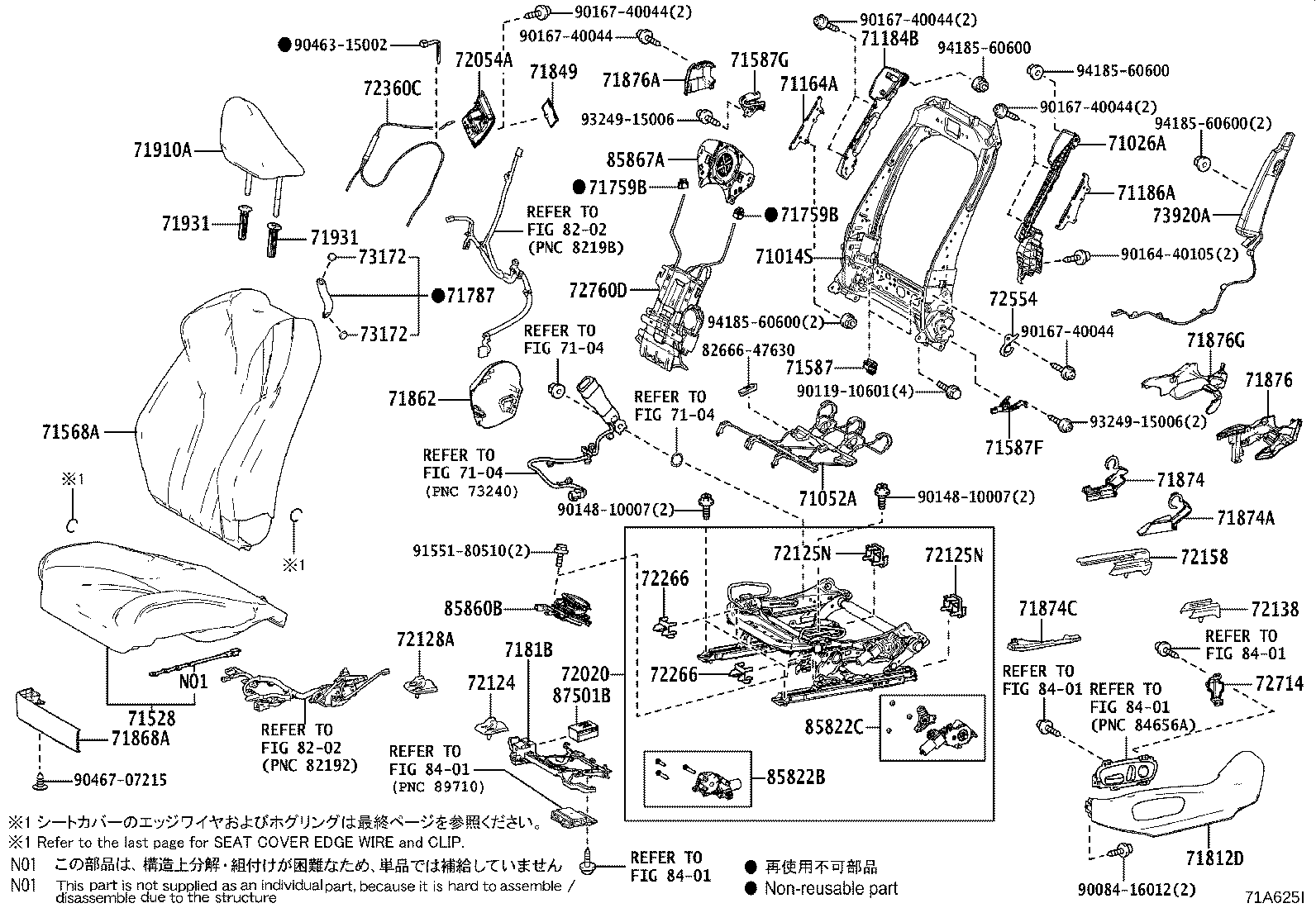

Exploded illustration 71A625I 71014S — FRAME SUB-ASSY, FRONT SEATBACK, LH (11 parts) 71026A — SUPPORT, FRONT SEATBACK, LH (7 parts) 71052A — SPRING SUB-ASSY, FRONT SEAT CUSHION, LH (1 parts) 71164A — BRACKET, FRONT SEATBACK SUPPORT, LH (1 parts) 71184B — SUPPORT, FRONT SEATBACK, LH (7 parts) 71186A — BRACKET, FRONT SEAT SIDE SUPPORT, LH (1 parts) 71528 — PAD, FRONT SEAT CUSHION W/COVER, LH (36 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (1 parts) 71759B — HOOK, FRONT SEATBACK (3 parts) 71759B — HOOK, FRONT SEATBACK (3 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (28 parts) 7181B — HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH (1 parts) 71849 — CAP, SEAT ADJUSTER COVER, LH (15 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (5 parts) 71868A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH (5 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (1 parts) 71874A — SHIELD, FRONT SEAT CUSHION, LOWER LH (1 parts) 71874C — SHIELD, FRONT SEAT CUSHION, LOWER (1 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (5 parts) 71876A — COVER, RECLINING ADJUSTER INSIDE, LH (1 parts) 71876G — COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) (5 parts) 71910A — HEADREST ASSY, FRONT SEAT (44 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (16 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (16 parts) 72054A — LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH (26 parts) 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (3 parts) 72128A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (3 parts) 72138 — COVER, SEAT TRACK, OUTER LH (3 parts) 72158 — COVER, SEAT TRACK BRACKET, INNER LH (3 parts) 72360C — CABLE ASSY, RECLINING ADJUSTER EQUALIZING LH (1 parts) 72554 — PROTECTOR, RECLINING COVER, LH (1 parts) 72714 — BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH (1 parts) 72760D — ADJUSTER ASSY, LUMBAR SUPPORT, LH (1 parts) 73920A — AIRBAG ASSY, FRONT SEAT, LH (1 parts) 85860B — BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH (1 parts) 85867A — BLOWER, SEATBACK CLIMATE CONTROL, LH (1 parts) 87501B — CONTROL SUB-ASSY, SEAT HEATER, LH (1 parts) 9008416012 — not listed in this catalogue 9014810007 — not listed in this catalogue 9014810007 — not listed in this catalogue 9016440105 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9046315002 — not listed in this catalogue 9046707215 — not listed in this catalogue 9155180510 — not listed in this catalogue 9418560600 — not listed in this catalogue 9418560600 — not listed in this catalogue 9418560600 — not listed in this catalogue 9418560600 — not listed in this catalogue 7104 — not listed in this catalogue 8202 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 72266 — COVER, SEAT TRACK UPPER RAIL, LH (1 parts) 72266 — COVER, SEAT TRACK UPPER RAIL, LH (1 parts) 72125N — COVER, SEAT TRACK, UPPER NO.4 (1 parts) 72125N — COVER, SEAT TRACK, UPPER NO.4 (1 parts) 72020 — ADJUSTER ASSY, FRONT SEAT, LH (1 parts) 85822C — MOTOR ASSY, POWER SEAT LIFTER, LH (1 parts) 85822B — MOTOR ASSY, POWER SEAT TILT, LH (1 parts) 8202 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 71568A — PAD, FRONT SEATBACK W/COVER, LH (32 parts) 9011910601 — not listed in this catalogue 8401 — not listed in this catalogue 8266647630 — not listed in this catalogue 9016740044 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 71587G — PROTECTOR, FRONT SEATBACK EDGE, INNER(FOR LH SEAT) (1 parts) 71587F — PROTECTOR, FRONT SEATBACK EDGE, OUTER(FOR LH SEAT) (1 parts) 9324915006 — not listed in this catalogue 9324915006 — not listed in this catalogue 73172 — CAP, FRONT SHOULDER BELT HANGER (1 parts) 73172 — CAP, FRONT SHOULDER BELT HANGER (1 parts) 71787 — BAND, FRONT SEATBACK POCKET (42 parts)
71A625I · 50 callouts, 30 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
324 parts on this figure
Part number Description Fitment Price
71014S — Frame Sub-assy, Front Seatback, LH
71014-11010 note Frame Sub-assy, Front Seatback, LH
2019-10 → 2020-04 ended
GWZ100,URZ100 ¥49,500
71014-11010 Frame Sub-assy, Front Seatback, LH
2017-01 → 2019-10 ended
GWZ100,URZ100 ¥49,500
71014-11011 Frame Sub-assy, Front Seatback, LH
2019-11 → —
GWZ100,URZ100 ¥37,400
71014-11020 note Frame Sub-assy, Front Seatback, LH
2017-01 → 2019-10 ended
GWZ100,URZ100 ¥47,800
71014-11020 note Frame Sub-assy, Front Seatback, LH
2017-01 → 2019-10 ended
GWZ100,URZ100 ¥47,800
71014-11021 note Frame Sub-assy, Front Seatback, LH
2019-11 → 2021-11 ended
GWZ100,URZ100 ¥36,100
71014-11021 note Frame Sub-assy, Front Seatback, LH
2019-11 → 2021-11 ended
GWZ100,URZ100 ¥36,100
71014-11021 note Frame Sub-assy, Front Seatback, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥36,100
71014-11021 note Frame Sub-assy, Front Seatback, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥36,100
71014-11021 note Frame Sub-assy, Front Seatback, LH
2021-11 → —
GWZ100,URZ100 ¥36,100
71014-11021 note Frame Sub-assy, Front Seatback, LH
2021-11 → —
GWZ100,URZ100 ¥36,100
71026A — Support, Front Seatback, LH
71026-11010 Support, Front Seatback, LH
2017-01 → —
GWZ100,URZ100 ¥2,620
71026-11020 note Support, Front Seatback, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥2,910
71026-11020 note Support, Front Seatback, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥2,910
71026-11020 note Support, Front Seatback, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥2,910
71026-11020 note Support, Front Seatback, LH
2021-11 → —
GWZ100,URZ100 ¥2,910
71026-11020 note Support, Front Seatback, LH
2021-11 → —
GWZ100,URZ100 ¥2,910
71026-11020 note Support, Front Seatback, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥2,910
71052A — Spring Sub-assy, Front Seat Cushion, LH
71051-11010 Spring Sub-assy, Front Seat Cushion, LH
2017-01 → —
GWZ100,URZ100 ¥3,010
71164A — Bracket, Front Seatback Support, LH
71163-11010 Bracket, Front Seatback Support, LH
2017-01 → —
GWZ100,URZ100 ¥490
71184B — Support, Front Seatback, LH
71025-11030 note Support, Front Seatback, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥2,030
71025-11030 note Support, Front Seatback, LH
2021-11 → —
GWZ100,URZ100 ¥2,030
71025-11030 note Support, Front Seatback, LH
2021-11 → —
GWZ100,URZ100 ¥2,030
71025-11030 note Support, Front Seatback, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥2,030
71025-11030 note Support, Front Seatback, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥2,030
71025-11030 note Support, Front Seatback, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥2,030
71183-11010 Support, Front Seatback, LH
2017-01 → —
GWZ100,URZ100 ¥1,820
71186A — Bracket, Front Seat Side Support, LH
71186-11020 Bracket, Front Seat Side Support, LH
2017-01 → —
GWZ100,URZ100 ¥490
71528 — Pad, Front Seat Cushion W/Cover, LH
00000-00000 note Pad, Front Seat Cushion W/Cover, LH
2017-01 → —
GWZ100,URZ100 —
71102-11030-20 note Pad, Front Seat Cushion W/Cover, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥66,100
71102-11030-20 note Pad, Front Seat Cushion W/Cover, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥66,100
71102-11030-C5 note Pad, Front Seat Cushion W/Cover, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥79,400
71102-11030-C5 note Pad, Front Seat Cushion W/Cover, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥79,400
71102-11030-C7 note Pad, Front Seat Cushion W/Cover, LH
2020-04 → 2021-01 ended
GWZ100,URZ100 ¥79,400
71102-11030-C7 note Pad, Front Seat Cushion W/Cover, LH
2020-04 → 2021-01 ended
GWZ100,URZ100 ¥79,400
71102-11030-C8 note Pad, Front Seat Cushion W/Cover, LH
2020-04 → 2021-01 ended
GWZ100,URZ100 ¥79,400
71102-11030-C8 note Pad, Front Seat Cushion W/Cover, LH
2020-04 → 2021-01 ended
GWZ100,URZ100 ¥79,400
71102-11030-C9 note Pad, Front Seat Cushion W/Cover, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥66,100
71102-11030-C9 note Pad, Front Seat Cushion W/Cover, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥66,100
71102-11030-D5 note Pad, Front Seat Cushion W/Cover, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥79,400
71102-11030-D5 note Pad, Front Seat Cushion W/Cover, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥79,400
71102-11030-D7 note Pad, Front Seat Cushion W/Cover, LH
2020-04 → 2021-01 ended
GWZ100,URZ100 ¥79,400
71102-11030-D7 note Pad, Front Seat Cushion W/Cover, LH
2020-04 → 2021-01 ended
GWZ100,URZ100 ¥79,400
71102-11030-D8 note Pad, Front Seat Cushion W/Cover, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥66,100
71102-11030-D8 note Pad, Front Seat Cushion W/Cover, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥66,100
71102-11030-E3 note Pad, Front Seat Cushion W/Cover, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥79,400
71102-11030-E3 note Pad, Front Seat Cushion W/Cover, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥79,400
71102-11030-E4 note Pad, Front Seat Cushion W/Cover, LH
2020-04 → 2021-01 ended
GWZ100,URZ100 ¥79,400
71102-11030-E4 note Pad, Front Seat Cushion W/Cover, LH
2020-04 → 2021-01 ended
GWZ100,URZ100 ¥79,400
71102-11030-E5 note Pad, Front Seat Cushion W/Cover, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥66,100
71102-11030-E5 note Pad, Front Seat Cushion W/Cover, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥66,100
71102-11130-C0 note Pad, Front Seat Cushion W/Cover, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥77,500
71102-11130-C1 note Pad, Front Seat Cushion W/Cover, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥70,300
71102-11130-C1 note Pad, Front Seat Cushion W/Cover, LH
2021-11 → —
GWZ100,URZ100 ¥70,300
71102-11130-C1 note Pad, Front Seat Cushion W/Cover, LH
2021-11 → —
GWZ100,URZ100 ¥70,300
71102-11130-C2 note Pad, Front Seat Cushion W/Cover, LH
2021-11 → —
GWZ100,URZ100 ¥77,500
71102-11130-C2 note Pad, Front Seat Cushion W/Cover, LH
2021-11 → —
GWZ100,URZ100 ¥77,500
71102-11130-C2 note Pad, Front Seat Cushion W/Cover, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥77,500
71102-11130-D0 note Pad, Front Seat Cushion W/Cover, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥77,500
71102-11130-D0 note Pad, Front Seat Cushion W/Cover, LH
2021-11 → —
GWZ100,URZ100 ¥77,500
71102-11130-D0 note Pad, Front Seat Cushion W/Cover, LH
2021-11 → —
GWZ100,URZ100 ¥77,500
71102-11130-E0 note Pad, Front Seat Cushion W/Cover, LH
2021-11 → —
GWZ100,URZ100 ¥70,300
71102-11130-E0 note Pad, Front Seat Cushion W/Cover, LH
2021-11 → —
GWZ100,URZ100 ¥70,300
71102-11130-E0 note Pad, Front Seat Cushion W/Cover, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥70,300
71568A — Pad, Front Seatback W/Cover, LH
00000-00000 note Pad, Front Seatback W/Cover, LH
2017-01 → —
GWZ100,URZ100 —
71402-11050-20 note Pad, Front Seatback W/Cover, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥77,200
71402-11050-20 note Pad, Front Seatback W/Cover, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥77,200
71402-11050-20 note Pad, Front Seatback W/Cover, LH
2021-11 → —
GWZ100,URZ100 ¥77,200
71402-11050-20 note Pad, Front Seatback W/Cover, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥77,200
71402-11050-20 note Pad, Front Seatback W/Cover, LH
2021-11 → —
GWZ100,URZ100 ¥77,200
71402-11050-20 note Pad, Front Seatback W/Cover, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥77,200
71402-11050-21 note Pad, Front Seatback W/Cover, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥77,200
71402-11050-C7 note Pad, Front Seatback W/Cover, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥92,600
71402-11050-C7 note Pad, Front Seatback W/Cover, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥92,600
71402-11050-C9 note Pad, Front Seatback W/Cover, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥70,100
71402-11050-C9 note Pad, Front Seatback W/Cover, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥70,100
71402-11050-C9 note Pad, Front Seatback W/Cover, LH
2021-11 → —
GWZ100,URZ100 ¥70,100
71402-11050-C9 note Pad, Front Seatback W/Cover, LH
2021-11 → —
GWZ100,URZ100 ¥70,100
71402-11050-C9 note Pad, Front Seatback W/Cover, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥70,100
71402-11050-C9 note Pad, Front Seatback W/Cover, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥70,100
71402-11050-D6 note Pad, Front Seatback W/Cover, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥92,600
71402-11050-D6 note Pad, Front Seatback W/Cover, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥92,600
71402-11050-D8 note Pad, Front Seatback W/Cover, LH
2021-11 → —
GWZ100,URZ100 ¥77,200
71402-11050-D8 note Pad, Front Seatback W/Cover, LH
2021-11 → —
GWZ100,URZ100 ¥77,200
71402-11050-D8 note Pad, Front Seatback W/Cover, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥77,200
71402-11050-D8 note Pad, Front Seatback W/Cover, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥77,200
71402-11050-D8 note Pad, Front Seatback W/Cover, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥77,200
71402-11050-D8 note Pad, Front Seatback W/Cover, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥77,200
71402-11050-E5 note Pad, Front Seatback W/Cover, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥92,600
71402-11050-E5 note Pad, Front Seatback W/Cover, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥92,600
71402-11050-E6 note Pad, Front Seatback W/Cover, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥70,100
71402-11050-E6 note Pad, Front Seatback W/Cover, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥70,100
71402-11050-E6 note Pad, Front Seatback W/Cover, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥70,100
71402-11050-E6 note Pad, Front Seatback W/Cover, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥70,100
71402-11050-E6 note Pad, Front Seatback W/Cover, LH
2021-11 → —
GWZ100,URZ100 ¥70,100
71402-11050-E6 note Pad, Front Seatback W/Cover, LH
2021-11 → —
GWZ100,URZ100 ¥70,100
71587 — Protector, Front Seatback Edge
71587-47010 Protector, Front Seatback Edge
2017-01 → —
GWZ100,URZ100 ¥200
71587F — Protector, Front Seatback Edge, Outer(FOR LH SEAT)
71587-11030 Protector, Front Seatback Edge, Outer(FOR LH SEAT)
2017-01 → —
GWZ100,URZ100 ¥2,220
71587G — Protector, Front Seatback Edge, Inner(FOR LH SEAT)
71587-11040 Protector, Front Seatback Edge, Inner(FOR LH SEAT)
2017-01 → —
GWZ100,URZ100 ¥2,680
71759B — Hook, Front Seatback
71759-50040 Hook, Front Seatback
2019-11 → —
GWZ100,URZ100 ¥130
71759-52050 Hook, Front Seatback
2017-01 → 2019-10 ended
GWZ100,URZ100 ¥130
71759-52050 note Hook, Front Seatback
2019-10 → 2020-04 ended
GWZ100,URZ100 ¥130
71787 — Band, Front Seatback Pocket
71788-11010-A1 note Band, Front Seatback Pocket
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥13,800
71788-11010-A2 note Band, Front Seatback Pocket
2018-09 → 2019-06 ended
GWZ100,URZ100 ¥18,200
71788-11010-C5 note Band, Front Seatback Pocket
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥13,800
71788-11010-C5 note Band, Front Seatback Pocket
2017-01 → —
GWZ100,URZ100 ¥13,800
71788-11010-C5 note Band, Front Seatback Pocket
2022-02 → —
GWZ100,URZ100 ¥13,800
71788-11010-C6 note Band, Front Seatback Pocket
2020-04 → —
GWZ100,URZ100 ¥15,200
71788-11010-D2 note Band, Front Seatback Pocket
2022-02 → —
GWZ100,URZ100 ¥13,800
71788-11010-D2 note Band, Front Seatback Pocket
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥13,800
71788-11010-D4 note Band, Front Seatback Pocket
2020-04 → 2022-02 ended
GWZ100,URZ100 ¥15,200
71788-11010-D4 note Band, Front Seatback Pocket
2022-02 → —
GWZ100,URZ100 ¥15,200
71788-11010-E3 note Band, Front Seatback Pocket
2020-04 → —
GWZ100,URZ100 ¥13,800
71788-11010-E3 note Band, Front Seatback Pocket
2017-01 → —
GWZ100,URZ100 ¥13,800
71788-11010-E6 note Band, Front Seatback Pocket
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥18,300
71788-11020-C2 note Band, Front Seatback Pocket
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥13,800
71788-11020-C2 note Band, Front Seatback Pocket
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥13,800
71788-11020-C2 note Band, Front Seatback Pocket
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥13,800
71788-11020-C2 note Band, Front Seatback Pocket
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥13,800
71788-11020-C2 note Band, Front Seatback Pocket
2021-11 → —
GWZ100,URZ100 ¥13,800
71788-11020-C2 note Band, Front Seatback Pocket
2021-11 → —
GWZ100,URZ100 ¥13,800
71788-11020-C4 note Band, Front Seatback Pocket
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥15,200
71788-11020-C4 note Band, Front Seatback Pocket
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥15,200
71788-11020-C4 note Band, Front Seatback Pocket
2021-11 → —
GWZ100,URZ100 ¥15,200
71788-11020-C4 note Band, Front Seatback Pocket
2021-11 → —
GWZ100,URZ100 ¥15,200
71788-11020-C4 note Band, Front Seatback Pocket
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥15,200
71788-11020-C4 note Band, Front Seatback Pocket
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥15,200
71788-11020-C5 note Band, Front Seatback Pocket
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥15,200
71788-11020-D1 note Band, Front Seatback Pocket
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥13,800
71788-11020-D1 note Band, Front Seatback Pocket
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥13,800
71788-11020-D3 note Band, Front Seatback Pocket
2021-11 → —
GWZ100,URZ100 ¥15,200
71788-11020-D3 note Band, Front Seatback Pocket
2021-11 → —
GWZ100,URZ100 ¥15,200
71788-11020-D3 note Band, Front Seatback Pocket
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥15,200
71788-11020-D3 note Band, Front Seatback Pocket
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥15,200
71788-11020-D3 note Band, Front Seatback Pocket
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥15,200
71788-11020-D3 note Band, Front Seatback Pocket
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥15,200
71788-11020-E1 note Band, Front Seatback Pocket
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥13,800
71788-11020-E1 note Band, Front Seatback Pocket
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥13,800
71788-11020-E1 note Band, Front Seatback Pocket
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥13,800
71788-11020-E1 note Band, Front Seatback Pocket
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥13,800
71788-11020-E1 note Band, Front Seatback Pocket
2021-11 → —
GWZ100,URZ100 ¥13,800
71788-11020-E1 note Band, Front Seatback Pocket
2021-11 → —
GWZ100,URZ100 ¥13,800
71788-11020-E1 note Band, Front Seatback Pocket
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥13,800
71788-11020-E1 note Band, Front Seatback Pocket
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥13,800
71812D — Shield, Front Seat Cushion, LH
71812-11020 note Shield, Front Seat Cushion, LH
2018-09 → 2019-06 ended
GWZ100,URZ100 —
71812-11020-C3 note Shield, Front Seat Cushion, LH
2022-02 → —
GWZ100,URZ100 ¥16,200
71812-11020-C3 note Shield, Front Seat Cushion, LH
2017-01 → —
GWZ100,URZ100 ¥16,200
71812-11020-C3 note Shield, Front Seat Cushion, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥16,200
71812-11020-C8 note Shield, Front Seat Cushion, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥17,900
71812-11020-C8 note Shield, Front Seat Cushion, LH
2021-11 → 2022-01 ended
GWZ100,URZ100 ¥17,900
71812-11020-C8 note Shield, Front Seat Cushion, LH
2021-11 → 2022-01 ended
GWZ100,URZ100 ¥17,900
71812-11020-C8 note Shield, Front Seat Cushion, LH
2021-11 → 2022-01 ended
GWZ100,URZ100 ¥17,900
71812-11020-C9 note Shield, Front Seat Cushion, LH
2022-02 → —
GWZ100,URZ100 ¥17,900
71812-11020-E3 note Shield, Front Seat Cushion, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥16,200
71812-11020-E3 note Shield, Front Seat Cushion, LH
2017-01 → 2019-09 ended
GWZ100,URZ100 ¥16,200
71812-11020-E3 note Shield, Front Seat Cushion, LH
2021-11 → —
GWZ100,URZ100 ¥16,200
71812-11020-E3 note Shield, Front Seat Cushion, LH
2021-11 → —
GWZ100,URZ100 ¥16,200
71812-11020-E3 note Shield, Front Seat Cushion, LH
2020-04 → —
GWZ100,URZ100 ¥16,200
71812-11020-E3 note Shield, Front Seat Cushion, LH
2020-04 → —
GWZ100,URZ100 ¥16,200
71812-11020-E3 note Shield, Front Seat Cushion, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥16,200
71812-11020-E3 note Shield, Front Seat Cushion, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥16,200
71812-11020-E3 note Shield, Front Seat Cushion, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥16,200
71812-11020-E3 note Shield, Front Seat Cushion, LH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥16,200
71812-11020-E6 note Shield, Front Seat Cushion, LH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥21,500
71812-11020-E8 note Shield, Front Seat Cushion, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥17,900
71812-11020-E8 note Shield, Front Seat Cushion, LH
2021-11 → —
GWZ100,URZ100 ¥17,900
71812-11020-E8 note Shield, Front Seat Cushion, LH
2021-11 → —
GWZ100,URZ100 ¥17,900
71812-11020-E8 note Shield, Front Seat Cushion, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥17,900
71812-11020-E8 note Shield, Front Seat Cushion, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥17,900
71812-11020-E8 note Shield, Front Seat Cushion, LH
2020-04 → —
GWZ100,URZ100 ¥17,900
71812-11020-E8 note Shield, Front Seat Cushion, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥17,900
71812-11020-J2 note Shield, Front Seat Cushion, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥21,500
7181B — Holder, Front Seat Cushion Wire Harness, LH
7181B-11010 Holder, Front Seat Cushion Wire Harness, LH
2017-01 → —
GWZ100,URZ100 ¥2,570
71849 — Cap, Seat Adjuster Cover, LH
71848-11010-A0 note Cap, Seat Adjuster Cover, LH
2018-09 → 2019-06 ended
GWZ100,URZ100 ¥200
71848-11010-A0 note Cap, Seat Adjuster Cover, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥200
71848-11010-C1 note Cap, Seat Adjuster Cover, LH
2020-04 → —
GWZ100,URZ100 ¥200
71848-11010-C1 note Cap, Seat Adjuster Cover, LH
2020-04 → —
GWZ100,URZ100 ¥200
71848-11010-C1 note Cap, Seat Adjuster Cover, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥200
71848-11010-D0 note Cap, Seat Adjuster Cover, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥270
71848-11010-D1 note Cap, Seat Adjuster Cover, LH
2020-04 → —
GWZ100,URZ100 ¥220
71848-11010-E1 note Cap, Seat Adjuster Cover, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥200
71848-11010-E1 note Cap, Seat Adjuster Cover, LH
2021-11 → —
GWZ100,URZ100 ¥200
71848-11010-E1 note Cap, Seat Adjuster Cover, LH
2021-11 → —
GWZ100,URZ100 ¥200
71848-11010-E1 note Cap, Seat Adjuster Cover, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥200
71848-11010-E1 note Cap, Seat Adjuster Cover, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥200
71848-11010-E1 note Cap, Seat Adjuster Cover, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥200
71848-11010-E2 note Cap, Seat Adjuster Cover, LH
2017-01 → —
GWZ100,URZ100 ¥200
71848-11010-E3 note Cap, Seat Adjuster Cover, LH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥270
71862 — Shield, Front Seat Cushion, Inner LH
71862-11010-C1 note Shield, Front Seat Cushion, Inner LH
2018-09 → 2019-06 ended
GWZ100,URZ100 ¥1,090
71862-11010-C1 note Shield, Front Seat Cushion, Inner LH
2017-01 → —
GWZ100,URZ100 ¥1,090
71862-11010-E1 note Shield, Front Seat Cushion, Inner LH
2017-01 → —
GWZ100,URZ100 ¥1,090
71862-11010-E3 note Shield, Front Seat Cushion, Inner LH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥1,460
71862-11010-J0 note Shield, Front Seat Cushion, Inner LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥1,200
71868A — Shield, Front Seat Cushion, Inner NO.1 LH
71868-11010-C2 note Shield, Front Seat Cushion, Inner NO.1 LH
2017-01 → —
GWZ100,URZ100 ¥1,970
71868-11010-C2 note Shield, Front Seat Cushion, Inner NO.1 LH
2018-09 → 2019-06 ended
GWZ100,URZ100 ¥1,970
71868-11010-E3 note Shield, Front Seat Cushion, Inner NO.1 LH
2017-01 → —
GWZ100,URZ100 ¥1,970
71868-11010-E5 note Shield, Front Seat Cushion, Inner NO.1 LH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥2,610
71868-11010-J0 note Shield, Front Seat Cushion, Inner NO.1 LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥2,170
71874 — Shield, Front Seat Cushion, Lower LH
71874-11010-C1 note Shield, Front Seat Cushion, Lower LH
2017-01 → —
GWZ100,URZ100 ¥740
71874A — Shield, Front Seat Cushion, Lower LH
71874-47070 Shield, Front Seat Cushion, Lower LH
2017-01 → —
GWZ100,URZ100 ¥740
71874C — Shield, Front Seat Cushion, Lower
71874-47090 Shield, Front Seat Cushion, Lower
2017-01 → —
GWZ100,URZ100 ¥570
71876 — Cover, Reclining Adjuster Inside, LH
71876-11020-C1 note Cover, Reclining Adjuster Inside, LH
2018-09 → 2019-06 ended
GWZ100,URZ100 ¥1,440
71876-11020-C1 note Cover, Reclining Adjuster Inside, LH
2017-01 → —
GWZ100,URZ100 ¥1,440
71876-11020-E1 note Cover, Reclining Adjuster Inside, LH
2017-01 → —
GWZ100,URZ100 ¥1,440
71876-11020-E3 note Cover, Reclining Adjuster Inside, LH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥1,910
71876-11020-J0 note Cover, Reclining Adjuster Inside, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥1,590
71876A — Cover, Reclining Adjuster Inside, LH
71876-11030 Cover, Reclining Adjuster Inside, LH
2017-01 → —
GWZ100,URZ100 ¥590
71876G — Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71876-11010-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2018-09 → 2019-06 ended
GWZ100,URZ100 ¥1,190
71876-11010-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-01 → —
GWZ100,URZ100 ¥1,190
71876-11010-E1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-01 → —
GWZ100,URZ100 ¥1,190
71876-11010-E3 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥1,580
71876-11010-J0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥1,310
71910A — Headrest Assy, Front Seat
71910-11020-20 note Headrest Assy, Front Seat
2020-04 → —
GWZ100,URZ100 ¥46,400
71910-11020-C7 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥55,700
71910-11020-C8 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥55,700
71910-11020-E3 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥55,700
71910-11020-E4 note Headrest Assy, Front Seat
2020-04 → —
GWZ100,URZ100 ¥46,400
71910-11030-20 note Headrest Assy, Front Seat
2018-09 → 2019-06 ended
GWZ100,URZ100 ¥51,800
71910-11030-23 note Headrest Assy, Front Seat
2020-04 → —
GWZ100,URZ100 ¥43,100
71910-11030-24 note Headrest Assy, Front Seat
2020-04 → —
GWZ100,URZ100 ¥43,100
71910-11030-25 note Headrest Assy, Front Seat
2020-04 → —
GWZ100,URZ100 ¥43,100
71910-11030-C8 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥51,800
71910-11030-C9 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥51,800
71910-11030-E3 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥51,800
71910-11030-E4 note Headrest Assy, Front Seat
2020-04 → —
GWZ100,URZ100 ¥43,100
71910-11030-J1 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥51,800
71910-11040-C5 note Headrest Assy, Front Seat
2021-11 → —
GWZ100,URZ100 ¥23,600
71910-11040-C5 note Headrest Assy, Front Seat
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥23,600
71910-11040-C5 note Headrest Assy, Front Seat
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥23,600
71910-11040-C5 note Headrest Assy, Front Seat
2021-11 → —
GWZ100,URZ100 ¥23,600
71910-11040-C5 note Headrest Assy, Front Seat
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥23,600
71910-11040-C5 note Headrest Assy, Front Seat
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥23,600
71910-11040-C7 note Headrest Assy, Front Seat
2021-11 → —
GWZ100,URZ100 ¥26,000
71910-11040-C7 note Headrest Assy, Front Seat
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥26,000
71910-11040-C7 note Headrest Assy, Front Seat
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥26,000
71910-11040-C7 note Headrest Assy, Front Seat
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥26,000
71910-11040-C7 note Headrest Assy, Front Seat
2021-11 → —
GWZ100,URZ100 ¥26,000
71910-11040-C7 note Headrest Assy, Front Seat
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥26,000
71910-11040-C8 note Headrest Assy, Front Seat
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥26,000
71910-11040-D4 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥31,200
71910-11040-D4 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥31,200
71910-11040-D5 note Headrest Assy, Front Seat
2021-11 → —
GWZ100,URZ100 ¥26,000
71910-11040-D5 note Headrest Assy, Front Seat
2021-11 → —
GWZ100,URZ100 ¥26,000
71910-11040-D5 note Headrest Assy, Front Seat
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥26,000
71910-11040-D5 note Headrest Assy, Front Seat
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥26,000
71910-11040-D5 note Headrest Assy, Front Seat
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥26,000
71910-11040-D5 note Headrest Assy, Front Seat
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥26,000
71910-11040-E3 note Headrest Assy, Front Seat
2021-11 → —
GWZ100,URZ100 ¥23,600
71910-11040-E3 note Headrest Assy, Front Seat
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥23,600
71910-11040-E3 note Headrest Assy, Front Seat
2021-11 → —
GWZ100,URZ100 ¥23,600
71910-11040-E3 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥23,600
71910-11040-E3 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥23,600
71910-11040-E3 note Headrest Assy, Front Seat
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥23,600
71910-11040-E3 note Headrest Assy, Front Seat
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥23,600
71910-11040-E3 note Headrest Assy, Front Seat
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥23,600
71910-11190-E0 note Headrest Assy, Front Seat
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥55,700
71931 — Support, Front Seat Headrest
71930-47050-C5 note Support, Front Seat Headrest
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥770
71930-47050-C5 note Support, Front Seat Headrest
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥770
71930-47050-C5 note Support, Front Seat Headrest
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥770
71930-47050-C5 note Support, Front Seat Headrest
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥770
71930-47050-C5 note Support, Front Seat Headrest
2021-11 → —
GWZ100,URZ100 ¥770
71930-47050-C5 note Support, Front Seat Headrest
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥770
71930-47050-C5 note Support, Front Seat Headrest
2021-11 → —
GWZ100,URZ100 ¥770
71930-47050-C5 note Support, Front Seat Headrest
2017-01 → —
GWZ100,URZ100 ¥770
71931-47030-C4 note Support, Front Seat Headrest
2017-01 → —
GWZ100,URZ100 ¥470
71931-47030-C4 note Support, Front Seat Headrest
2021-11 → —
GWZ100,URZ100 ¥470
71931-47030-C4 note Support, Front Seat Headrest
2021-11 → —
GWZ100,URZ100 ¥470
71931-47030-C4 note Support, Front Seat Headrest
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥470
71931-47030-C4 note Support, Front Seat Headrest
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥470
71931-47030-C4 note Support, Front Seat Headrest
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥470
71931-47030-C4 note Support, Front Seat Headrest
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥470
71931-47030-C4 note Support, Front Seat Headrest
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥470
72020 — Adjuster Assy, Front Seat, LH
72020-11030 Adjuster Assy, Front Seat, LH
2017-01 → —
GWZ100,URZ100 ¥71,100
72054A — Lever Sub-assy, Reclining Remote Control, LH
72053-11010-A0 note Lever Sub-assy, Reclining Remote Control, LH
2018-09 → 2019-06 ended
GWZ100,URZ100 ¥920
72053-11010-A0 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2020-04 → 2023-05 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2020-04 → 2023-05 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2021-11 → 2023-05 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2021-11 → 2023-05 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥920
72053-11010-D0 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥1,230
72053-11010-D0 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥1,230
72053-11010-D1 note Lever Sub-assy, Reclining Remote Control, LH
2020-04 → 2023-05 ended
GWZ100,URZ100 ¥1,020
72053-11010-E1 note Lever Sub-assy, Reclining Remote Control, LH
2021-11 → 2023-05 ended
GWZ100,URZ100 ¥920
72053-11010-E1 note Lever Sub-assy, Reclining Remote Control, LH
2021-11 → 2023-05 ended
GWZ100,URZ100 ¥920
72053-11010-E1 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥920
72053-11010-E1 note Lever Sub-assy, Reclining Remote Control, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥920
72053-11010-E1 note Lever Sub-assy, Reclining Remote Control, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥920
72053-11010-E1 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥920
72053-11010-E2 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2023-05 ended
GWZ100,URZ100 ¥920
72053-11010-E2 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2023-05 ended
GWZ100,URZ100 ¥920
72053-11010-E3 note Lever Sub-assy, Reclining Remote Control, LH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥1,230
72053-11010-E3 note Lever Sub-assy, Reclining Remote Control, LH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥1,230
72053-11010-E3 note Lever Sub-assy, Reclining Remote Control, LH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥1,230
72124 — Cover, Seat Track Bracket, Outer Front LH
72124-11010-C1 note Cover, Seat Track Bracket, Outer Front LH
2017-01 → —
GWZ100,URZ100 ¥370
72124-11010-E1 note Cover, Seat Track Bracket, Outer Front LH
2017-01 → —
GWZ100,URZ100 ¥370
72124-11010-J0 note Cover, Seat Track Bracket, Outer Front LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥410
72125N — Cover, Seat Track, Upper NO.4
72125-47020 Cover, Seat Track, Upper NO.4
2017-01 → —
GWZ100,URZ100 ¥160
72128A — Cover, Seat Track Bracket, Inner Front LH
72128-11010-C1 note Cover, Seat Track Bracket, Inner Front LH
2017-01 → —
GWZ100,URZ100 ¥370
72128-11010-E1 note Cover, Seat Track Bracket, Inner Front LH
2017-01 → —
GWZ100,URZ100 ¥370
72128-11010-J0 note Cover, Seat Track Bracket, Inner Front LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥410
72138 — Cover, Seat Track, Outer LH
72137-11010-C1 note Cover, Seat Track, Outer LH
2017-01 → —
GWZ100,URZ100 ¥480
72137-11010-E1 note Cover, Seat Track, Outer LH
2017-01 → —
GWZ100,URZ100 ¥480
72137-11010-J0 note Cover, Seat Track, Outer LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥530
72158 — Cover, Seat Track Bracket, Inner LH
72158-11010-C1 note Cover, Seat Track Bracket, Inner LH
2017-01 → —
GWZ100,URZ100 ¥860
72158-11010-E1 note Cover, Seat Track Bracket, Inner LH
2017-01 → —
GWZ100,URZ100 ¥860
72158-11010-J0 note Cover, Seat Track Bracket, Inner LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥950
72266 — Cover, Seat Track Upper Rail, LH
72265-47020 Cover, Seat Track Upper Rail, LH
2017-01 → —
GWZ100,URZ100 ¥160
72360C — Cable Assy, Reclining Adjuster Equalizing LH
72360-11010 Cable Assy, Reclining Adjuster Equalizing LH
2017-01 → —
GWZ100,URZ100 ¥1,830
72554 — Protector, Reclining Cover, LH
72554-11010 Protector, Reclining Cover, LH
2017-01 → —
GWZ100,URZ100 ¥100
72714 — Bracket, Seat Adjuster Shield Clamp, LH
72714-11010 Bracket, Seat Adjuster Shield Clamp, LH
2017-01 → —
GWZ100,URZ100 ¥530
72760D — Adjuster Assy, Lumbar Support, LH
72760-11010 Adjuster Assy, Lumbar Support, LH
2017-01 → —
GWZ100,URZ100 ¥20,300
73172 — Cap, Front Shoulder Belt Hanger
73172-50020 Cap, Front Shoulder Belt Hanger
2017-01 → —
GWZ100,URZ100 ¥650
73920A — Airbag Assy, Front Seat, LH
73920-11010 Airbag Assy, Front Seat, LH
2017-01 → —
GWZ100,URZ100 ¥20,000
85822B — Motor Assy, Power Seat Tilt, LH
85801-47060 Motor Assy, Power Seat Tilt, LH
2017-01 → —
GWZ100,URZ100 ¥13,600
85822C — Motor Assy, Power Seat Lifter, LH
85801-11050 Motor Assy, Power Seat Lifter, LH
2017-01 → —
GWZ100,URZ100 ¥13,600
85860B — Blower Assy, Seat Cushion Climate Control, LH
85802-11010 Blower Assy, Seat Cushion Climate Control, LH
2017-01 → —
GWZ100,URZ100 ¥10,700
85867A — Blower, Seatback Climate Control, LH
85867-11011 Blower, Seatback Climate Control, LH
2017-01 → —
GWZ100,URZ100 ¥8,900
87501B — Control Sub-assy, Seat Heater, LH
87501-11010 Control Sub-assy, Seat Heater, LH
2017-01 → —
GWZ100,URZ100 ¥6,400
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
